Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Control Shaft & Crossshaft

32 part groups · 8 illustrations

Illustrations

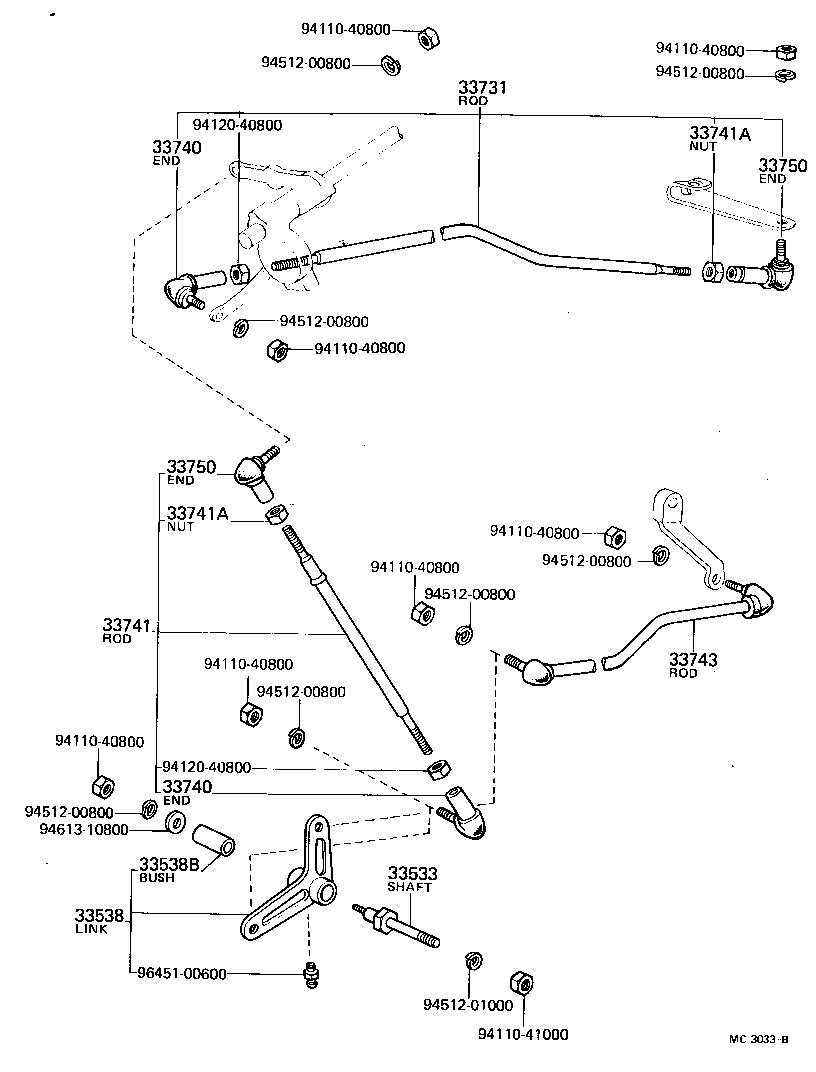

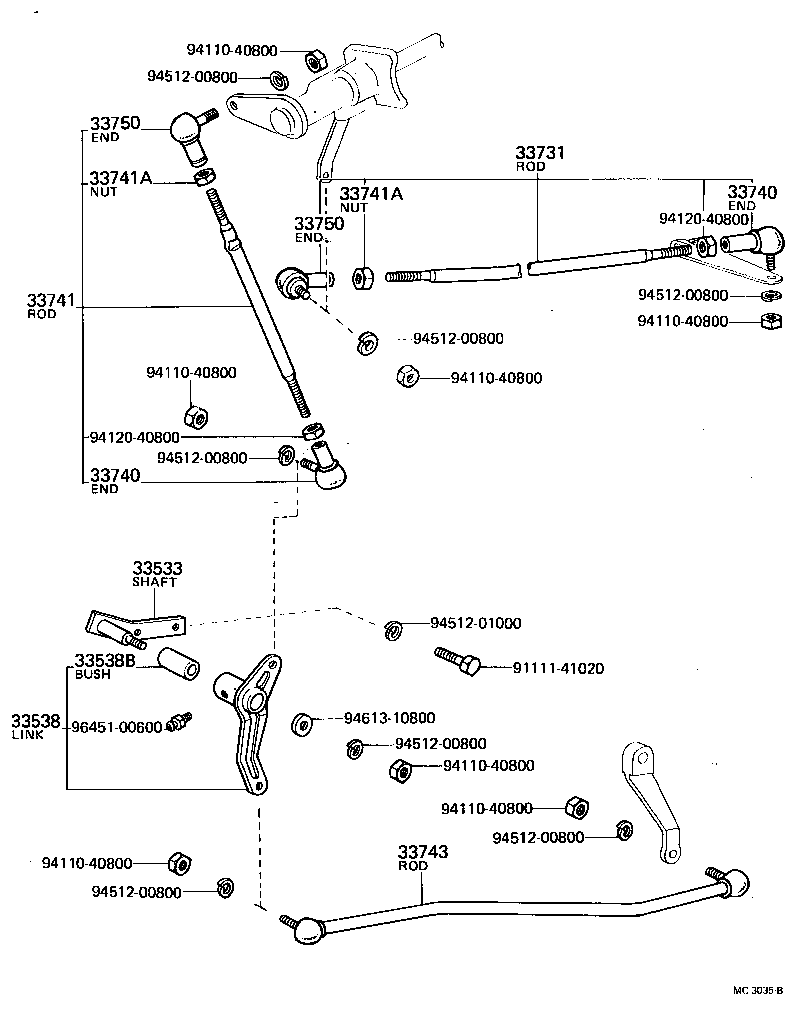

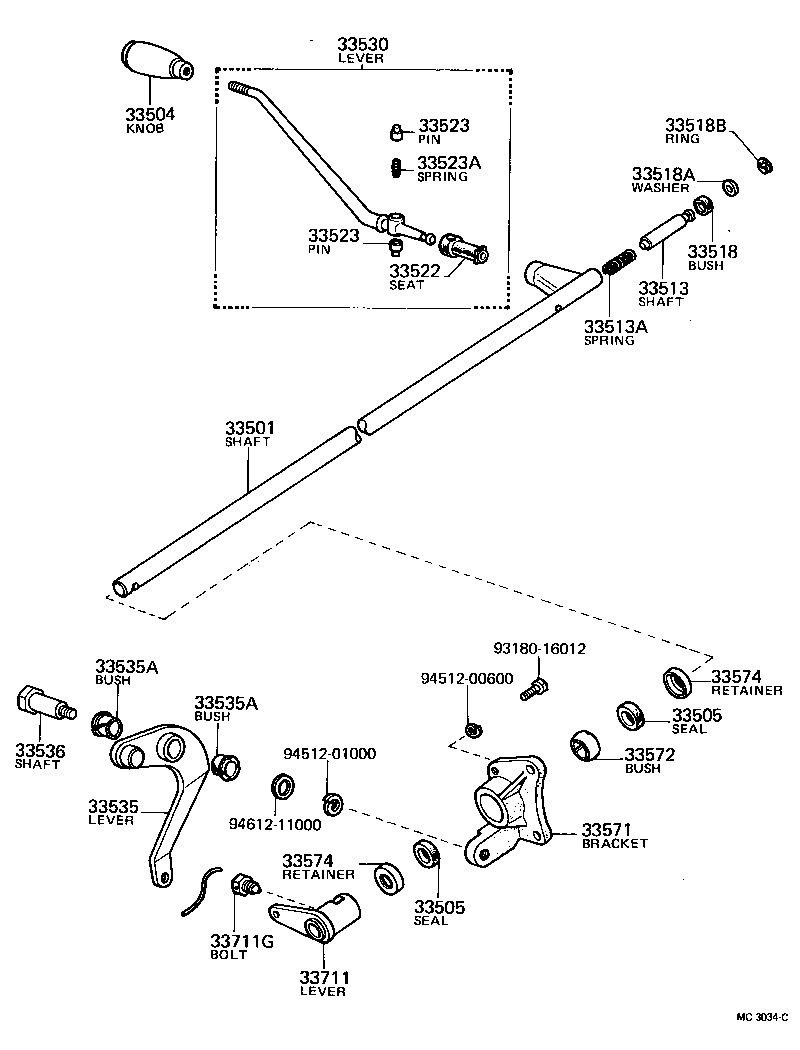

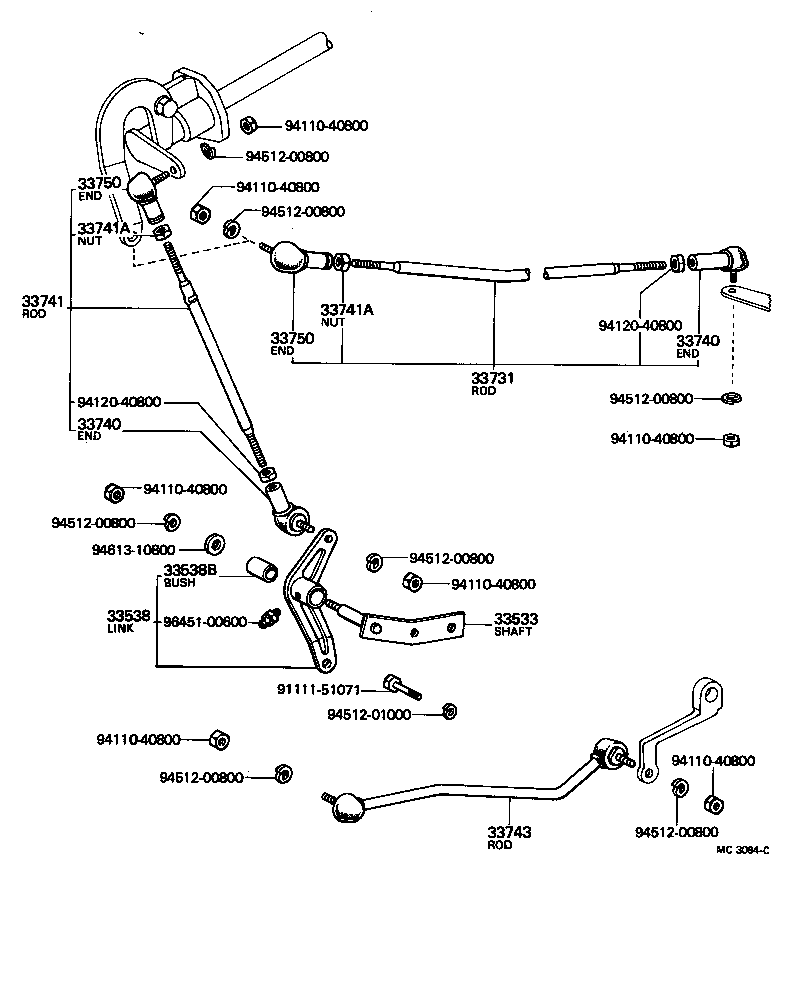

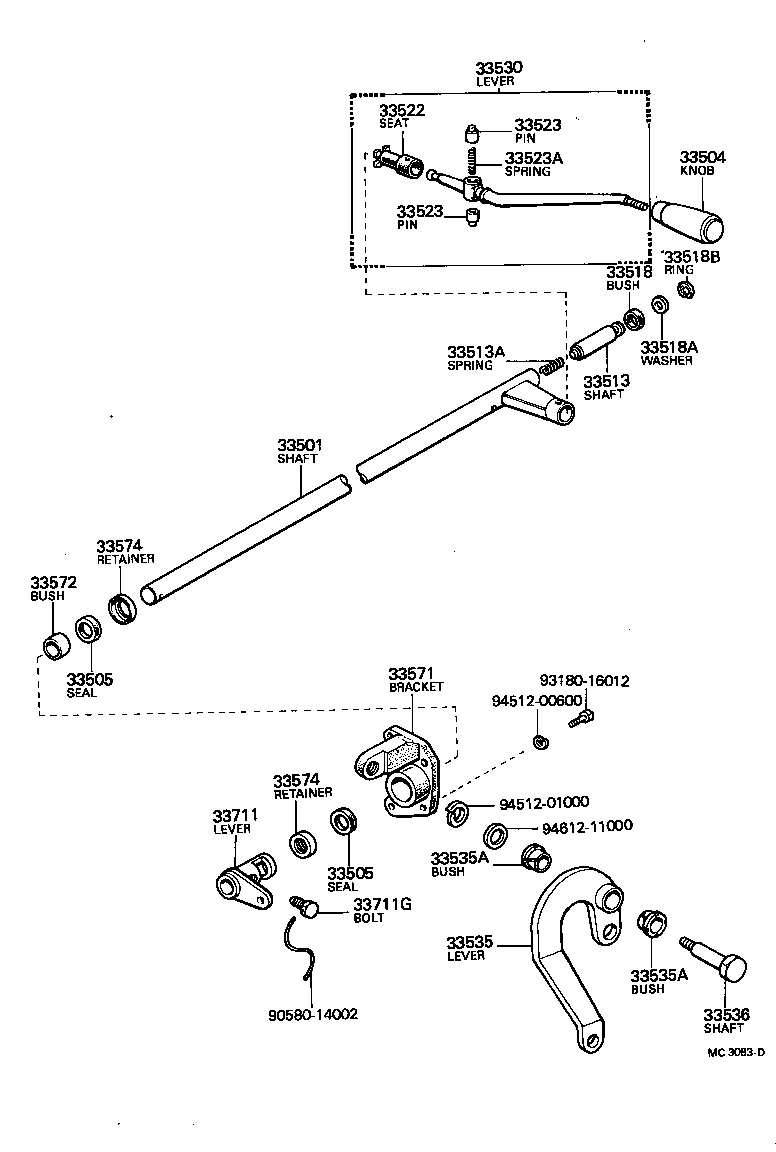

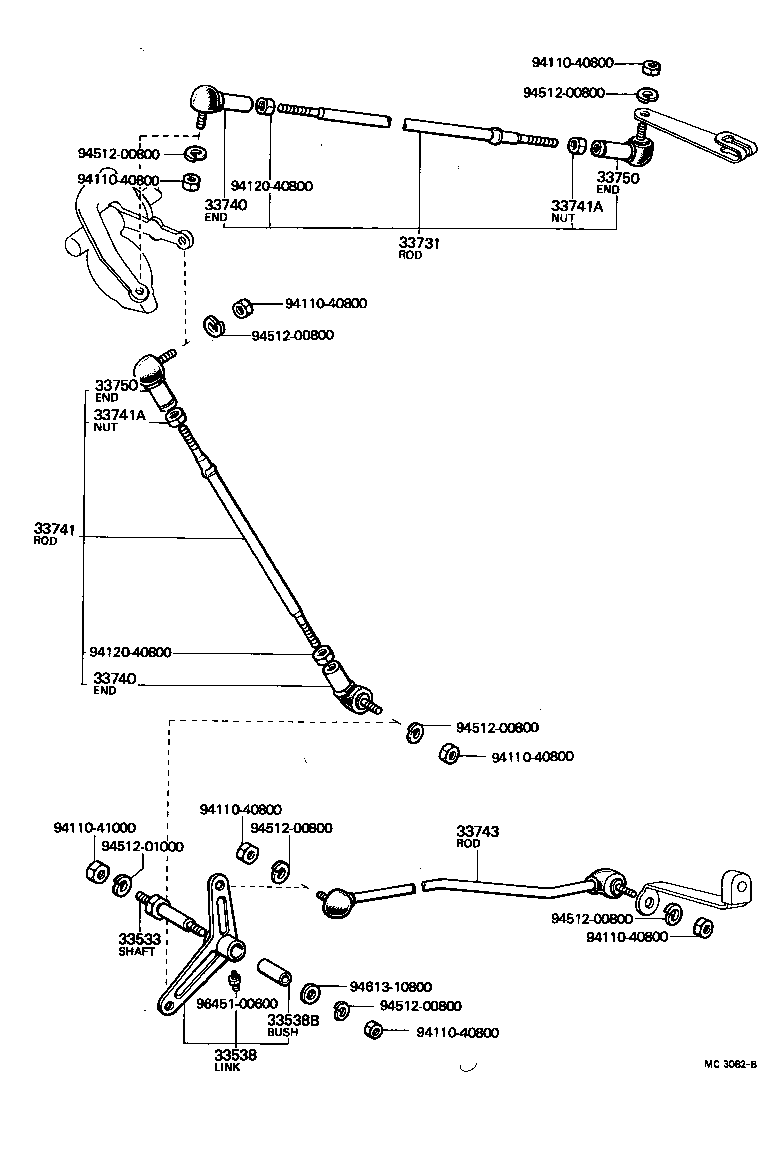

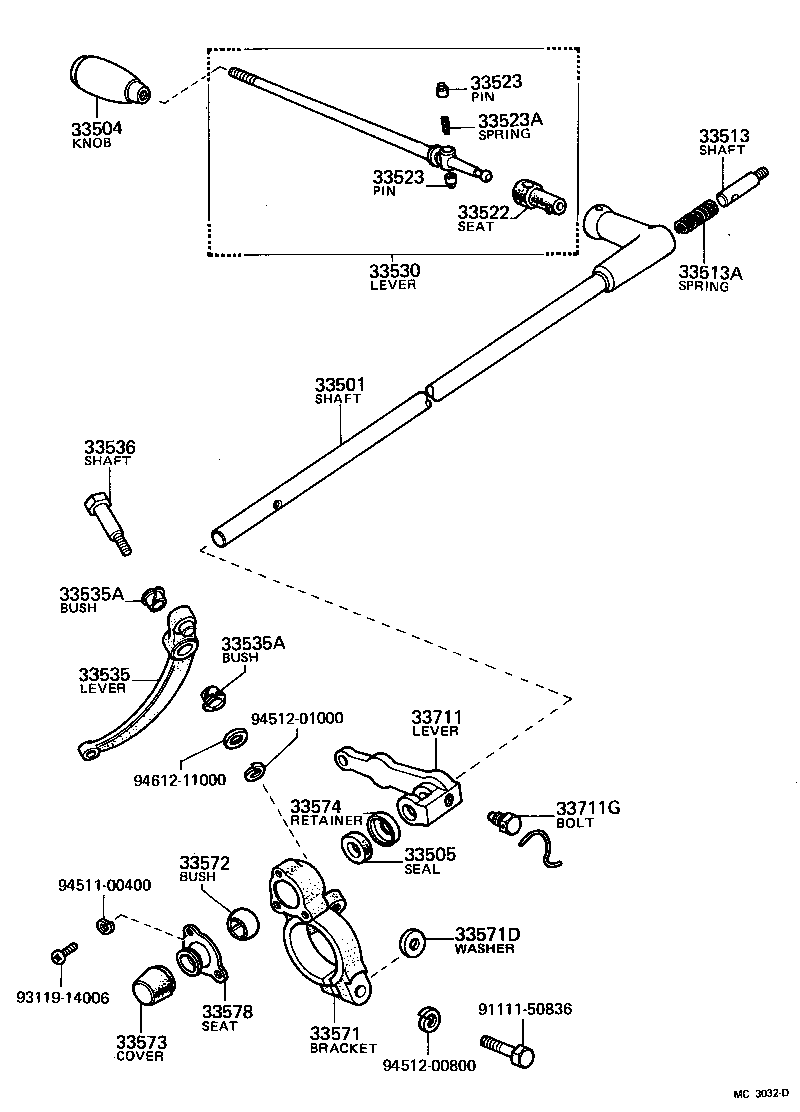

Figure MC3081C MC3081C 1969-03 → 1972-09 Figure MC3082B MC3082B 1969-03 → 1972-09 Figure MC3032D MC3032D 1969-03 → 1972-09 Figure MC3033B MC3033B 1969-03 → 1972-09 Figure MC3083D MC3083D 1969-03 → 1972-09 Figure MC3084C MC3084C 1969-03 → 1972-09 Figure MC3034C MC3034C 1969-03 → 1972-09 Figure MC3035B MC3035B 1969-03 → 1972-09

Part groups

PNCDescription
33501 Shaft Sub-assy, Control (FOR COLUMN SHIFT)
33504 Knob Sub-assy, Shift Lever (FOR COLUMN SHIFT)
33505 Seal Sub-assy, Control Shaft Dust (FOR COLUMN SHIFT)
33513 Shaft, Control Shaft Bracket, Upper
33513A Spring, Compression (FOR BRACKET UPPER SHAFT)
33518 Bush, Upper Control Shaft Piece
33518A Washer, Plate (FOR UPPER CONTROL SHAFT PIECE BUSH)
33518B Ring, E (FOR UPPER CONTROL SHAFT PIECE BUSH)
33522 Seat, Shift Lever Plate (FOR COLUMN SHIFT)
33523 Pin, Shift Lever (FOR COLUMN SHIFT)
33523A Spring, Compression
33530 Lever Assy, Shift (FOR COLUMN SHIFT)
33533 Shaft, Bellcrank (FOR COLUMN SHIFT)
33535 Lever, Control Select (FOR COLUMN SHIFT)
33535A Bush (FOR CONTROL SELECT LEVER)
33536 Shaft, Control Select Lever (FOR COLUMN SHIFT)
33538 Link, Shifting Lever
33538B Bush (FOR SHIFTING LEVER LINK)
33571 Bracket, Control Shaft, Lower (FOR COLUMN SHIFT)
33571D Washer, Plate (FOR CONTROL SHAFT LOWER BRACKET)
33572 Bush, Control Shaft Lower (FOR COLUMN SHIFT)
33573 Cover, Control Shaft Dust, Lower
33574 Retainer, Dust Seal (FOR COLUMN SHIFT CONTROL SHAFT)
33578 Seat, Control Shaft Lower Bush, NO.1
33711 Lever, Control Shaft (FOR COLUMN SHIFT)
33711G Bolt, Control Shaft Lever Lock
33731 Rod, Gear Selecting, NO.1 (FOR COLUMN SHIFT)
33740 End Assy, Connecting Rod, NO.1(FOR COLUMN SHIFT)
33741 Rod, Gear Shifting, NO.1 (FOR COLUMN SHIFT)
33741A Nut, Hexagon (FOR COLUMN SHIFT SELECTING OR SHIFTING ROD)
33743 Rod, Gear Shifting, NO.3 (FOR COLUMN SHIFT)
33750 End, Connecting Rod, NO.2 (FOR COLUMN SHIFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
