Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Shift Lever & Retainer

9 part groups · 2 illustrations

Illustrations

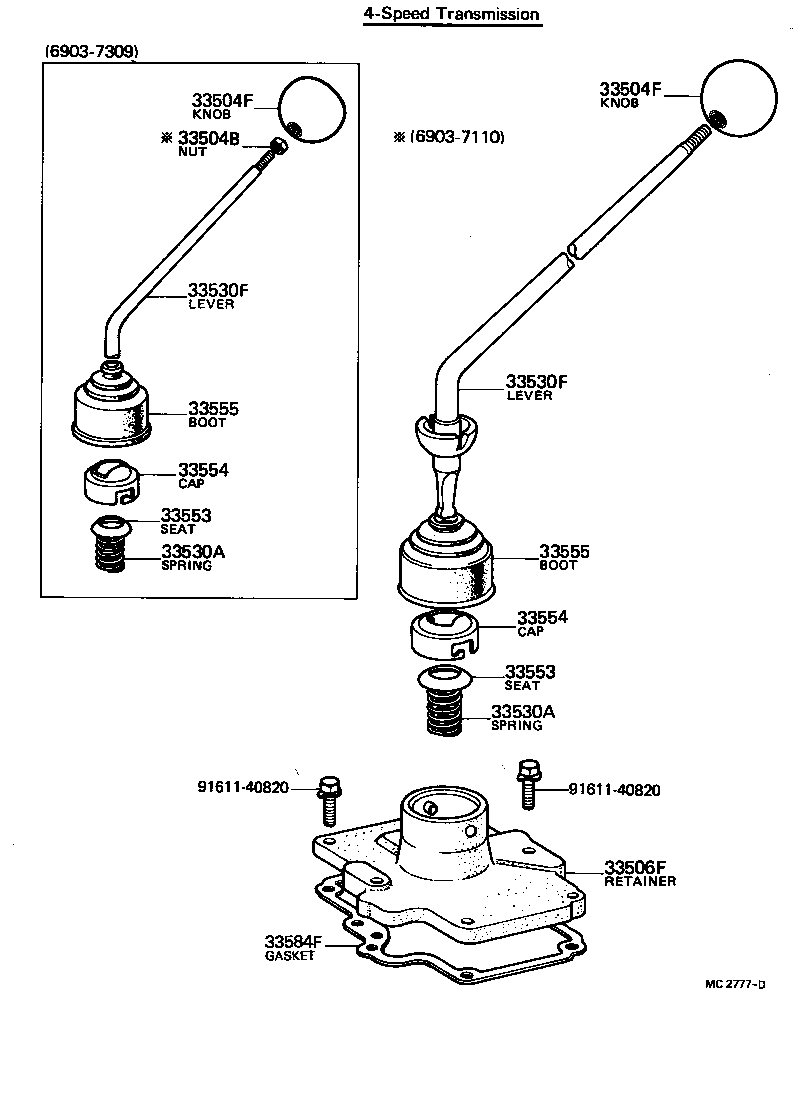

Figure MC4414 MC4414 1969-03 → 1980-07 Figure MC2777D MC2777D 1969-03 → 1980-07

Part groups

PNCDescription
33504B Nut, Hexagon
33504F Knob Sub-assy, Shift Lever
33506F Retainer Sub-assy, Control Shift Lever (FOR FLOOR SHIFT)
33530A Spring, Compression (FOR SHIFT LEVER)
33530F Lever Assy, Shift (FOR FLOOR SHIFT)
33553 Seat, Shift Lever Spring
33554 Cap, Shift Lever
33555 Boot, Shift Lever
33584F Gasket, Control Shift Lever Retainer (FOR FLOOR SHIFT)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
