Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Take-off Lever & Link

22 part groups · 3 illustrations

Illustrations

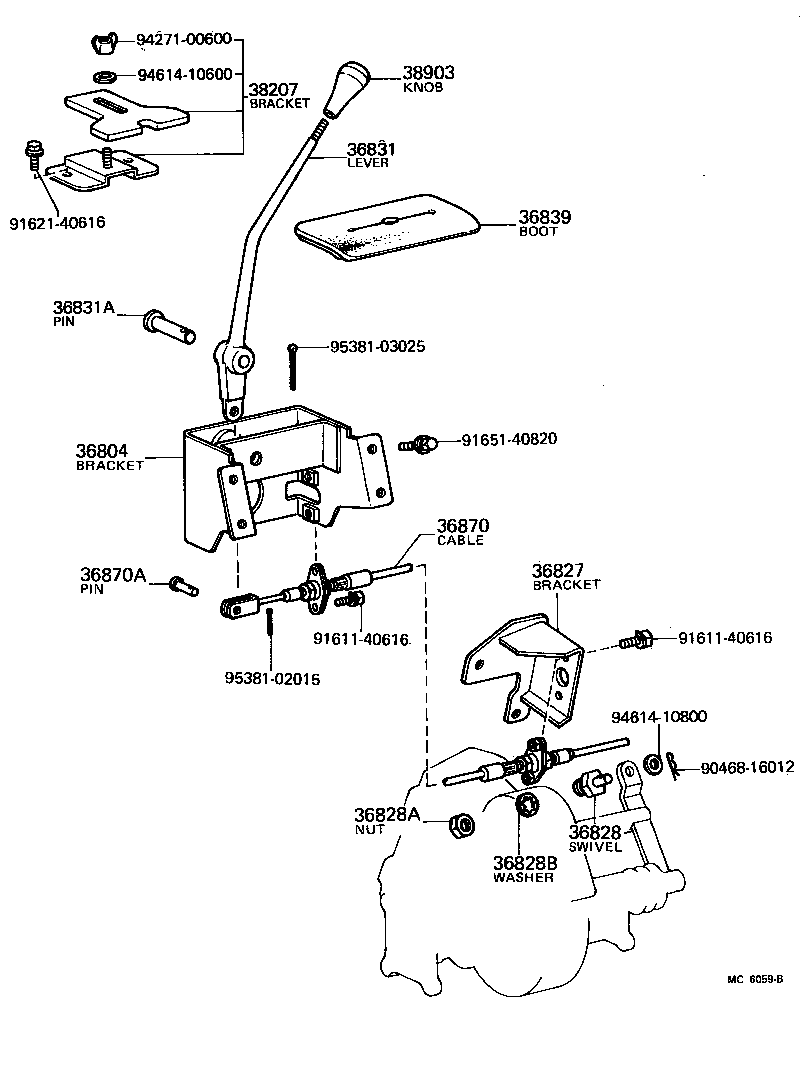

Figure MC2881E MC2881E 1969-03 → 1979-01 Figure MC2881E MC2881E 1979-01 → 1980-07 Figure MC6059B MC6059B 1979-01 → 1980-07

Part groups

PNCDescription
36804 Bracket Sub-assy, Power Take-off Shift Lever
36807 Rod Sub-assy, Power Take-off Shift
36810 Link Assy, Front Power Take-off Shift
36820 Link Assy, Center Power Take-off Shift
36827 Bracket, Power Take-off Cable
36828 Swivel, Power Take-off Cable
36828A Nut, Hexagon (FOR POWER TAKE-OFF CABLE)
36828B Washer, Toothed (FOR POWER TAKE-OFF CABLE)
36831 Lever, Power Take-off Shift
36831A Pin (FOR POWER TAKE-OFF SHIFT LEVER)
36832 Lever, Center Power Take-off Shift
36834 Shaft, Lever Support
36839 Boot, Power Take-off Shift Lever
36850 Rod Assy, Power Take-off Shift
36850A Clevis (FOR POWER TAKE-OFF SHIFT LEVER)
36850B Pin (FOR POWER TAKE-OFF SHIFT LEVER)
36850C End Assy, Power Take-off Shift Rod
36850D Nut (FOR POWER TAKE-OFF SHIFT ROD)
36870 Cable Assy, Power Take-off
36870A Pin (FOR POWER TAKE-OFF CABLE)
38207 Bracket Sub-assy, Lever Shift Lock
38903 Knob Sub-assy, Control
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
