Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Lever & Shift Rod

70 part groups · 8 illustrations

Illustrations

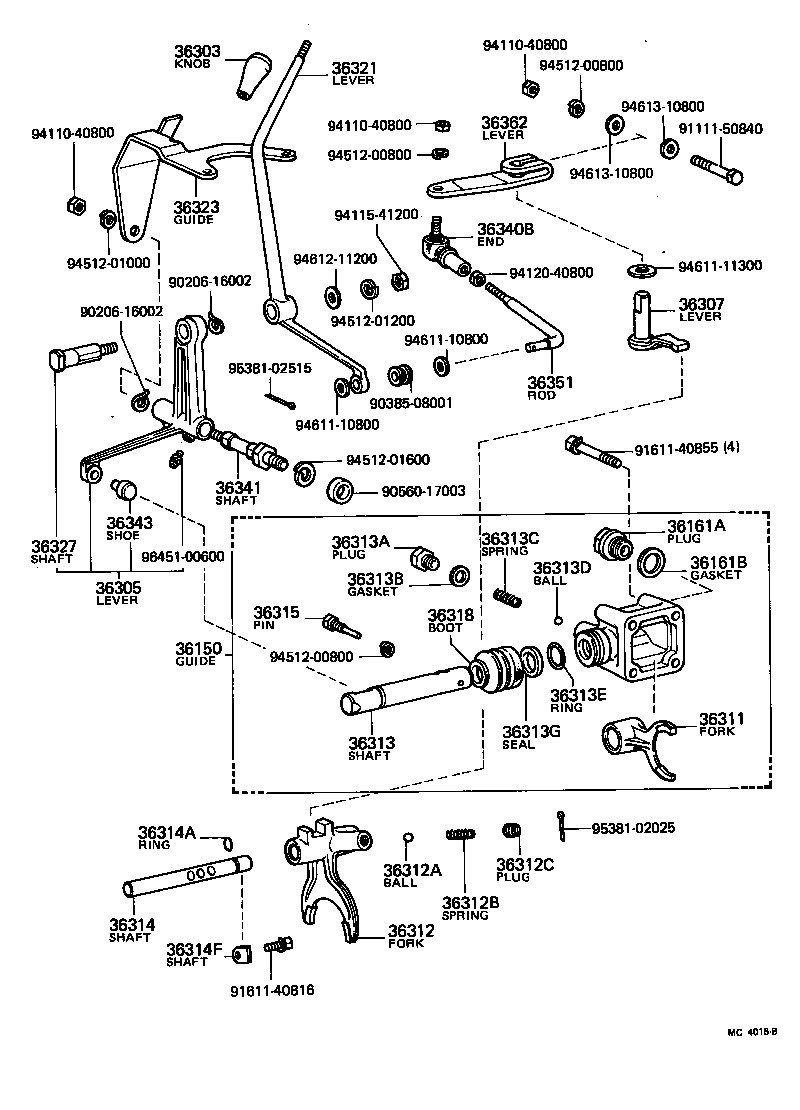

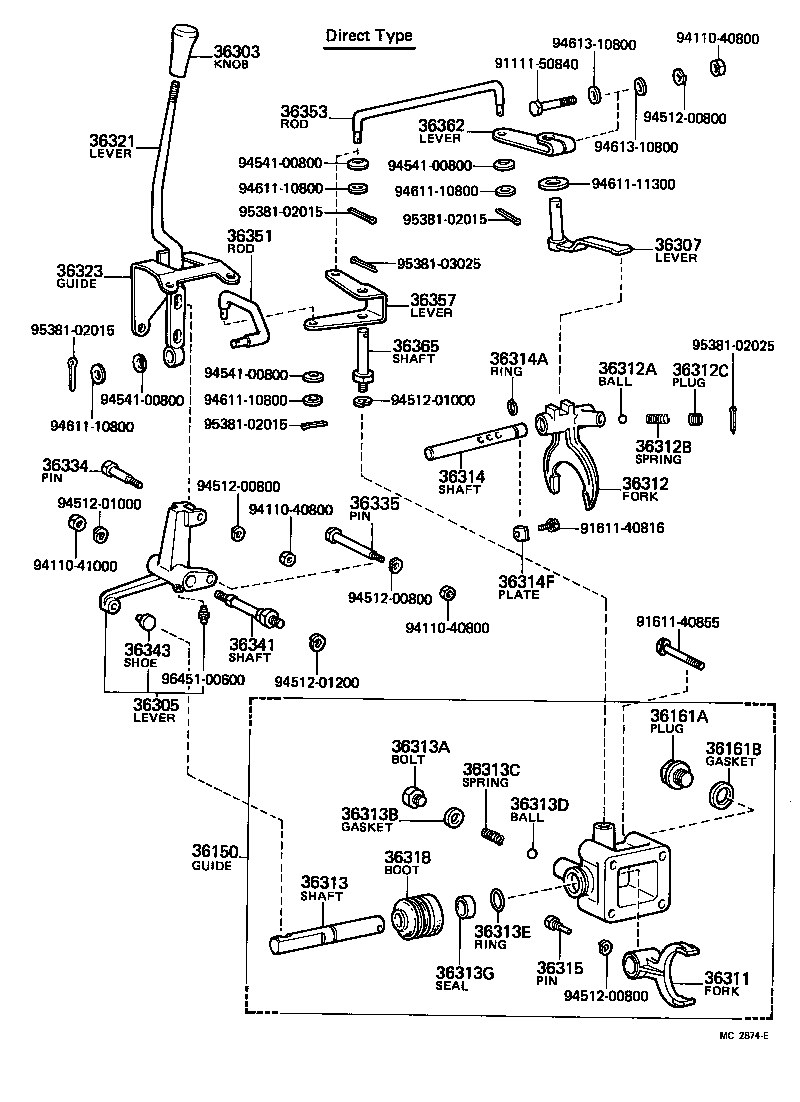

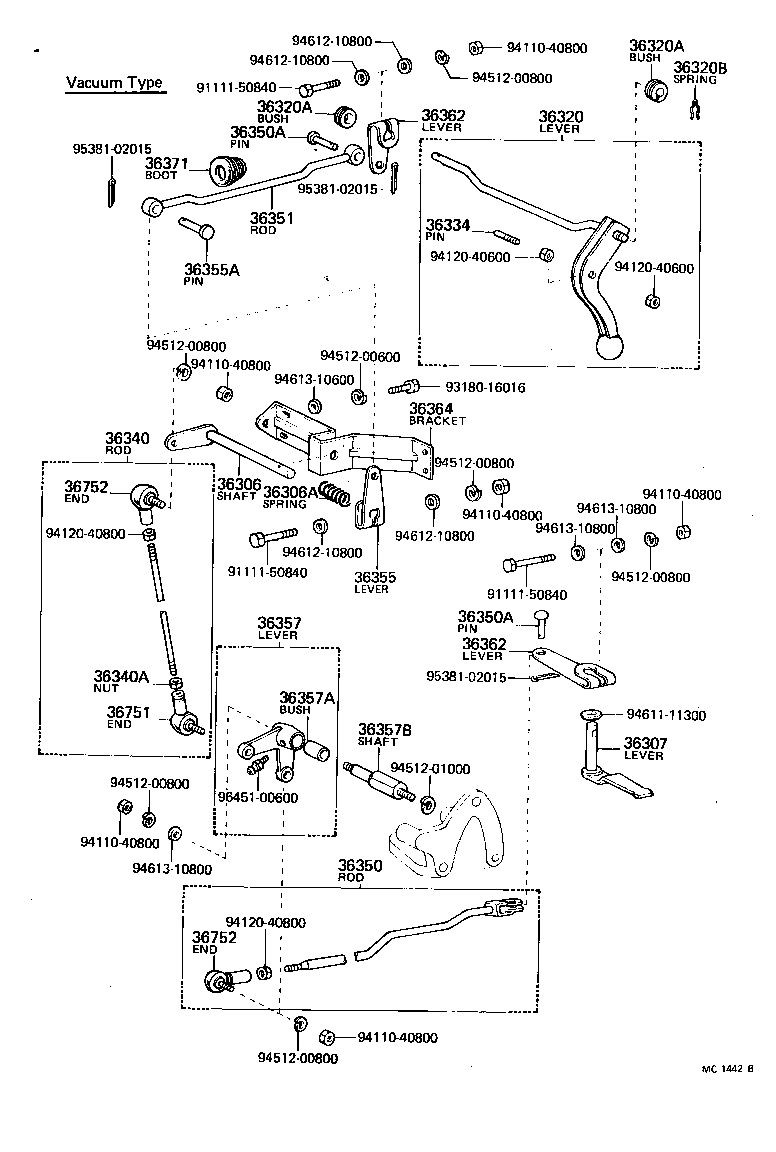

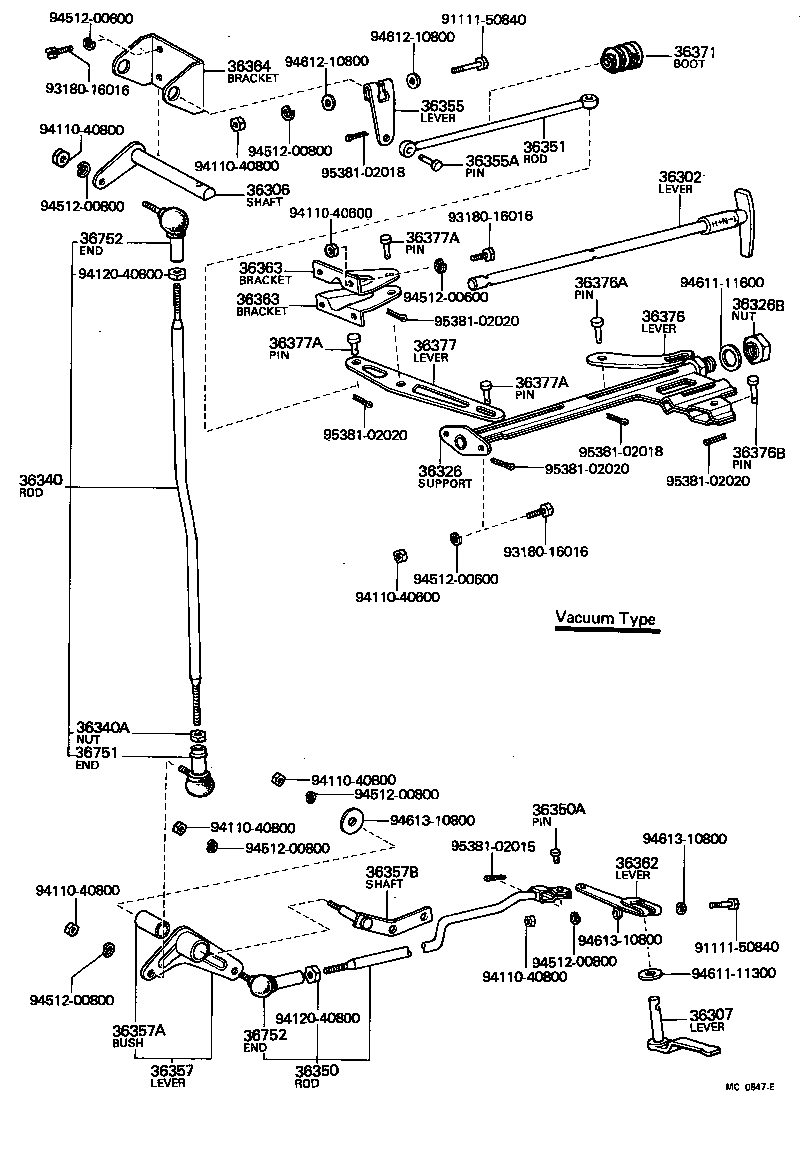

Figure MC0846D MC0846D 1969-03 → 1972-09 Figure MC1442B MC1442B 1969-03 → 1972-09 Figure MC0847E MC0847E 1969-03 → 1972-09 Figure MC2195D MC2195D 1972-09 → 1977-09 Figure MC2195D MC2195D 1977-09 → 1979-01 Figure MC2195D MC2195D 1979-01 → 1979-09 Figure MC2874E MC2874E 1969-03 → 1975-04 Figure MC4016B MC4016B 1975-04 → 1980-07

Part groups

PNCDescription
36150 Guide Assy, Transfer Front Drive Shift Shaft
36161A Plug, Transfer Front Drive Shift Shaft Guide
36161B Gasket, Transfer Front Drive Shift Shaft Guide
36302 Lever Sub-assy, Transfer High & Low Shift
36303 Knob Sub-assy, Shift Lever
36305 Lever Sub-assy, Front Drive Shift Link
36306 Shaft Sub-assy, Control
36306A Spring, Compression
36307 Lever Sub-assy, High & Low Shift Inner
36309 Chain Sub-assy
36311 Fork, Transfer Gear Shift, NO.1
36312 Fork, Transfer Gear Shift, NO.2
36312A Ball, Gear Shift Fork Lock
36312B Spring, Compression(FOR SHIFT FORK LOCK)
36312C Plug, Straight Screw(FOR TRANSFER SHIFT FORK)
36313 Shaft, Transfer Front Drive Shift
36313A Bolt, Lock(FOR TRANSFER FRONT DRIVE SHIFT SHAFT LOCK)
36313B Gasket, Shift Fork Lock Bolt
36313C Spring, Shift Fork Lock
36313D Ball, Shift Fork Lock
36313E Ring, O(FOR SHIFT FORK SHAFT)
36313G Seal, Dust(FOR SHIFT FORK SHAFT)
36314 Shaft, Transfer High And Low Shift Fork
36314A Ring, O (FOR TRANSFER SHIFT FORK SHAFT)
36314F Plate, Lock (FOR TRANSFER HIGH & LOW SHIFT FORK SHAFT)
36315 Pin, Transfer Fork Shaft
36318 Boot, Transfer Front Drive Shift
36320 Lever Assy, Transfer Shift
36320A Bush (FOR TRANSFER SHIFT LEVER)
36320B Spring, Retainer (FOR TRANSFER SHIFT LEVER LOCK)
36321 Lever, Transfer Front Drive Shift
36323 Guide, Transfer Shift Lever
36326 Support, Transfer Shift Lever
36326A Pin, W/Hole (FOR TRANSFER SHIFT LEVER SUPPORT)
36326B Nut (FOR TRANSFER SHIFT LEVER SUPPORT SETTING)
36327 Shaft, Transfer Shift Lever
36334 Pin, Shift Lever, NO.1
36334A Washer, Type C (FOR SHIFT LEVER PIN)
36335 Pin, Shift Lever, NO.2
36339 Clevis, Transfer Shift Rod
36340 Rod Assy, High And Low Shift, NO.2
36340A Nut (FOR HIGH AND LOW SHIFT ROD)
36340B End Assy (FOR HIGH & LOW SHIFT ROD)
36341 Shaft, Front Drive Shift Link Support
36343 Shoe, Front Drive Shift Link Lever (FOR DIRECT TYPE)
36350 Rod Assy, High & Low Shift
36350A Pin, W/Hole (FOR HIGH & LOW SHIFT ROD)
36351 Rod, High & Low Shift, NO.1
36351A Spacer (FOR HIGH & LOW SHIFT ROD)
36351B Pin (FOR HIGH & LOW SHIFT ROD)
36351C Pin (FOR HIGH & LOW SHIFT ROD)
36351D Grommet (FOR HIGH & LOW SHIFT ROD)
36353 Rod, High & Low Shift, NO.3
36355 Lever, High & Low Shift Link
36355A Pin, W/Hole (FOR SHIFT LINK LEVER)
36357 Lever Sub-assy, High & Low Shift Link
36357A Bush (FOR HIGH & LOW SHIFT LINK LEVER)
36357B Shaft (FOR HIGH & LOW SHIFT LINK LEVER)
36362 Lever, Transfer High And Low Shift Outer
36363 Bracket, High And Low Shift Link, NO.1
36364 Bracket, High & Low Shift Link
36365 Shaft, Link Support
36371 Boot, Shift Rod
36376 Lever, Front Drive Guide, NO.1
36376A Pin, W/Hole (FOR FRONT DRIVE GUIDE LEVER NO.1)
36376B Pin, W/Hole (FOR FRONT DRIVE GUIDE LEVER NO.1)
36377 Lever, Front Drive Guide, NO.2
36377A Pin, W/Hole (FOR FRONT DRIVE GUIDE LEVER NO.2)
36751 End Assy, Connecting Rod, NO.2
36752 End Assy, Connecting Rod, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
