Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Transfer Direct Clutch, Low Brake & Support

19 part groups · 7 illustrations

Illustrations

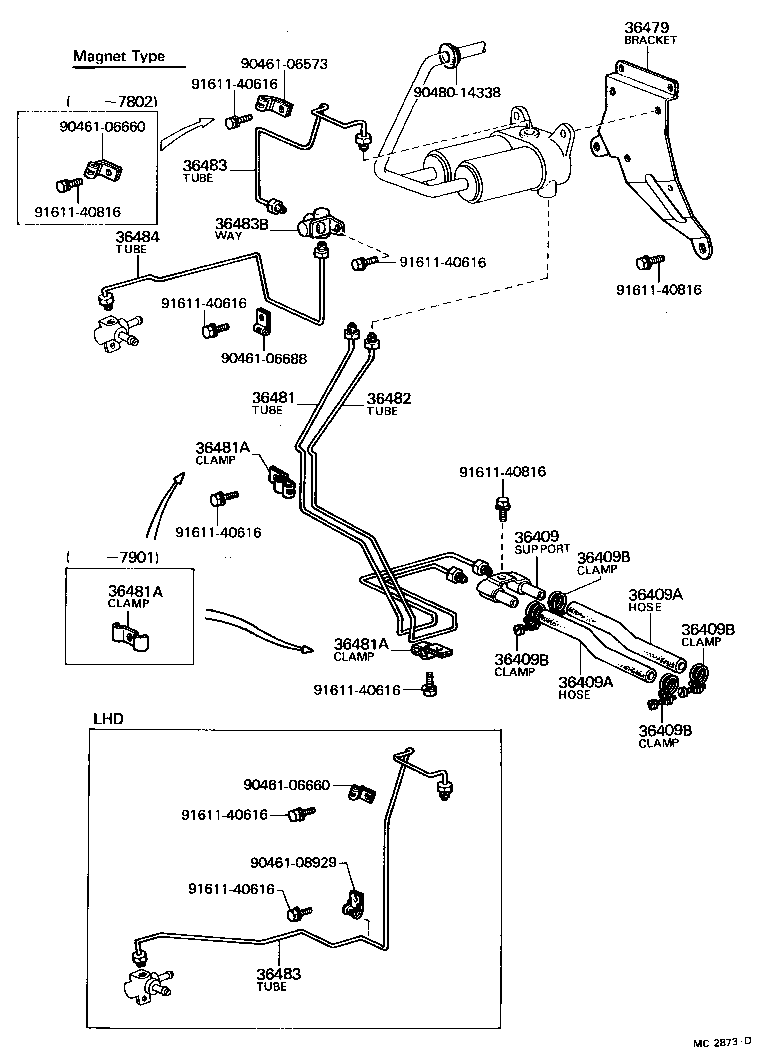

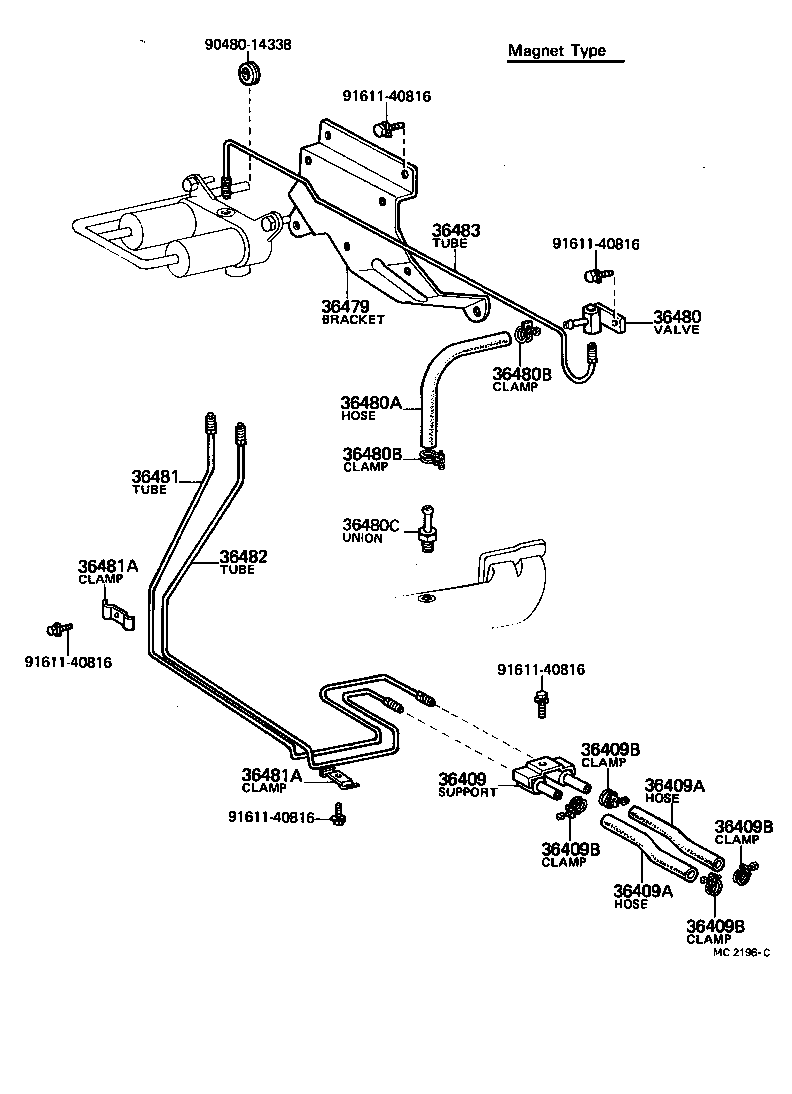

Figure MC0850E MC0850E 1969-03 → 1972-09 Figure MC2196C MC2196C 1972-09 → 1977-09 Figure MC2196C MC2196C 1977-09 → 1979-01 Figure MC2196C MC2196C 1979-01 → 1979-09 Figure MC2873D MC2873D 1974-02 → 1977-09 Figure MC2873D MC2873D 1977-09 → 1979-01 Figure MC2873D MC2873D 1979-01 → 1979-09

Part groups

PNCDescription
36409 Support Sub-assy, Vacuum Tube Union
36409A Hose (FOR VACUUM TUBE)
36409B Clamp, Vacuum Tube
36460 Valve Assy, Vacuum Shift
36460K Valve Kit, Vacuum Shift
36470 Wire Assy, Vacuum Shift Valve
36471 Knob, Front Drive Shift
36479 Bracket, Vacuum Shift Valve
36480 Valve Assy, Vacuum Check(FOR FRONT DRIVE)
36480A Hose (FOR VACUUM CHECK VALVE)
36480B Clamp (FOR VACUUM CHECK VALVE)
36480C Union (FOR VACUUM CHECK VALVE)
36481 Tube, Front Drive Vacuum, NO.1
36481A Clamp (FOR FRONT DRIVE VACUUM TUBE)
36482 Tube, Front Drive Vacuum, NO.2
36483 Tube, Front Drive Vacuum, NO.3
36483A Seat, Union(FOR DRIVE VACUUM TUBE)
36483B Way(FOR FRONT DRIVE VACUUM TUBE)
36484 Tube, Front Drive Vacuum, NO.4
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
