Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Axle Shaft & Hub

26 part groups · 3 illustrations

Illustrations

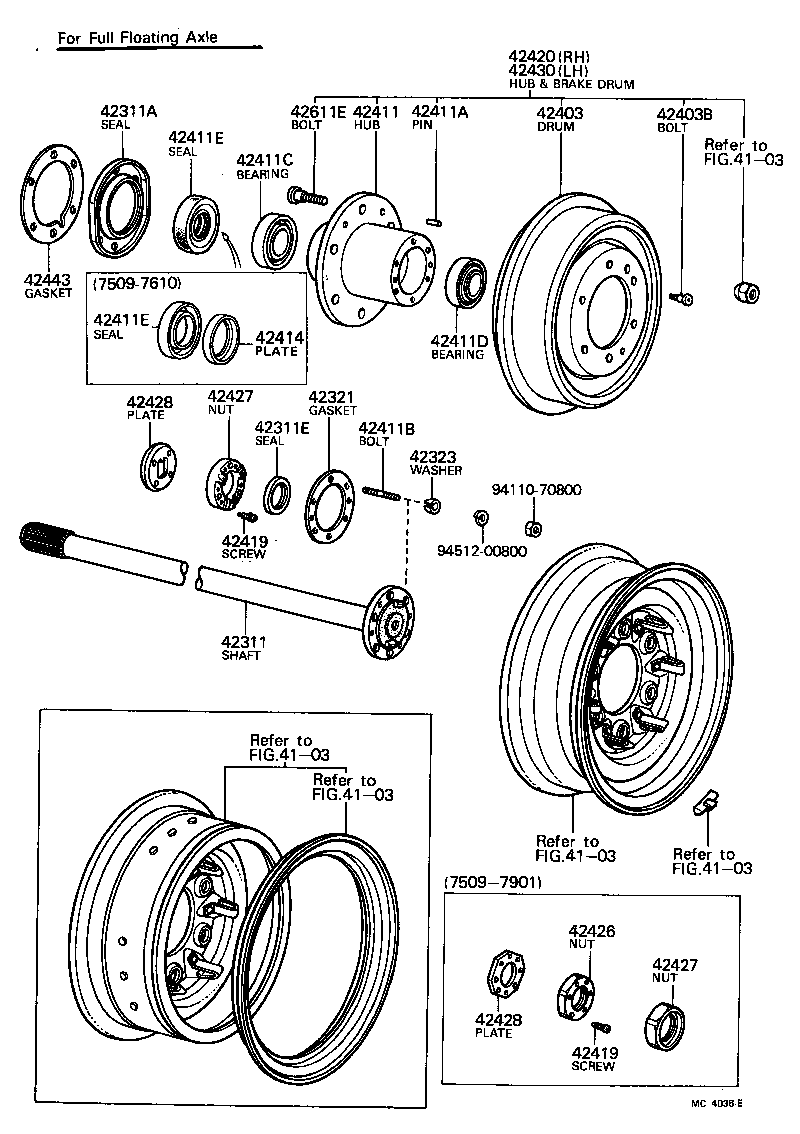

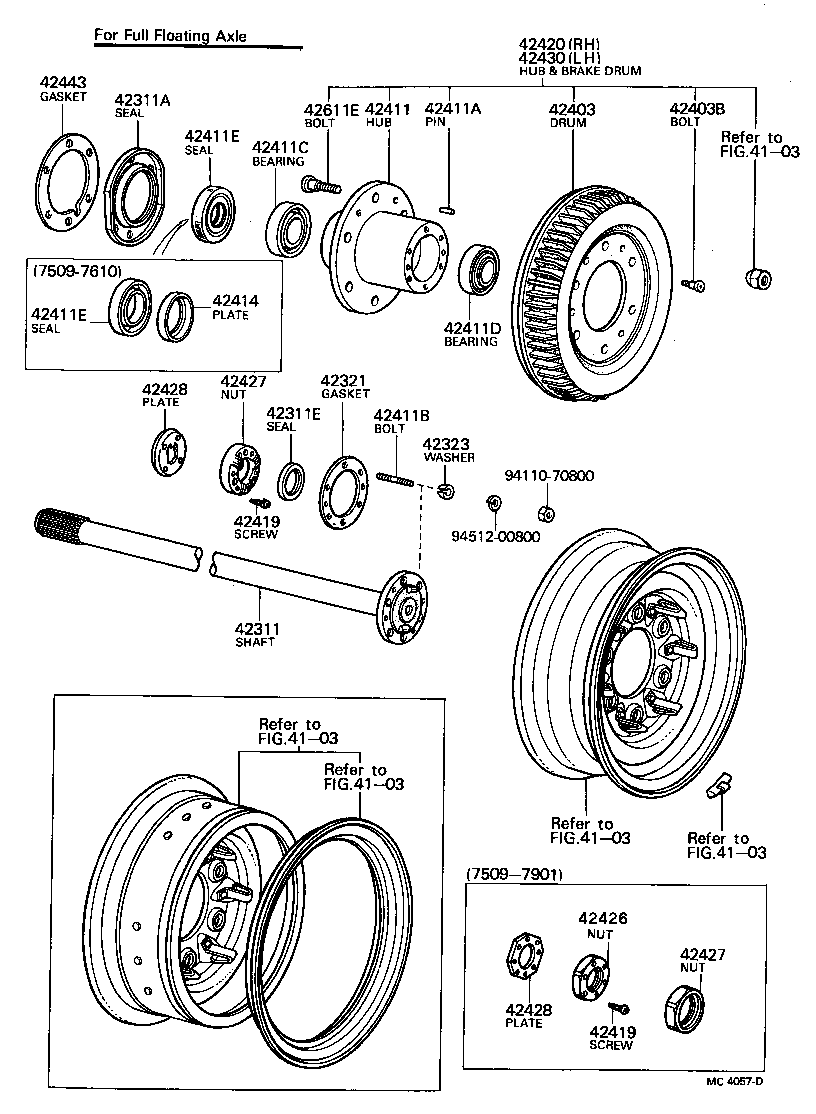

Figure MC0872J MC0872J 1969-03 → 1980-07 Figure MC4036E MC4036E 1975-09 → 1980-07 Figure MC4057D MC4057D 1975-09 → 1980-07

Part groups

PNCDescription
42311 Shaft, Rear Axle
42311A Seal, Oil(FOR REAR AXLE SHAFT)
42311C Bearing(FOR REAR AXLE SHAFT)
42311E Seal, Oil(FOR REAR AXLE SHAFT OUTER)
42311F Washer, Plate(FOR REAR AXLE SHAFT)
42321 Gasket, Rear Axle Shaft
42323 Washer, Cone (FOR REAR AXLE SHAFT)
42325 Lock, Rear Axle Shaft
42403 Drum Sub-assy, Rear Brake
42403B Bolt, Set (FOR REAR BRAKE DRUM SETTING)
42411 Hub, Rear Axle
42411A Pin, Straight (FOR REAR AXLE HUB)
42411B Bolt, Stud (FOR REAR AXLE HUB)
42411C Bearing, Tapered Roller (FOR REAR AXLE INNER BEARING)
42411D Bearing, Tapered Roller (FOR REAR AXLE OUTER BEARING)
42411E Seal, Oil (FOR REAR AXLE HUB)
42414 Plate, Rear Axle Hub
42419 Screw, Rear Axle Bearing Lock Nut
42420 Hub (OR SHAFT) & Brake Drum Rear Axle, RH
42426 Nut, Rear Axle Bearing Lock, Inner
42427 Nut, Rear Axle Bearing Lock
42428 Plate, Rear Axle Lock Nut
42430 Hub (OR SHAFT) & Brake Drum Rear Axle, LH
42441 Deflector, Brake Drum Oil
42443 Gasket, Brake Drum Oil Deflector
42611E Bolt, Hub (FOR REAR AXLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
