Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

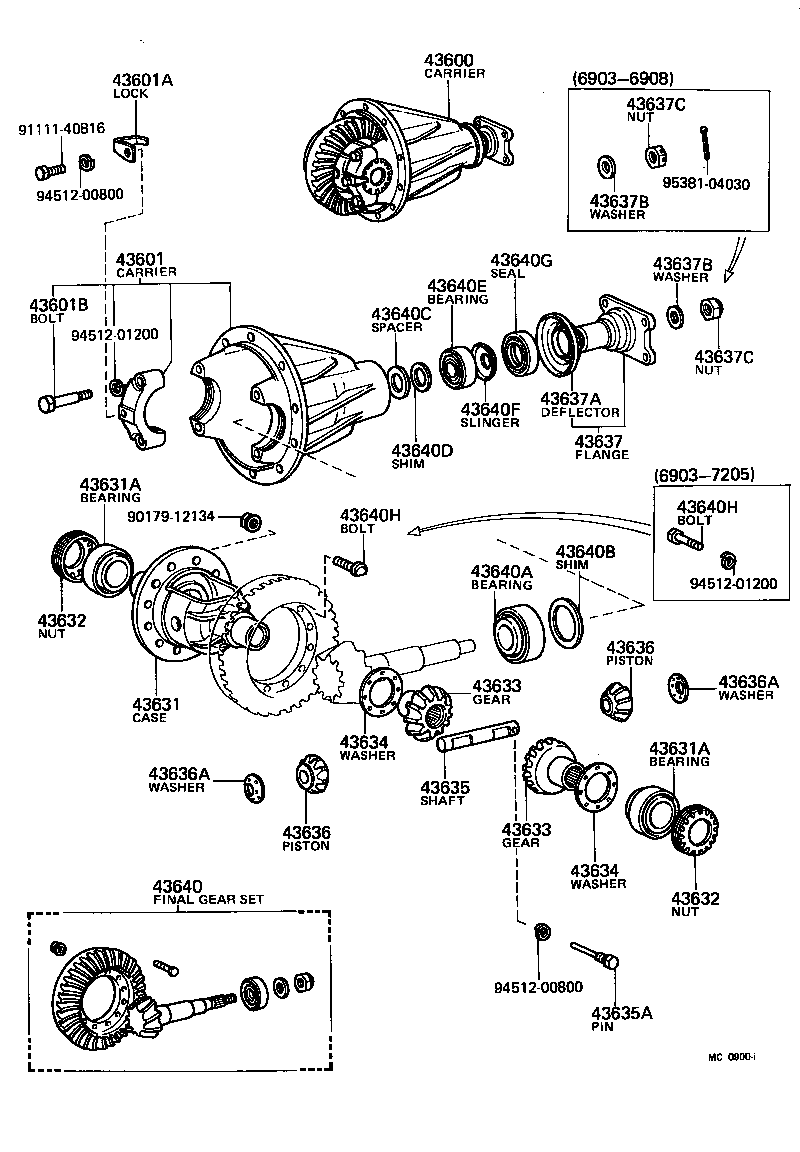

Front Axle Housing & Differential
38 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 43110 | Housing Assy, Front Axle |
| 43110A | Plug Sub-assy, Drain |
| 43110B | Gasket, Drain |
| 43110C | Plug (FOR FRONT AXLE HOUSING) |
| 43110D | Gasket (FOR FRONT AXLE HOUSING PLUG) |
| 43110E | Plug, Breather (FOR FRONT AXLE HOUSING) |
| 43130 | Housing Assy, Front Axle, NO.2 |
| 43130A | Plug, Tight (FOR FRONT AXLE HOUSING) |
| 43411A | Bush, Solid (FOR FRONT AXLE INNER SHAFT) |
| 43411D | Seal, Type T Oil (FOR FRONT DRIVE SHAFT) |
| 43600 | Carrier Assy, Front Axle |
| 43600A | Bolt, Stud (FOR FRONT AXLE DIFFERENTIAL CARRIER SETTING) |
| 43601 | Carrier Sub-assy, Front Axle |
| 43601A | Lock, Front Axle Differential Adjust Nut |
| 43601B | Bolt, Front Axle Differential Bearing Cap |
| 43611 | Gasket, Front Axle Differential Carrier |
| 43631 | Case, Front Axle Differential |
| 43631A | Bearing, Front Axle Differential |
| 43632 | Nut, Front Axle Differential Bearing Adjust |
| 43633 | Gear, Front Axle Differential Side |
| 43634 | Washer, Front Axle Differential Side Gear Thrust |
| 43635 | Shaft, Front Axle Differential Pinion |
| 43635A | Pin, Front Axle Differential Pinion Shaft |
| 43636 | Pinion, Front Axle Differential |
| 43636A | Washer, Front Axle Differential Pinion Thrust |
| 43637 | Flange, Front Axle Drive Pinion, W/Deflector |
| 43637A | Deflector, Dust (FOR FRONT AXLE) |
| 43637B | Washer, Plate (FOR FRONT AXLE DRIVE PINION) |
| 43637C | Nut, Castle (FOR FRONT AXLE DRIVE PINION) |
| 43640 | Final Gear Set, Front Axle Differential |
| 43640A | Bearing, Front Axle Drive Pinion, Front |
| 43640B | Shim, Front Axle Drive Pinion Spacer Rear Adjust |
| 43640C | Spacer OR Washer, Front Axle Drive Pinion Thrust |
| 43640D | Shim, Front Axle Drive Pinion Spacer Front Adjust |
| 43640E | Bearing, Front Axle Drive Pinion, Rear |
| 43640F | Slinger, Front Axle Drive Pinion Oil |
| 43640G | Seal, Type T Oil (FOR FRONT AXLE DIFFERENTIAL CARRIER) |
| 43640H | Bolt, Ring Gear Set |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
