Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Power Steering Tube

14 part groups · 6 illustrations

Illustrations

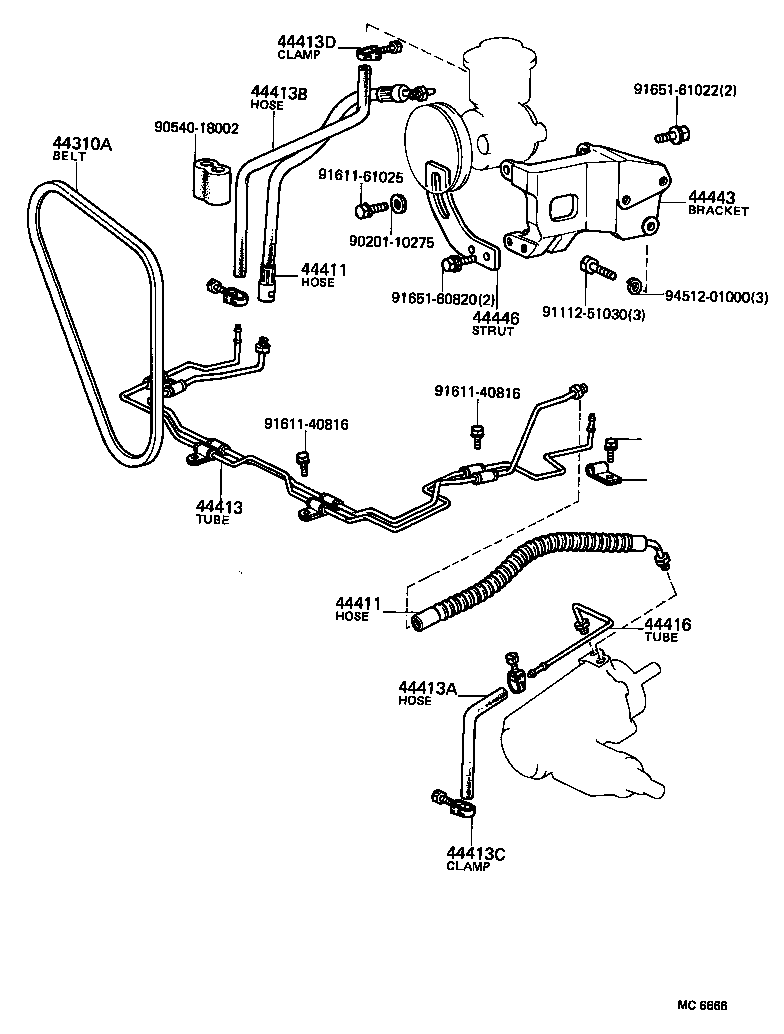

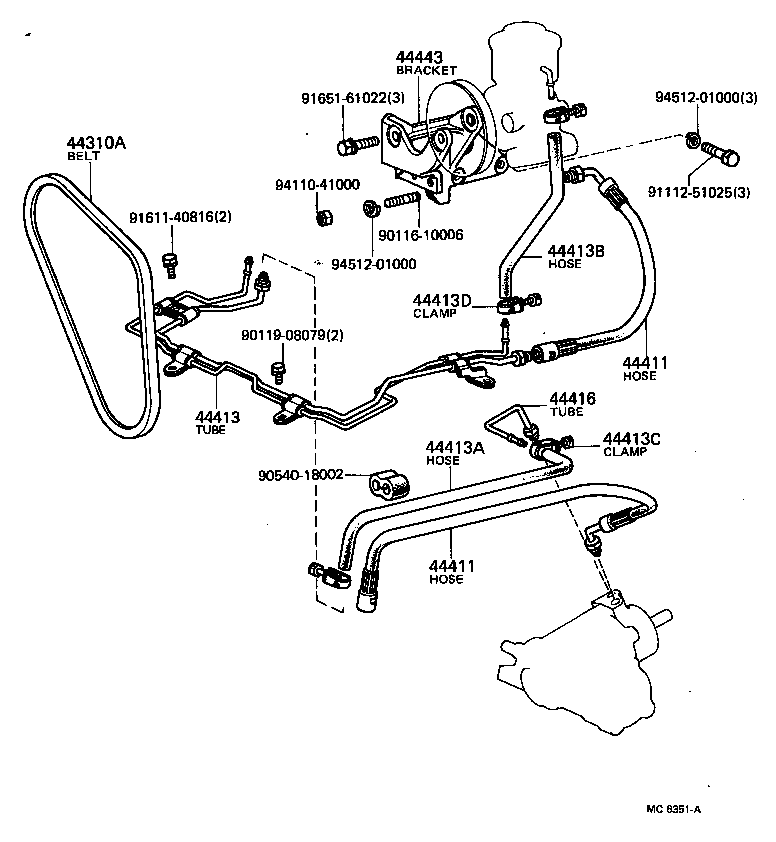

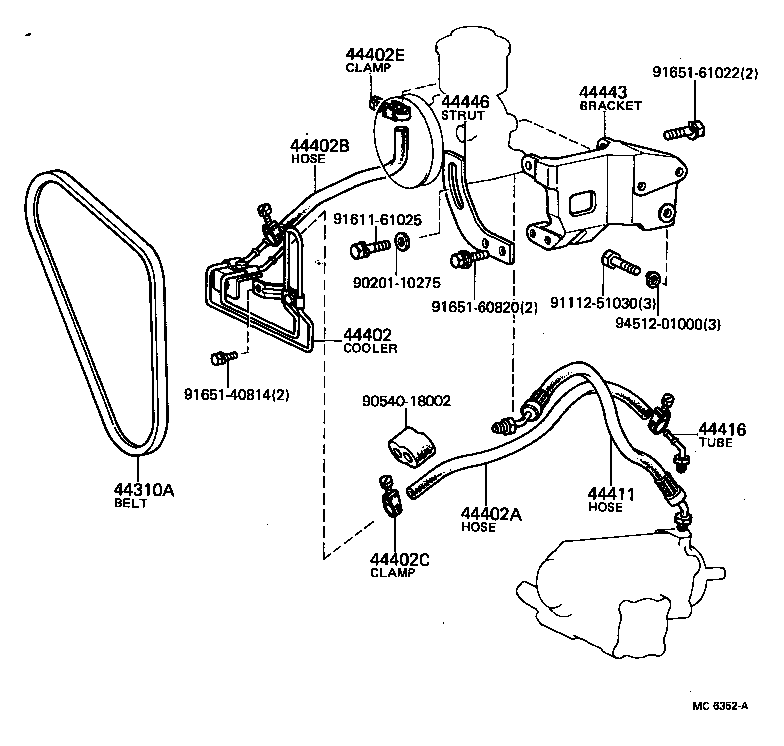

Figure MC6350 MC6350 1979-01 → 1979-09 Figure MC6350 MC6350 1979-09 → 1980-07 Figure MC6351A MC6351A 1979-01 → 1980-07 Figure MC6666 MC6666 1979-01 → 1980-07 Figure MC6352A MC6352A 1979-01 → 1979-09 Figure MC6352A MC6352A 1979-09 → 1980-07

Part groups

PNCDescription
44402 Cooler Sub-assy, Power Steering Oil, NO.1
44402A Hose, Power Steering Oil Cooler Inlet
44402B Hose, Power Steering Oil Cooler Outlet
44402C Clamp, Power Steering Oil Cooler Inlet Hose
44402E Clamp, Power Steering Oil Cooler Outlet Hose
44411 Hose, Pressure Feed
44413 Tube, Pressure Feed, NO.1
44413A Hose(FOR RETURN TUBE OUTLET)
44413B Hose(FOR RESERVOIR TANK INLET)
44413C Clamp(FOR RETURN TUBE OUTLET HOSE)
44413D Clamp(FOR RESERVOIR TANK INLET HOSE)
44416 Tube, Return(FOR STEERING GEAR OUTLET)
44443 Bracket, Pump
44446 Strut, Adjusting
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
