Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Steering Wheel

16 part groups · 5 illustrations

Illustrations

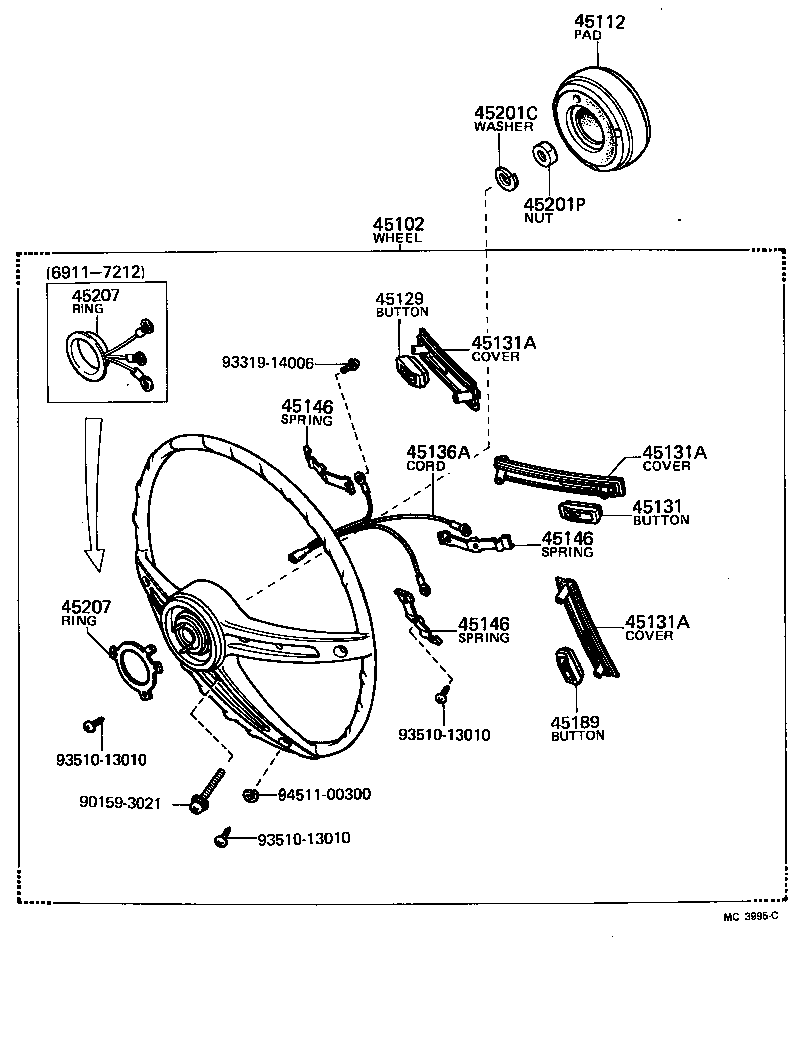

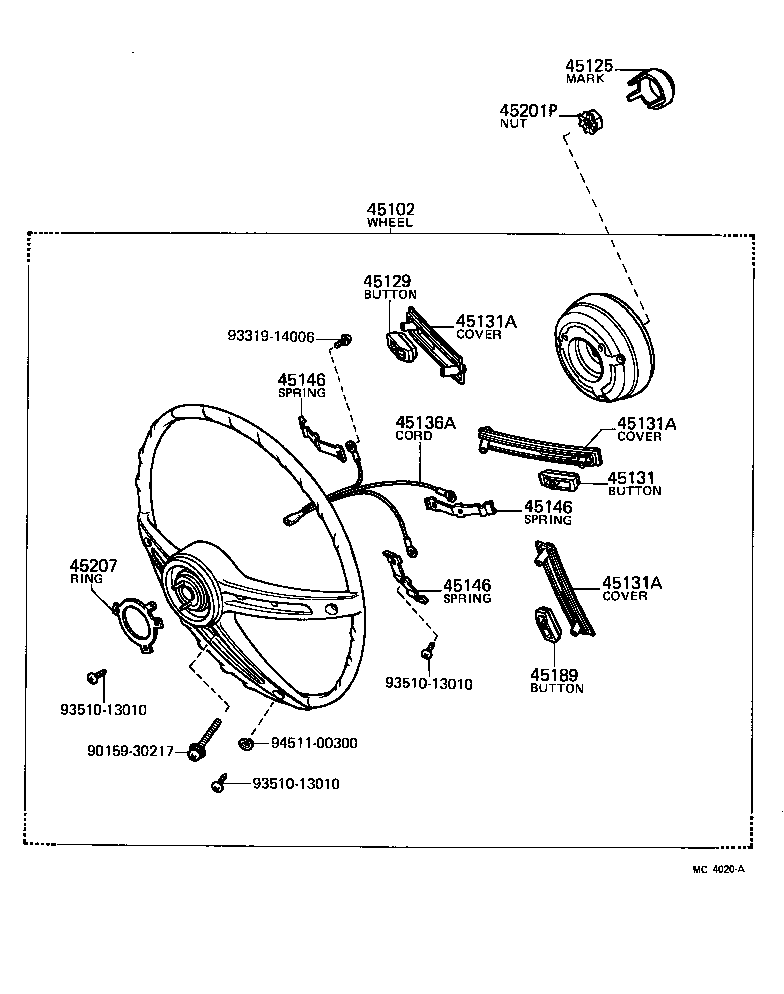

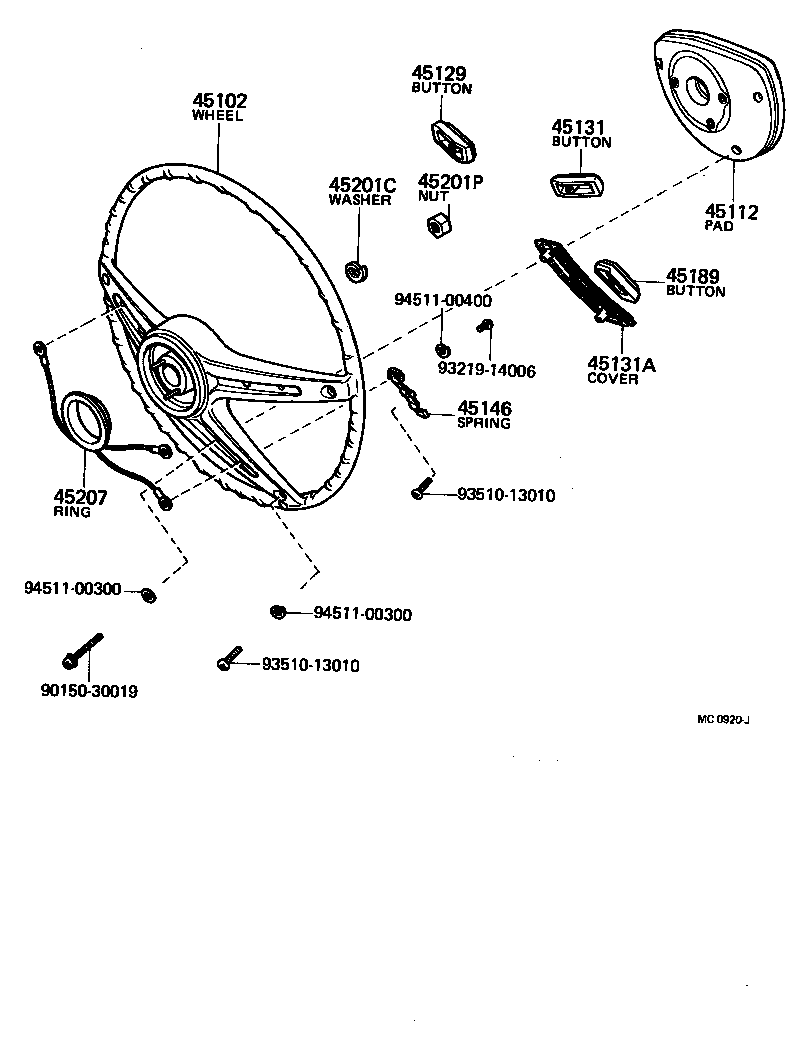

Figure MC0919G MC0919G 1969-03 → 1972-09 Figure MC0920J MC0920J 1969-03 → 1969-11 Figure MC3995C MC3995C 1969-11 → 1975-09 Figure MC3995C MC3995C 1972-09 → 1975-09 Figure MC4020A MC4020A 1975-09 → 1980-07

Part groups

PNCDescription
45102 Wheel Sub-assy, Steering
45112 Pad, Steering Wheel
45125 Mark, Steering Wheel Pad
45129 Button, Horn, NO.2
45130 Button Assy, Horn
45131 Button, Horn, NO.1
45131A Cover, Steering Horn Button
45136A Cord(FOR HORN CONTACT RING)
45142 Seat, Horn Button Contact, NO.1
45146 Spring, Horn Button Contact
45151 Plate,Horn Contact Spring Set
45155 Spacer, Horn Button Contact Plate
45189 Button, Horn, NO.3
45201C Washer, Spring(FOR STEERING WHEEL SET)
45201P Nut, Steering Wheel Set
45207 Ring, Horn Contact
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
