Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Brake Tube & Clamp

50 part groups · 34 illustrations

Illustrations

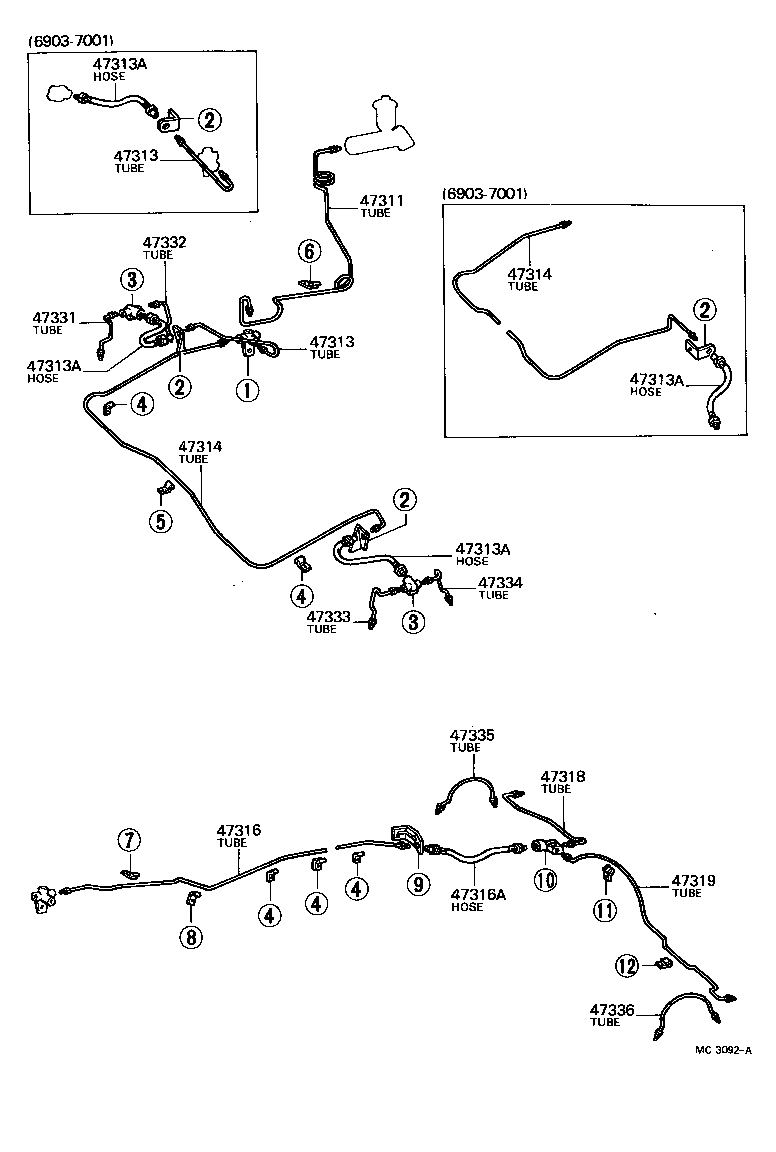

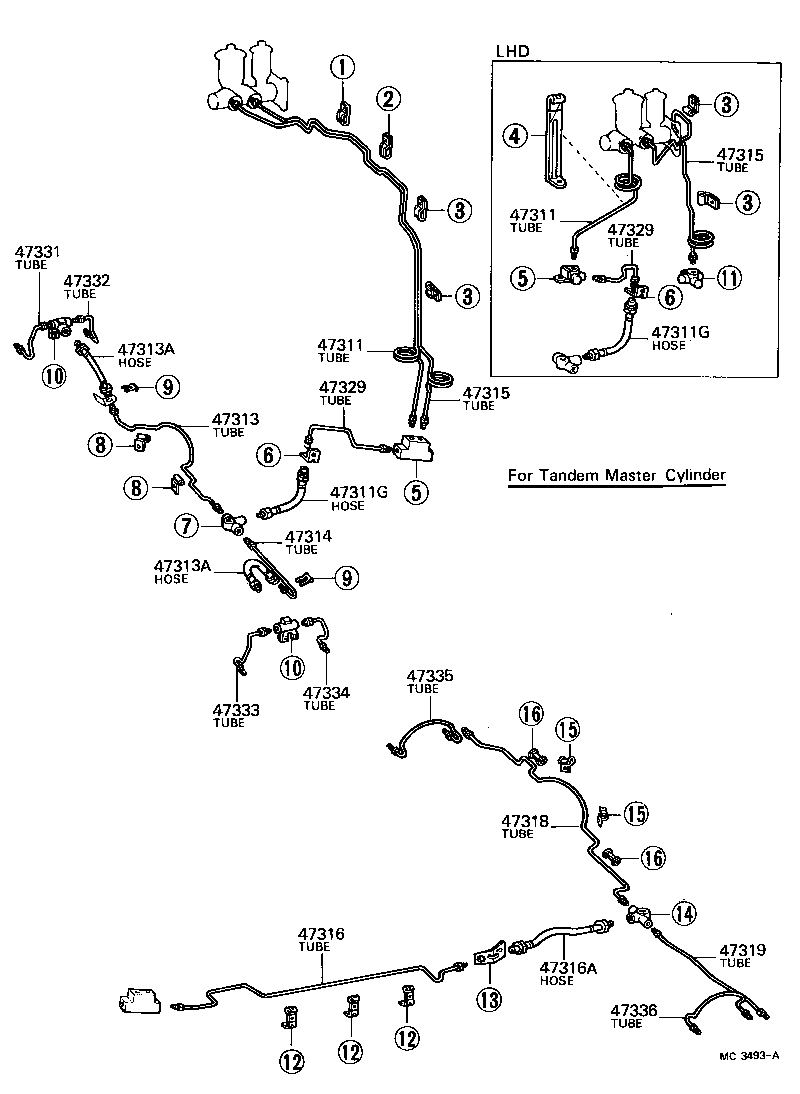

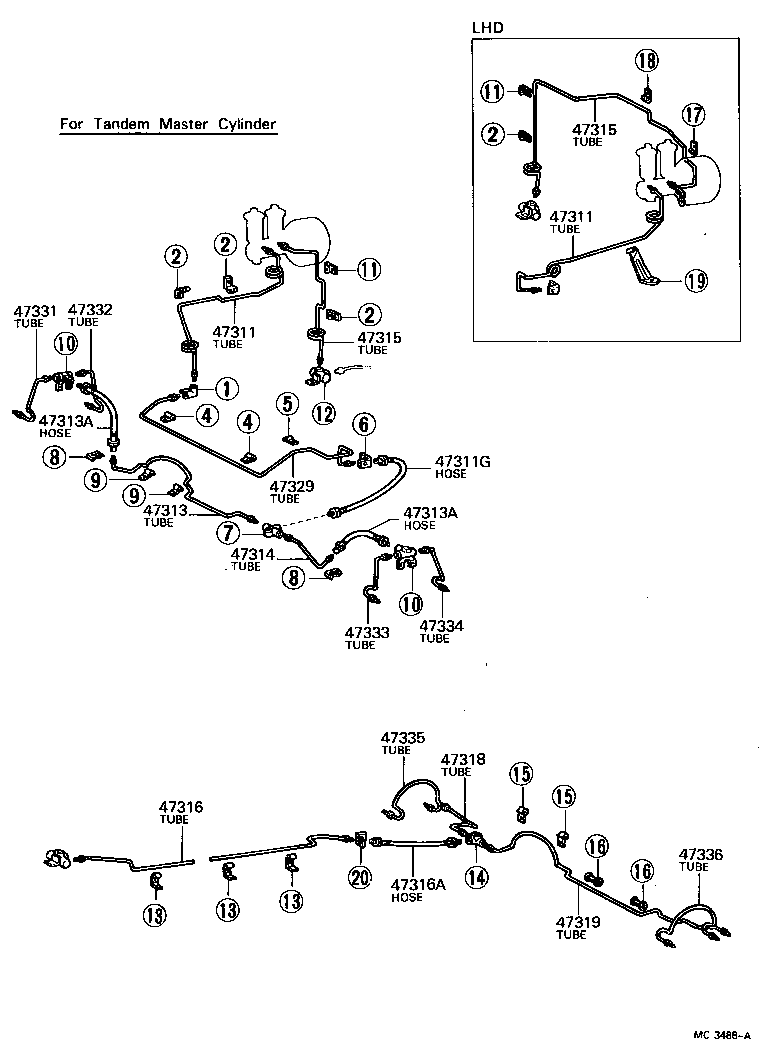

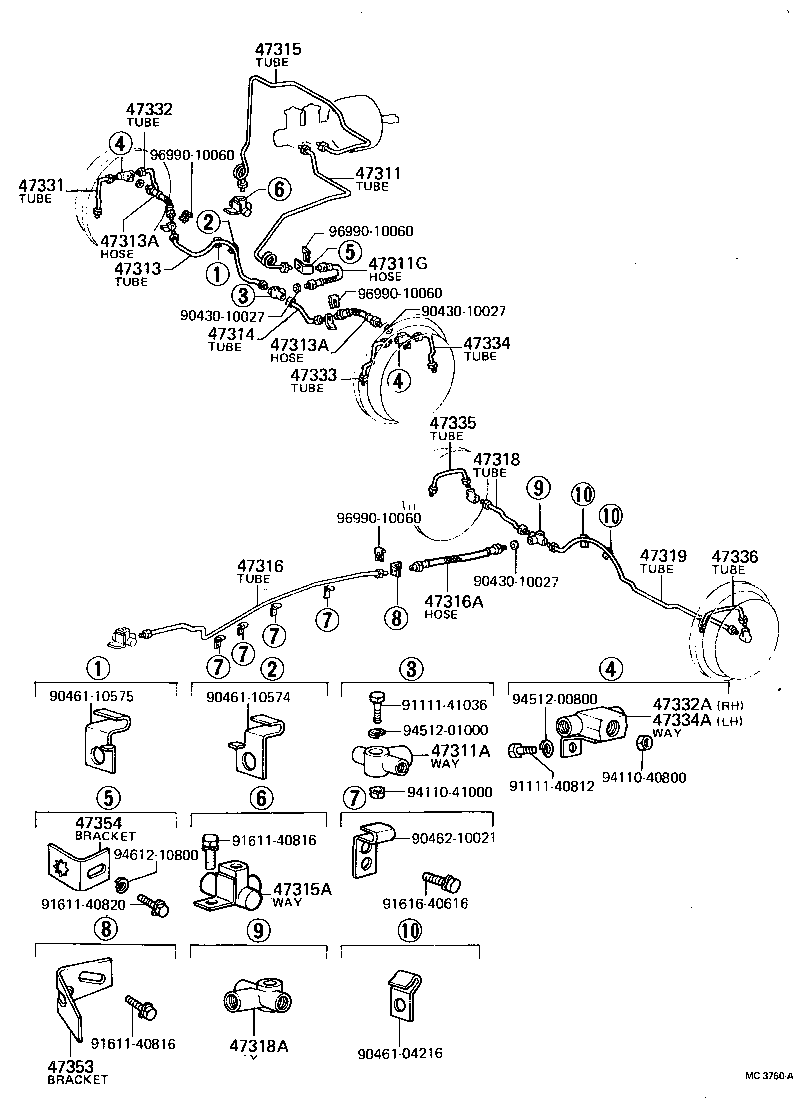

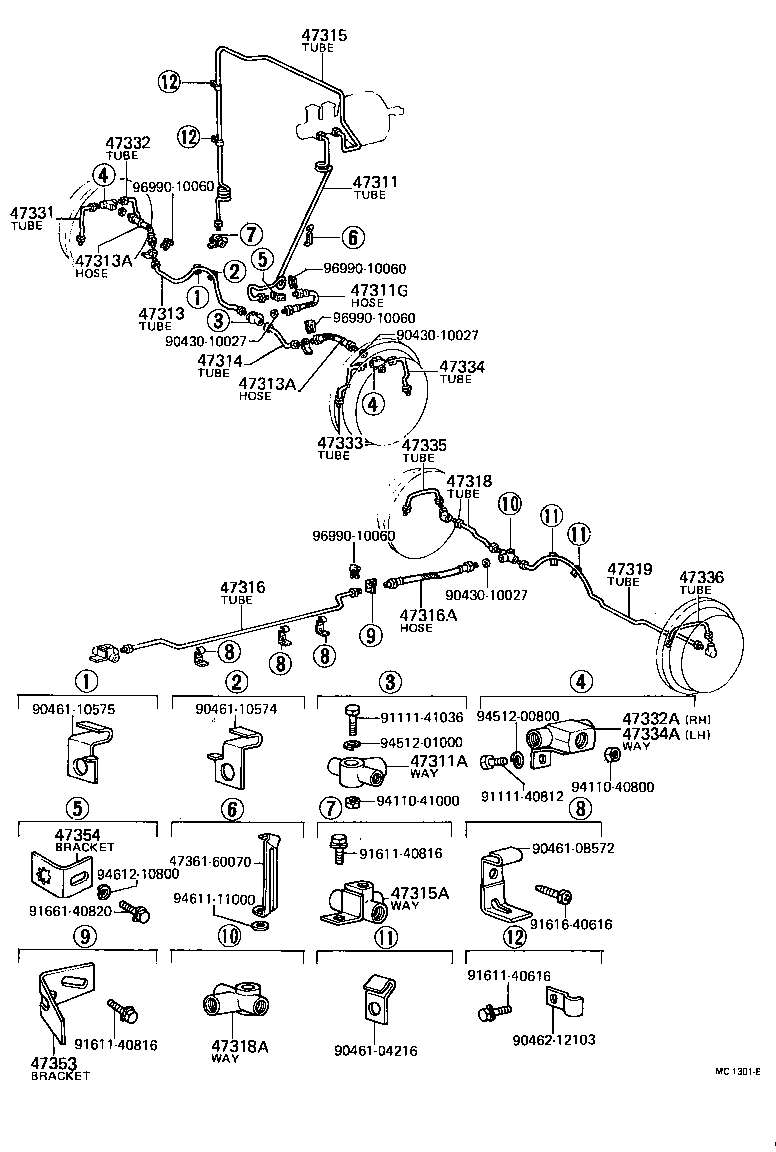

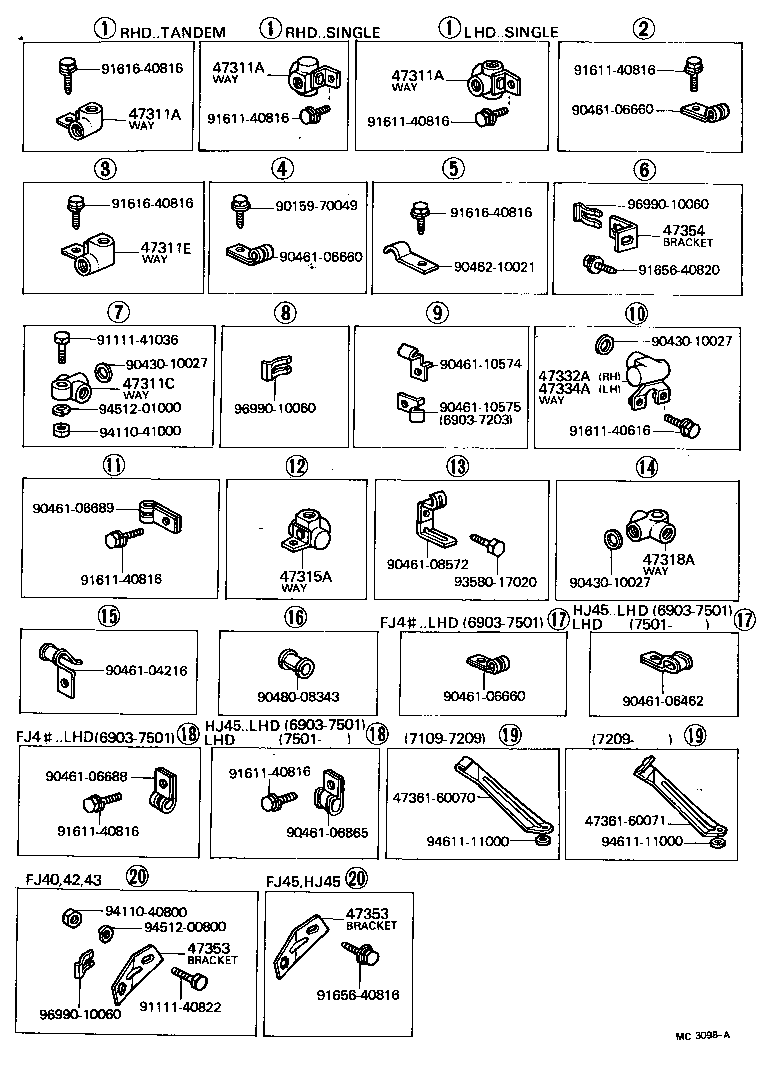

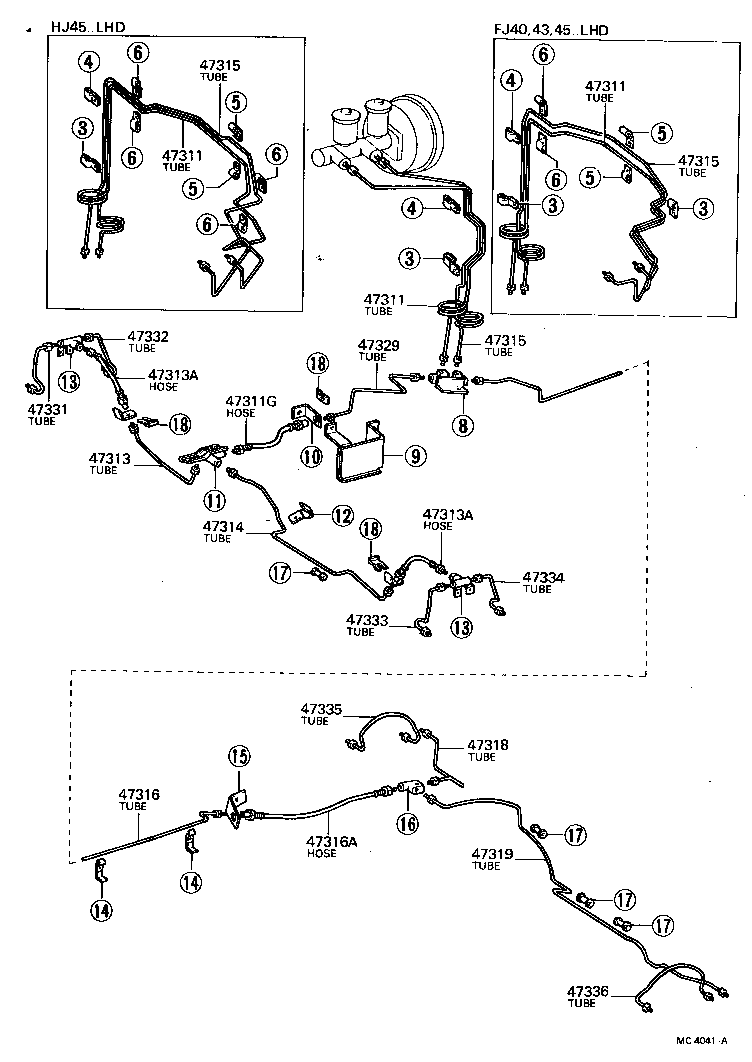

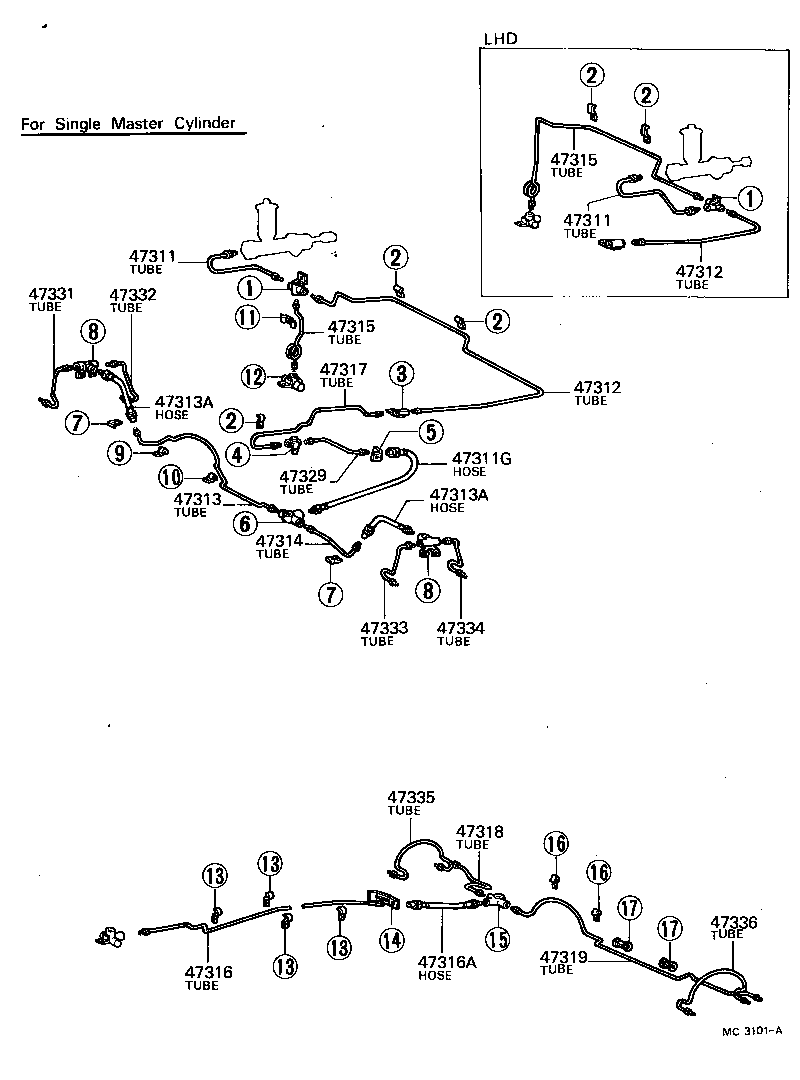

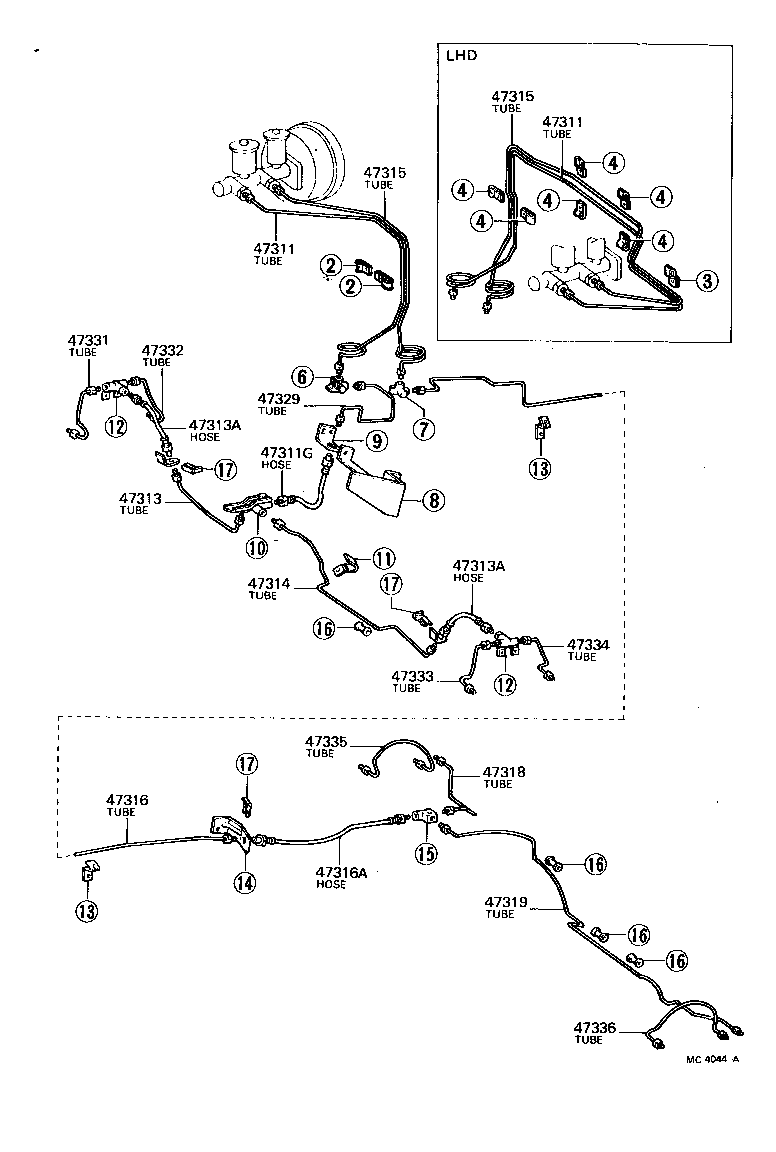

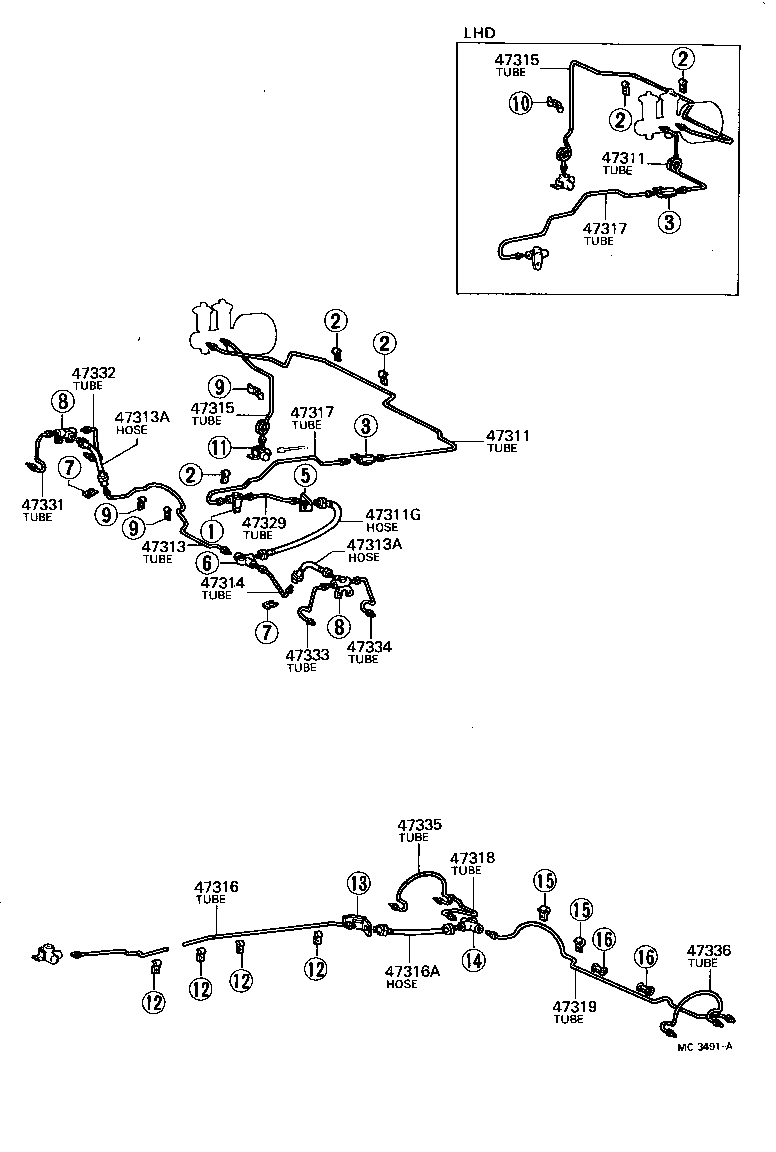

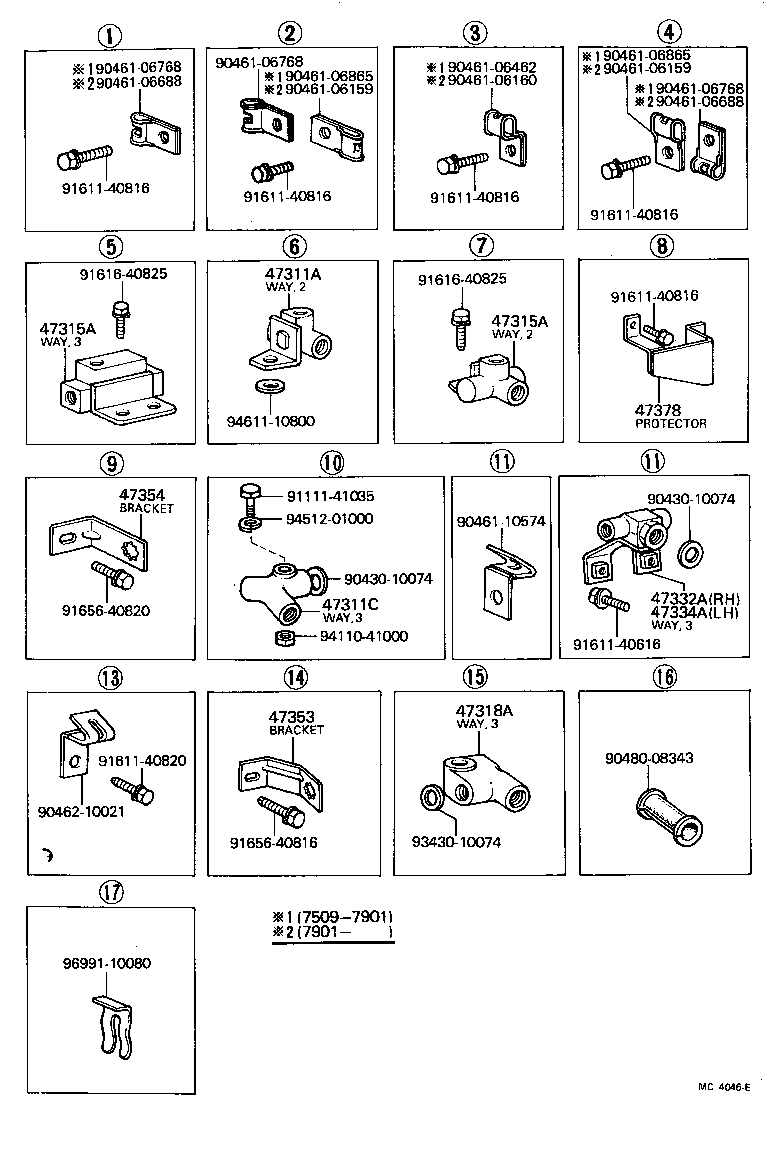

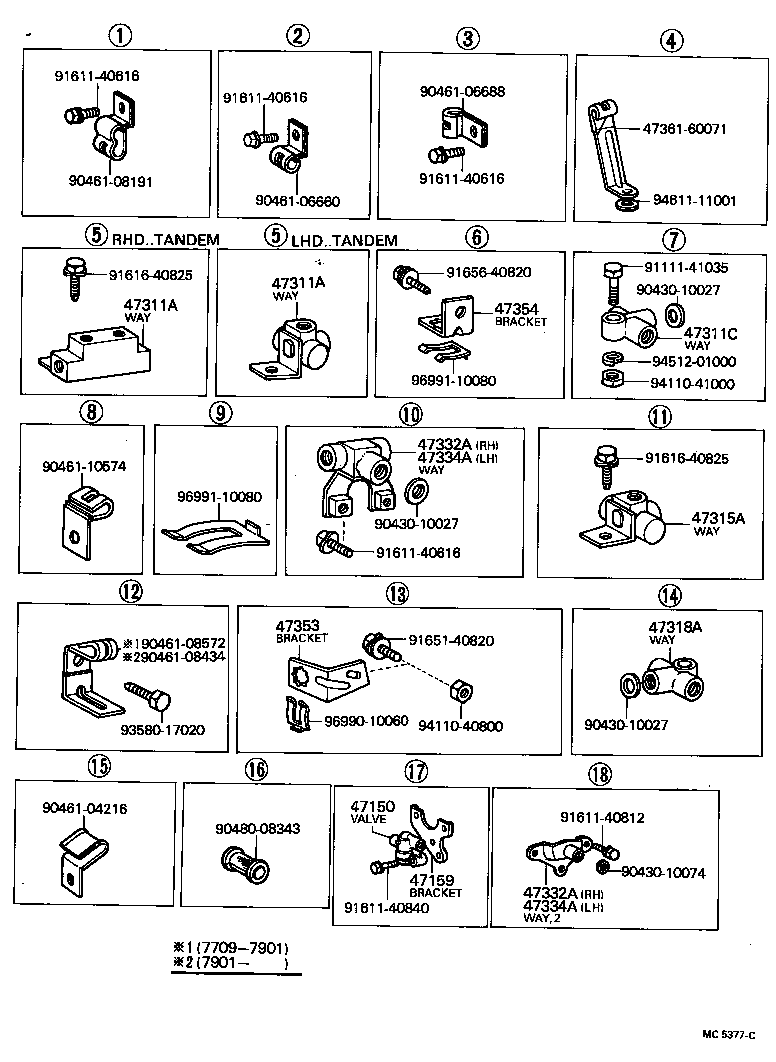

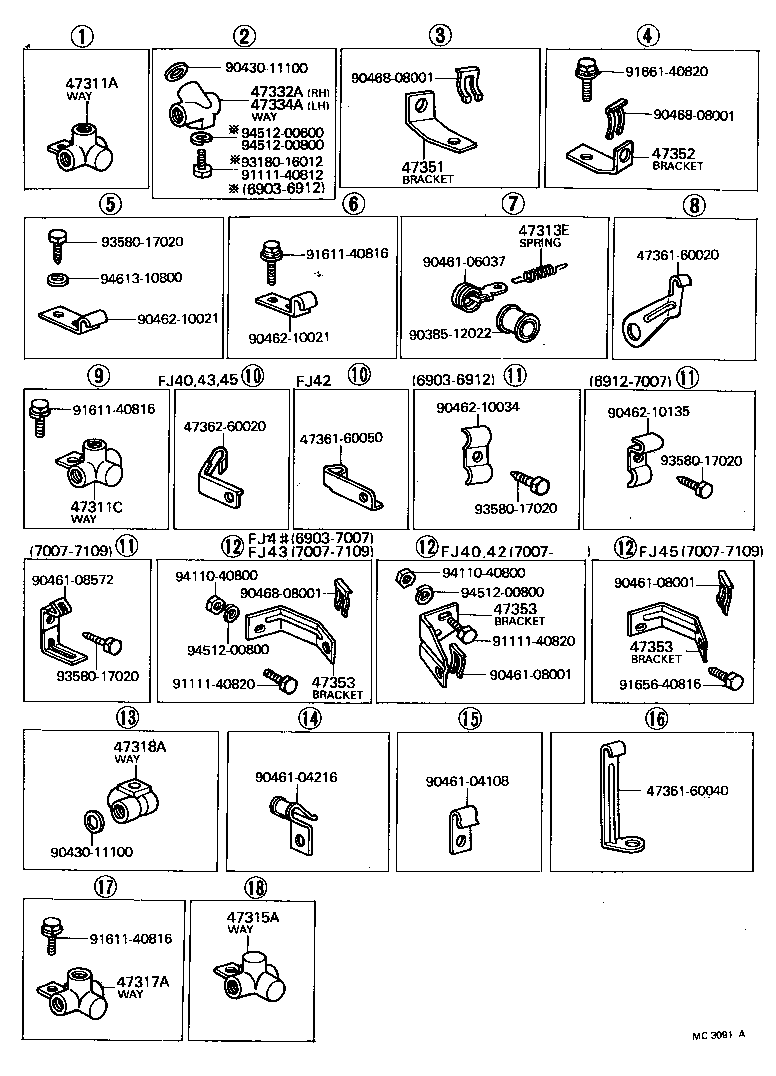

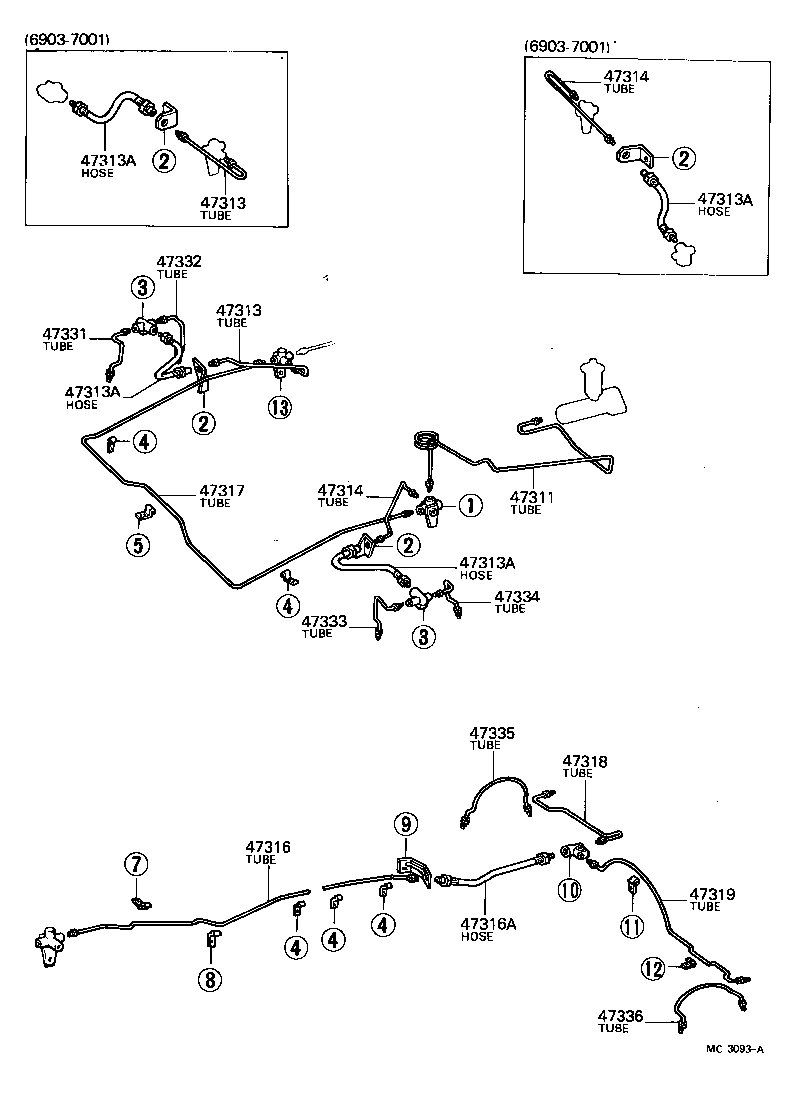

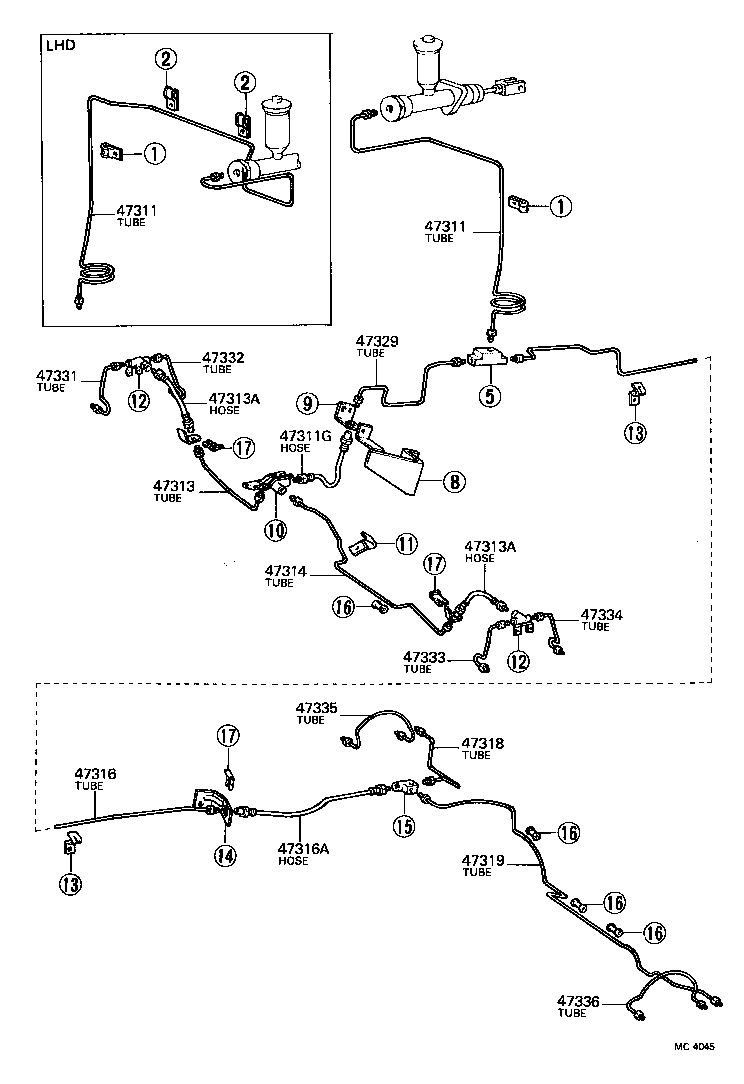

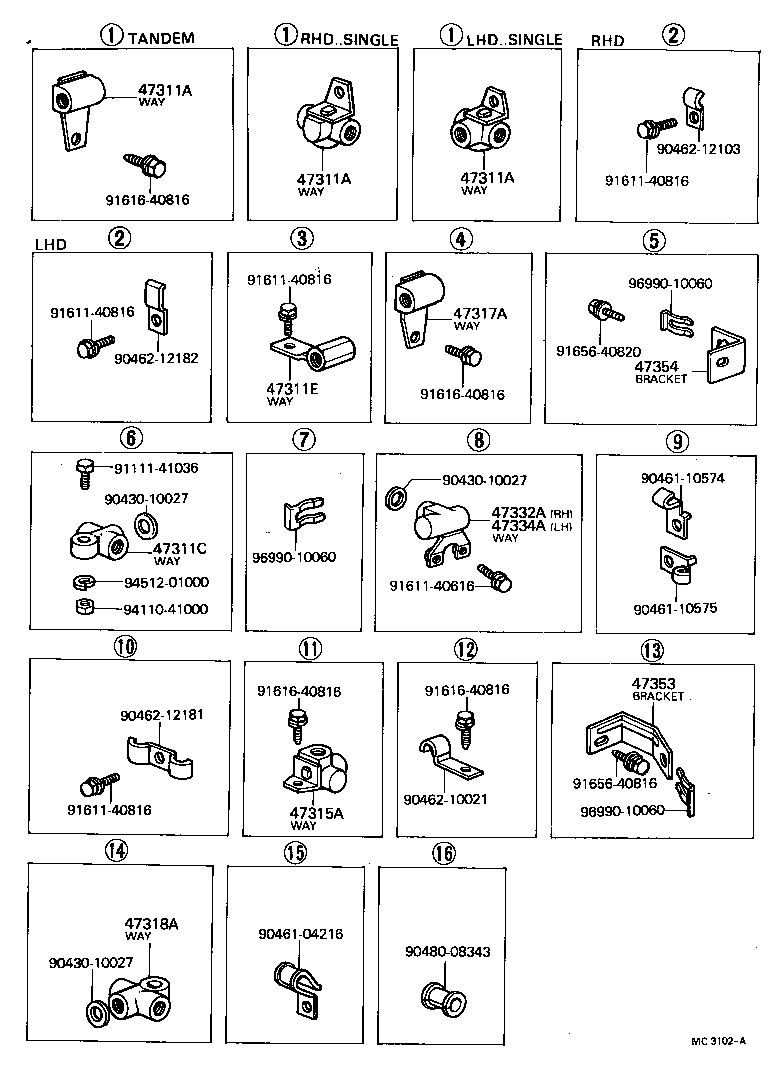

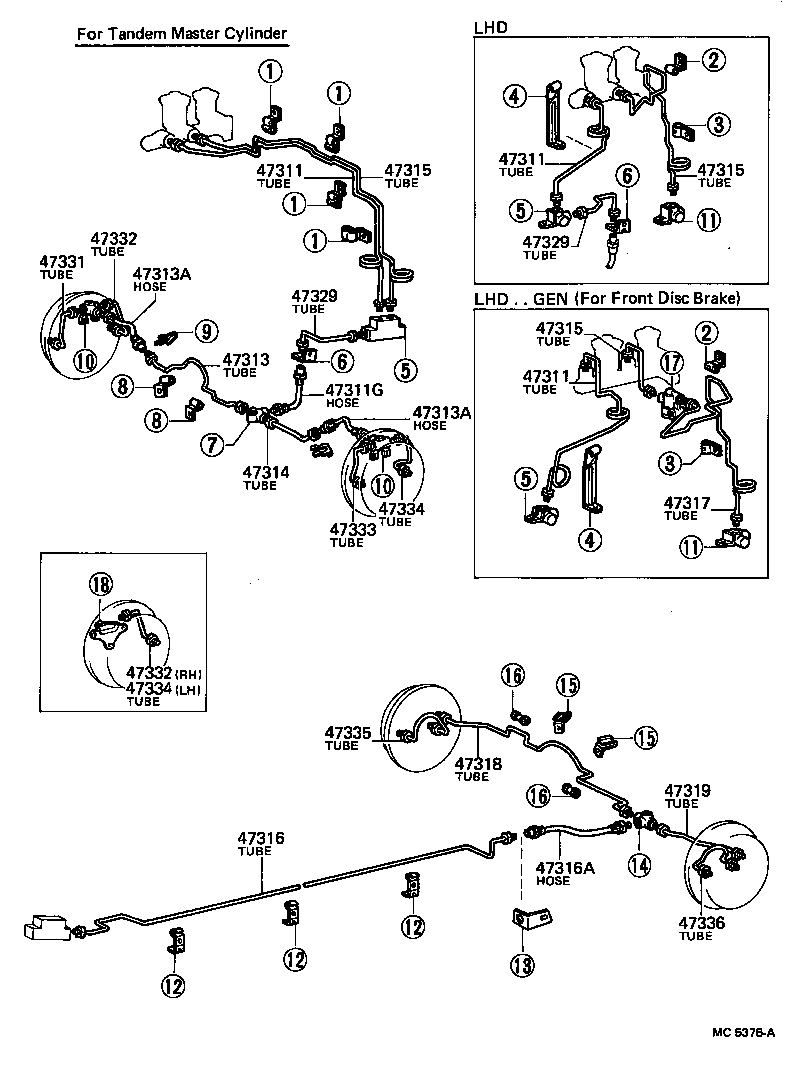

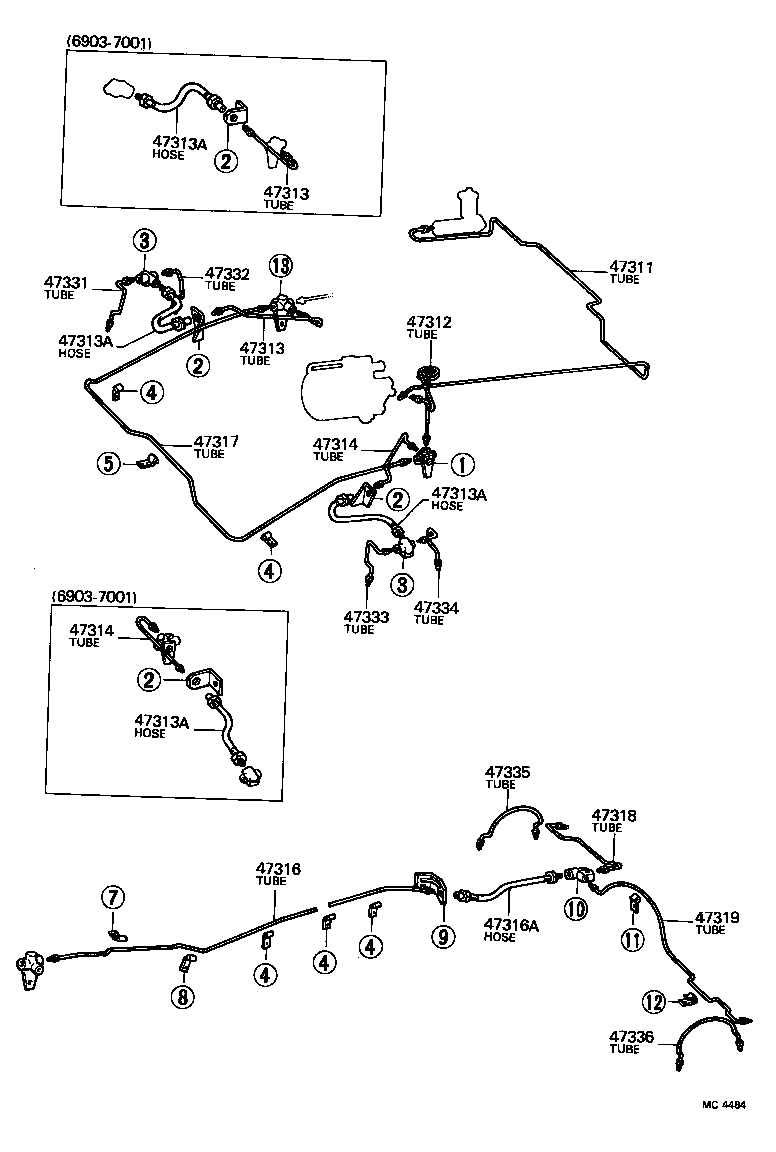

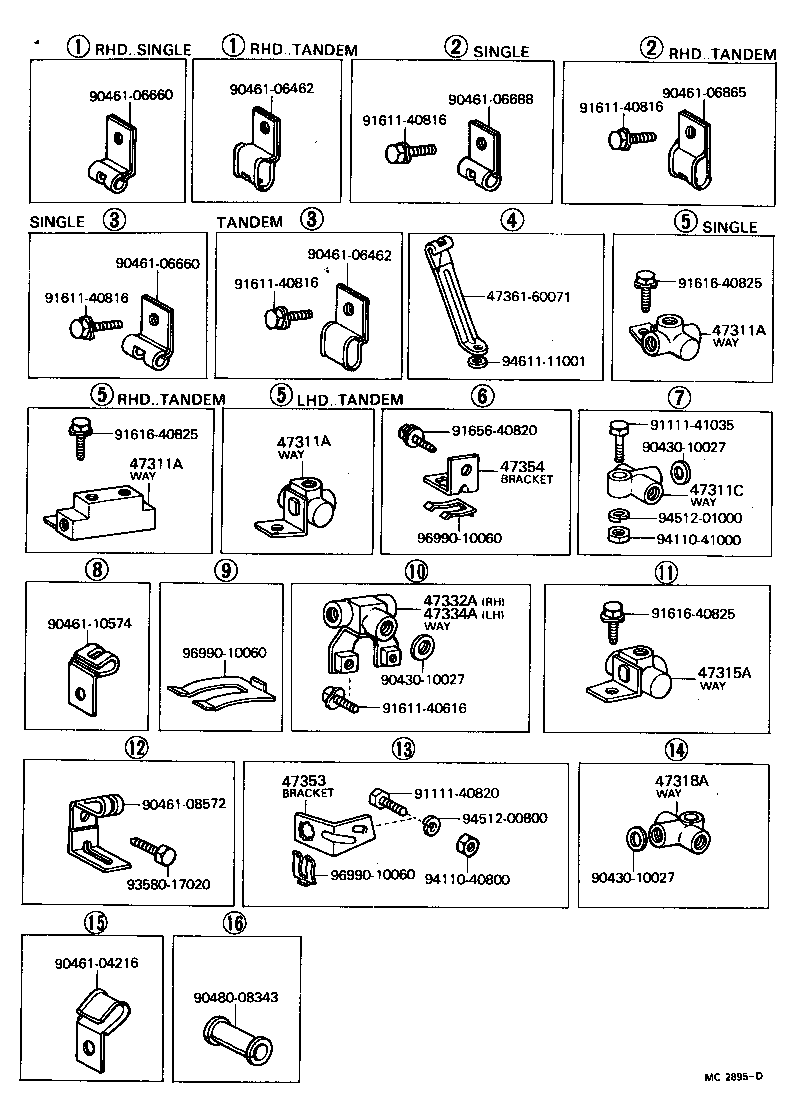

Figure MC3089A MC3089A 1969-03 → 1971-09 Figure MC3091A MC3091A 1969-03 → 1971-09 Figure MC1301E MC1301E 1971-01 → 1971-09 Figure MC3097A MC3097A 1971-09 → 1975-01 Figure MC3097A MC3097A 1975-01 → 1975-09 Figure MC3488A MC3488A 1971-09 → 1975-09 Figure MC3098A MC3098A 1971-09 → 1975-09 Figure MC4042A MC4042A 1975-09 → 1976-08 Figure MC4042A MC4042A 1976-08 → 1977-09 Figure MC4041A MC4041A 1975-09 → 1977-09 Figure MC4043B MC4043B 1977-09 → 1980-07 Figure MC5374B MC5374B 1977-09 → 1980-07 Figure MC5375C MC5375C 1977-09 → 1980-07 Figure MC6074 MC6074 1979-01 → 1980-07 Figure MC3092A MC3092A 1969-03 → 1971-09 Figure MC3093A MC3093A 1969-03 → 1971-09 Figure MC4484 MC4484 1969-03 → 1971-01 Figure MC4484 MC4484 1969-03 → 1971-09 Figure MC3094A MC3094A 1969-03 → 1971-01 Figure MC3094A MC3094A 1969-03 → 1971-09 Figure MC3760A MC3760A 1971-01 → 1971-09 Figure MC3101A MC3101A 1971-09 → 1975-01 Figure MC3101A MC3101A 1975-01 → 1975-09 Figure MC3491A MC3491A 1971-09 → 1975-09 Figure MC3102A MC3102A 1971-09 → 1975-09 Figure MC4045 MC4045 1975-09 → 1976-08 Figure MC4044A MC4044A 1975-09 → 1980-07 Figure MC4046E MC4046E 1975-09 → 1980-07 Figure MC2894B MC2894B 1974-02 → 1976-08 Figure MC2894B MC2894B 1976-08 → 1977-09 Figure MC3493A MC3493A 1974-02 → 1977-09 Figure MC2895D MC2895D 1974-02 → 1977-09 Figure MC5376A MC5376A 1977-09 → 1980-07 Figure MC5377C MC5377C 1977-09 → 1980-07

Part groups

PNCDescription
47150 Valve Assy, Proportioning
47159 Bracket, Proportioning Valve

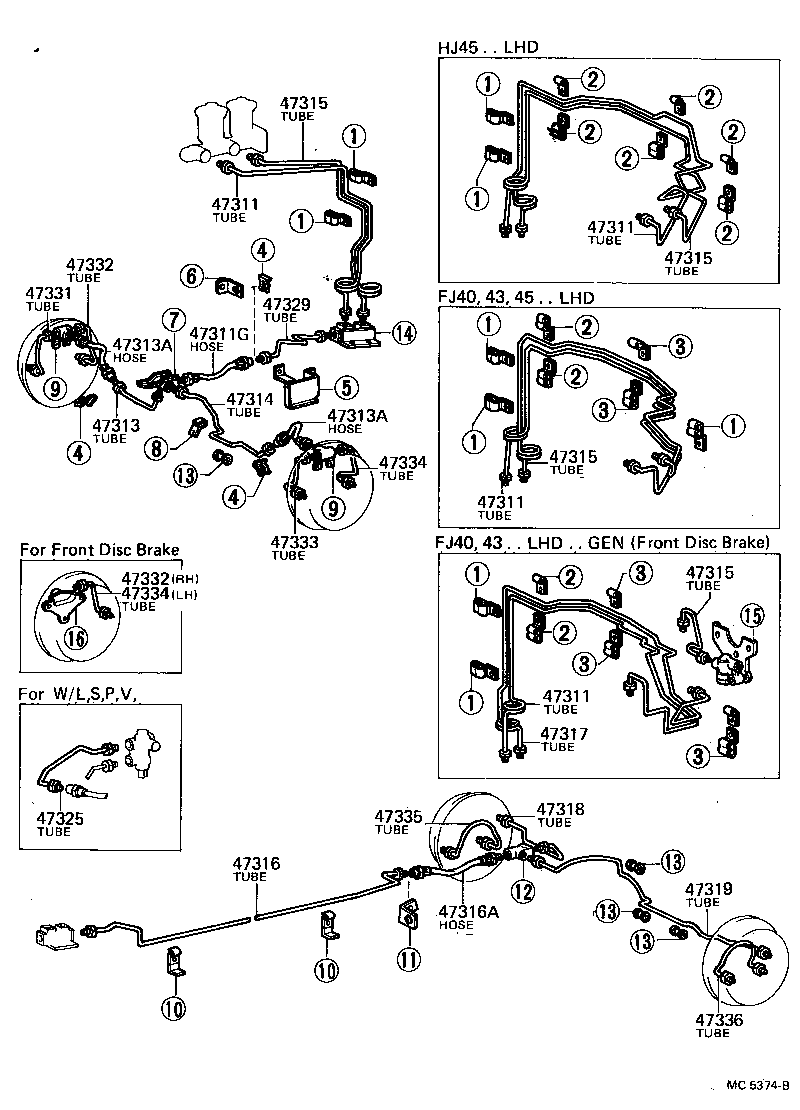

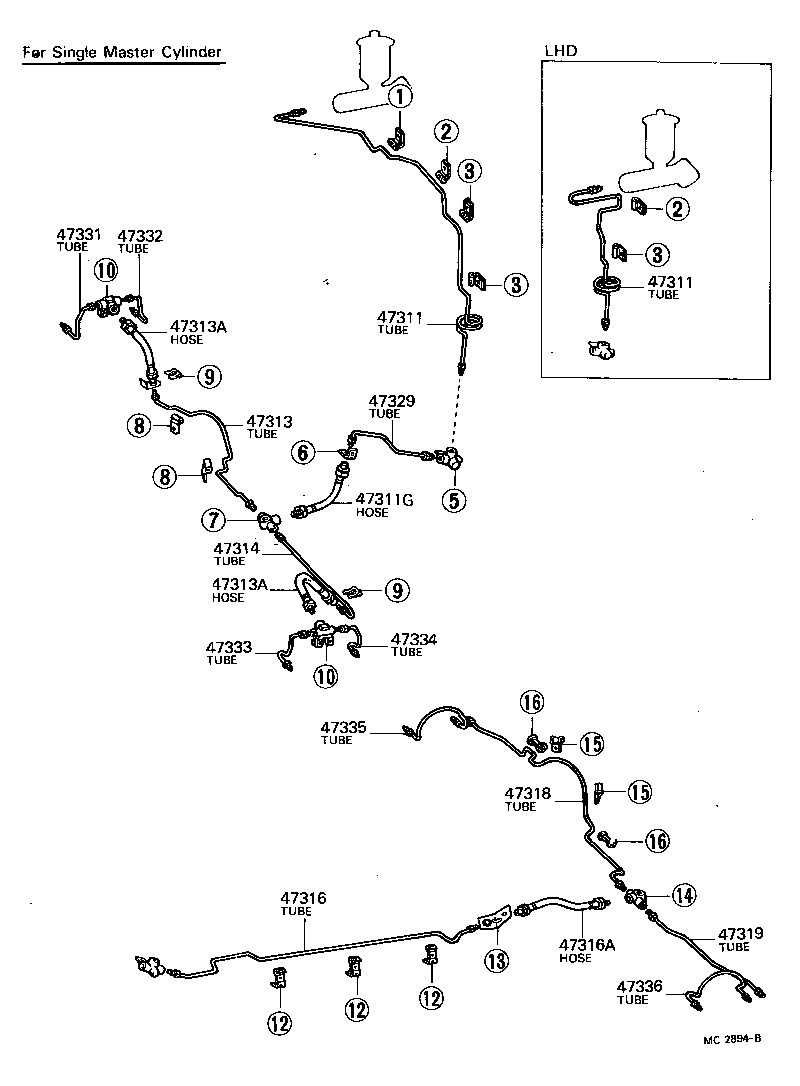

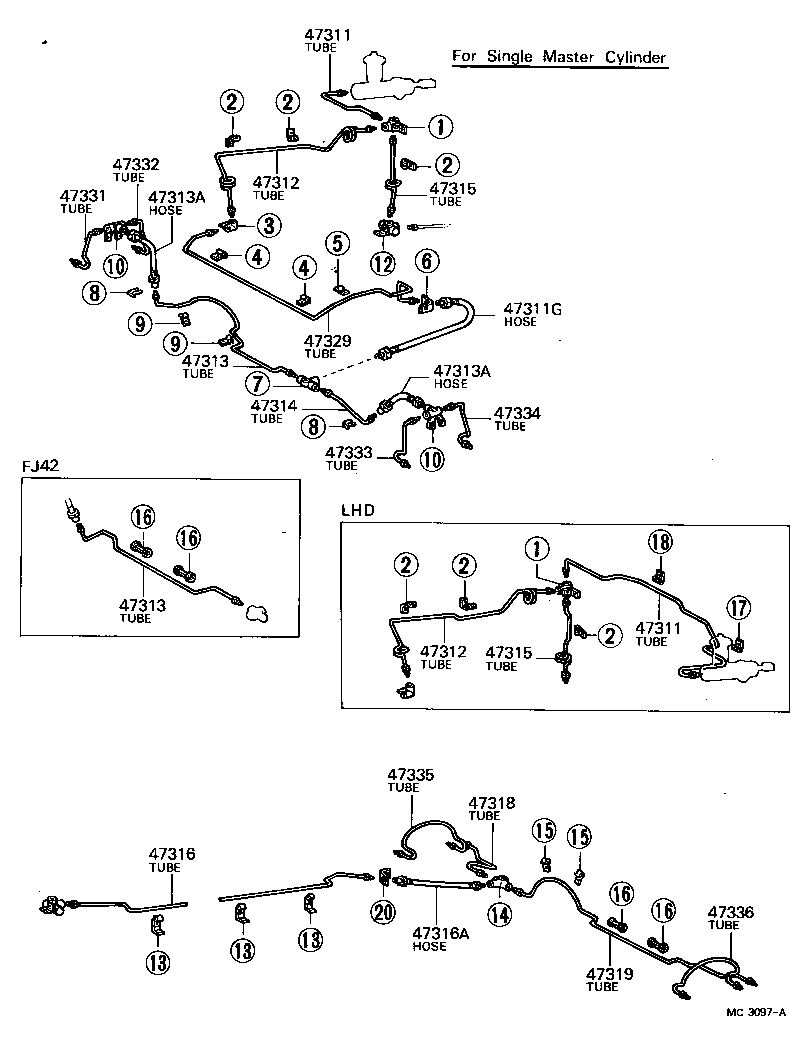

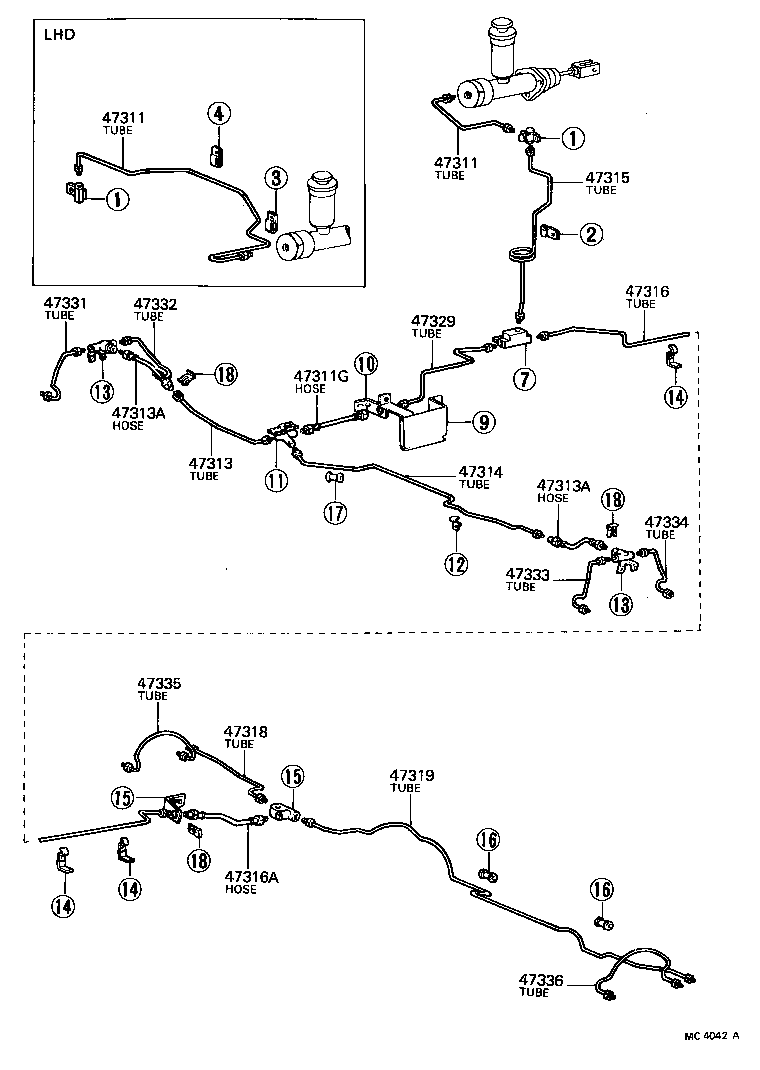

47311 Tube, Front Brake, NO.1
47311A Way(FOR FRONT BRAKE TUBE)
47311C Union(FOR FRONT BRAKE TUBE)
47311E Union, NO.1(FOR FRONT BRAKE TUBE)
47311G Hose, Flexible(FOR BRAKE TUBE)
47312 Tube, Front Brake, NO.2
47313 Tube, Front Brake, NO.3
47313A Hose, Flexible, NO.1(FOR FRONT)
47313E Spring, Tension(FOR FRONT FLEXIBLE HOSE)
47314 Tube, Front Brake, NO.4
47315 Tube, Front Brake, NO.5
47315A Way OR Union(FOR REAR BRAKE TUBE)
47316 Tube, Front Brake, NO.6
47316A Hose, Flexible(FOR REAR BRAKE TUBE)
47317 Tube, Front Brake, NO.7
47317A Way(FOR BRAKE TUBE)
47318 Tube, Front Brake, NO.8
47318A Way(FOR REAR RH BRAKE TUBE)
47319 Tube, Front Brake, NO.9
47325 Tube, Rear Brake, NO.5
47329 Tube, Rear Brake, NO.9
47331 Tube, Rear Brake, NO.10
47332 Tube, Rear Brake, NO.11
47332A Way(FOR BRAKE WHEEL CYLINDER FRONT RH TUBE)
47333 Tube, Rear Brake, NO.12
47334 Tube, Rear Brake, NO.13
47334A Way(FOR BRAKE WHEEL CYLINDER FRONT LH TUBE)
47335 Tube, Rear Brake, NO.14
47336 Tube, Rear Brake, NO.15

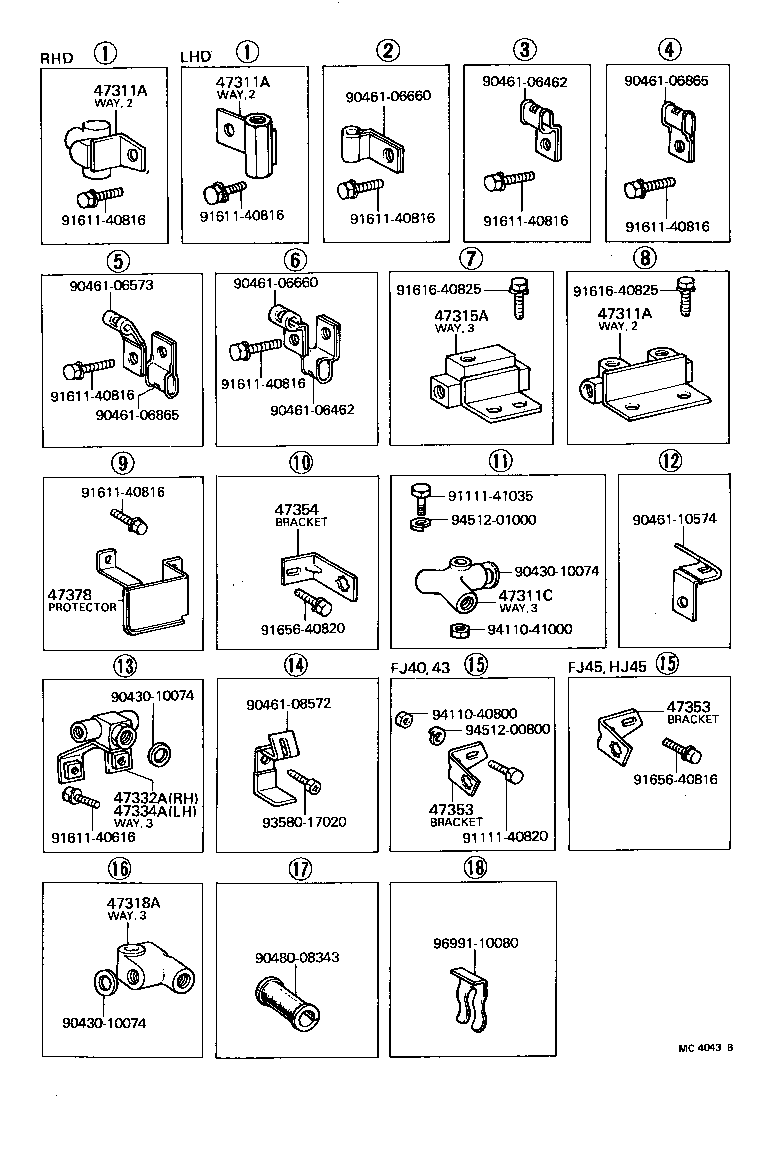

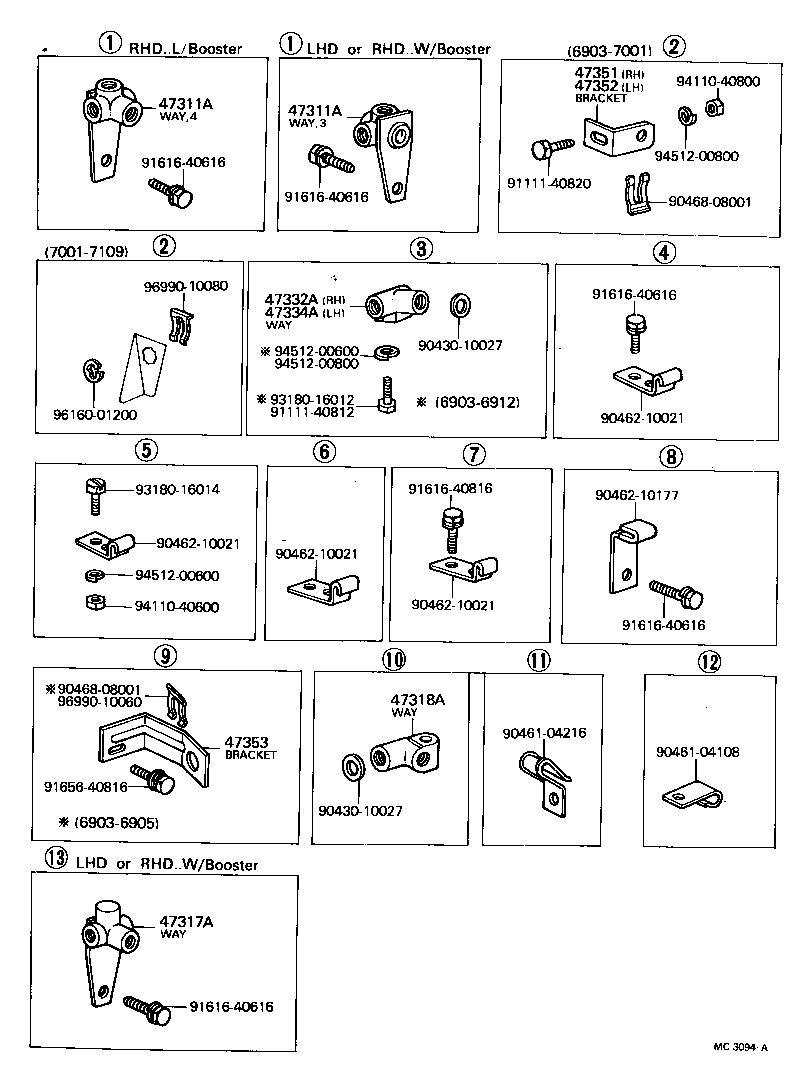

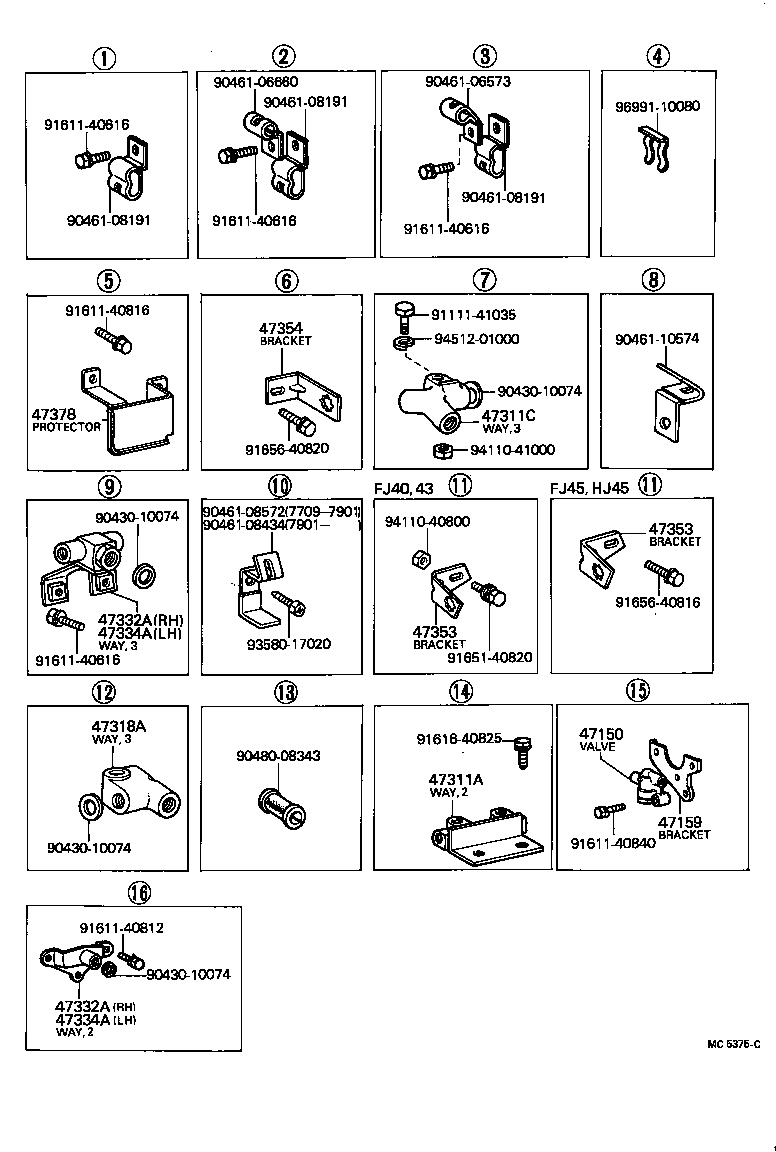

47351 Bracket, Flexible Hose(FOR FRONT RH)
47352 Bracket, Flexible Hose(FOR FRONT LH)
47353 Bracket, Flexible Hose(FOR REAR)
47354 Bracket, Front Flexible Hose
47378 Protector, Brake Tube

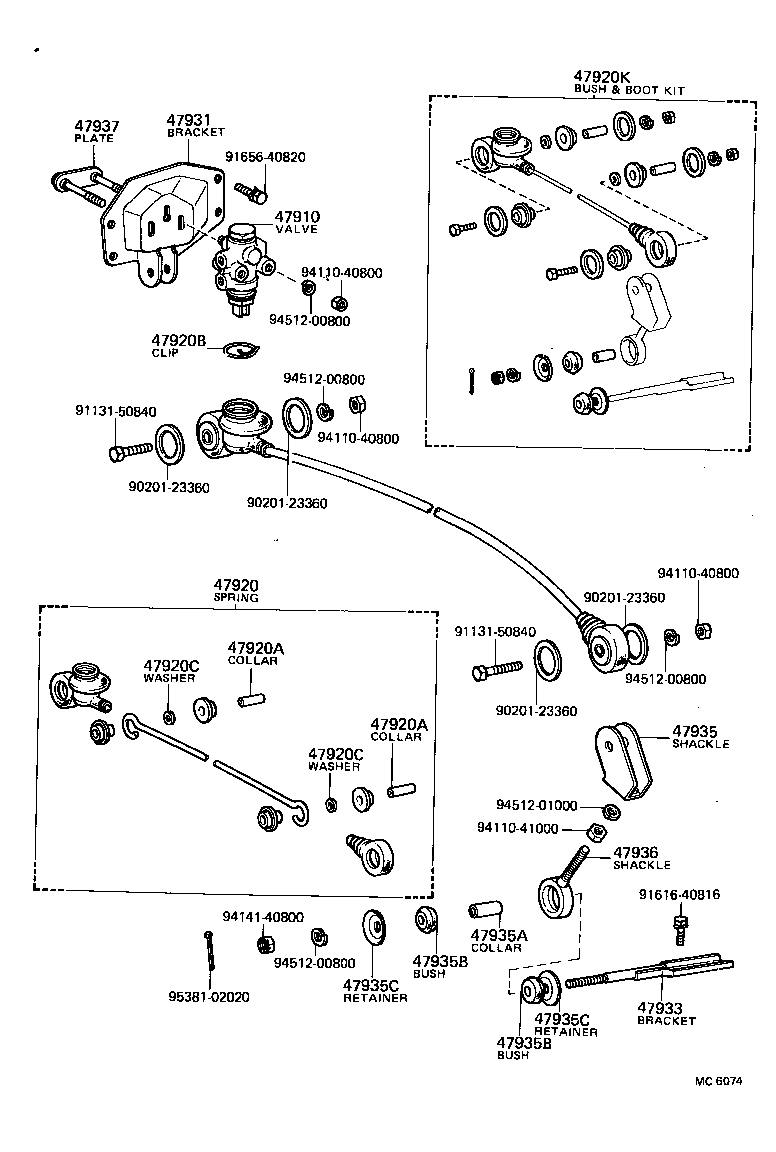

47910 Valve Assy, Load Sensing Proportioning
47920 Spring Assy, Load Sensing
47920A Collar(FOR LOAD SENSING SPRING)
47920B Clip(FOR LOAD SENSING VALVE BOOT)
47920C Washer(FOR LOAD SENSING SPRING)
47920K Bush & Boot Kit, Load Sensing Spring
47931 Bracket, Load Sensing Valve
47933 Bracket, Load Sensing Shackle, NO.1
47935 Shackle, Load Sensing Spring, NO.1
47935A Collar(FOR LOAD SENSING SPRING SHACKLE)
47935B Bush(FOR LOAD SENSING SPRING SHACKLE)
47935C Retainer(FOR LOAD SENSING SPRING SHACKLE)
47936 Shackle, Load Sensing Spring, NO.2
47937 Plate, Load Sensing Valve Set
