Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Spring & Shock Absorber

36 part groups · 3 illustrations

Illustrations

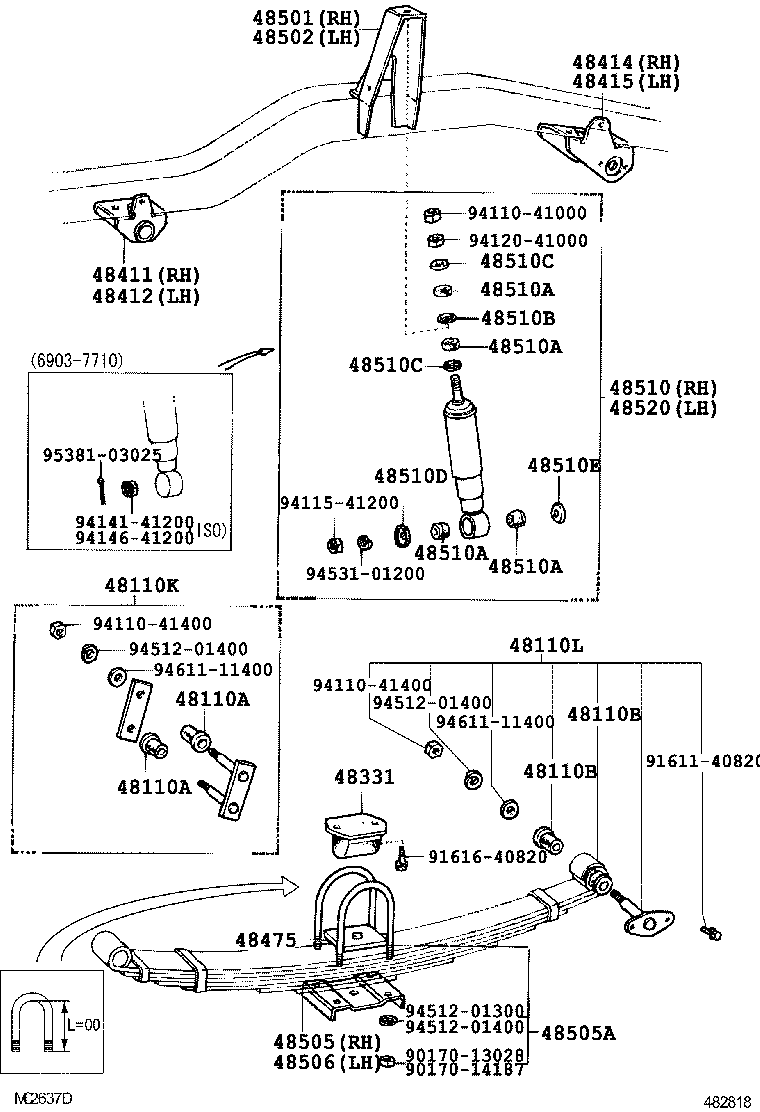

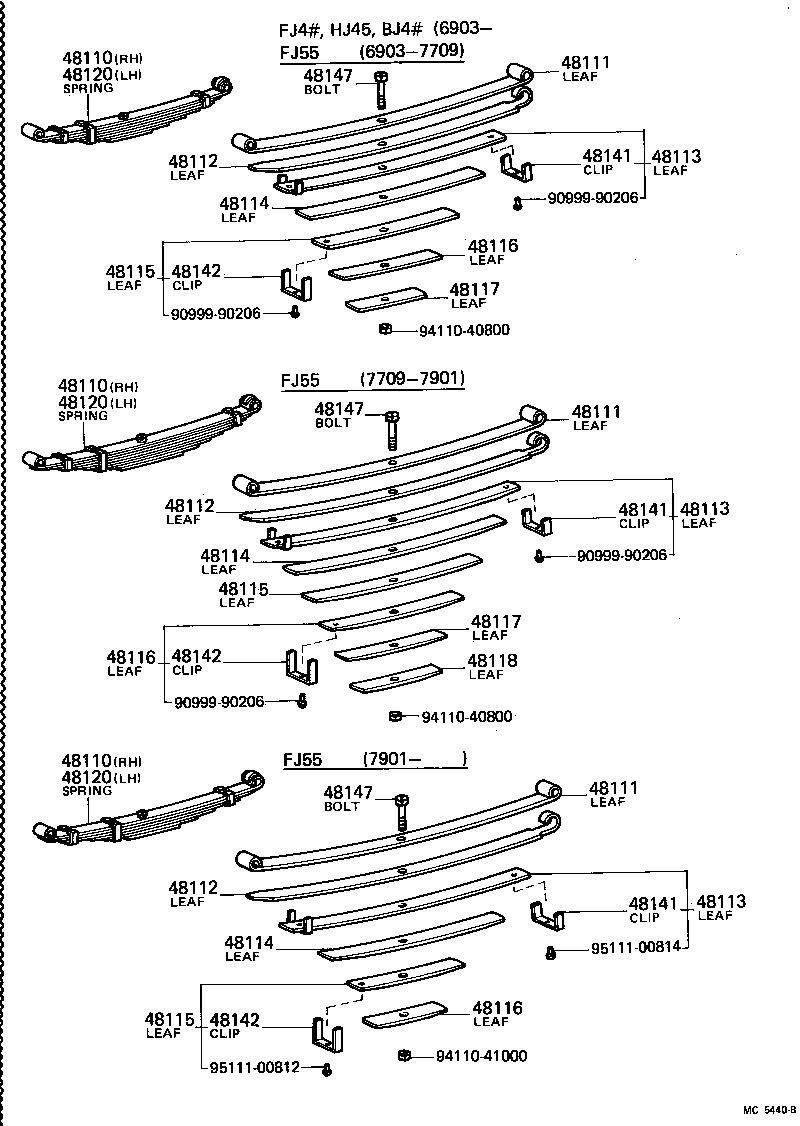

Figure 482817 482817 1969-03 → 1980-07 Figure 482818 482818 1969-03 → 1980-07 Figure MC5440B MC5440B 1969-03 → 1980-07

Part groups

PNCDescription
48110 Spring Assy, Front, RH
48110A Bush(FOR FRONT SPRING SHACKLE)
48110B Bush(FOR FRONT SPRING PIN)
48110K Shackle Kit, Front Spring
48110L Pin Kit, Front Spring
48111 Leaf, Front Spring, NO.1
48112 Leaf, Front Spring, NO.2
48113 Leaf, Front Spring, NO.3
48114 Leaf, Front Spring, NO.4
48115 Leaf, Front Spring, NO.5
48116 Leaf, Front Spring, NO.6
48117 Leaf, Front Spring, NO.7
48118 Leaf, Front Spring, NO.8
48120 Spring Assy, Front, LH
48141 Clip, Front Spring, NO.1
48142 Clip, Front Spring, NO.2
48147 Bolt, Front Spring, Center
48331 Bumper, Front Spring, NO.1
48411 Bracket, Front Spring(FOR FRONT RH)
48412 Bracket, Front Spring(FOR FRONT LH)
48414 Bracket, Front Spring(FOR REAR RH)
48415 Bracket, Front Spring(FOR REAR LH)
48475 Plate, Distance(FOR FRONT)
48501 Bracket Sub-assy, Front Shock Absorber, Upper RH
48502 Bracket Sub-assy, Front Shock Absorber, Upper LH
48505 Seat, Front Spring, RH
48505A Bolt, U(FOR FRONT SPRING)
48506 Seat, Front Spring, LH
48510 Absorber Assy, Shock, Front RH
48510A Cushion, Front Shock Absorber
48510B Retainer, Cushion, NO.1(FOR FRONT SHOCK ABSORBER)
48510C Retainer, Cushion, NO.2(FOR FRONT SHOCK ABSORBER)
48510D Washer, Front Shock Absorber Cushion, NO.1
48510E Washer, Front Shock Absorber Cushion, NO.2
48520 Absorber Assy, Shock, Front LH
48521 Pin, Front Shock Absorber Upper Pivot
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
