Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Spare Wheel Carrier

23 part groups · 5 illustrations

Illustrations

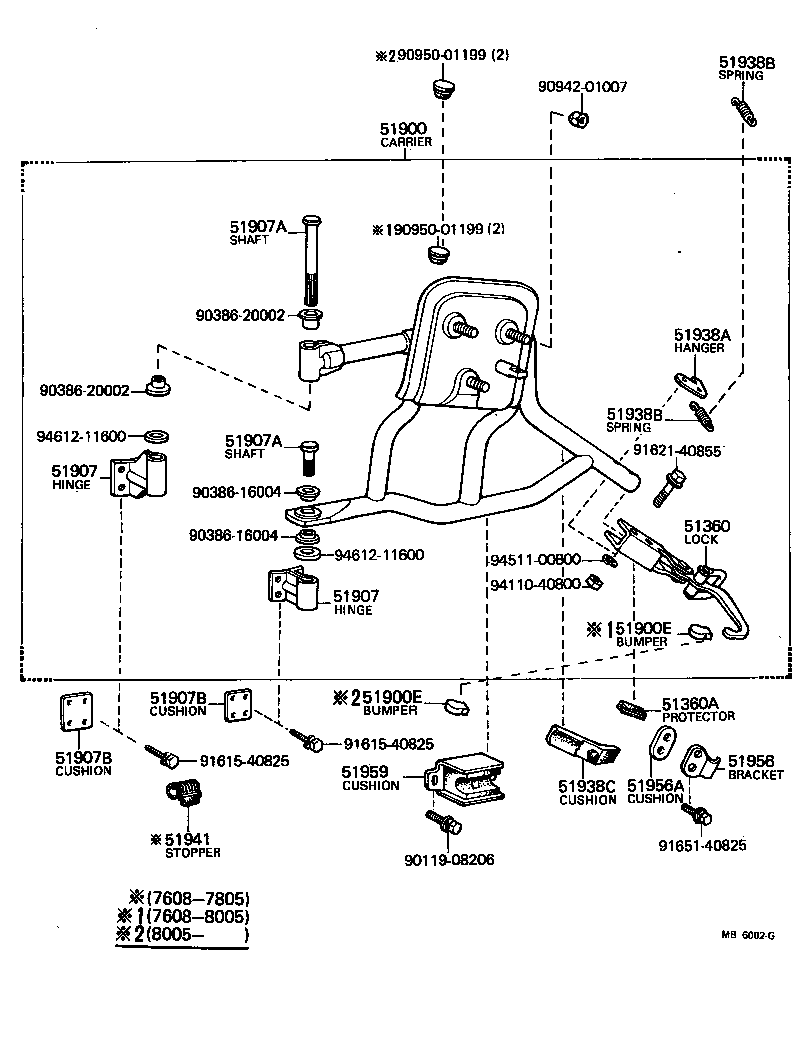

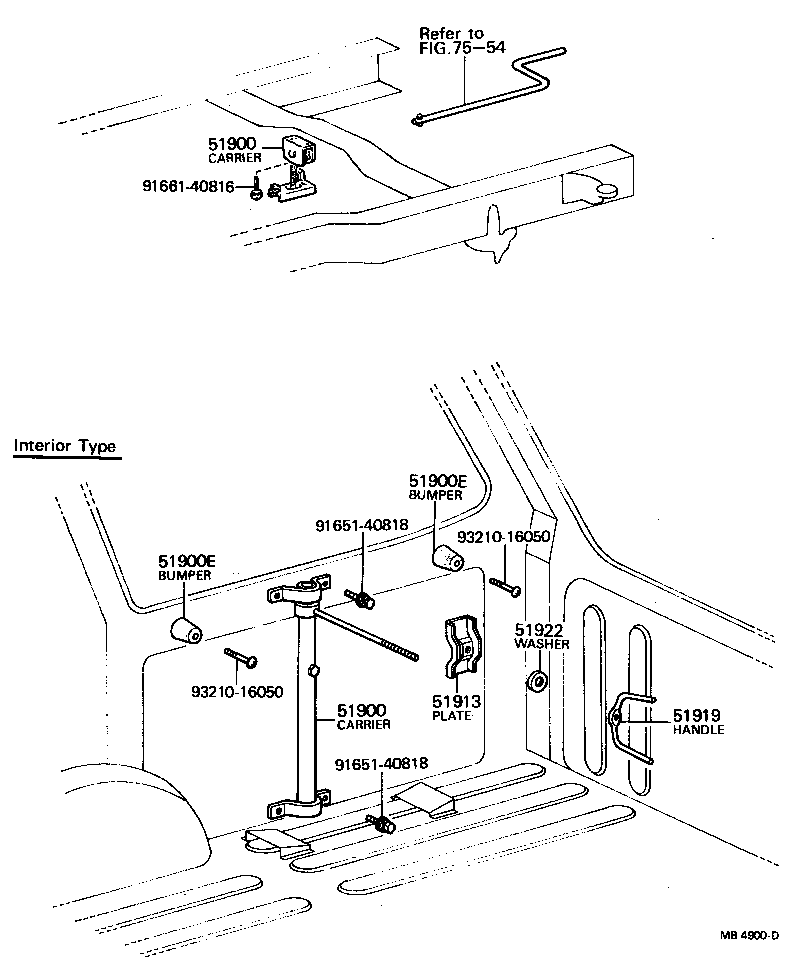

Figure MB4898B MB4898B 1969-03 → 1971-09 Figure MB4899B MB4899B 1971-09 → 1976-08 Figure MB6002G MB6002G 1976-08 → 1980-07 Figure MB6173D MB6173D 1969-03 → 1980-07 Figure MB4900D MB4900D 1969-03 → 1980-07

Part groups

PNCDescription
51360 Lock Assy, Spare Wheel
51360A Protector, Spare Wheel Lock
51900 Carrier Assy, Spare Wheel
51900E Bumper, Spare Wheel Carrier
51903 Hanger Sub-assy, Spare Wheel Carrier Handle
51906 Hinge Sub-assy, Spare Wheel Carrier Male
51907 Hinge Sub-assy, Spare Wheel Carrier
51907A Pin, Spare Wheel Carrier Hinge
51907B Cushion, Spare Wheel Carrier Hinge
51908 Bracket Sub-assy, Spare Wheel Carrier
51909 Hinge Sub-assy, Spare Wheel Carrier
51910 Screw Assy, Spare Wheel Clamp
51910A Pin, W/Hole(FOR SPARE WHEEL CLAMP SCREW)
51913 Plate, Spare Wheel Clamp
51919 Handle, Spare Wheel Set
51922 Washer, Spare Wheel Set
51938A Hanger, Spare Wheel Carrier Lock Spring
51938B Spring, Tension(FOR SPARE WHEEL CARRIER LOCK)
51938C Cushion(FOR SPARE WHEEL CARRIER LOCK)
51941 Stopper, Spare Wheel Carrier
51956 Bracket, Spare Wheel Carrier Support
51956A Cushion, Spare Wheel Carrier Hook
51959 Cushion, Spare Wheel
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
