Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Cab Mounting & Body Mounting

35 part groups · 4 illustrations

Illustrations

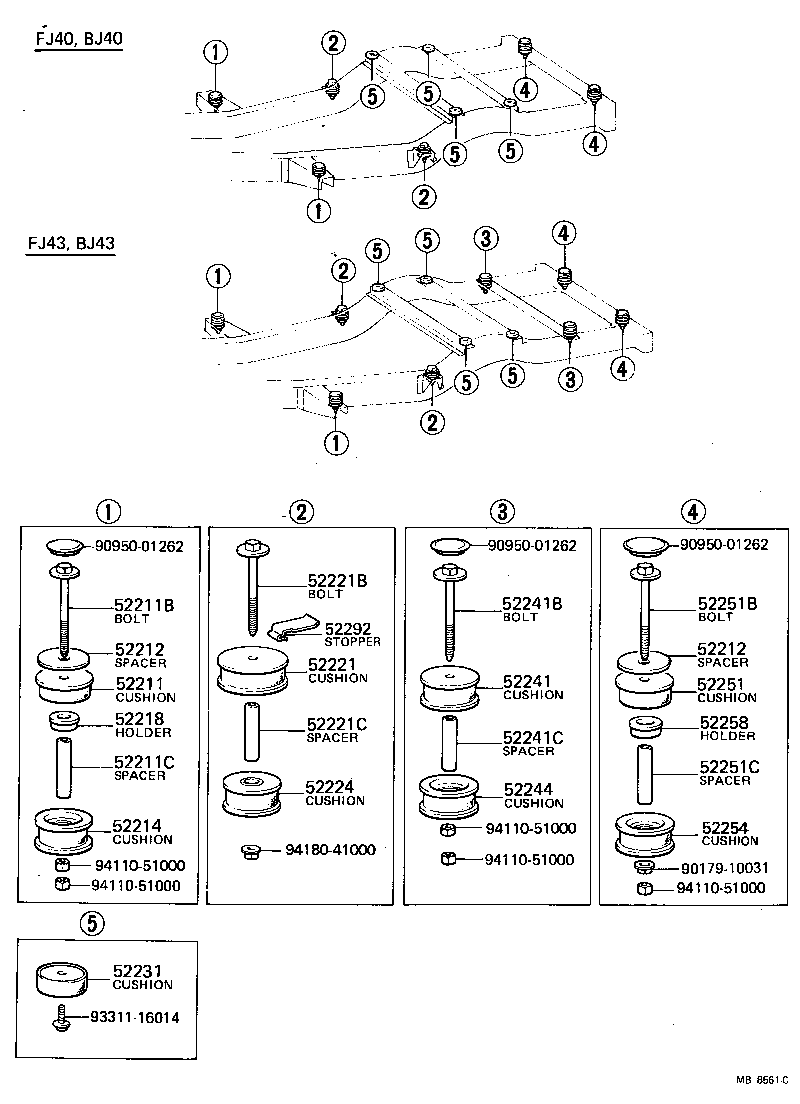

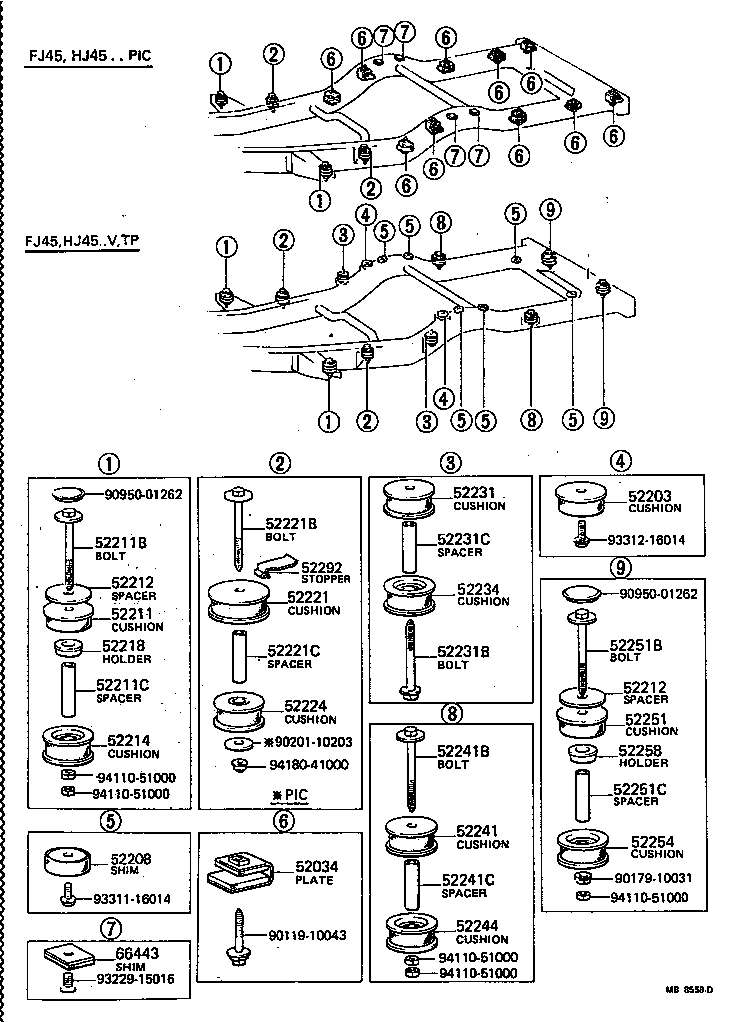

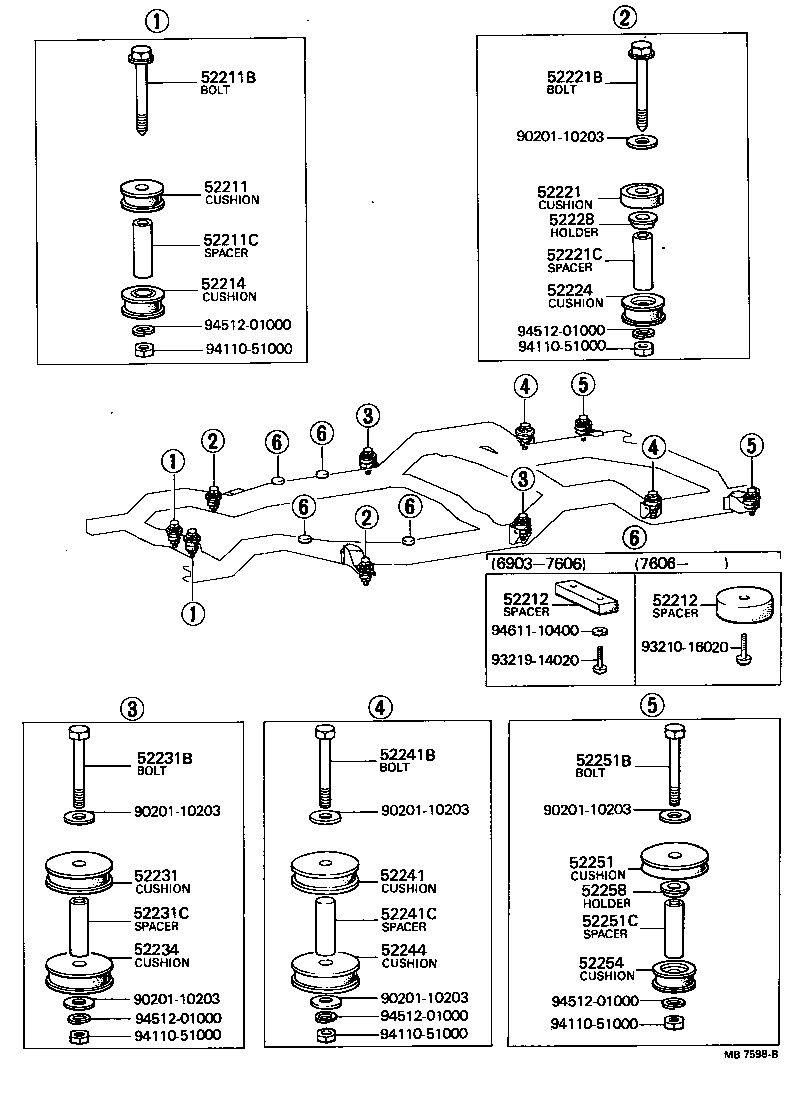

Figure MB6003F MB6003F 1969-03 → 1979-01 Figure MB8561C MB8561C 1979-01 → 1980-07 Figure MB8558D MB8558D 1979-01 → 1980-07 Figure MB7598B MB7598B 1969-03 → 1980-07

Part groups

PNCDescription
52032 Shim Sub-assy, Cowl Body Mounting
52034 Plate Sub-assy, Deck Mounting Shim
52203 Cushion Sub-assy, Rear Frame
52208 Shim Sub-assy, Body Mounting
52211 Cushion, Body Mounting, NO.1 Upper
52211B Bolt(FOR BODY MOUNTING NO.1 CUSHION)
52211C Spacer(FOR BODY MOUNTING NO.1 CUSHION)
52212 Spacer, Body Mounting
52214 Cushion, Body Mount, NO.1 Lower
52218 Holder, Body Mount Bolt Spacer, NO.1
52221 Cushion, Body Mount, NO.2 Upper
52221B Bolt(FOR BODY MOUNT NO.2 CUSHION)
52221C Spacer(FOR BODY MOUNT NO.2 CUSHION)
52224 Cushion, Body Mount, NO.2 Lower
52228 Holder, Body Mount Bolt Spacer, NO.2
52231 Cushion, Body Mount, NO.3 Upper
52231B Bolt(FOR BODY MOUNT NO.3 CUSHION)
52231C Spacer(FOR BODY MOUNT NO.3 CUSHION)
52234 Cushion, Body Mount, NO.3 Lower
52241 Cushion, Body Mount, NO.4 Upper
52241B Bolt(FOR BODY MOUNT NO.4 CUSHION)
52241C Spacer(FOR BODY MOUNT NO.4 CUSHION)
52244 Cushion, Body Mount, NO.4 Lower
52251 Cushion, Body Mount, NO.5 Upper
52251B Bolt(FOR BODY MOUNT NO.5 CUSHION)
52251C Spacer(FOR BODY MOUNT NO.5 CUSHION)
52254 Cushion, Body Mount, NO.5 Lower
52258 Holder, Body Mount Bolt Spacer, NO.5
52292 Stopper, Center Body Mounting Bolt
66441 Shim, Mounting, NO.1
66441A Clip, Mounting Shim Set
66442 Shim, Mounting, NO.2
66443 Shim, Mounting, NO.3
66444 Shim, Mounting, NO.4
66445 Shim, Mounting, Rear
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
