Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Hood & Front Fender

24 part groups · 2 illustrations

Illustrations

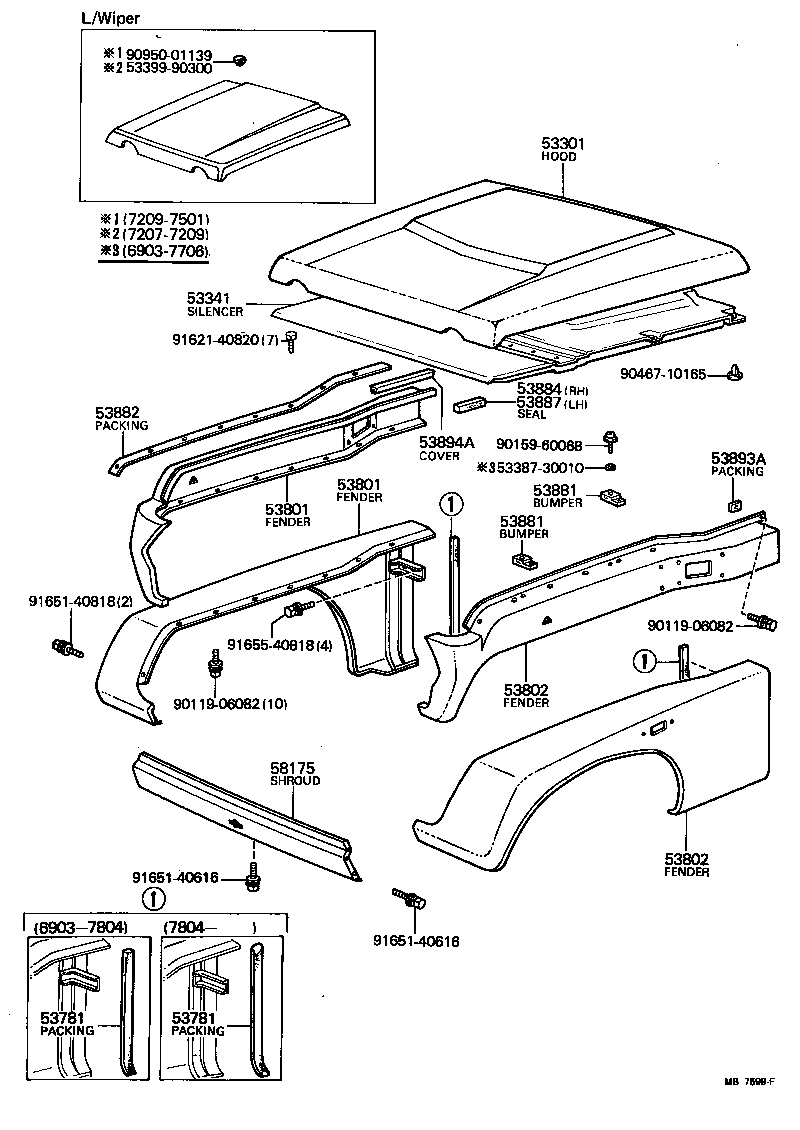

Figure MBA167D MBA167D 1969-03 → 1980-07 Figure MB7599F MB7599F 1969-03 → 1980-07

Part groups

PNCDescription
53301 Hood Sub-assy
53303 Panel Sub-assy, Hood Side, RH
53303A Plate, Hood Side Panel Splash, Front
53304 Panel Sub-assy, Hood Side, LH
53308 Spring Sub-assy, Hood Silencer, Support
53334 Block, Windshield Rest
53337 Cushion, Windshield Rest Block
53341 Silencer, Hood, NO.1
53342 Silencer, Hood, NO.2
53359 Shim, Hood Side Panel Cushion
53359A Clamp OR Clip, Hood Side Panel Cushion Shim
53749 Cover, Fender Apron Steering Gear Box
53752 Cover, Shock Absorber
53752A Retainer, Shock Absorber Cover
53781 Packing, Front Fender, Rear
53801 Fender Sub-assy, Front RH
53802 Fender Sub-assy, Front LH
53881 Bumper, Fender TO Hood
53882 Packing, Front Fender Main
53884 Seal, Front Fender Splash Shield, RH
53887 Seal, Front Fender Splash Shield, LH
53893A Packing, Front Fender Trim, Rear
53894A Cover, Front Fender Upper Frange
58175 Shroud, Radiator, Lower
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
