Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Instrument Panel & Glove Compartment

39 part groups · 6 illustrations

Illustrations

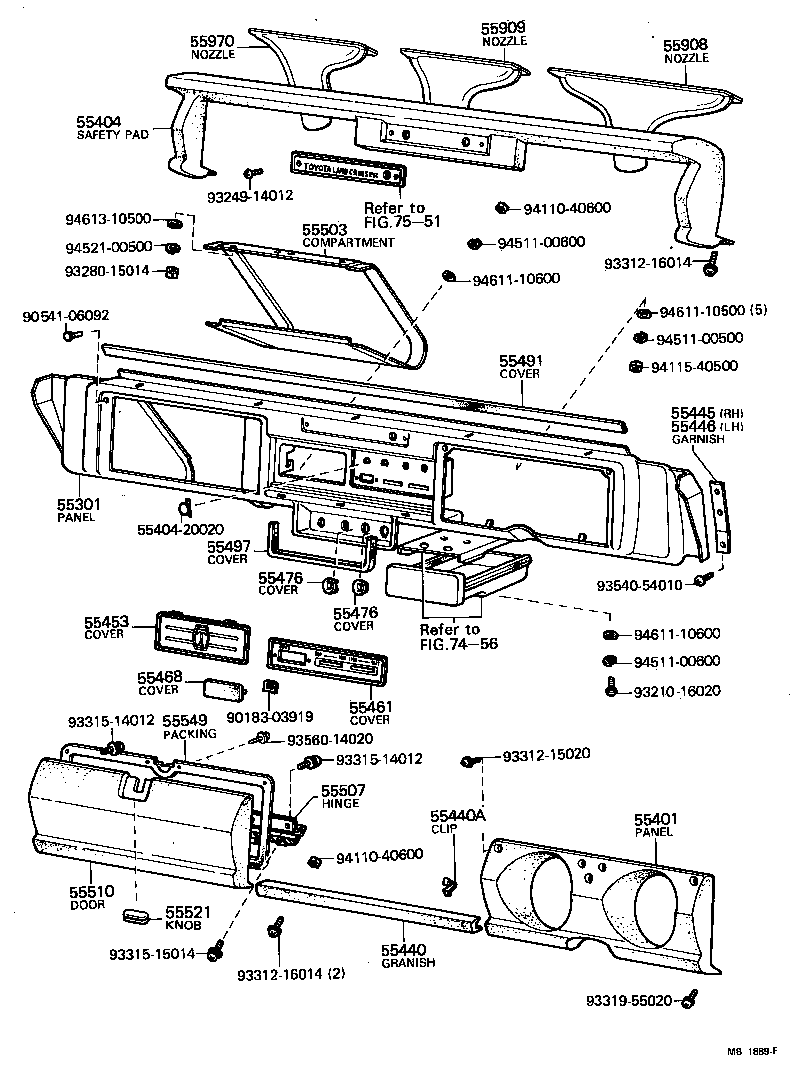

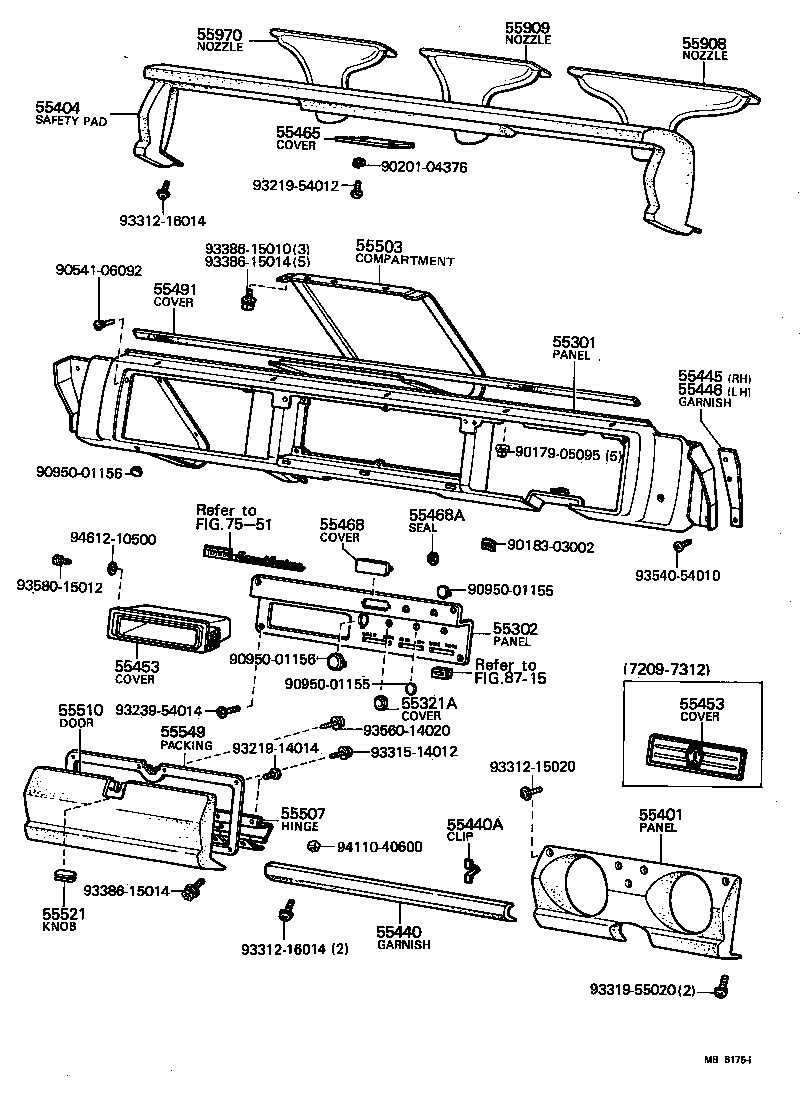

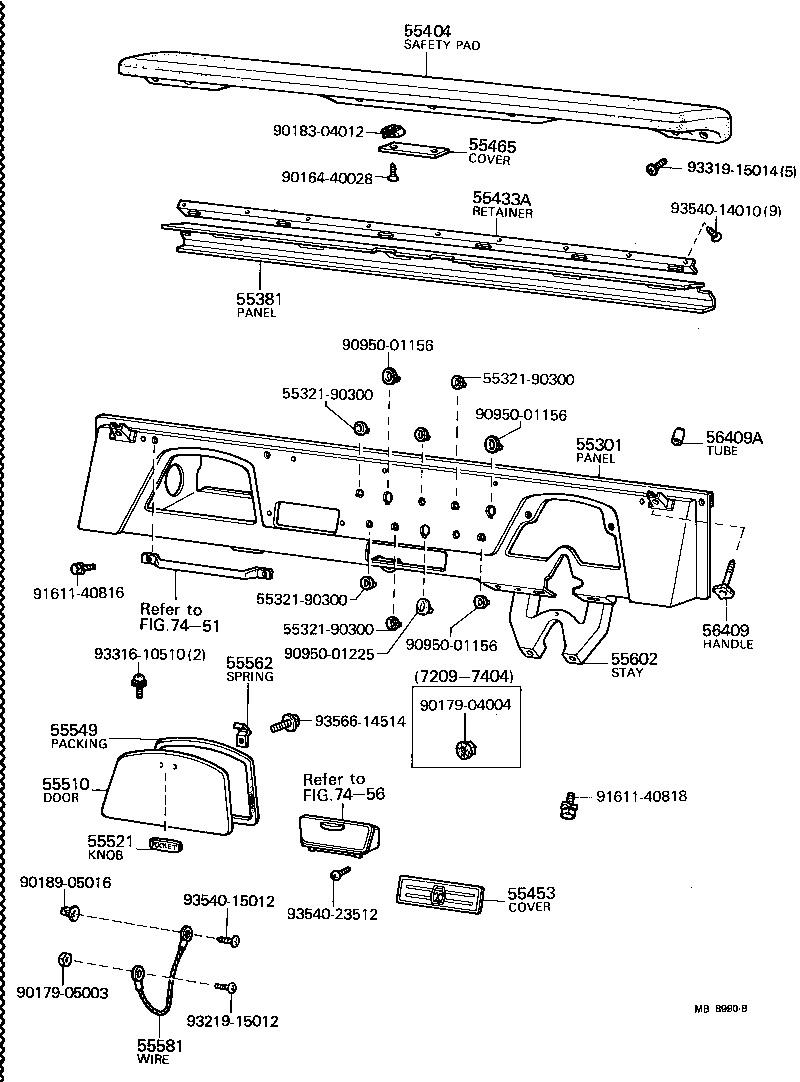

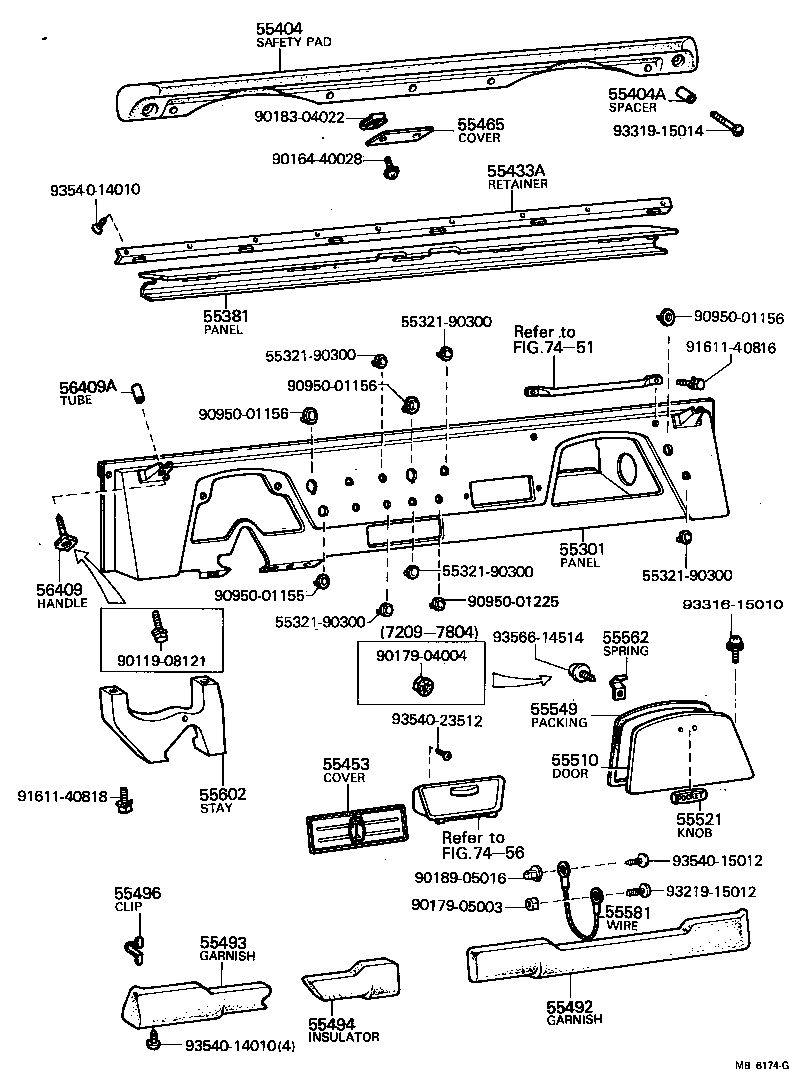

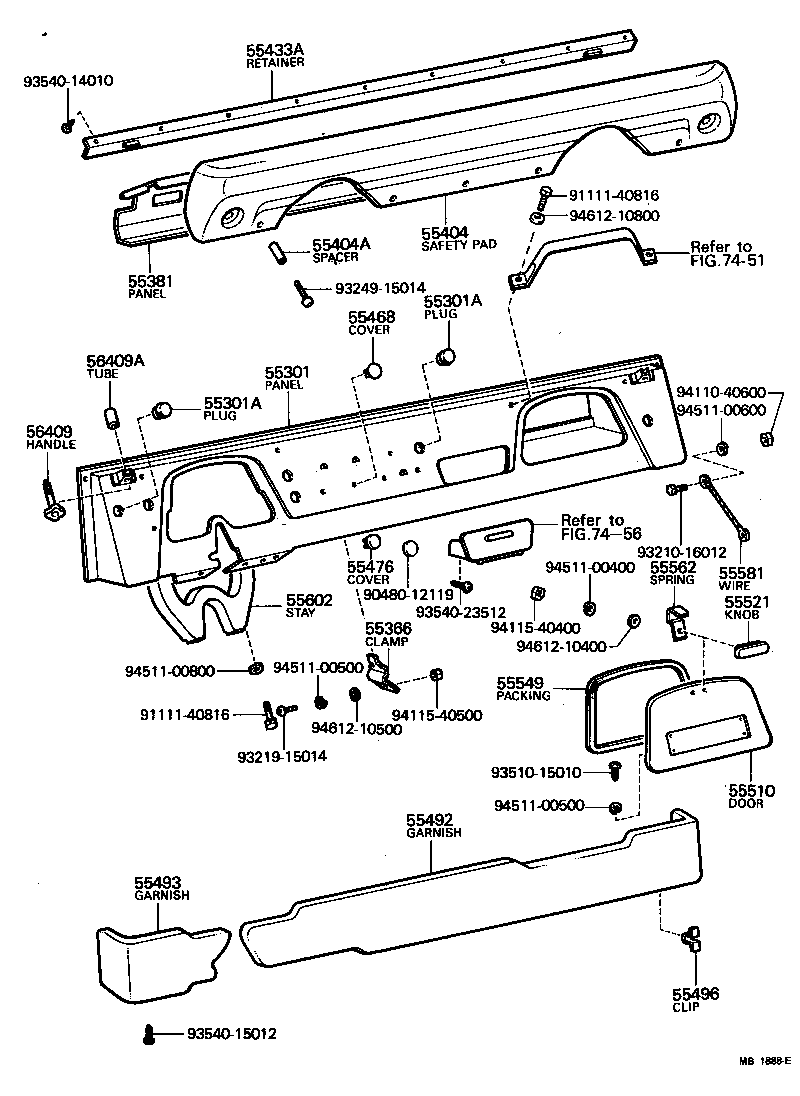

Figure MB8579B MB8579B 1969-03 → 1972-09 Figure MB1888E MB1888E 1969-03 → 1972-09 Figure MB8990B MB8990B 1972-09 → 1980-07 Figure MB6174G MB6174G 1972-09 → 1980-07 Figure MB1889F MB1889F 1969-03 → 1972-09 Figure MB6175I MB6175I 1972-09 → 1980-07

Part groups

PNCDescription
55301 Panel Sub-assy, Instrument
55301A Plug, Hole(FOR INSTRUMENT LOWER PANEL)
55302 Panel Sub-assy, Center Control
55321A Cover,Instrument Panel Hole
55366 Clamp, Transfer Change Valve Shift Wire
55381 Panel, Instrument Impact
55401 Panel Sub-assy, Instrument Cluster Finish
55404 Safety Pad Sub-assy, Instrument Panel, Upper
55404A Spacer, Instrument Panel Safety Pad Set
55433A Retainer, Safety Pad Set Plate
55440 Garnish, Instrument Panel, Center
55440A Clip(FOR INSTRUMENT PANEL CENTER GARNISH)
55445 Garnish, Instrument Panel Outside, RH
55446 Garnish, Instrument Panel Outside, LH
55453 Cover, Radio Tuner Opening
55461 Cover, Heater Control Hole
55465 Cover, Instrument Hole
55468 Cover, Heater Switch Hole
55468A Seal(FOR HEATER SWITCH HOLE COVER)
55476 Cover, Cigarette Lighter Hole
55491 Cover, Instrument Panel, Upper
55492 Garnish OR Safety Pad, Lower, RH
55493 Garnish OR Safety Pad, Lower, LH
55494 Insulator, Instrument Panel Center, Lower
55496 Clip, Lower Safety Pad
55497 Cover, Instrument Center, Lower
55503 Compartment Sub-assy, Glove
55507 Hinge Sub-assy, Glove Compartment Door
55510 Door Assy, Glove Compartment
55521 Knob, Glove Compartment Door
55549 Packing, Glove Compartment Door
55562 Spring, Glove Compartment Door Stop
55581 Wire, Glove Compartment Door Open
55602 Stay Sub-assy, Steering Column, Upper
55908 Nozzle Sub-assy, Defroster, RH
55909 Nozzle Sub-assy, Defroster, LH
55970 Nozzle Assy, Assist Defroster
56409 Handle Sub-assy, Windshield Catch
56409A Tube, Windshield Catch Handle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
