Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01

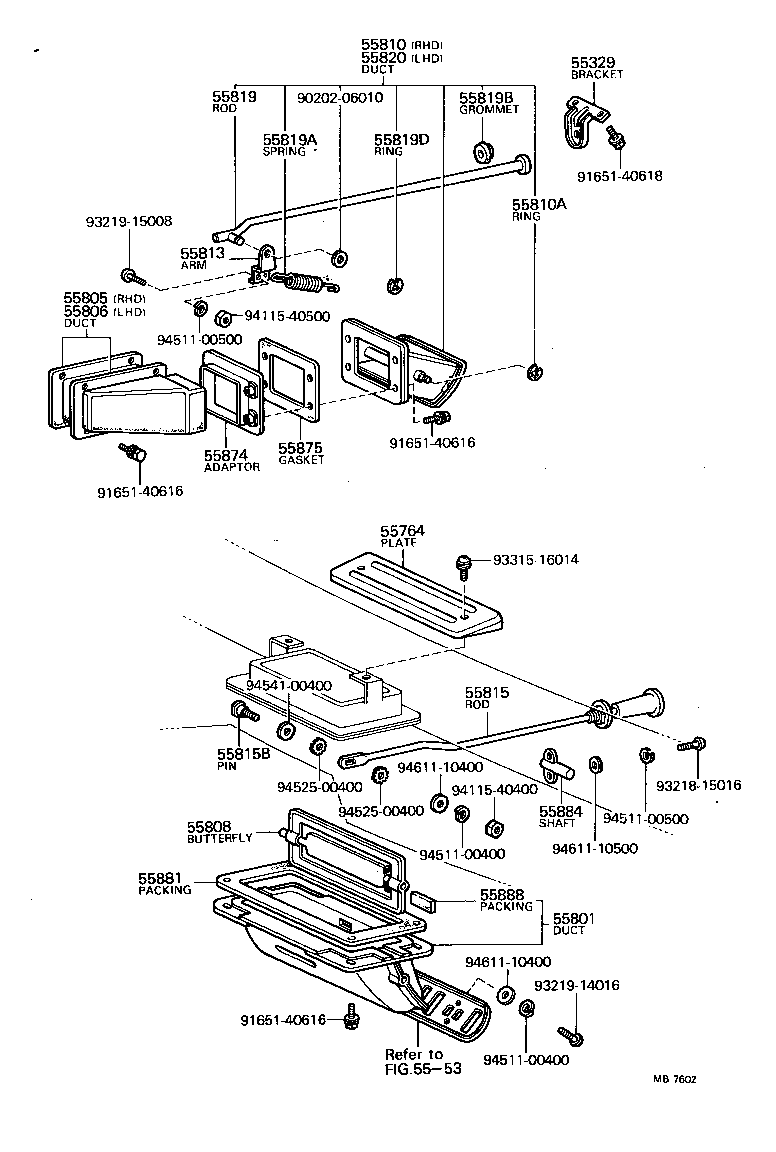

Front Ventilator
40 part groups · 3 illustrations
Part groups
| PNC | Description |
|---|---|
| 55250 | Door Assy, Cowl Side Ventilator, RH |
| 55260 | Door Assy, Cowl Side Ventilator, LH |
| 55329 | Bracket, Cowl Side Ventilator Control Rod |
| 55759 | Connector, Cowl Ventilator Drain Hose |
| 55759A | Grommet, Cowl Ventilator Drain Hose Connector |
| 55764 | Plate, Cowl Ventilator Water Guard |
| 55767 | Connector, Cowl Ventilator Drain Hose |
| 55801 | Duct Assy, Cowl Ventilator |
| 55804 | Link Sub-assy, Cowl Ventilator Damper |
| 55805 | Duct Sub-assy, Side Ventilator, NO.2 RH |
| 55806 | Duct Sub-assy, Side Ventilator, NO.2 LH |
| 55808 | Butterfly Sub-assy, Cowl Ventilator |
| 55810 | Duct Assy, Side Ventilator, RH |
| 55810A | Ring, E(FOR SIDE VENTILATOR DUCT) |
| 55813 | Arm, Cowl Side Ventilator Butterfly |
| 55815 | Rod, Cowl Ventilator Control |
| 55815B | Pin, Cowl Ventilator Control Rod |
| 55817 | Bracket, Cowl Ventilator Rod |
| 55818 | Seal, Side Ventilator Duct |
| 55819 | Rod, Side Ventilator Control |
| 55819A | Spring, Tension(FOR SIDE VENTILATOR CONTROL ROD) |
| 55819B | Grommet(FOR SIDE VENTILATOR CONTROL ROD) |
| 55819D | Ring, E(FOR SIDE VENTILATOR CONTROL ROD) |
| 55820 | Duct Assy, Side Ventilator, LH |
| 55821 | Bracket, Cowl Ventilator |
| 55822 | Wire Assy, Cowl Ventilator |
| 55832 | Support, Front Ventilator |
| 55833 | Pin, Front Ventilator Support |
| 55842 | Spring, Front Ventilator, RH |
| 55843 | Spring, Front Ventilator, LH |
| 55849 | Pin, Cowl Ventilator Control Wire |
| 55849A | Spring, Torsion(FOR COWL VENTILATOR CONTROL WIRE PIN) |
| 55849B | Ring, E(FOR COWL VENTILATOR CONTROL WIRE PIN) |
| 55849C | Retainer, Cowl Ventilator Control Wire Pin |
| 55853 | Pin,Cowl Ventilator Damper Spring |
| 55874 | Adapter, Cowl Side Ventilator Duct |
| 55875 | Gasket, Cowl Side Ventilator Duct |
| 55881 | Packing, Front Ventilator |
| 55884 | Shaft, Cowl Ventilator Butterfly |
| 55888 | Packing, Cowl Ventilator Knob |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
