Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Floor Panel & Front Floor Member

26 part groups · 3 illustrations

Illustrations

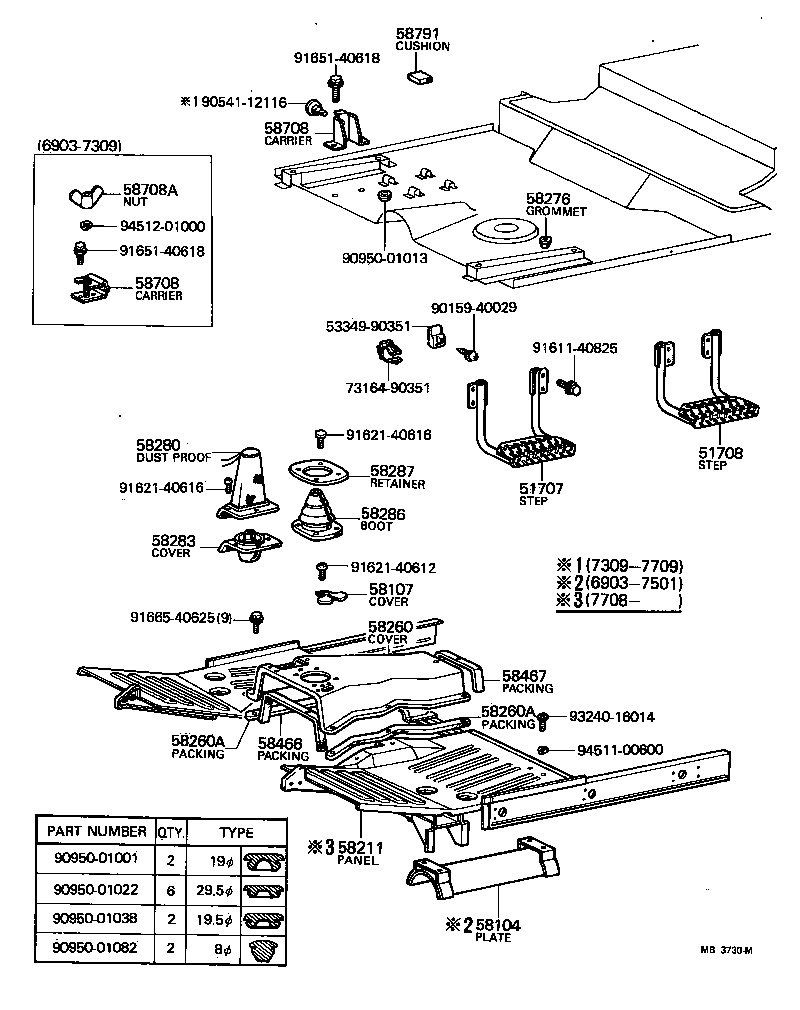

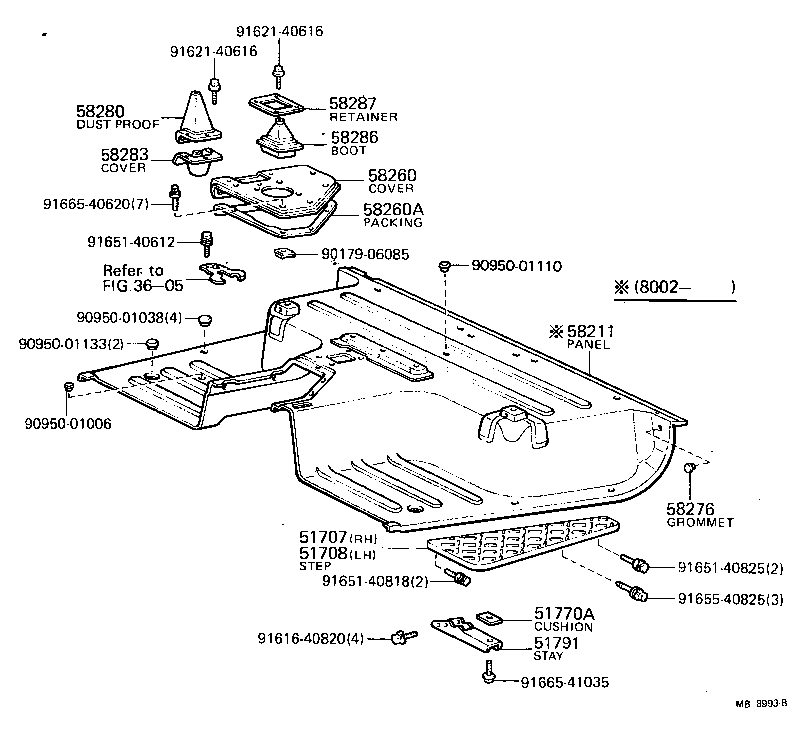

Figure MB2898P MB2898P 1969-03 → 1979-01 Figure MB8993B MB8993B 1979-01 → 1980-07 Figure MB3730M MB3730M 1969-03 → 1980-07

Part groups

PNCDescription
51707 Step Sub-assy, RH
51708 Step Sub-assy, LH
51770 Step Assy, Front, RH
51770A Cushion(FOR STEP)
51780 Step Assy, Front, LH
51791 Stay, Step
51794 Retainer, Front Step Mat, RH
51795 Retainer,Front Step Mat, LH
58104 Plate Sub-assy, Insulator Exhaust Pipe
58107 Cover Sub-assy, Power Take-off Control Lever
58211 Panel, Front Floor
58260 Cover Assy, Transmission, Front
58260A Packing, Front Transmission Service Hole Cover
58276 Grommet, Safety Band Anchorage Nut
58280 Dust Proof Assy, Transfer Control Lever
58283 Cover, Front Drive Dust
58286 Boot, Shift & Select Lever, NO.1
58287 Retainer, Shift Lever Boot
58289 Plate, Transmission Set
58291 Cover, Power Take-off Control Lever, NO.1
58292 Cover, Power Take-off Control Lever, NO.2
58466 Packing, Transmission Service Hole Cover, NO.2
58467 Packing, Front Transmission Cover, NO.3
58708 Carrier Sub-assy, Jack
58708A Nut, Jack Clamp
58791 Cushion, Jack Clamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
