Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Floor Mat & Silencer Pad

11 part groups · 2 illustrations

Illustrations

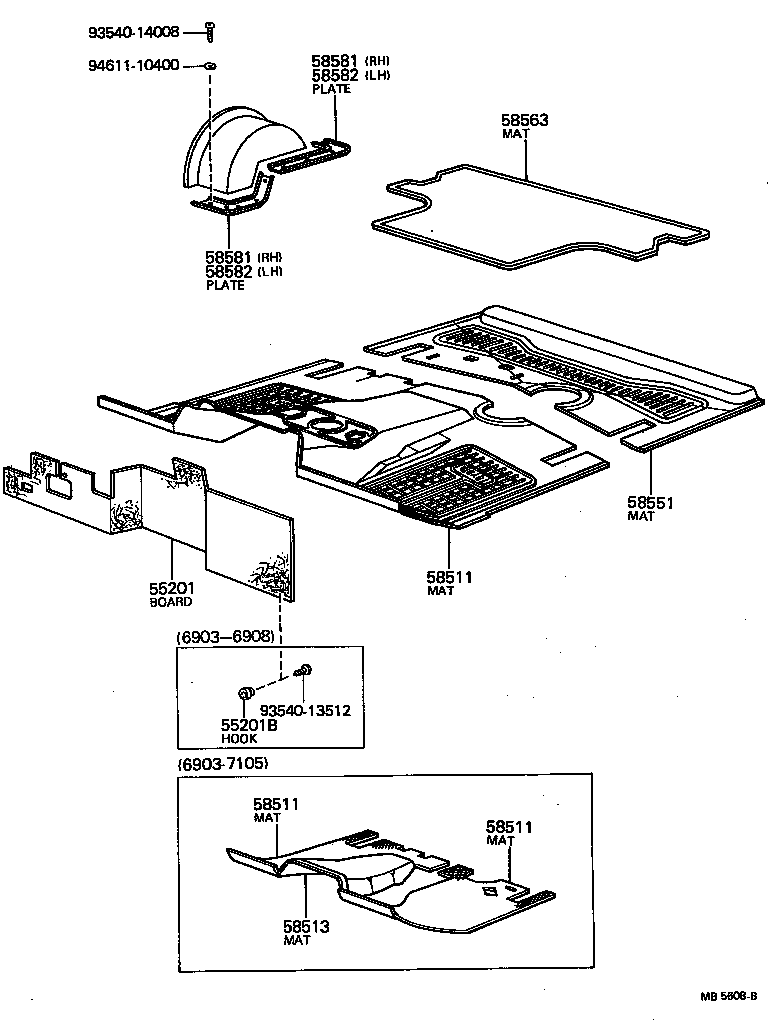

Figure MB4927C MB4927C 1969-03 → 1980-07 Figure MB5608B MB5608B 1969-03 → 1980-07

Part groups

PNCDescription
55201 Board Sub-assy, Dash Panel Silencer
55201B Hook, Male(FOR DASH PANEL SILENCER BOARD)
58511 Mat, Floor, Front
58512 Mat, Seat Floor
58513 Mat, Transmission Cover
58551 Mat, Floor, Rear
58563 Mat, Rear Floor
58570 Mat Assy, Rear Fender Apron, RH
58580 Mat Assy, Rear Fender Apron, LH
58581 Plate, Wheel House Mat Set, RH
58582 Plate, Wheel House Mat Set, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
