Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Side Window

47 part groups · 4 illustrations

Illustrations

MB6004E 1969-03 → 1980-07

MB6004E 1978-08 → —

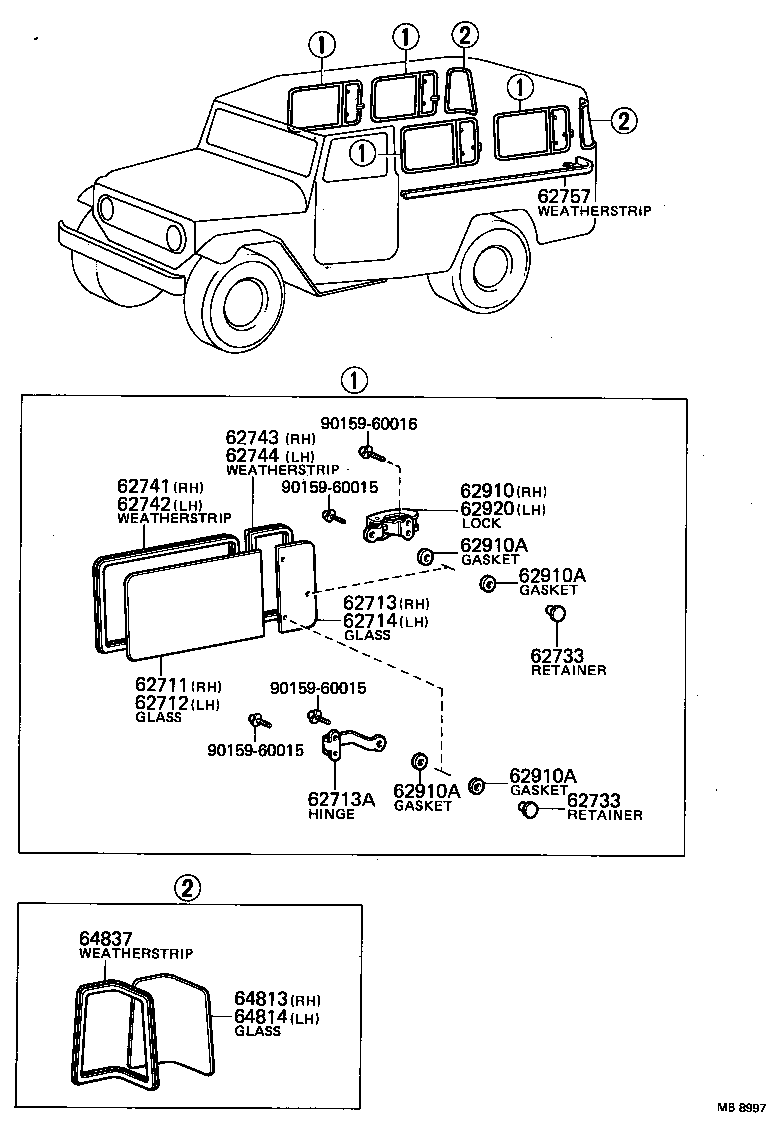

MB8997 1979-04 → 1980-07

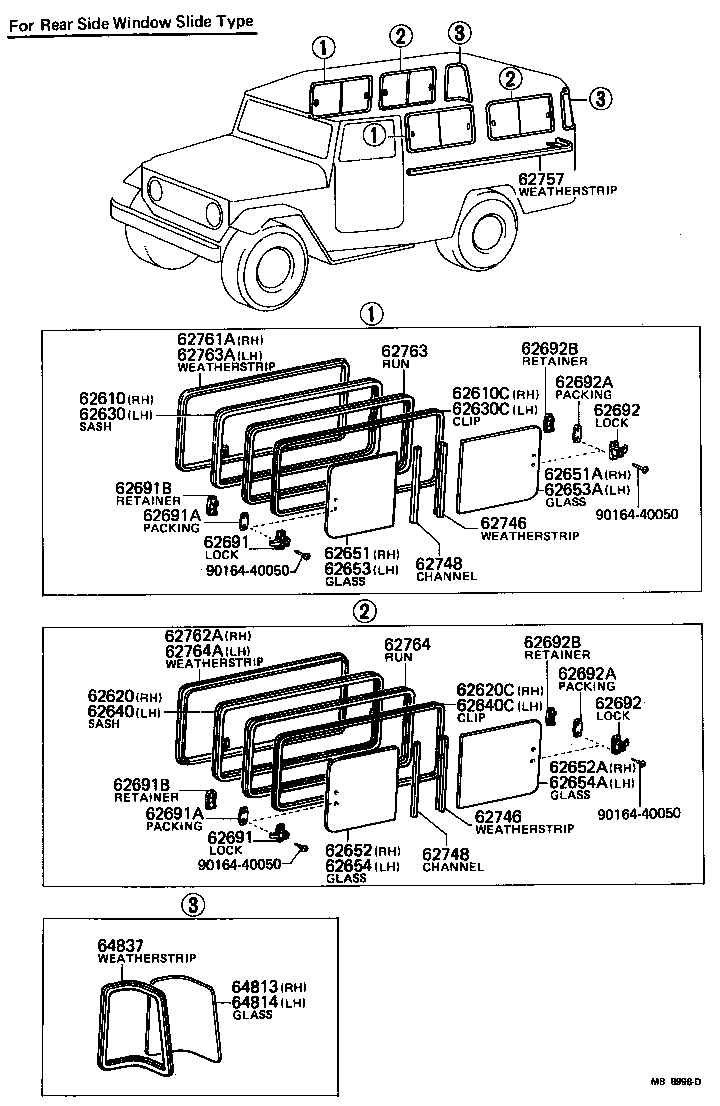

MB8998D 1979-04 → 1980-07

Part groups

PNC	Description
62610	Sash Assy, Side Window Outer, NO.1 (FOR SLIDE TYPE)
62610C	Clip, Side Window Outer Sash, NO.1 (FOR SLIDE TYPE)
62620	Sash Assy, Side Window Outer, NO.2 (FOR SLIDE TYPE)
62620C	Clip, Side Window Outer Sash, NO.2 (FOR SLIDE TYPE)
62630	Sash Assy, Side Window Outer, NO.3 (FOR SLIDE TYPE)
62630C	Clip, Side Window Outer Sash, NO.3 (FOR SLIDE TYPE)
62640	Sash Assy, Side Window Outer, NO.4 (FOR SLIDE TYPE)
62640C	Clip, Side Window Outer Sash, NO.4 (FOR SLIDE TYPE)
62651	Glass, Side Window, NO.1, Front (FOR SLIDE TYPE)
62651A	Glass, Side Window, NO.1, Rear (FOR SLIDE TYPE)
62652	Glass, Side Window, NO.2, Front (FOR SLIDE TYPE)
62652A	Glass, Side Window, NO.2, Rear (FOR SLIDE TYPE)
62653	Glass, Side Window, NO.3, Front (FOR SLIDE TYPE)
62653A	Glass, Side Window, NO.3, Rear (FOR SLIDE TYPE)
62654	Glass, Side Window, NO.4, Front (FOR SLIDE TYPE)
62654A	Glass, Side Window, NO.4, Rear (FOR SLIDE TYPE)
62691	Lock, Side Window, NO.1 Glass (FOR SLIDE TYPE)
62691A	Packing, Side Window Lock, NO.1
62691B	Retainer, Side Window Lock, NO.1
62692	Lock, Side Window, NO.2 Glass (FOR SLIDE TYPE)
62692A	Packing, Side Window Lock, NO.2
62692B	Retainer, Side Window Lock, NO.2
62711	Glass, Quarter Window, RH
62712	Glass, Quarter Window, LH
62713	Glass, Quarter Window, Rear RH
62713A	Hinge Assy, Quarter Window, Rear
62714	Glass, Quarter Window, Rear LH
62733	Retainer, Quarter OR Side Window Hinge
62741	Weatherstrip, Quarter Window, RH
62742	Weatherstrip, Quarter Window, LH
62743	Weatherstrip, Quarter Window, Rear RH
62744	Weatherstrip, Quarter Window, Rear LH
62746	Weatherstrip, Side Window Glass Channel, NO.1
62748	Channel, Side Window Glass
62757	Weatherstrip, Upper Side Panel
62761A	Weatherstrip, Side Window, NO.1(FOR SLIDE TYPE)
62762A	Weatherstrip, Side Window, NO.2(FOR SLIDE TYPE)
62763	Run, Side Window, NO.3(FOR SLIDE TYPE)
62763A	Weatherstrip, Side Window, NO.4(FOR SLIDE TYPE)
62764	Run, Side Window, NO.4(FOR SLIDE TYPE)
62764A	Weatherstrip, Side Window, NO.4(FOR SLIDE TYPE)
62910	Lock Assy, Quarter OR Side Window, RH
62910A	Gasket(FOR QUARTER OR SIDE WINDOW LOCK OR HINGE)
62920	Lock Assy, Quarter Window, LH
64813	Glass, Back Window Corner, RH
64814	Glass, Back Window Corner, LH
64837	Weatherstrip, Back Window Corner

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
