Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Roof Panel & Back Panel

39 part groups · 3 illustrations

Illustrations

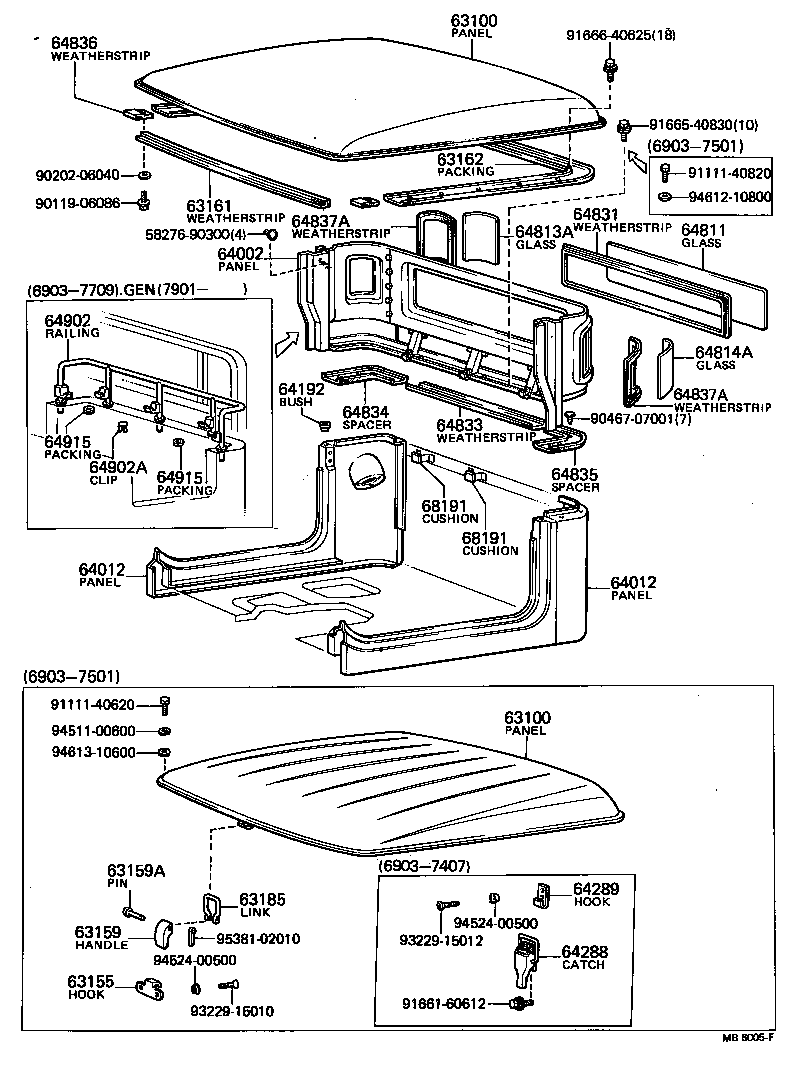

Figure MB4925G MB4925G 1969-03 → 1980-07 Figure MB4925G MB4925G 1978-08 → — Figure MB6005F MB6005F 1969-03 → 1980-07

Part groups

PNCDescription
63100 Panel Assy, Roof
63102 Reinforcement Sub-assy, Roof Panel, Front
63104 Reinforcement Sub-assy, Roof Panel, Center
63105 Reinforcement Sub-assy, Roof Panel, Rear
63105C Moulding Sub-assy, Roof Drip
63114 Reinforcement, Roof Panel, Rear
63132 Panel, Windshield Header, Inner
63151 Shim, Roof Reinforcement
63155 Hook, Roof Catch
63159 Handle, Roof Catch
63159A Pin, Roof Catch Handle
63161 Weatherstrip, Roof
63162 Packing, Roof Drip Moulding
63163 Spacer, Roof Drip Moulding Strength
63163A Clip, Spring(FOR ROOF DRIP MOULDING STRENGTH SPACER SET)
63164 Gusset, Roof Drip Moulding, RH
63165 Gusset, Roof Drip Moulding, LH
63185 Link, Roof Catch Handle
64002 Panel Sub-assy, Cab Rear, Upper
64012 Panel Sub-assy, Cab Lower Corner
64192 Bush, Cab Rear Panel Tube
64288 Catch, Cab, Rear
64289 Hook, Cab Upper Panel
64811 Glass, Back Window
64813A Glass, Back Window Corner, RH
64814A Glass, Back Window Corner, LH
64831 Weatherstrip, Back Window Glass
64833 Weatherstrip, Back Window Channel
64834 Spacer, Cab Rear Panel, RH
64835 Spacer, Cab Rear Panel, LH
64836 Weatherstrip, Roof, Front
64837A Weatherstrip, Back Window Corner
64901 Frame Sub-assy, Back
64902 Railing Sub-assy, Cab, Rear
64902A Clip(FOR CAB REAR RAILING SETTING)
64905 Frame Sub-assy, Back Upper
64905B Rail Sub-assy, Rear Upper Pillar
64915 Packing, Cab Rear Railing
68191 Cushion, Driver Seatback
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
