Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01
Inside Trim Board

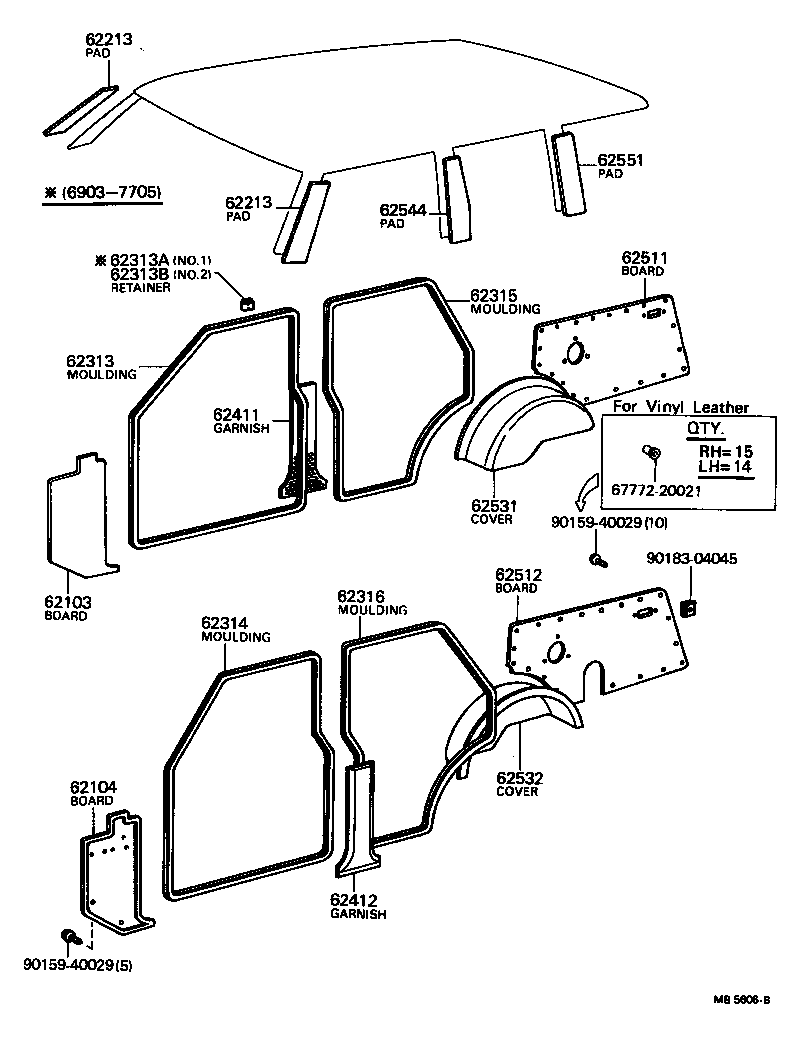

19 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 51786 | Mat, Front Step, RH |
| 51787 | Mat, Front Step, LH |
| 62103 | Board Sub-assy, Cowl Side Trim, RH |
| 62104 | Board Sub-assy, Cowl Side Trim, LH |
| 62213 | Pad, Front Pillar Garnish |
| 62313 | Moulding, Front Door Opening Trim, RH |
| 62313A | Retainer, Door Opening Trim Moulding, NO.1 |
| 62313B | Retainer, Door Opening Trim Moulding, NO.2 |
| 62314 | Moulding, Front Door Opening Trim, LH |
| 62315 | Moulding, Rear Door Opening Trim, RH |
| 62316 | Moulding, Rear Door Opening Trim, LH |
| 62411 | Garnish, Center Pillar, RH |
| 62412 | Garnish, Center Pillar, LH |
| 62511 | Board, Quarter Inside Trim, RH |
| 62512 | Board, Quarter Inside Trim, LH |
| 62531 | Cover, Wheel House Trim, RH |
| 62532 | Cover, Wheel House Trim, LH |
| 62544 | Pad, Quarter Pillar Upper Garnish |
| 62551 | Pad, Rear Pillar Upper Garnish |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
