Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Body Top Curtain & Roof Panel

26 part groups · 5 illustrations

Illustrations

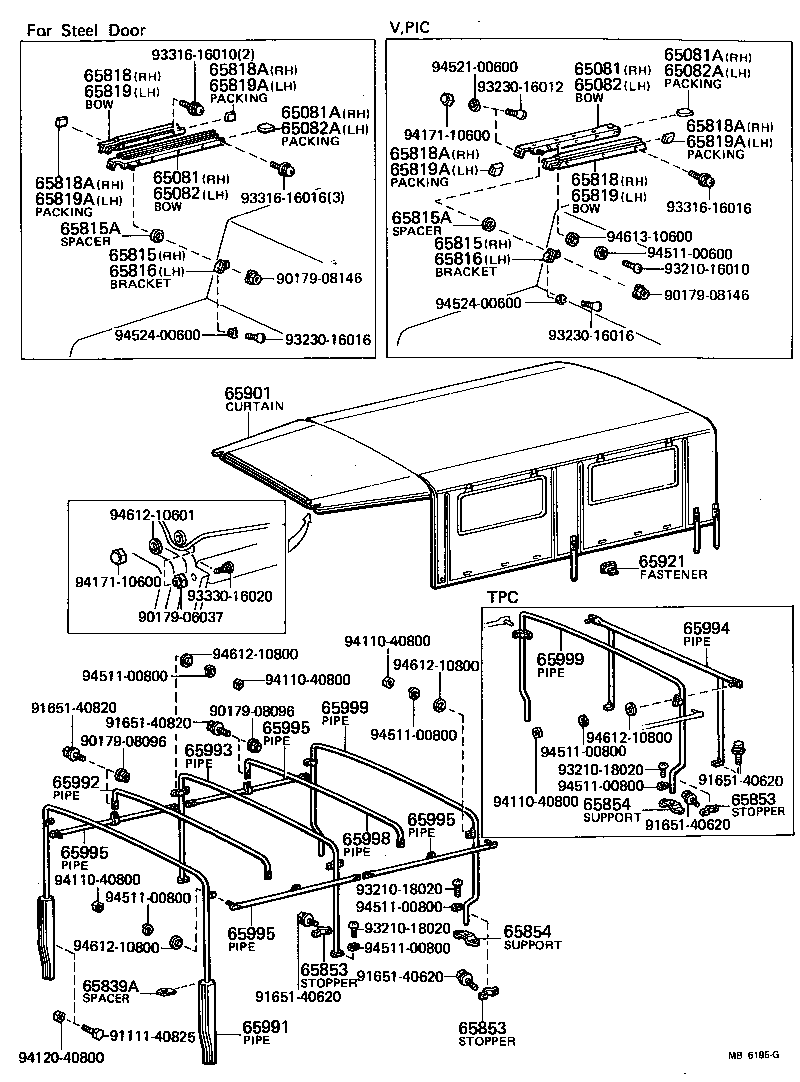

Figure MB1267N MB1267N 1969-03 → 1980-07 Figure MB6195G MB6195G 1969-03 → 1980-07 Figure MB6195G MB6195G 1978-08 → — Figure MBC360 MBC360 1969-03 → 1980-07 Figure MBC360 MBC360 1978-08 → —

Part groups

PNCDescription
65081 Bow Sub-assy, Front Side Top, RH
65081A Packing, Front Side Top, RH
65082 Bow Sub-assy, Front Side Top, LH
65082A Packing, Front Side Top, LH
65815 Bracket, Front Side Top Bow, RH
65815A Spacer, Front Side Top Bow Bracket
65816 Bracket, Front Side Top Bow, LH
65818 Bow, Front Side Top, Outer RH
65818A Packing, Front Side Top Bow, RH
65819 Bow, Front Side Top, Outer LH
65819A Packing, Front Side Top Bow, LH
65839A Spacer, Front Side Vinyl Top Bow
65853 Stopper, Vinyl Top Pipe
65854 Support, Rear Vinyl Top
65901 Vinyl Sub-assy, Top
65903 Tarpaulin Assy, Side Cover, RH
65904 Tarpaulin Assy, Side Cover, LH
65906 Tarpaulin Sub-assy, Rear
65921 Fastener, Vinyl Top
65991 Pipe, Vinyl Top Guard, NO.1
65992 Pipe, Vinyl Top Guard, NO.2
65993 Pipe, Vinyl Top Guard, NO.3
65994 Pipe, Vinyl Top Guard
65995 Clamp, Curtain Rail, NO.1
65998 Pipe, Vinyl Top Guard, NO.4
65999 Pipe, Vinyl Top Guard, NO.5
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
