Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Panel & Glass

46 part groups · 7 illustrations

Illustrations

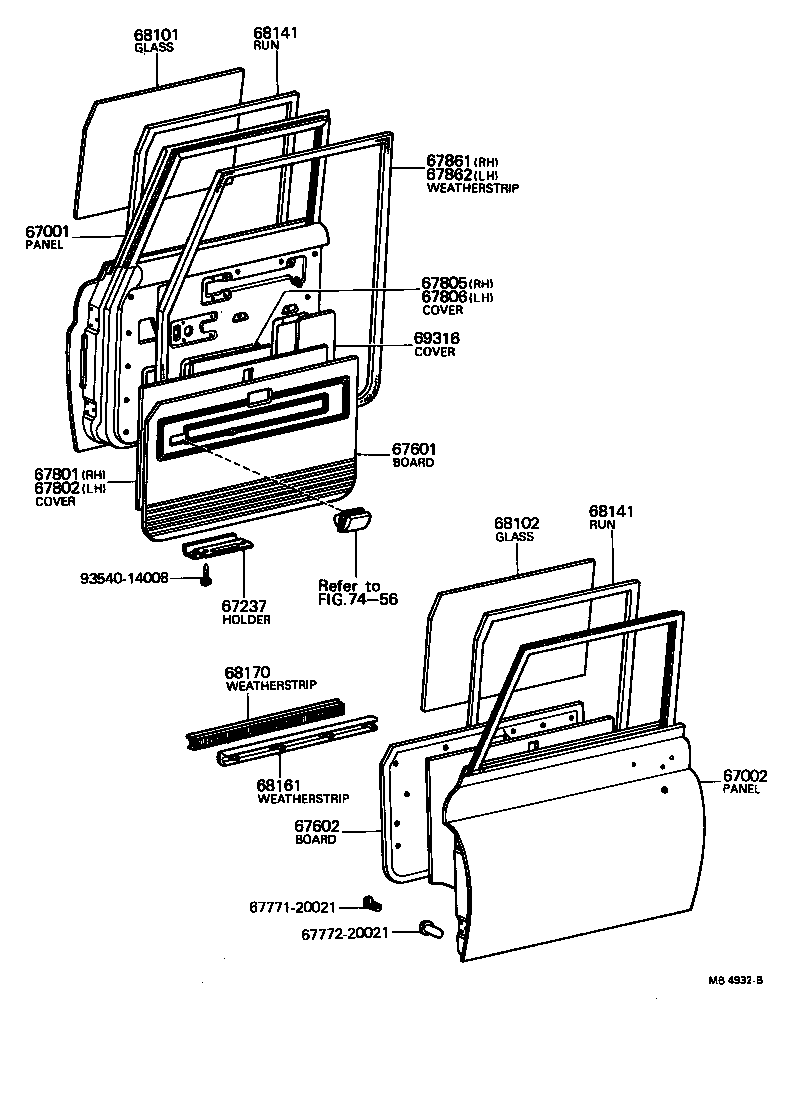

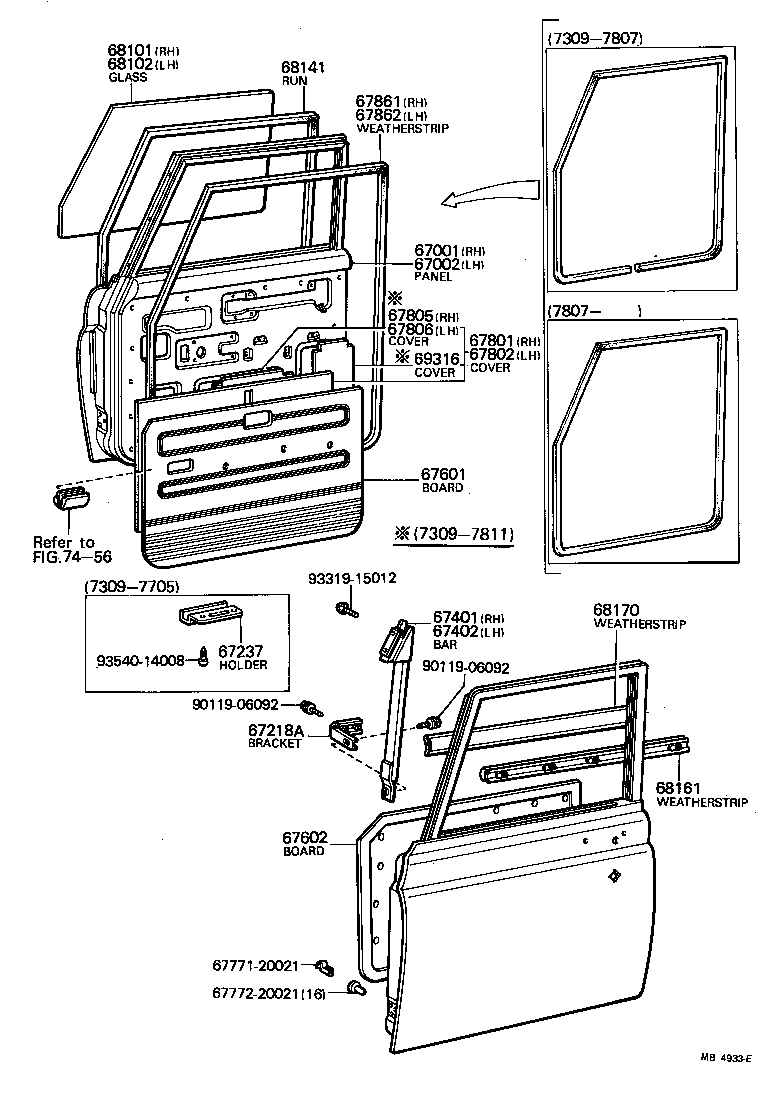

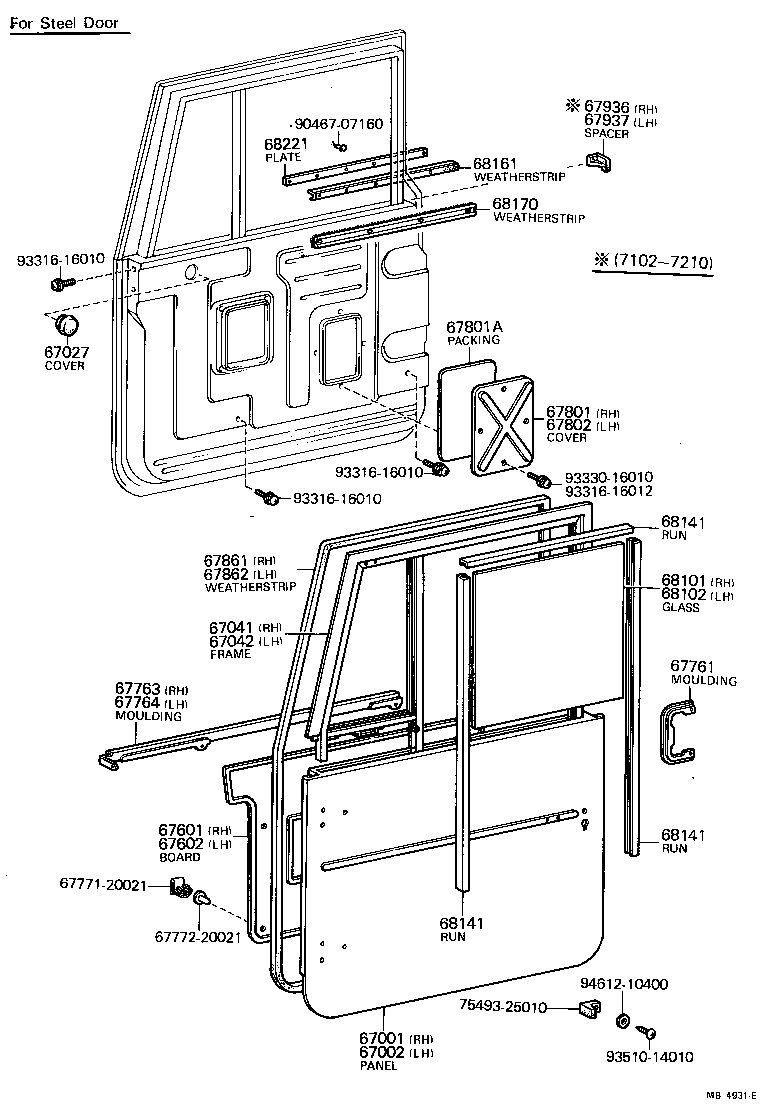

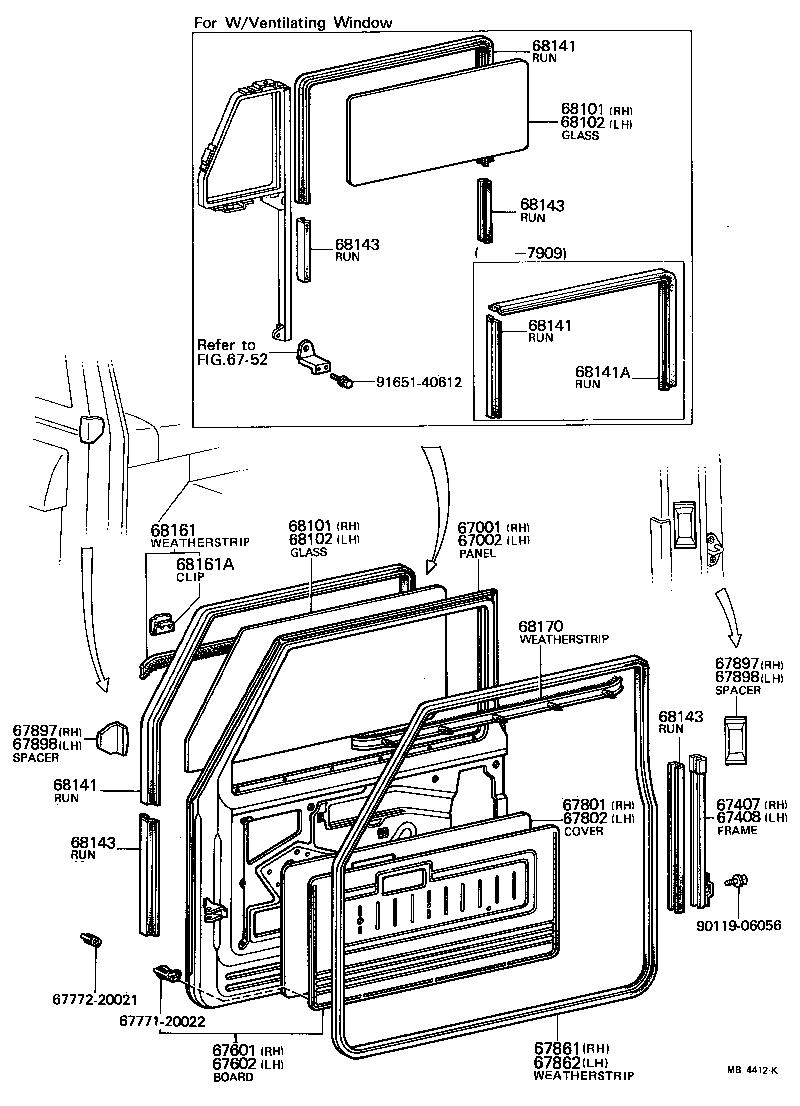

Figure MB4930D MB4930D 1969-03 → 1980-07 Figure MB4931E MB4931E 1969-03 → 1975-01 Figure MB4931E MB4931E 1975-01 → 1975-09 Figure MB4412K MB4412K 1975-01 → 1975-09 Figure MB4412K MB4412K 1975-09 → 1980-07 Figure MB4932B MB4932B 1969-03 → 1973-09 Figure MB4933E MB4933E 1973-09 → 1980-07

Part groups

PNCDescription
67001 Panel Sub-assy, Front Door, RH
67001A Cushion, Front Door Panel
67002 Panel Sub-assy, Front Door, LH
67027 Cover Sub-assy, Door Ventilating Hole
67041 Frame Sub-assy, Front Door Window, RH
67042 Frame Sub-assy, Front Door Window, LH
67100 Door Assy, Front RH
67200 Door Assy, Front, LH
67213 Plate, Front Door Canvas Set
67218A Bracket, Front Door Division Bar Set
67237 Holder, Front Door Weatherstrip
67401 Bar Sub-assy, Front Door Window, Front RH
67402 Bar Sub-assy, Front Door Window, Front LH
67407 Frame Sub-assy, Front Door, Rear Lower RH
67408 Frame Sub-assy, Front Door, Rear Lower LH
67491 Channel, Canvas Door Weatherstrip Upper Hold
67492 Channel, Canvas Door Weatherstrip Front Hold, RH
67493 Channel, Canvas Door Weatherstrip Front Hold, LH
67496 Channel, Canvas Door Weatherstrip Under Hold
67601 Board Sub-assy, Front Door Trim, RH
67602 Board Sub-assy, Front Door Trim, LH
67761 Moulding, Front Door Trim
67763 Moulding, Front Door Trim, Upper RH
67764 Moulding, Front Door Trim, Upper LH
67801 Cover Sub-assy, Front Door Hole, NO.1 RH
67801A Packing, Regulator Hole
67802 Cover Sub-assy, Front Door Hole, NO.1 LH
67805 Cover Sub-assy, Front Door Hole, NO.2 RH
67806 Cover Sub-assy, Front Door Hole, NO.2 LH
67861 Weatherstrip, Front Door, RH
67862 Weatherstrip, Front Door, LH
67897 Spacer, Front Door Weatherstrip, RH
67898 Spacer, Front Door Weatherstrip, LH
67936 Spacer, Front Door Belt Line, Front RH
67937 Spacer, Front Door Belt Line, Front LH
68101 Glass Sub-assy, Front Door, RH
68102 Glass Sub-assy, Front Door, LH
68141 Run, Front Door Glass
68141A Run, Front Door Glass, Upper
68143 Run, Front Door Glass, Lower
68161 Weatherstrip, Front Door Glass, Outer
68161A Clip(FOR FRONT DOOR GLASS OUTER WEATHERSTRIP)
68170 Weatherstrip Assy, Front Door Glass, Inner
68212 Plate, Canvas Door Window Holder
68221 Plate, Front Door Window Outer Weatherstrip Set
69316 Cover,Front Door Lock
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
