Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Lock & Handle

29 part groups · 5 illustrations

Illustrations

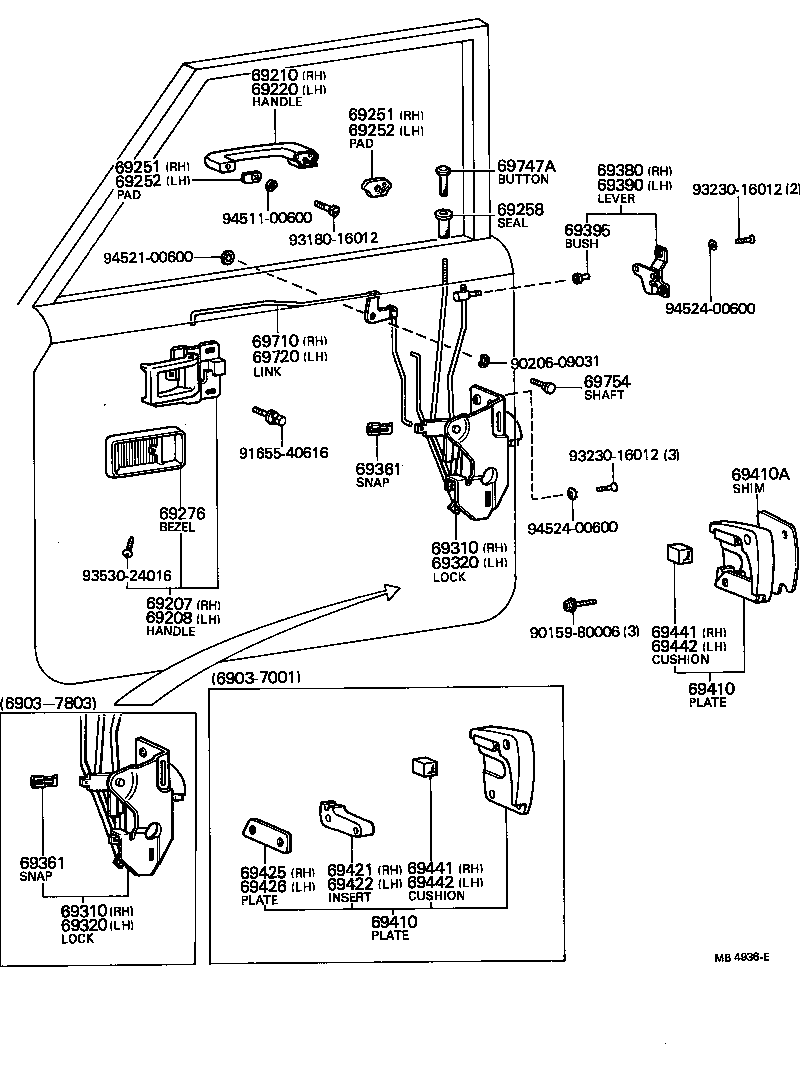

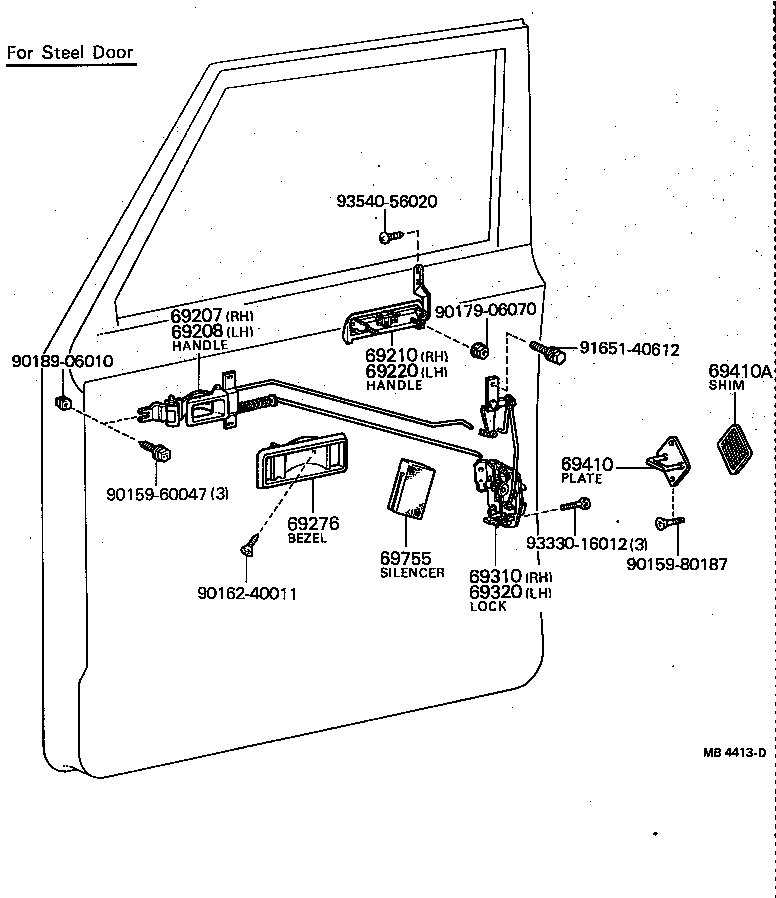

Figure MB4935G MB4935G 1969-03 → 1975-01 Figure MB4935G MB4935G 1975-01 → 1980-07 Figure MB4413D MB4413D 1975-01 → 1975-09 Figure MB4413D MB4413D 1975-09 → 1980-07 Figure MB4936E MB4936E 1969-03 → 1980-07

Part groups

PNCDescription
69207 Handle Sub-assy, Front Door Inside, RH
69207F Spring, Tension(FOR FRONT DOOR INSIDE HANDLE)
69208 Handle Sub-assy, Front Door Inside, LH
69210 Handle Assy, Front Door, Outside RH
69220 Handle Assy, Front Door Outside, LH
69251 Pad, Front Door Outside Handle, Front RH
69252 Pad, Front Door Outside Handle, Front LH
69258 Seal, Door Outside Panel Hole
69276 Bezel, Front Door Inside Handle
69310 Lock Assy, Front Door, RH
69320 Lock Assy, Front Door, LH
69361 Snap, Door Lock Connecting Rod
69380 Lever Assy, Door Outside Handle Remote Control, RH
69390 Lever Assy, Door Outside Handle Remote Control, LH
69395 Bush(FOR DOOR OUTSIDE HANDLE)
69405 Stop Sub-assy, Door Down
69410 Plate Assy, Front Door Lock Striker
69410A Shim, Front Door Lock Striker Plate
69421 Insert, Door Lock Striker, RH
69422 Insert, Door Lock Striker, LH
69425 Plate, Door Lock Striker Auxiliary, RH
69426 Plate, Door Lock Striker Auxiliary, LH
69441 Cushion, Door Lock, RH
69442 Cushion, Door Lock, LH
69710 Link Assy, Front Door Open Control, RH
69720 Link Assy, Front Door Open Control, LH
69747A Button, Door Locking(FOR FRONT DOOR)
69754 Shaft, Bellcrank, Center
69755 Silencer, Front Door Lock Link
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
