Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Door Window Regulator & Hinge

23 part groups · 5 illustrations

Illustrations

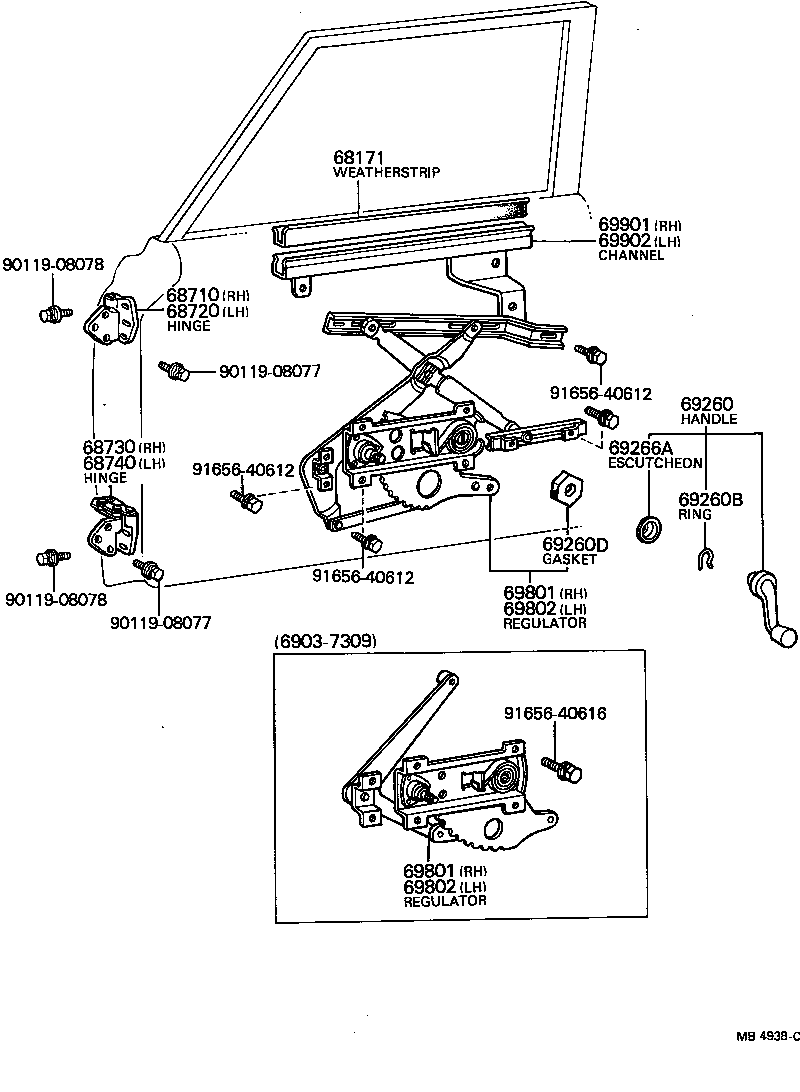

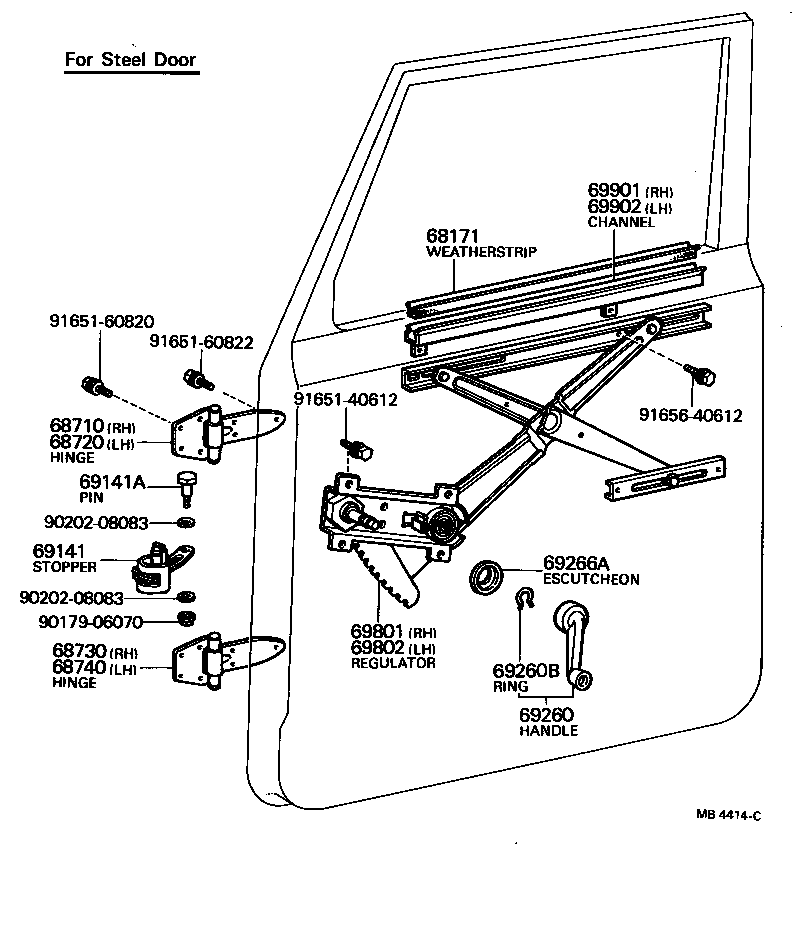

Figure MB4937J MB4937J 1969-03 → 1975-01 Figure MB4937J MB4937J 1975-01 → 1980-07 Figure MB4414C MB4414C 1975-01 → 1975-09 Figure MB4414C MB4414C 1975-09 → 1980-07 Figure MB4938C MB4938C 1969-03 → 1980-07

Part groups

PNCDescription
67201 Stopper Assy, Door Glass(FOR FRONT DOOR)
67201A Cushion, Door Glass Down Stopper(FOR FRONT DOOR)
68171 Weatherstrip, Front Door Glass Channel
68701 Hinge Sub-assy, Canvas Door Male
68703 Hinge Sub-assy, Canvas Door Female, Upper RH
68704 Hinge Sub-assy, Canvas Door Female, Upper LH
68707 Hinge Sub-assy, Canvas Door Female, Lower RH
68708 Hinge Sub-assy, Canvas Door Female, Lower LH
68710 Hinge Assy, Front Door, Upper RH
68720 Hinge Assy, Front Door, Upper LH
68730 Hinge Assy, Front Door, Lower RH
68740 Hinge Assy, Front Door, Lower LH
69141 Stopper, Front Door Open
69141A Pin, Front Door Open Stopper
69142 Cushion, Door Open Stopper
69260 Handle Assy, Front Door Window Regulator
69260B Ring, Shaft Snap(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69260D Gasket(FOR FRONT DOOR WINDOW REGULATOR HANDLE)
69266A Escutcheon, Door Regulator Handle(FOR FRONT DOOR)
69801 Regulator Sub-assy, Front Door Window, RH
69802 Regulator Sub-assy, Front Door Window, LH
69901 Channel Sub-assy, Front Door Glass, RH
69902 Channel Sub-assy, Front Door Glass, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
