Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back Door Panel & Glass

47 part groups · 8 illustrations

Illustrations

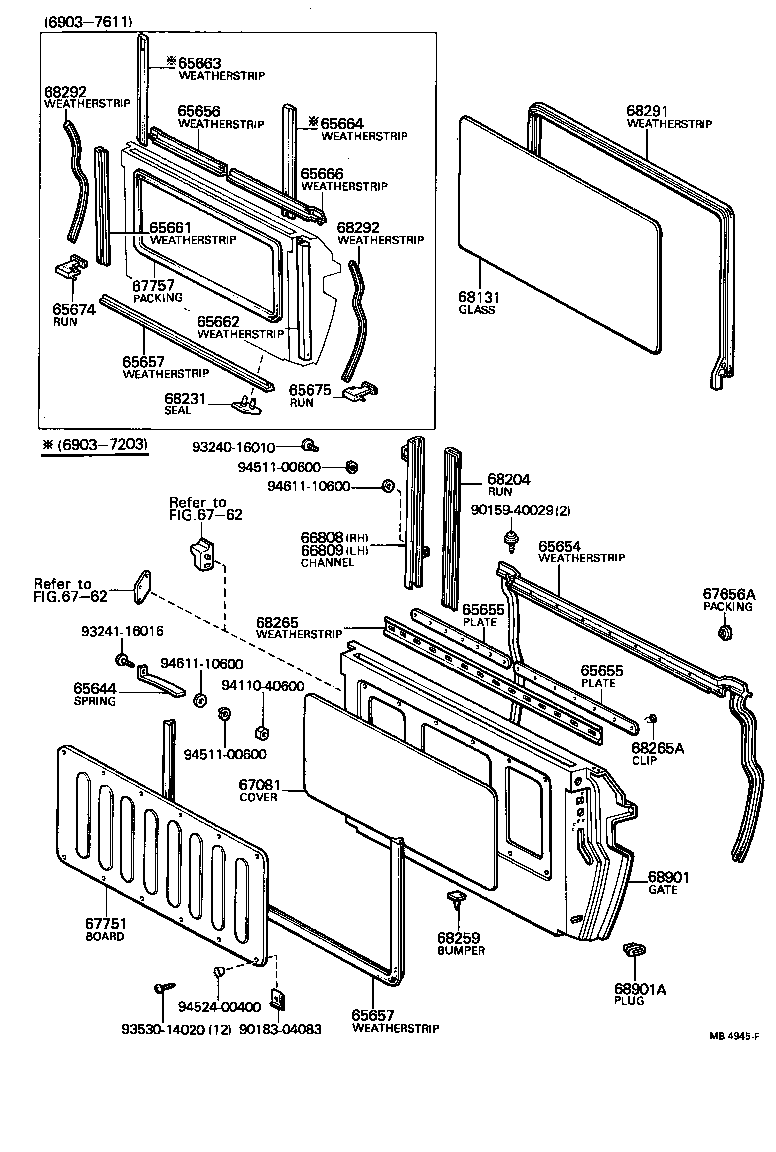

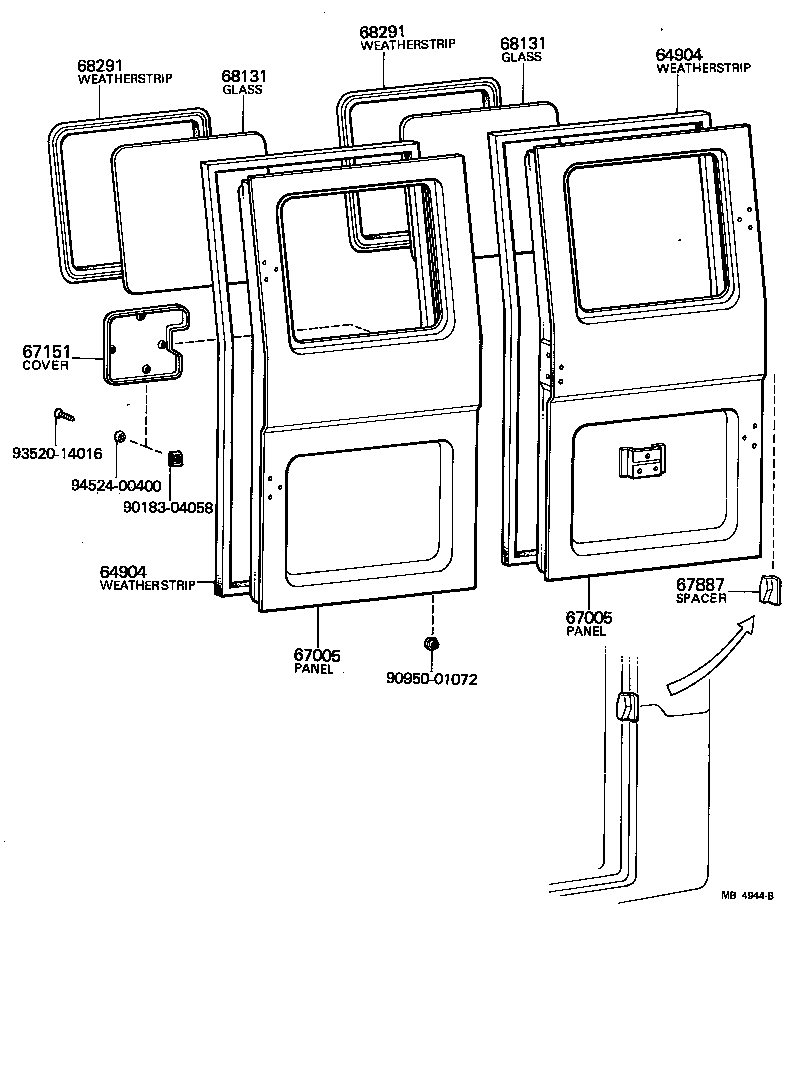

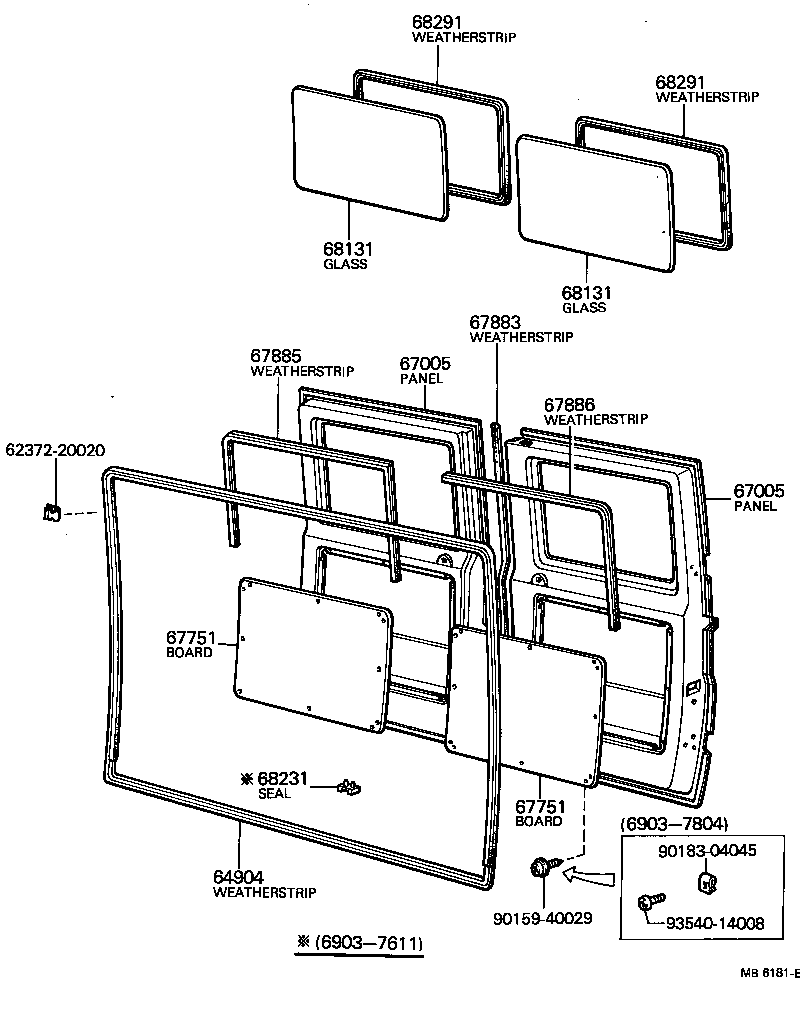

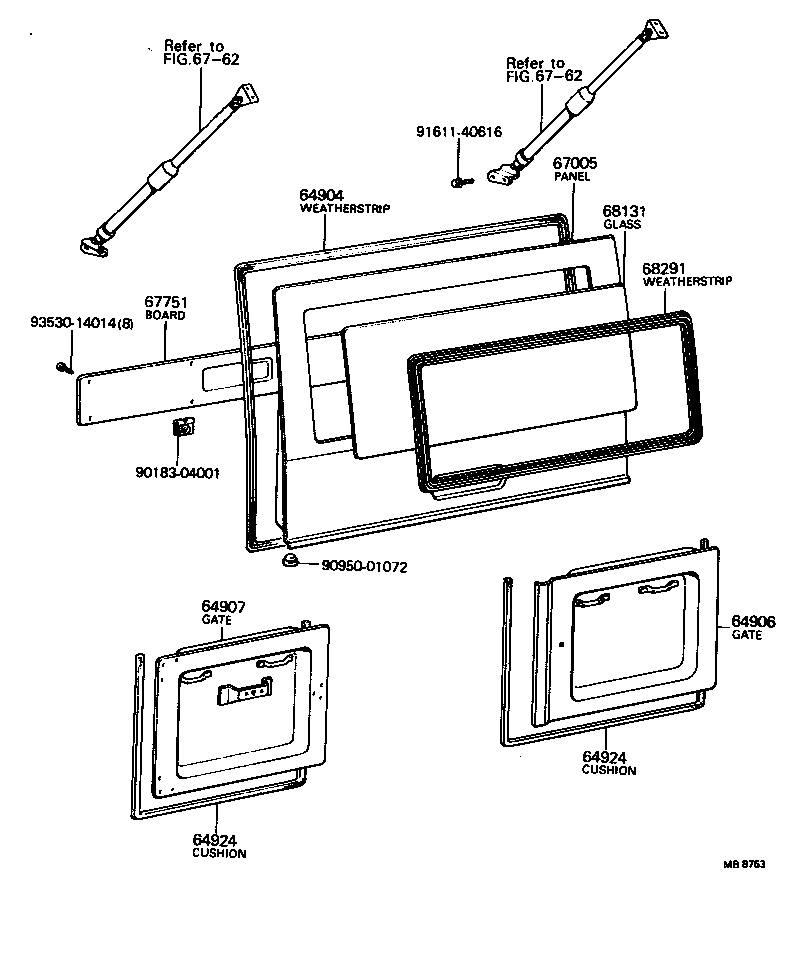

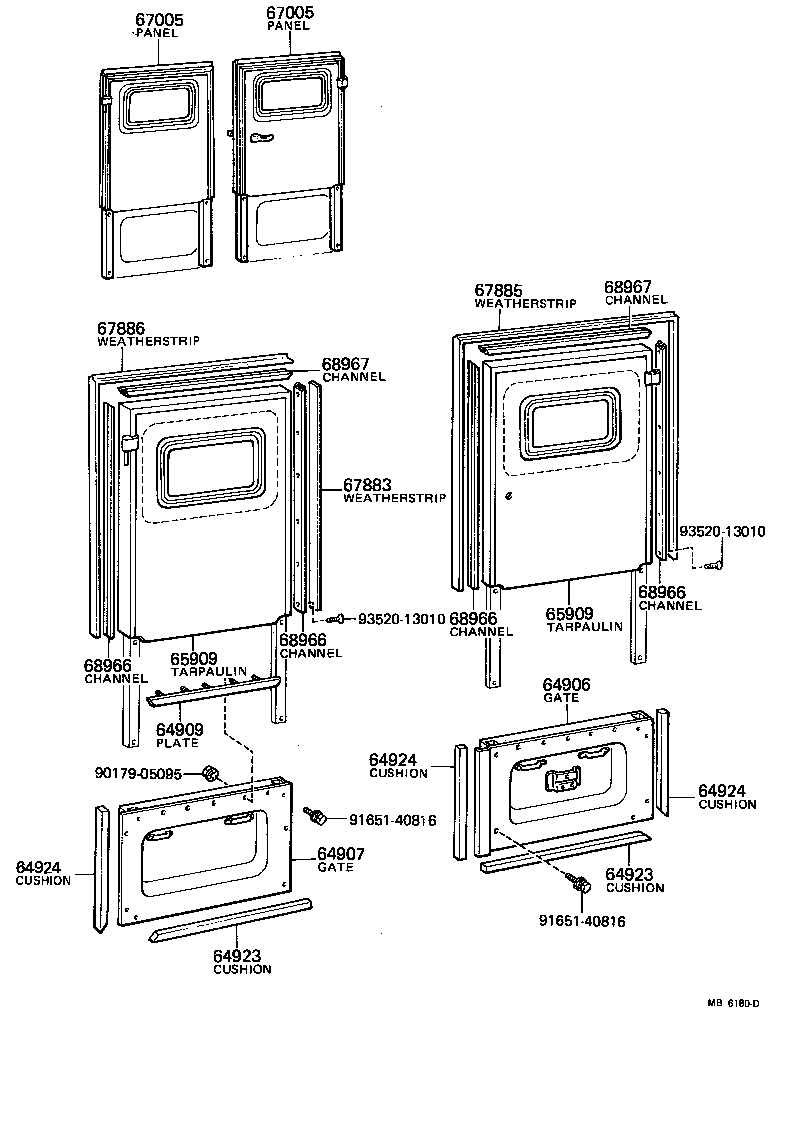

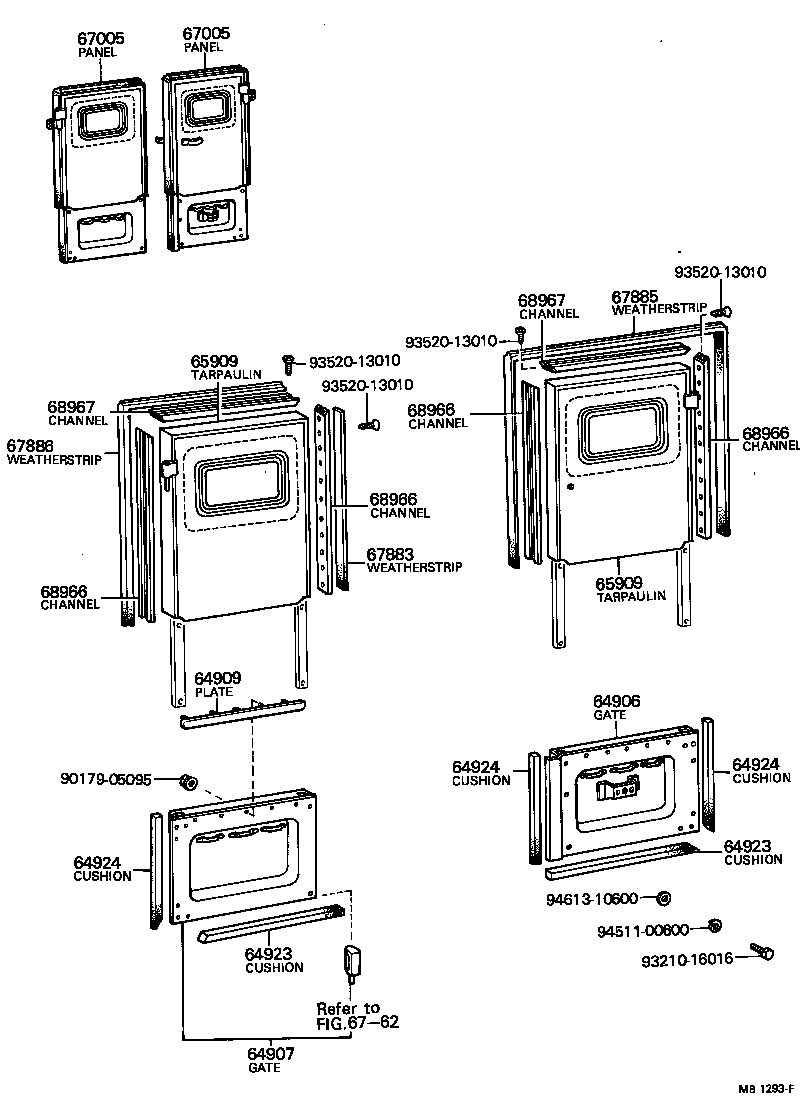

Figure MB6179C MB6179C 1969-03 → 1974-08 Figure MB4942B MB4942B 1969-03 → 1980-07 Figure MB1293F MB1293F 1969-03 → 1974-02 Figure MB6180D MB6180D 1974-02 → 1980-07 Figure MB8763 MB8763 1972-07 → 1980-07 Figure MB4944B MB4944B 1972-04 → 1980-07 Figure MB4945F MB4945F 1969-03 → 1980-07 Figure MB6181E MB6181E 1969-03 → 1980-07

Part groups

PNCDescription
64904 Weatherstrip Sub-assy, Back Door
64906 Gate Sub-assy, Rear Swing, RH
64907 Gate Sub-assy, Rear Swing, LH
64909 Plate Sub-assy, Rear Swing Door Tarpaulin
64917 Weatherstrip, Back Door, Lower
64923 Cushion, Rear Drop Gate, Lower
64924 Cushion, Rear Drop Gate, Side
64963 Cushion, Rear Swing Gate, Lower
65644 Spring, Regulator Motor Rod
65654 Weatherstrip, Tail Gate Window Glass
65655 Plate, Tail Gate Window Glass
65656 Weatherstrip, Tail Gate Window Glass, RH
65657 Weatherstrip, Tail Gate, Lower
65661 Weatherstrip, Tail Gate, NO.1 RH
65662 Weatherstrip, Tail Gate, NO.1 LH
65663 Weatherstrip, Tail Gate, NO.2 RH
65664 Weatherstrip, Tail Gate, NO.2 LH
65666 Weatherstrip, Tail Gate Window Glass, LH
65674 Run, Tail Gate Glass, Lower, RH
65675 Run, Tail Gate Glass, Lower, LH
65700A Gate Assy, Rear Drop
65909 Tarpaulin Sub-assy, Rear Swing Door
66808 Channel Sub-assy, Tail Gate Glass, Lower RH
66809 Channel Sub-assy, Tail Gate Glass, Lower LH
67005 Panel Sub-assy, Back Door
67081 Cover Sub-assy, Tail Gate Inside Water Proof
67151 Cover, Tail Gate Inner
67656A Packing, Tail Gate Window Glass Weatherstrip
67751 Board, Back Door Trim
67757 Packing, Tail Gate Inner Cover
67883 Weatherstrip, Back Door, Center
67885 Weatherstrip, Back Door, RH
67886 Weatherstrip, Back Door, LH
67887 Spacer, Back Door Weatherstrip
68131 Glass, Back Door
68204 Run Sub-assy, Tail Gate Glass, Lower
68231 Seal, Front Door Drain Hole Dust
68259 Bumper, Tail Gate Glass
68265 Weatherstrip, Tail Gate Glass, Inner
68265A Clip, Tail Gate Glass Inner Weatherstrip
68291 Weatherstrip, Back Door Glass
68292 Weatherstrip, Tail Gate Side Outer
68293 Key, Back Window Weatherstrip
68901 Gate Sub-assy, Tail
68901A Plug, Hole(FOR TAIL GATE)
68966 Channel, Rear Swing Door, Side
68967 Channel, Rear Swing Door, Upper
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
