Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Separation Door Panel & Glass

14 part groups · 9 illustrations

Illustrations

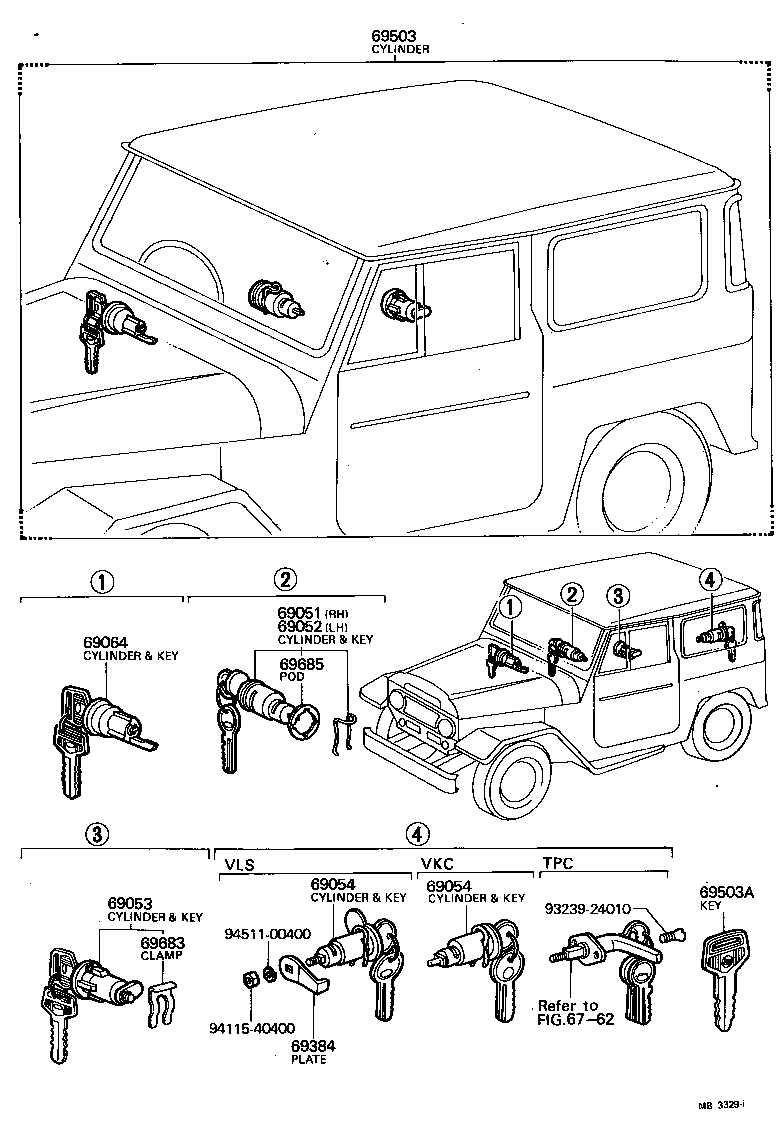

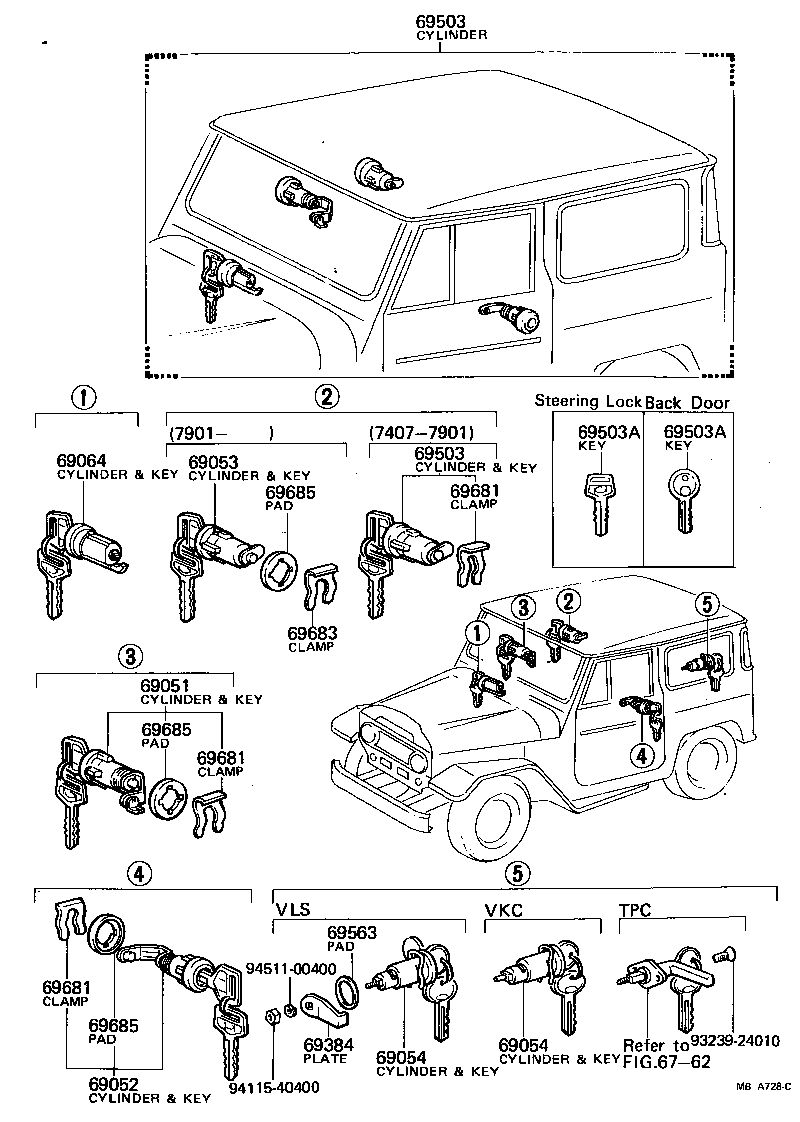

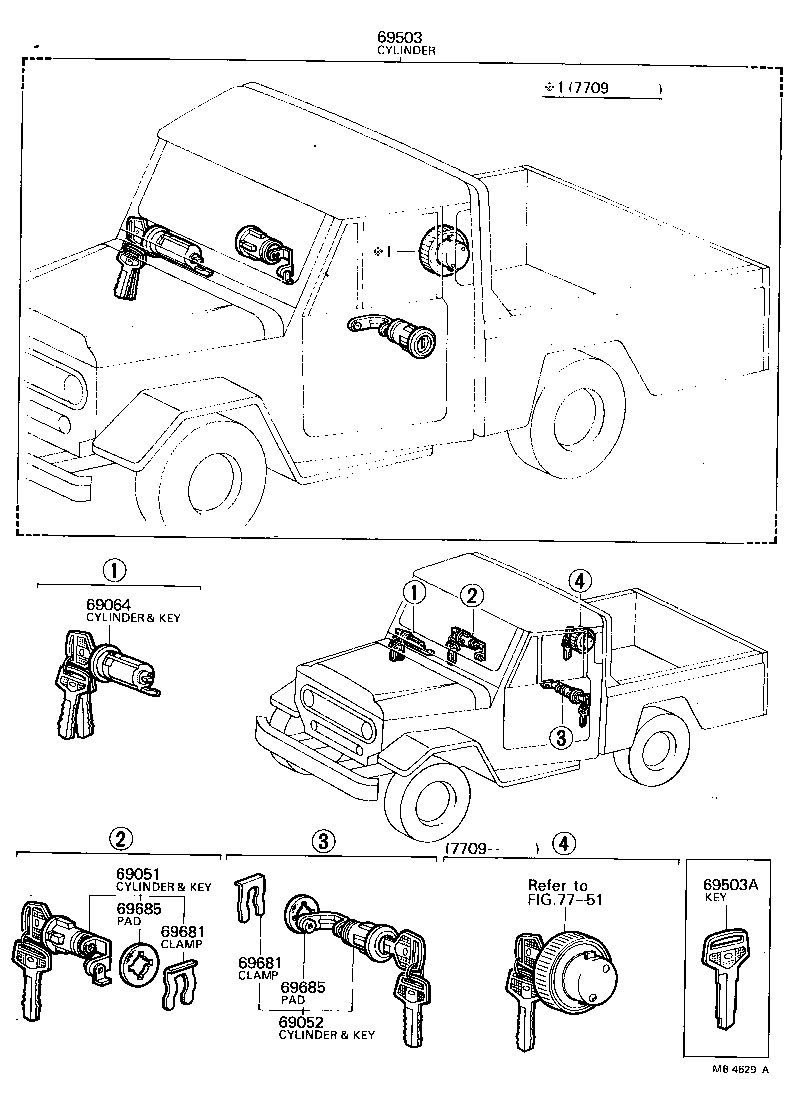

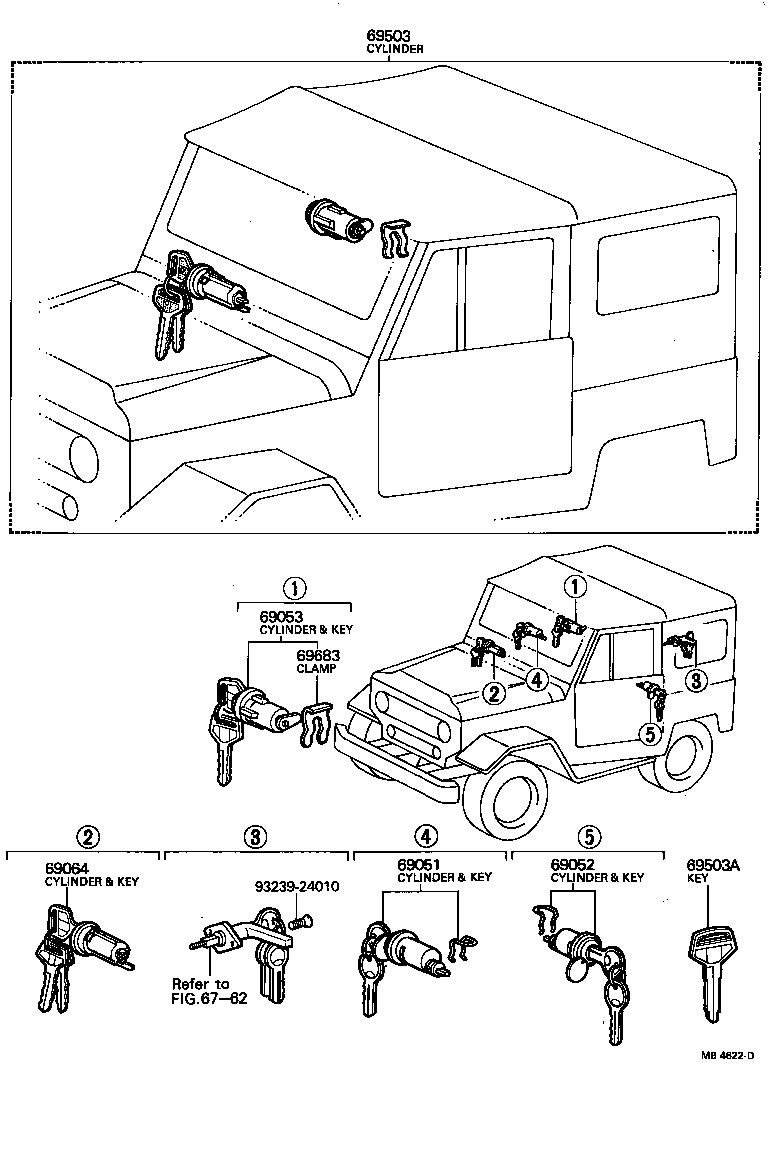

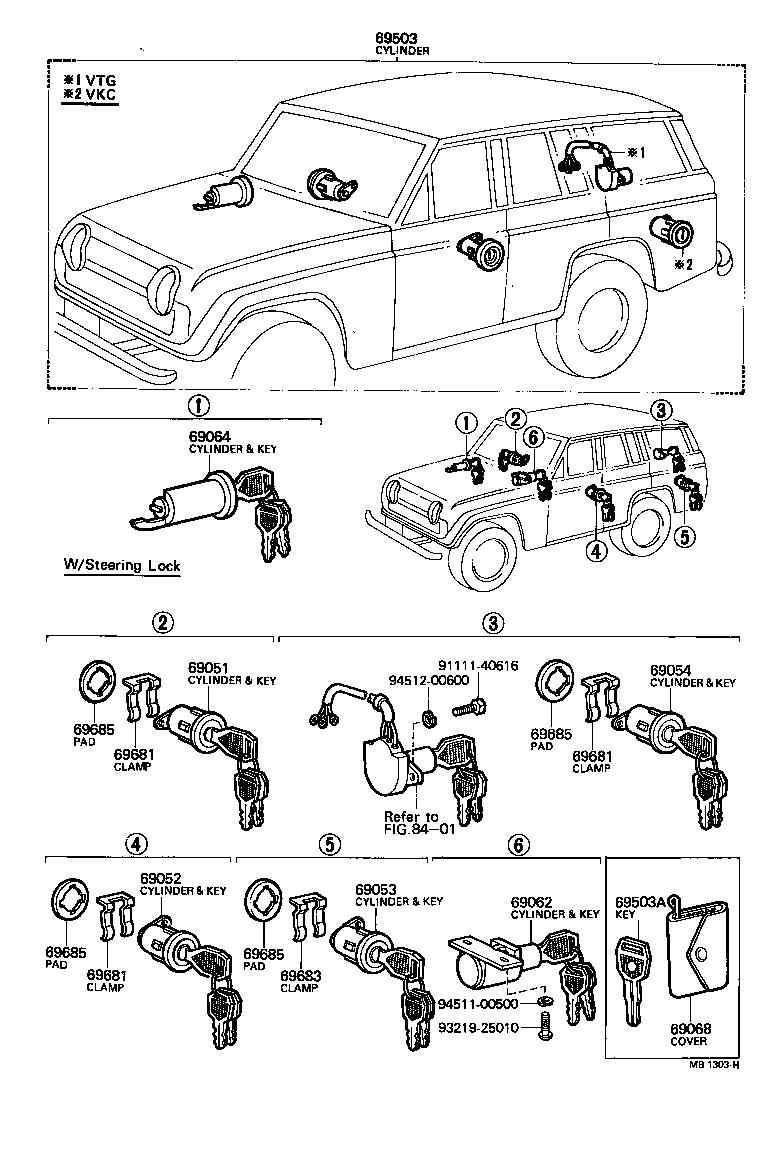

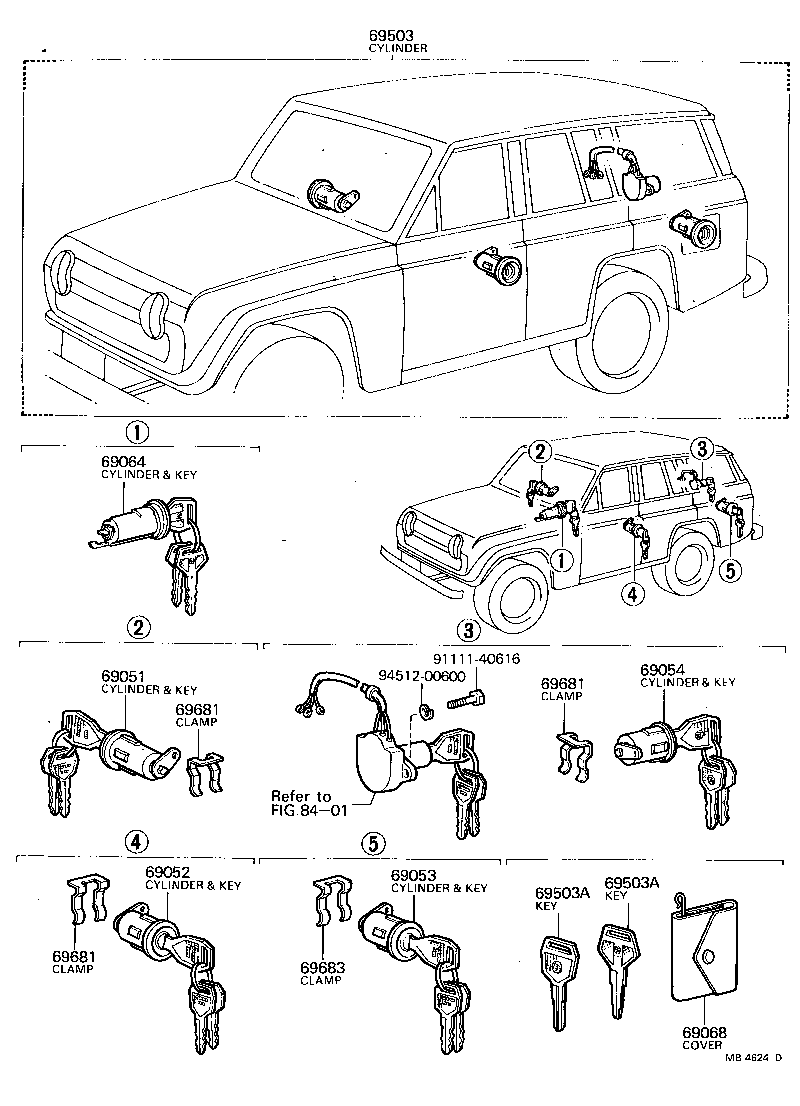

Figure MB2278F MB2278F 1969-03 → 1972-09 Figure MB3329I MB3329I 1972-09 → 1975-01 Figure MB4622D MB4622D 1975-01 → 1975-09 Figure MBA728C MBA728C 1975-01 → 1975-09 Figure MBA728C MBA728C 1975-09 → 1980-07 Figure MBC230 MBC230 1969-03 → 1980-07 Figure MB4629A MB4629A 1975-01 → 1980-07 Figure MB1303H MB1303H 1969-03 → 1975-01 Figure MB4624D MB4624D 1975-01 → 1980-07

Part groups

PNCDescription
69051 Cylinder & Key Set, Door Lock, RH
69052 Cylinder & Key Set, Door Lock, LH
69053 Cylinder & Key Set, Fuel Inlet Lock
69054 Cylinder & Key Set, Back Door Lock
69062 Cylinder & Key Set, Glove Compartment Lock
69064 Cylinder & Key Set, Ignition Switch Lock
69068 Cover Sub-assy, Key
69384 Plate, Back Door Lock
69503 Cylinder Set, Lock
69503A Key, Blank
69563 Pad, Back Door Lock Cylinder
69681 Clamp, Door Lock Cylinder & Sleeve
69683 Clamp, Fuel Lock Cylinder
69685 Pad, Lock Cylinder
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
