Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Seat & Seat Track

116 part groups · 22 illustrations

Illustrations

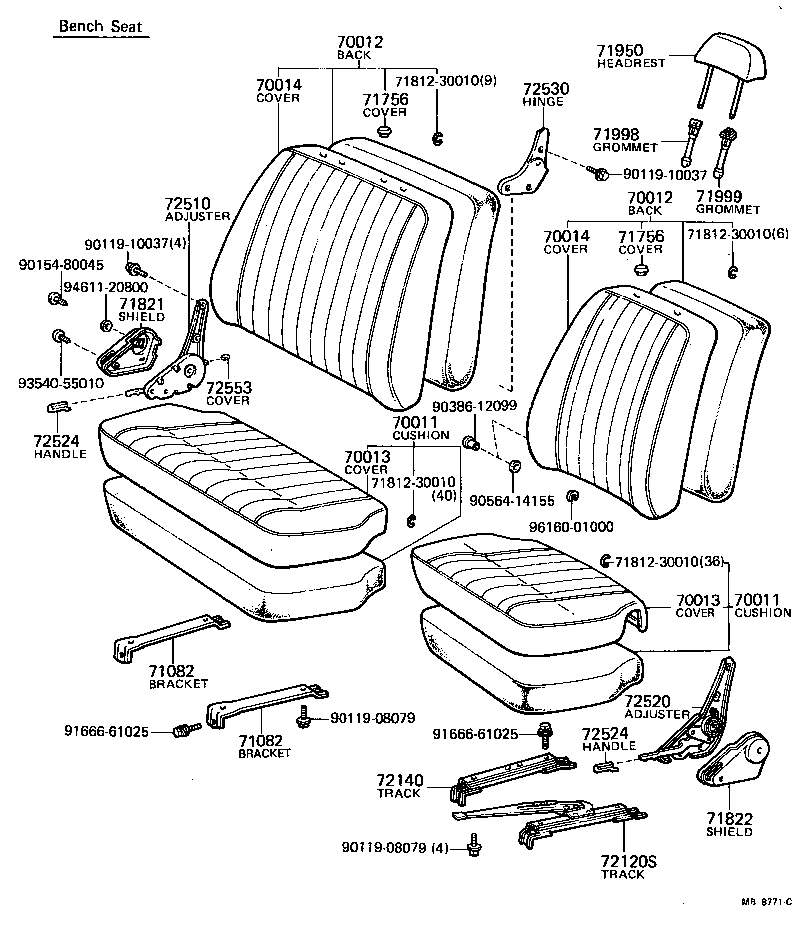

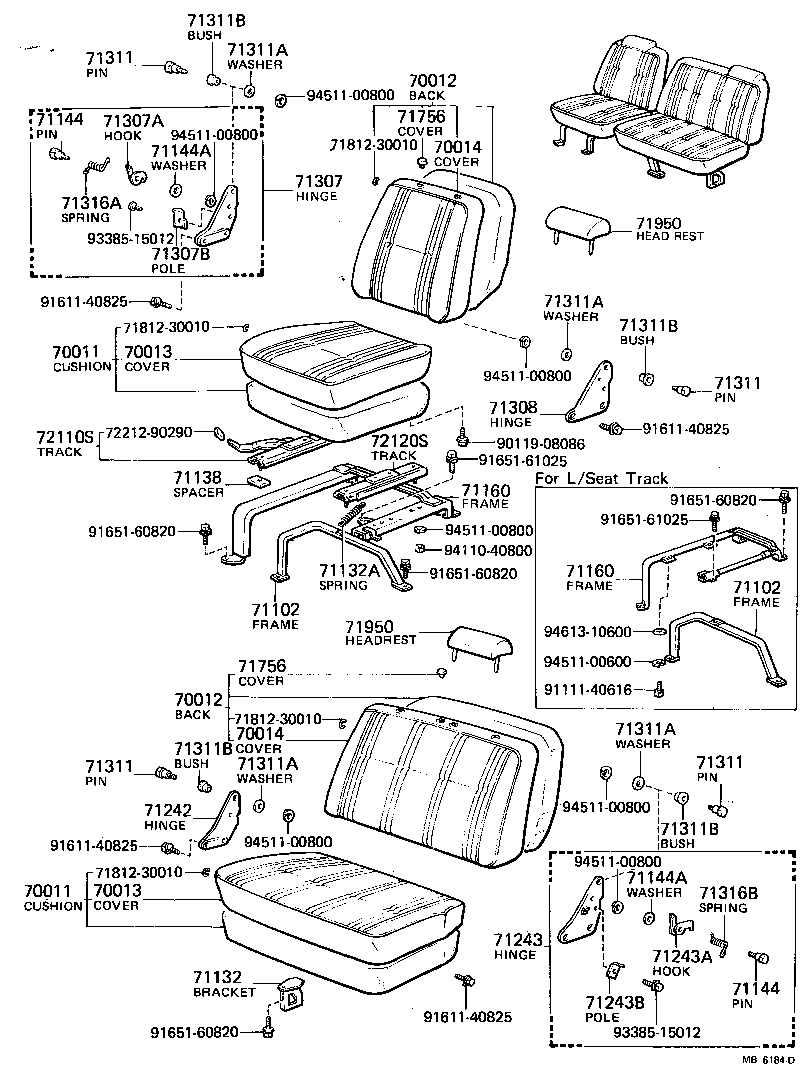

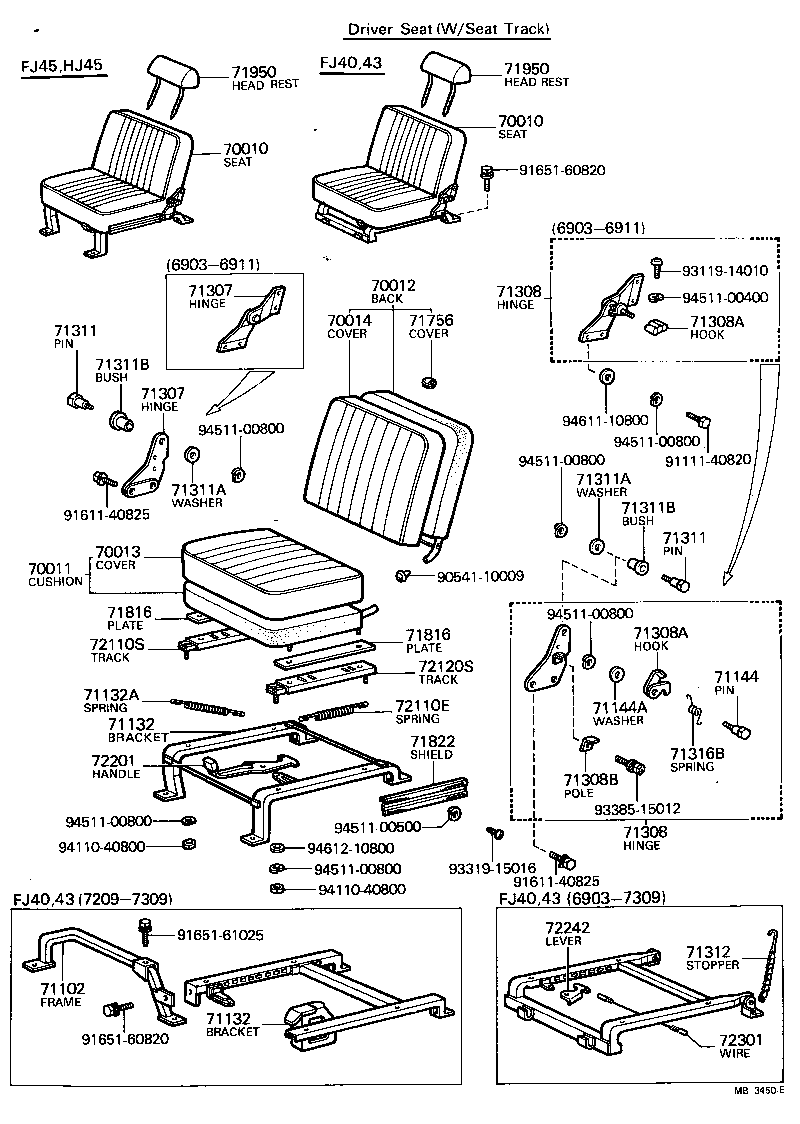

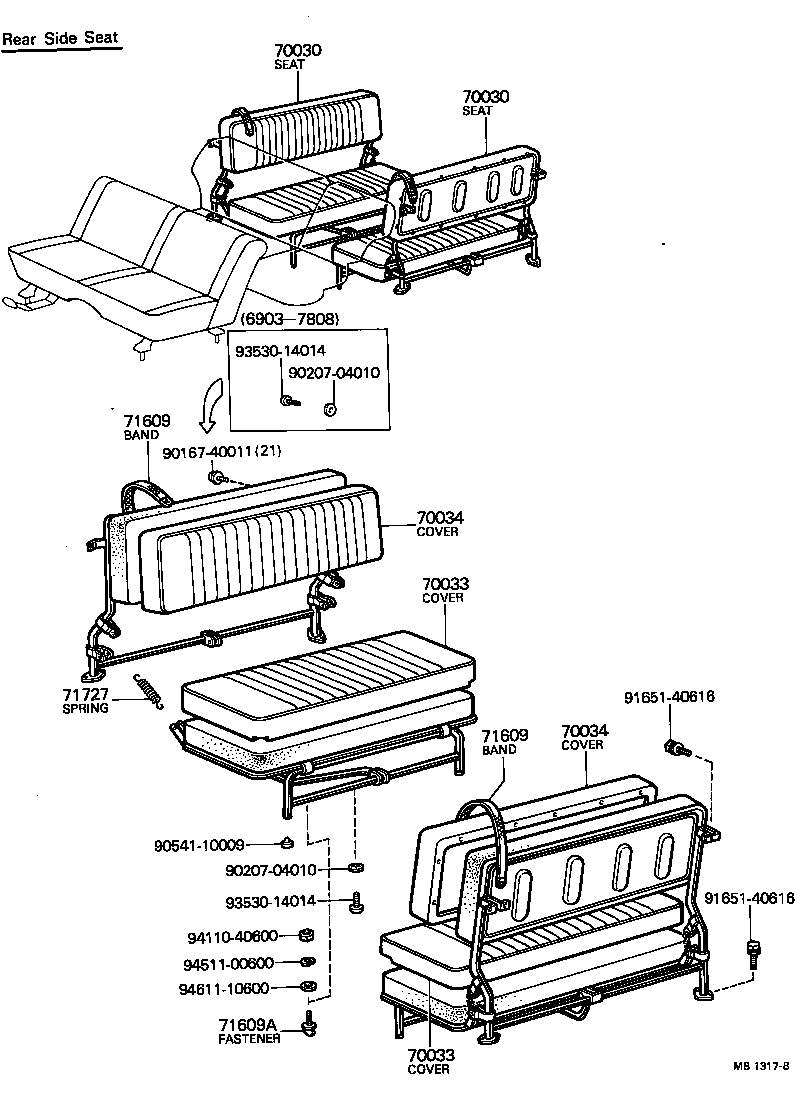

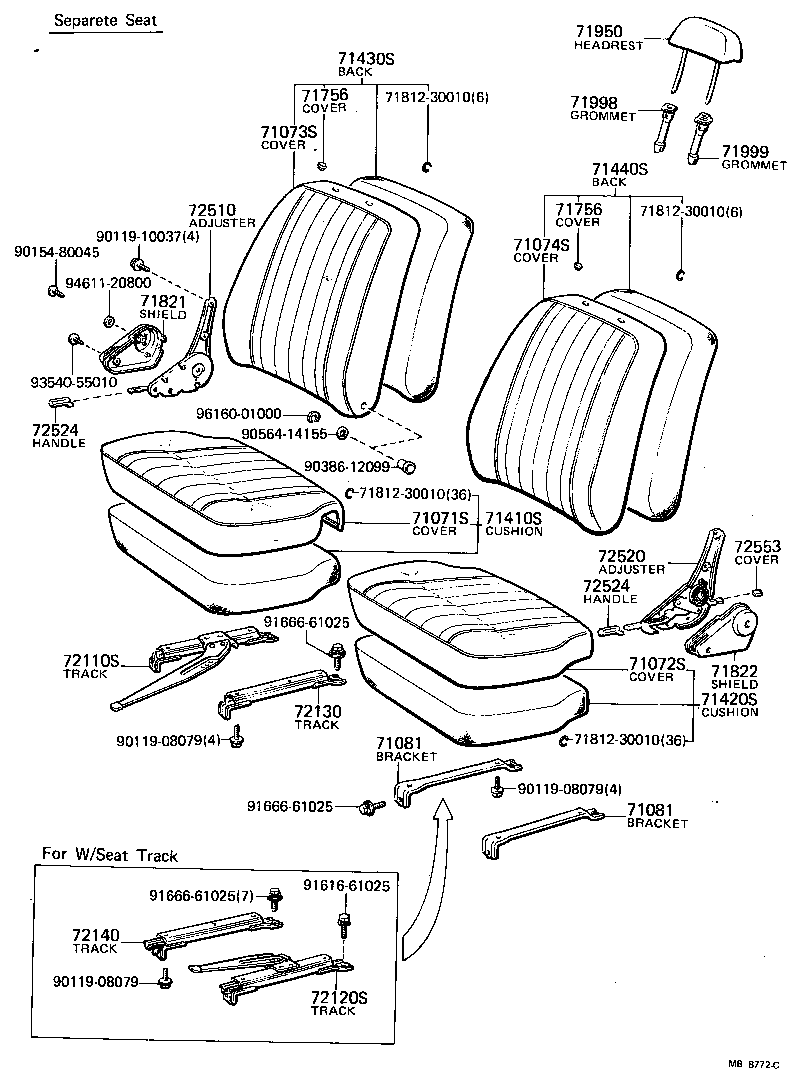

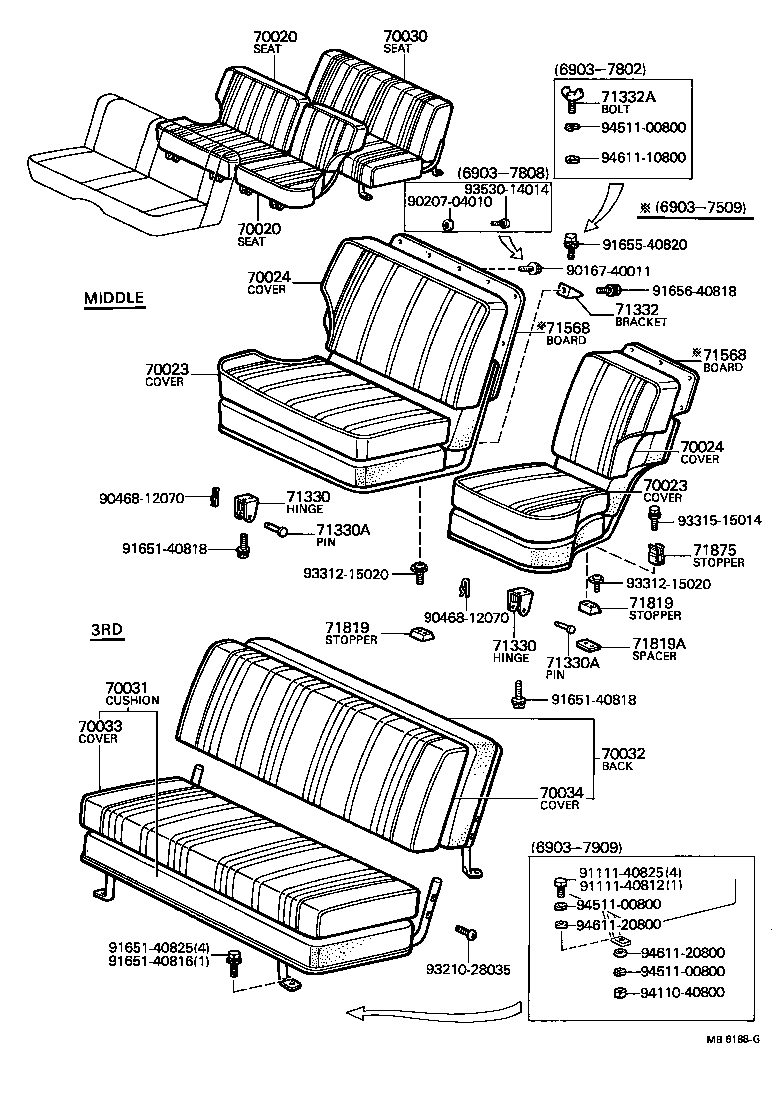

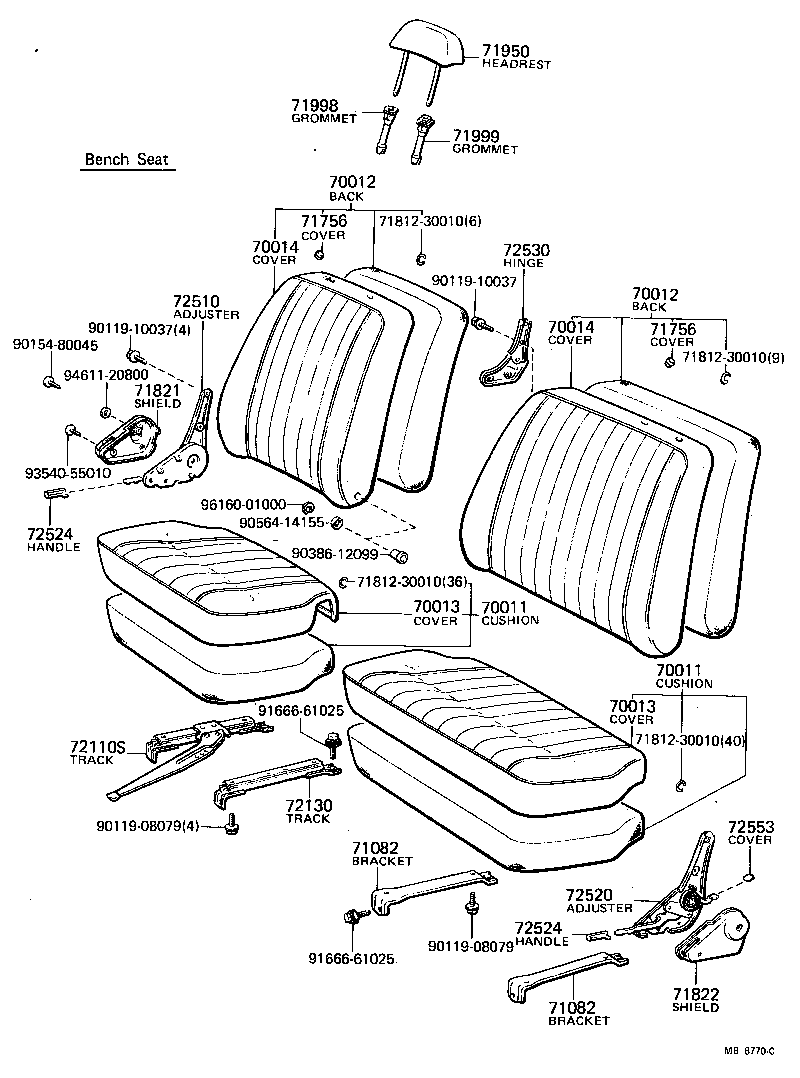

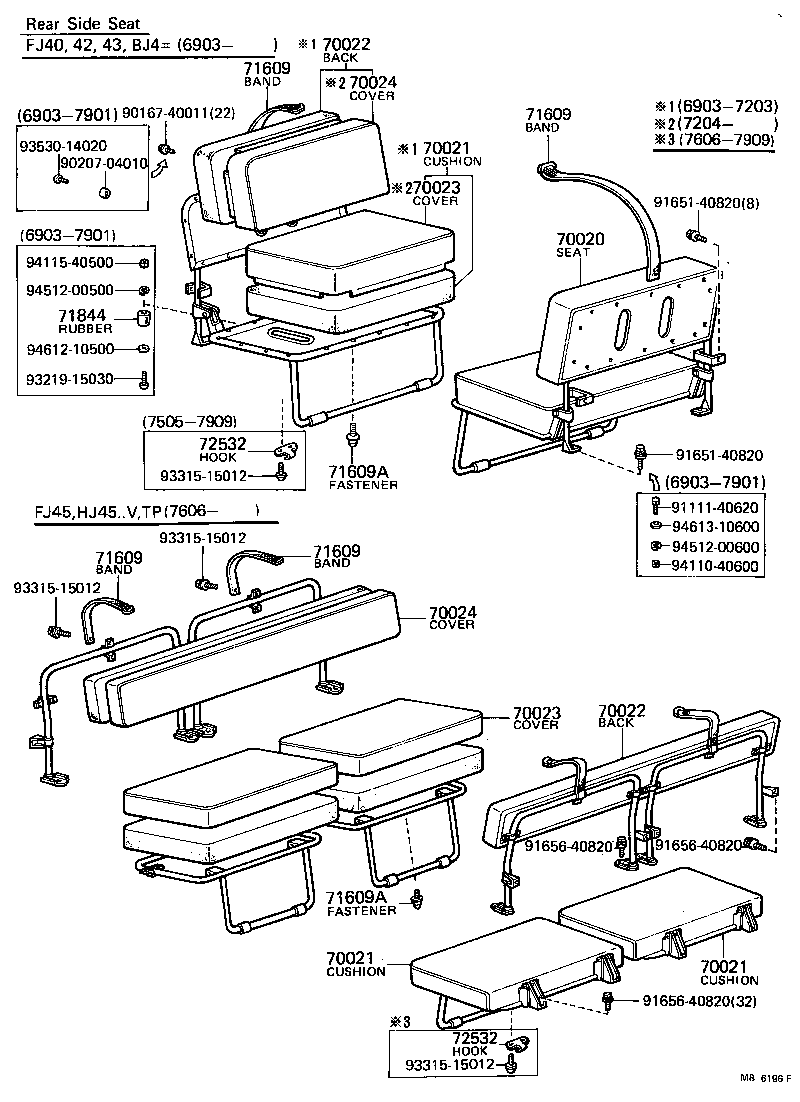

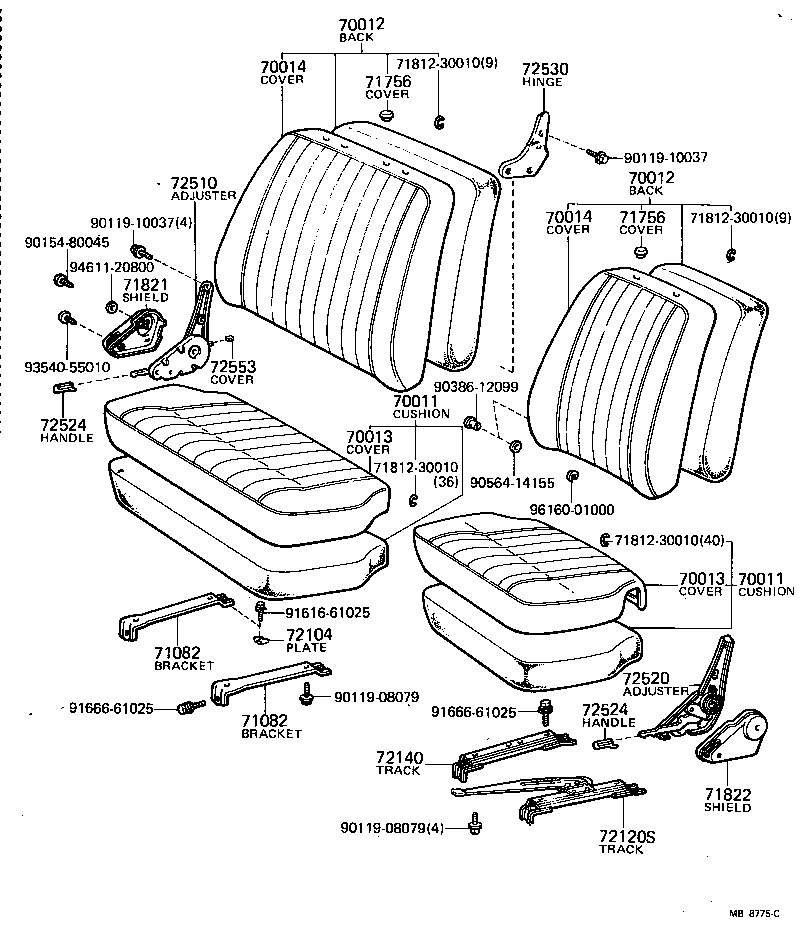

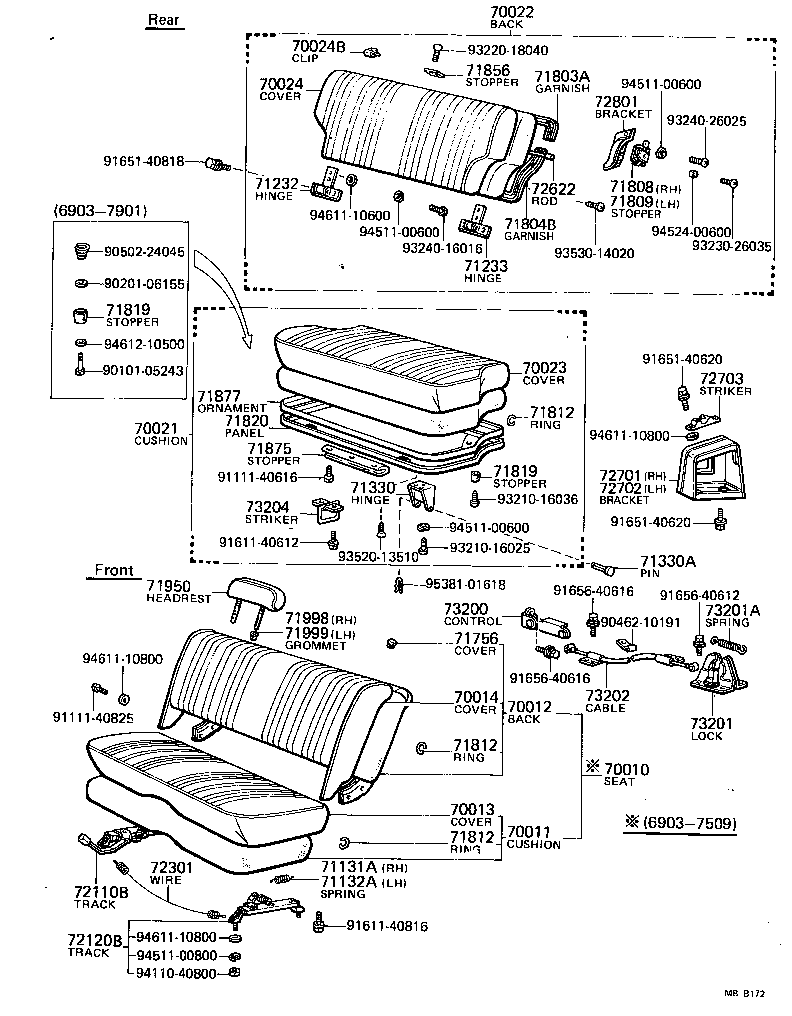

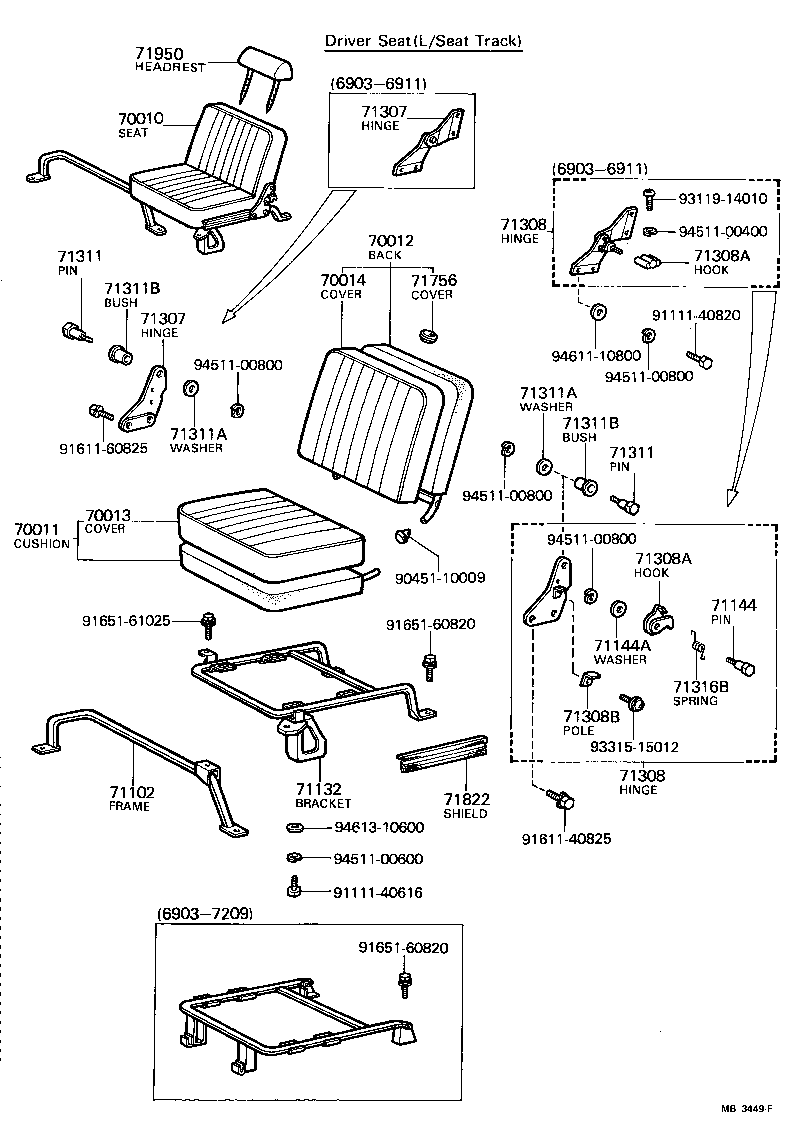

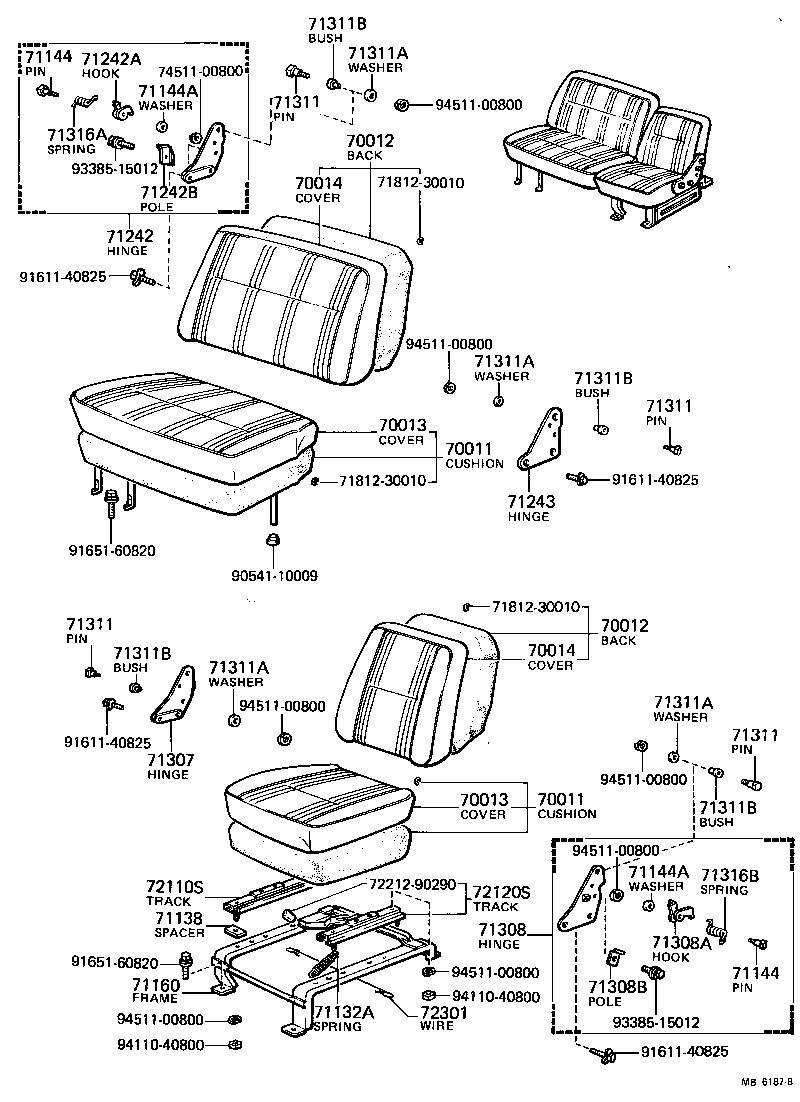

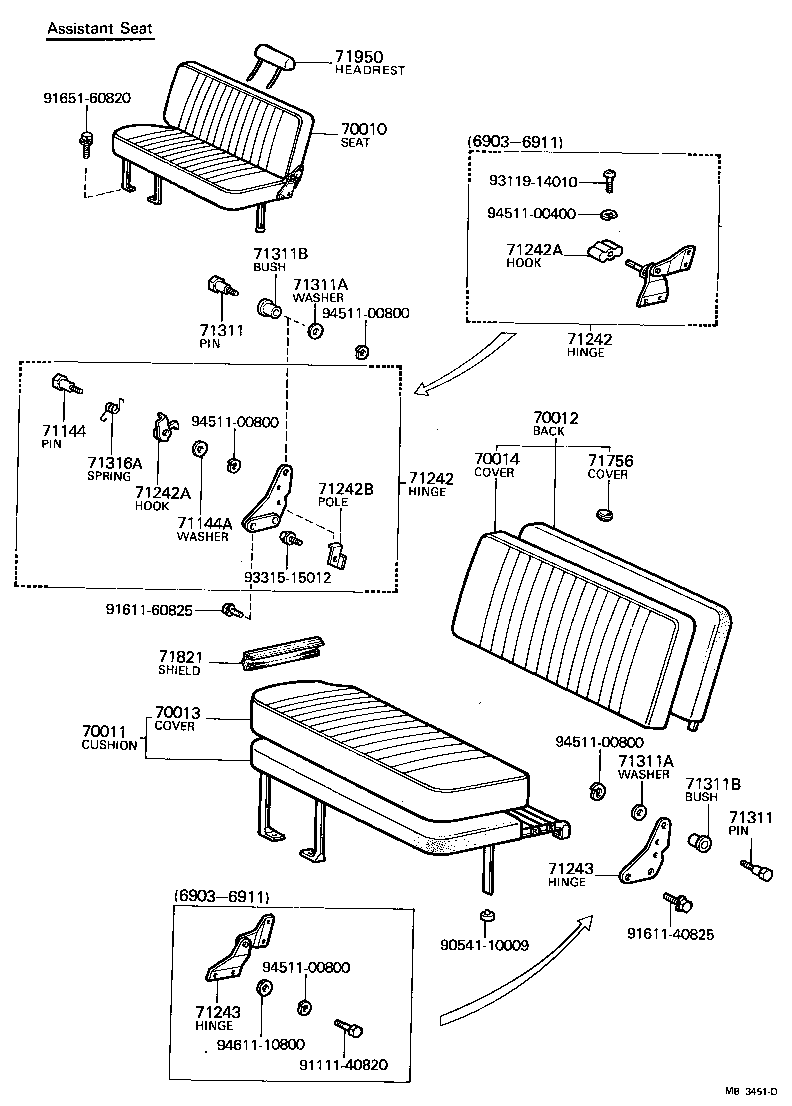

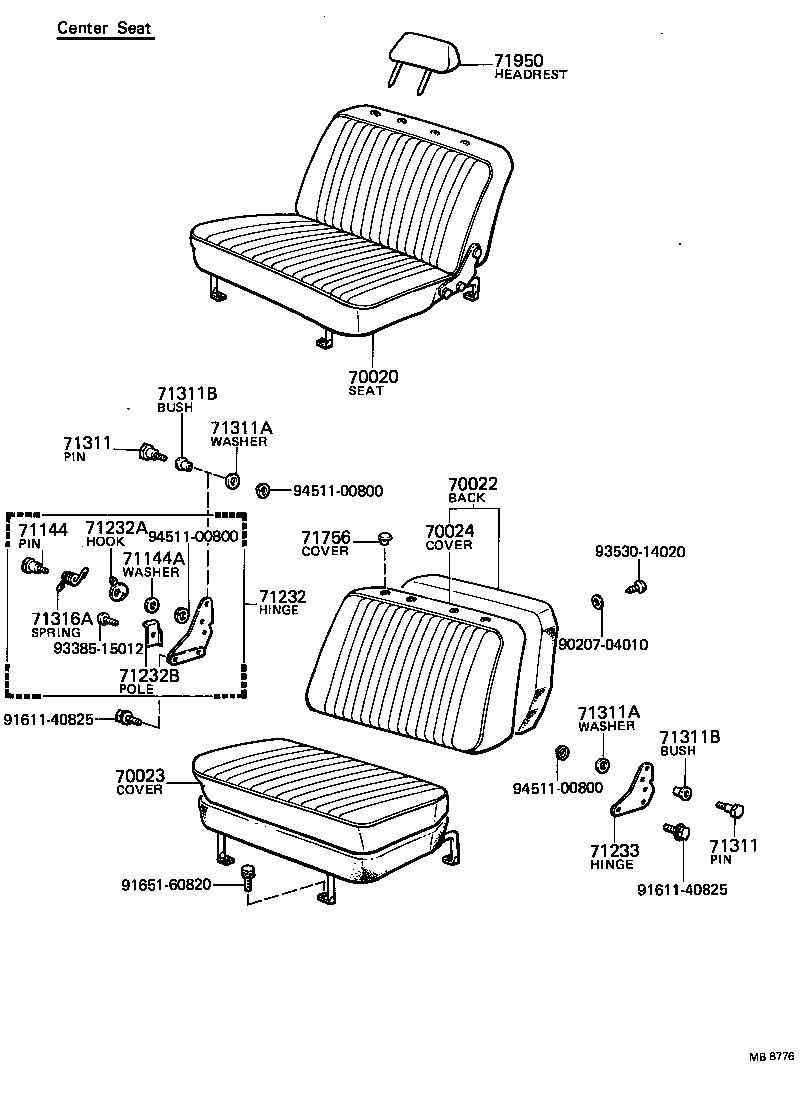

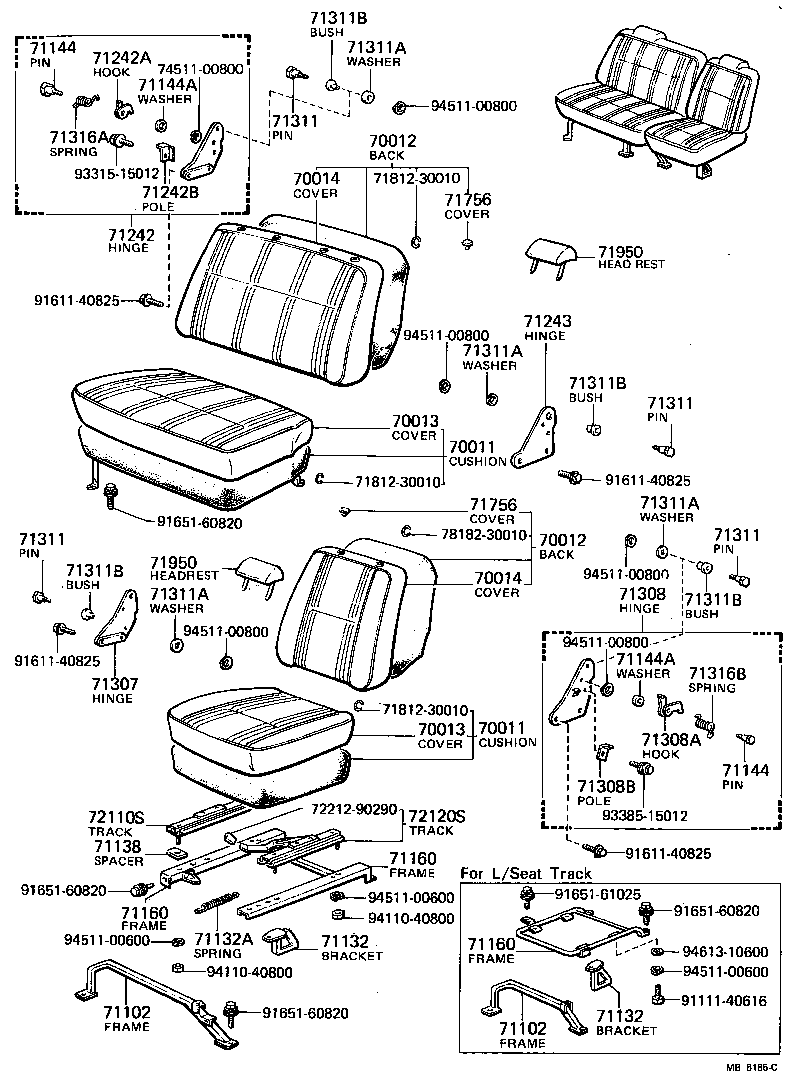

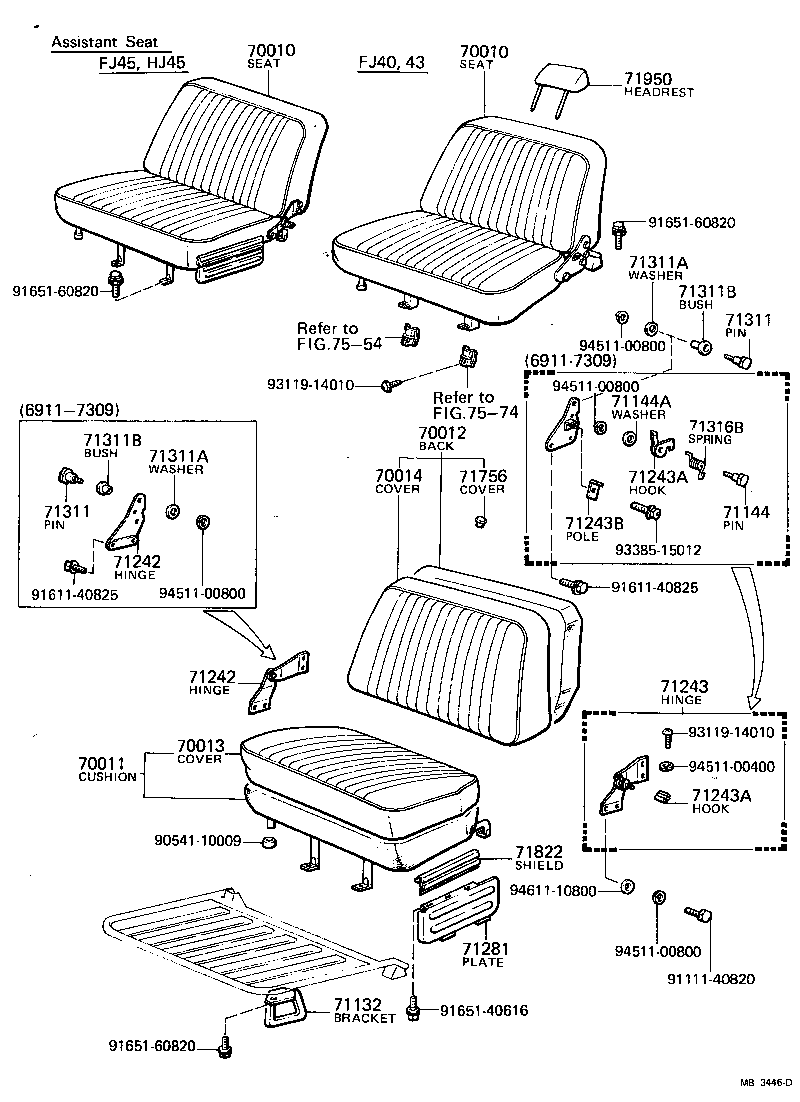

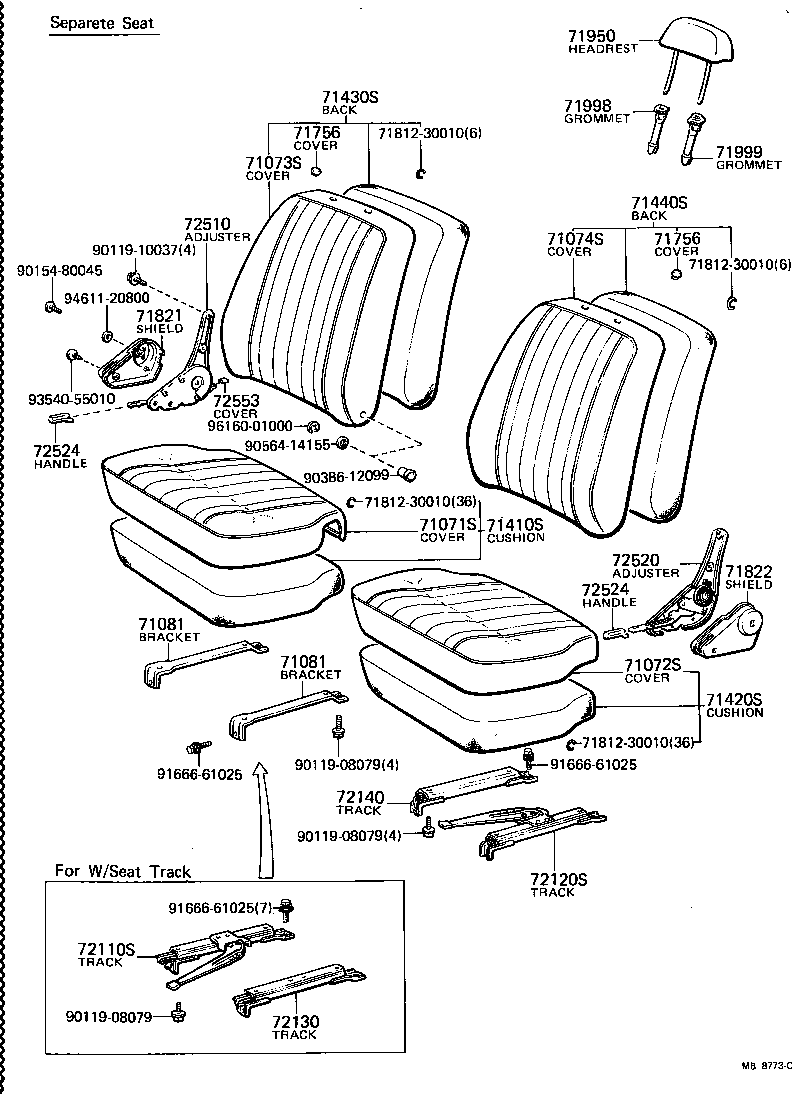

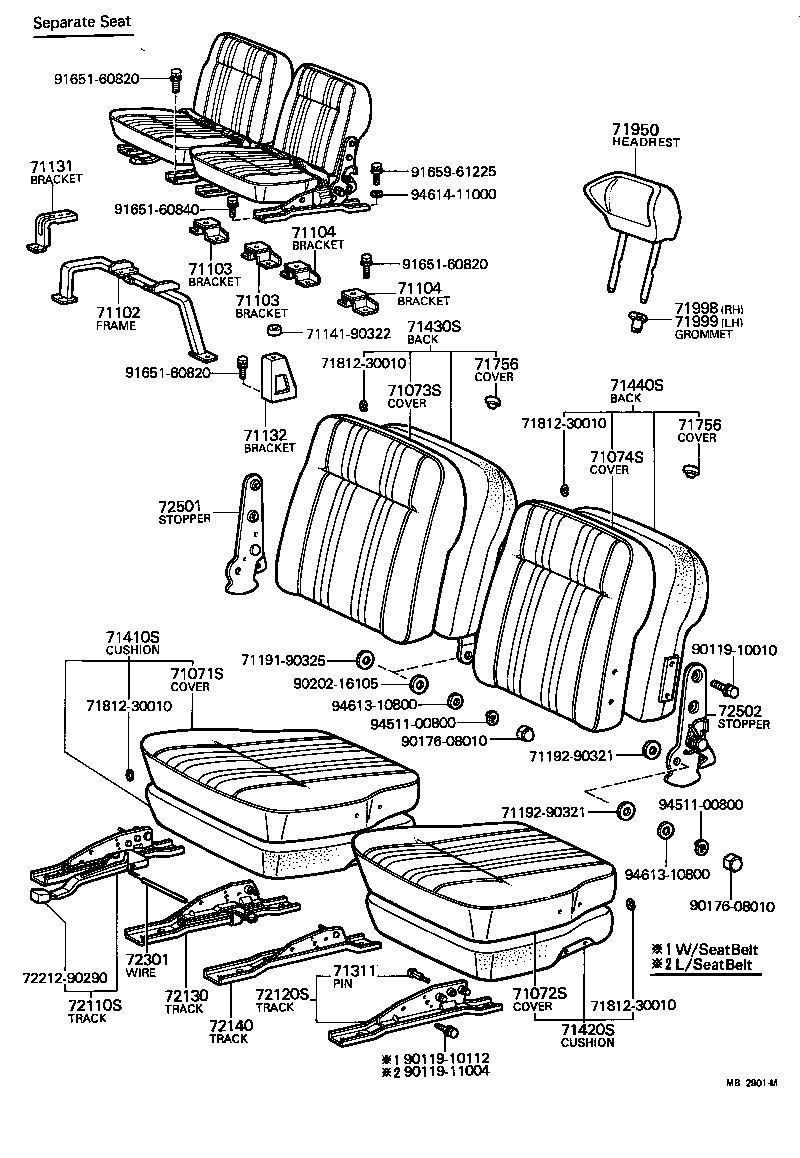

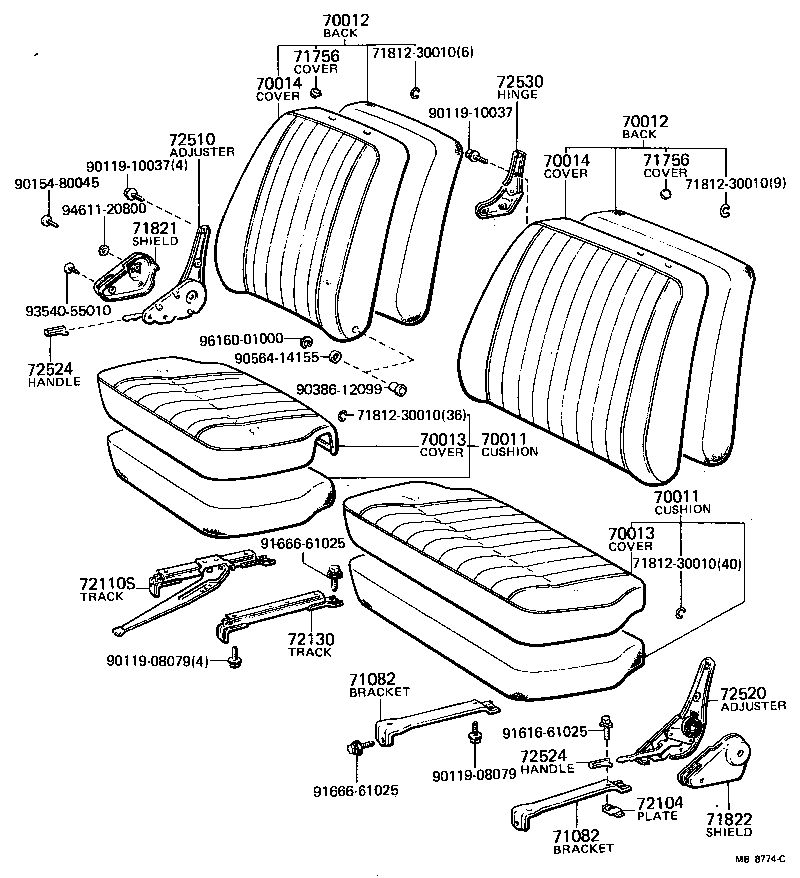

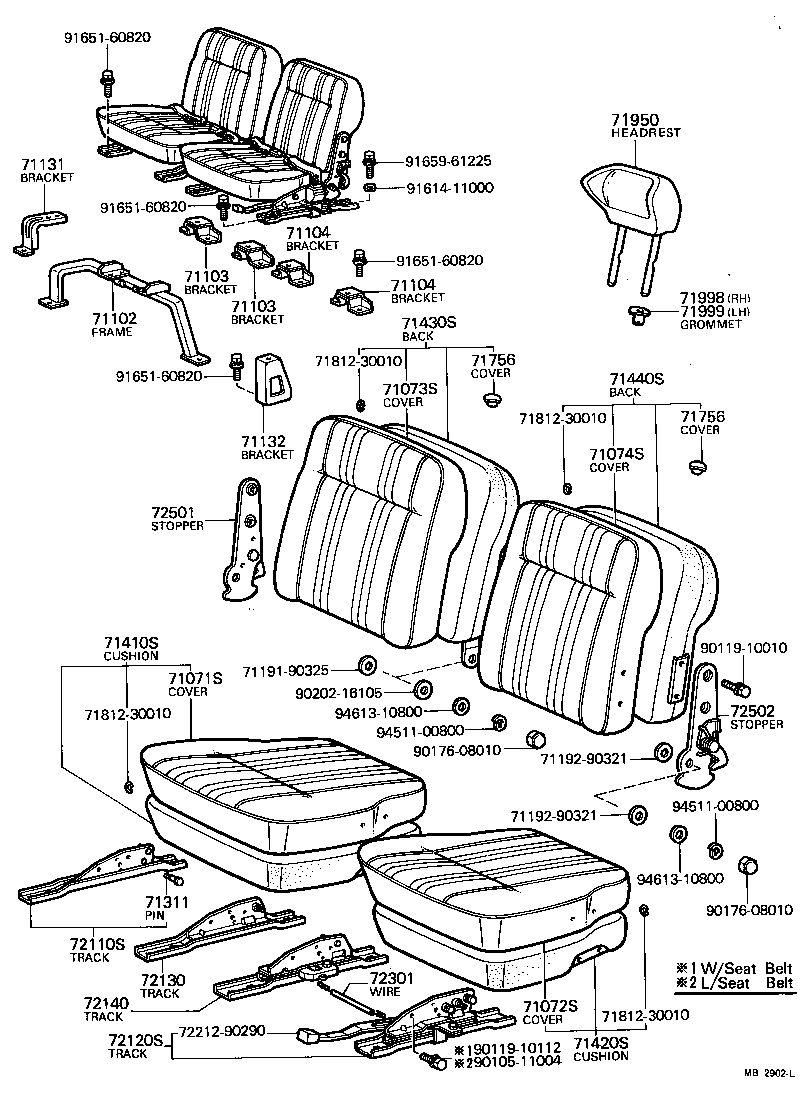

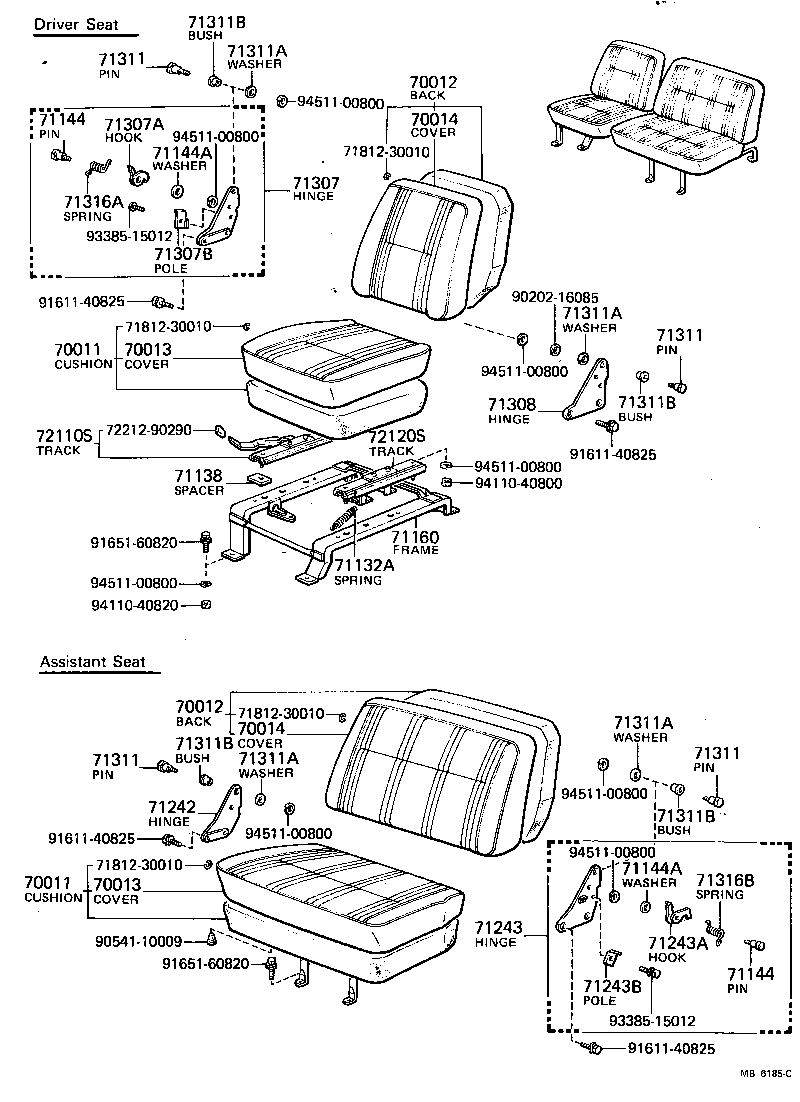

Figure MB3445F MB3445F 1969-03 → 1973-09 Figure MB3446D MB3446D 1969-03 → 1973-09 Figure MB3449F MB3449F 1969-03 → 1973-09 Figure MB3450E MB3450E 1969-03 → 1973-09 Figure MB3451D MB3451D 1969-03 → 1973-09 Figure MB6184D MB6184D 1973-09 → 1979-01 Figure MB6186C MB6186C 1973-09 → 1979-01 Figure MB6185C MB6185C 1973-09 → 1979-01 Figure MB6187B MB6187B 1973-09 → 1979-01 Figure MB2901M MB2901M 1972-09 → 1979-01 Figure MB2902L MB2902L 1972-09 → 1979-01 Figure MB8770C MB8770C 1979-01 → 1980-07 Figure MB8771C MB8771C 1979-01 → 1980-07 Figure MB8772C MB8772C 1979-01 → 1980-07 Figure MB8773C MB8773C 1979-01 → 1980-07 Figure MB8774C MB8774C 1979-01 → 1980-07 Figure MB8775C MB8775C 1979-01 → 1980-07 Figure MB8776 MB8776 1972-04 → 1975-01 Figure MB6196F MB6196F 1969-03 → 1980-07 Figure MBB172 MBB172 1969-03 → 1980-07 Figure MB6188G MB6188G 1969-03 → 1980-07 Figure MB1317B MB1317B 1969-03 → 1980-07

Part groups

PNCDescription
70010 Seat Assy, NO.1
70011 Cushion Assy, NO.1 Seat
70012 Back Assy, NO.1 Seat
70013 Cover Assy, NO.1 Seat Cushion
70014 Cover Assy, NO.1 Seatback
70020 Seat Assy, NO.2
70021 Cushion Assy, NO.2 Seat
70022 Back Assy, NO.2 Seat
70023 Cover Assy, NO.2 Seat Cushion
70024 Cover Assy, NO.2 Seatback
70024B Clip, Leather(FOR SEATBACK COVER)
70030 Seat Assy, NO.3
70031 Cushion Assy, NO.3 Seat
70032 Back Assy, NO.3 Seat
70033 Cover Assy, NO.3 Seat Cushion
70034 Cover Assy, NO.3 Seatback
71071S Cover, Front Seat Cushion, RH(FOR SEPARATE TYPE)
71072S Cover, Front Seat Cushion, LH(FOR SEPARATE TYPE)
71073S Cover, Front Seatback, RH(FOR SEPARATE TYPE)
71074S Cover, Front Seatback, LH(FOR SEPARATE TYPE)
71081 Bracket Sub-assy, Front Seat Set
71082 Bracket Sub-assy, Passenger Seat Set
71102 Frame Sub-assy, Front Seat Set Inner
71103 Bracket Sub-assy, Front Seat, Rear, RH
71104 Bracket Sub-assy, Front Seat, Rear, LH
71131 Bracket, Front Seat Set, Outer RH
71131A Spring, Tension (FOR SEAT TRACK)
71132 Bracket, Front Seat Set, Outer LH
71132A Spring, Tension (FOR SEAT TRACK)
71138 Spacer, Front Seat Set
71144 Pin, Seat Hinge Hook
71144A Washer, Plate (FOR SEAT HINGE HOOK PIN)
71160 Frame Assy, Driver Seat
71232 Hinge, Rear Seatback Frame, RH
71232A Hook Sub-assy, Rear Seat Hinge, RH
71232B Pole, Rear Seat Hinge Hook, RH
71233 Hinge, Rear Seatback Frame, LH
71242 Hinge, Passenger Seatback, RH
71242A Hook, Passenger Seat Hinge, RH
71242B Pole, Passenger Seat Hinge Hook, RH
71243 Hinge, Passenger Seatback, LH
71243A Hook, Passenger Seat Hinge, LH
71243B Pole, Passenger Seat Hinge Hook, LH
71281 Plate, Seat Side
71307 Hinge Sub-assy, Driver Seat, RH
71307A Hook, Driver Seat Hinge, RH
71307B Pole, Driver Seat Hinge Hook, RH
71308 Hinge Sub-assy, Driver Seat, LH
71308A Hook, Driver Seat Hinge, LH
71308B Pole, Driver Seat Hinge Hook, LH
71311 Pin, Front Seat Hinge
71311A Washer, Plate (FOR FRONT SEAT HINGE PIN)
71311B Bush (FOR FRONT SEAT HINGE PIN)
71312 Stopper Sub-assy, Seat Hinge Shaft
71316A Spring, Torsion, NO.1
71316B Spring, Torsion, NO.2
71330 Hinge Assy, Rear Seat Cushion
71330A Pin, Rear Seat Cushion Hinge
71332 Bracket, Rear Seat Cushion Set
71332A Bolt, Rear Seat Cushion Bracket Set Wing
71410S Cushion Assy, Front Seat, RH(FOR SEPARATE TYPE)
71420S Cushion Assy, Front Seat, LH (FOR SEPARATE TYPE)
71430S Back Assy, Front Seat, RH(FOR SEPARATE TYPE)
71440S Back Assy, Front Seat, LH(FOR SEPARATE TYPE)
71568 Board, Rear Seatback
71609 Band Sub-assy, Rear Side Seat
71609A Fastener, Rear Side Seat Band
71727 Spring, Rear Seatback Locking
71756 Cover, Air Hole
71803A Garnish Sub-assy, Rear Seatback, Upper
71804B Garnish Sub-assy, Rear Seatback, Lower
71808 Stopper Sub-assy, Rear Seatback, RH
71809 Stopper Sub-assy, Rear Seatback, LH
71812 Clip (FOR FRONT SEAT CUSHION COVER)
71816 Plate, Driver Seat Leather Set
71819 Cushion (FOR REAR SEAT CUSHION)
71819A Spacer, Middle Seat Cushion Stopper
71820 Panel Assy, Rear Seat Cushion
71821 Shield, Front Seat Side, RH
71822 Shield, Front Seat Side, LH
71844 Rubber, Rear Seat Cushion Base
71856 Stopper, Rear Seatback, Upper
71875 Stopper, Rear Seat Cushion
71877 Ornament, Rear Seat Cushion Panel
71950 Headrest Assy, Front Seat
71998 Grommet, Front Seat Headrest, RH
71999 Grommet, Front Seat Headrest, LH
72104 Plate Sub-assy, Seat Track Stopper
72110B Track Assy, Seat, Outer RH (FOR BENCH SEAT)
72110E Spring, Tension, NO.1 (FOR SEAT TRACK)
72110S Track Assy, RH Seat, Outer (FOR SEPARATE SEAT)
72120B Track Assy, Seat, Outer LH (FOR BENCH SEAT)
72120S Track Assy, LH Seat, Outer (FOR SEPARATE SEAT)
72130 Track Assy, RH Seat, Inner
72140 Track Assy, LH Seat, Inner
72201 Handle Sub-assy, Seat Track
72242 Lever, Seat Track Lock Open
72301 Wire Sub-assy, Seat Track Equalizing
72501 Stopper Assy, Front Seatback, RH
72502 Stopper Assy, Front Seatback, LH
72510 Adjuster Assy, Reclining Seatback, RH
72520 Adjuster Assy, Reclining Seatback, LH
72524 Handle, Reclining Adjuster Release
72530 Hinge Assy, Passenger Seat
72532 Hook, Passenger Seat Cushion Stop
72553 Cover, Reclining Pedal
72622 Rod, Rear Seatback Stopper Connecting
72701 Bracket Sub-assy, Rear Seatback Stopper
72702 Bracket Sub-assy, Rear Seatback Striker
72703 Striker Sub-assy, Rear Seatback Stopper
72801 Bracket Sub-assy, Protector
73200 Control Assy, Seat Cushion Lock
73201 Lock Sub-assy, Rear Seat Cushion
73201A Spring, Tension (FOR REAR SEAT CUSHION LOCK)
73202 Cable Sub-assy, Seat Cushion Lock Control
73204 Striker Sub-assy, Rear Seat Cushion
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
