Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Headlamp

14 part groups · 3 illustrations

Illustrations

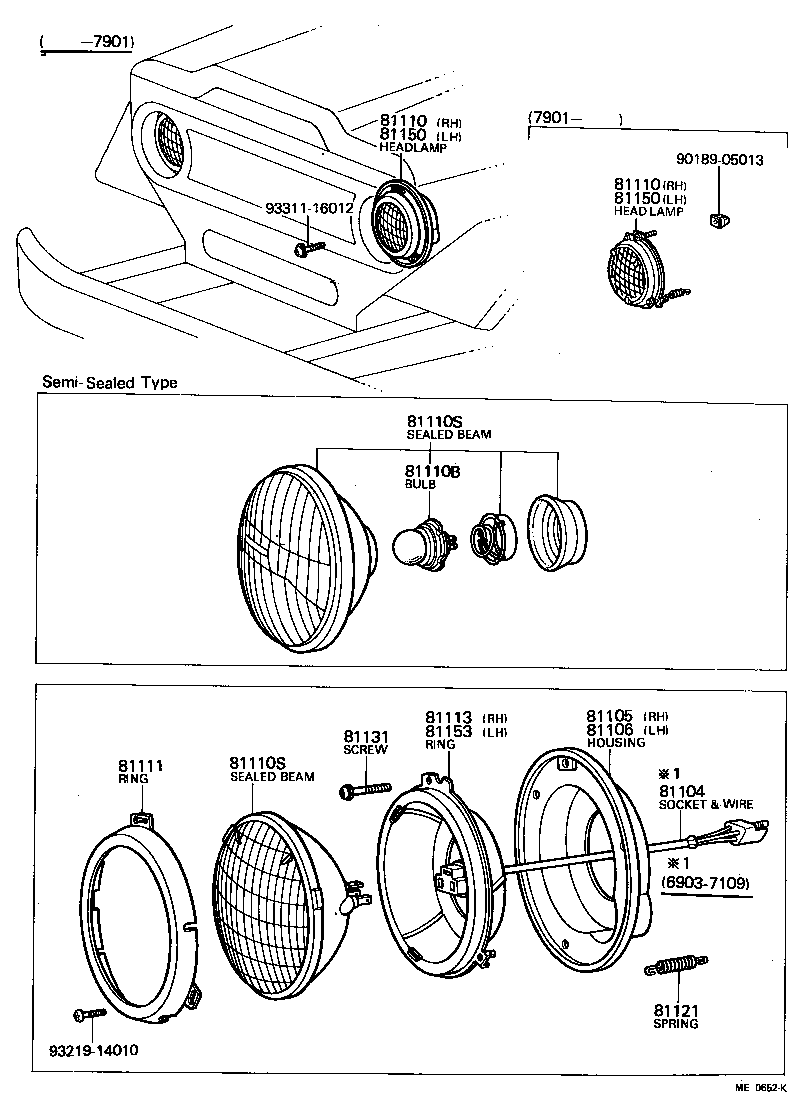

Figure MB0651C MB0651C 1969-03 → 1971-09 Figure MB0652K MB0652K 1969-03 → 1971-09 Figure MB0652K MB0652K 1971-09 → 1980-07

Part groups

PNCDescription
81104 Socket & Wire Sub-assy, Headlamp
81105 Housing Sub-assy, Headlamp, RH
81106 Housing Sub-assy, Headlamp, LH
81110 Headlamp Assy, RH
81110B Bulb(FOR HEADLAMP, NO.1)
81110S Sealed Beam Unit, NO.1
81111 Ring, Sealed Beam Retaining
81113 Ring, Sealed Beam Mounting, NO.1 RH
81115 Ring, Headlamp Housing
81117 Packing, Headlamp Housing
81121 Spring, Headlamp Tension
81131 Screw, Headlamp Adjusting
81150 Headlamp Assy, LH
81153 Ring, Sealed Beam Mounting, NO.1 LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
