Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Front Clearance Lamp

13 part groups · 3 illustrations

Illustrations

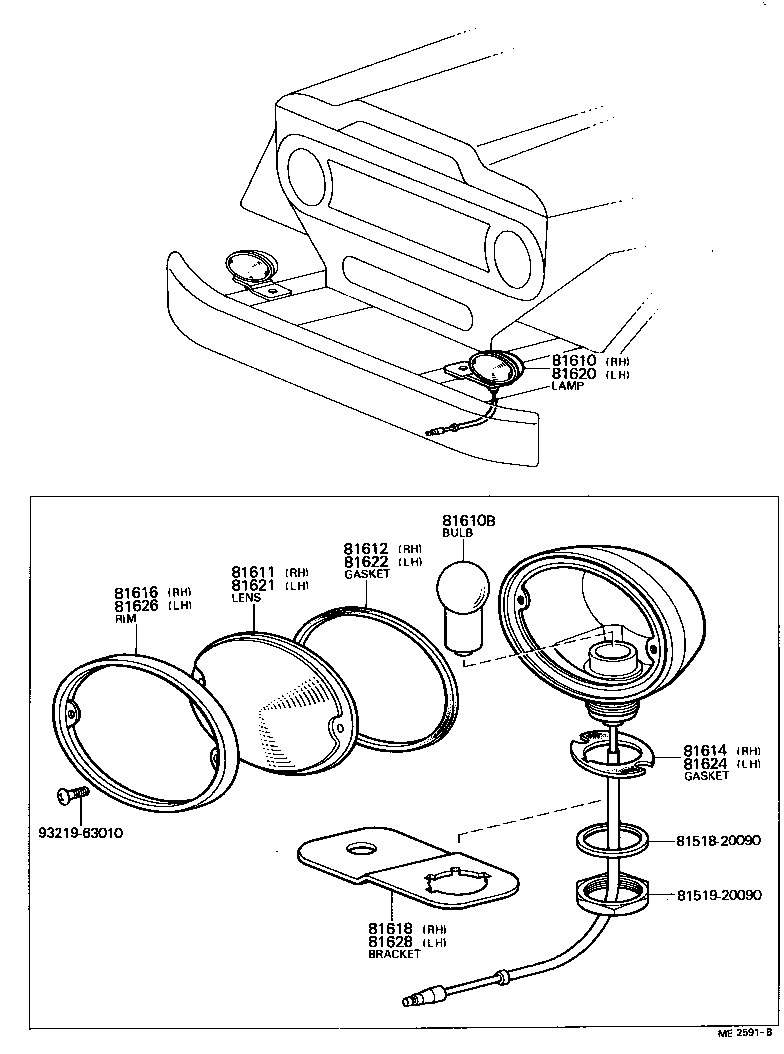

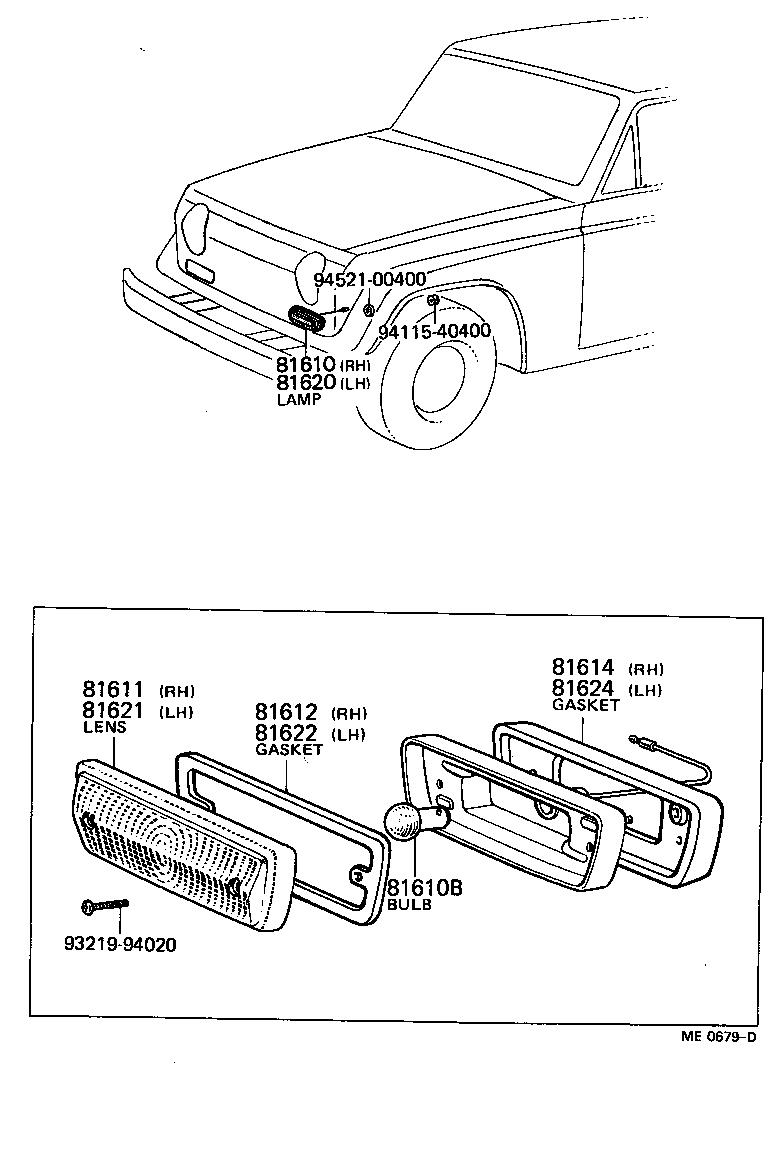

Figure ME0678C ME0678C 1969-03 → 1969-10 Figure ME0679D ME0679D 1969-03 → 1969-10 Figure ME2591B ME2591B 1973-05 → 1974-02

Part groups

PNCDescription
81610 Lamp Assy, Parking & Clearance, RH
81610B Bulb(FOR PARKING & CLEARANCE LAMP)
81611 Lens, Parking & Clearance Lamp, RH
81612 Gasket, Parking And Clearance Lamp Lens, RH
81614 Gasket, Parking And Clearance Lamp Body, RH
81616 Rim, Parking And Clearance Lamp, RH
81618 Bracket, Parking And Clearance Lamp, RH
81620 Lamp Assy, Parking & Clearance, LH
81621 Lens, Parking & Clearance Lamp, LH
81622 Gasket, Parking And Clearance Lamp Lens, LH
81624 Gasket, Parking And Clearance Lamp Body, LH
81626 Rim, Parking And Clearance Lamp, LH
81628 Bracket, Parking And Clearance Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
