Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear Combination Lamp

21 part groups · 6 illustrations

Illustrations

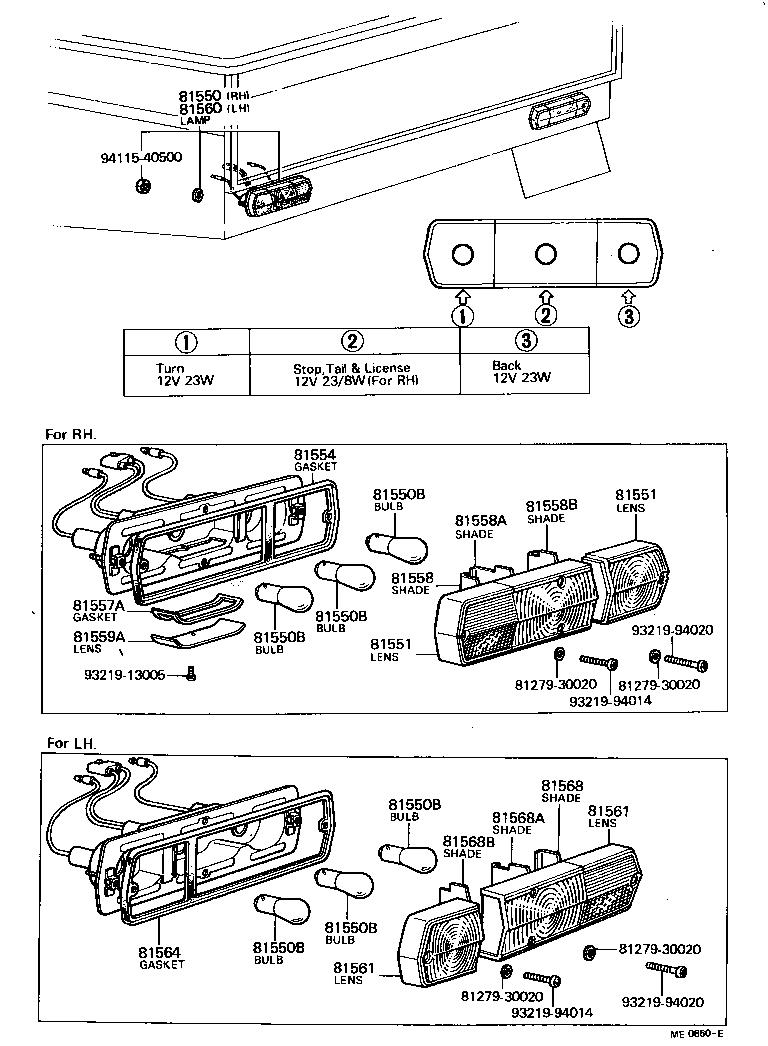

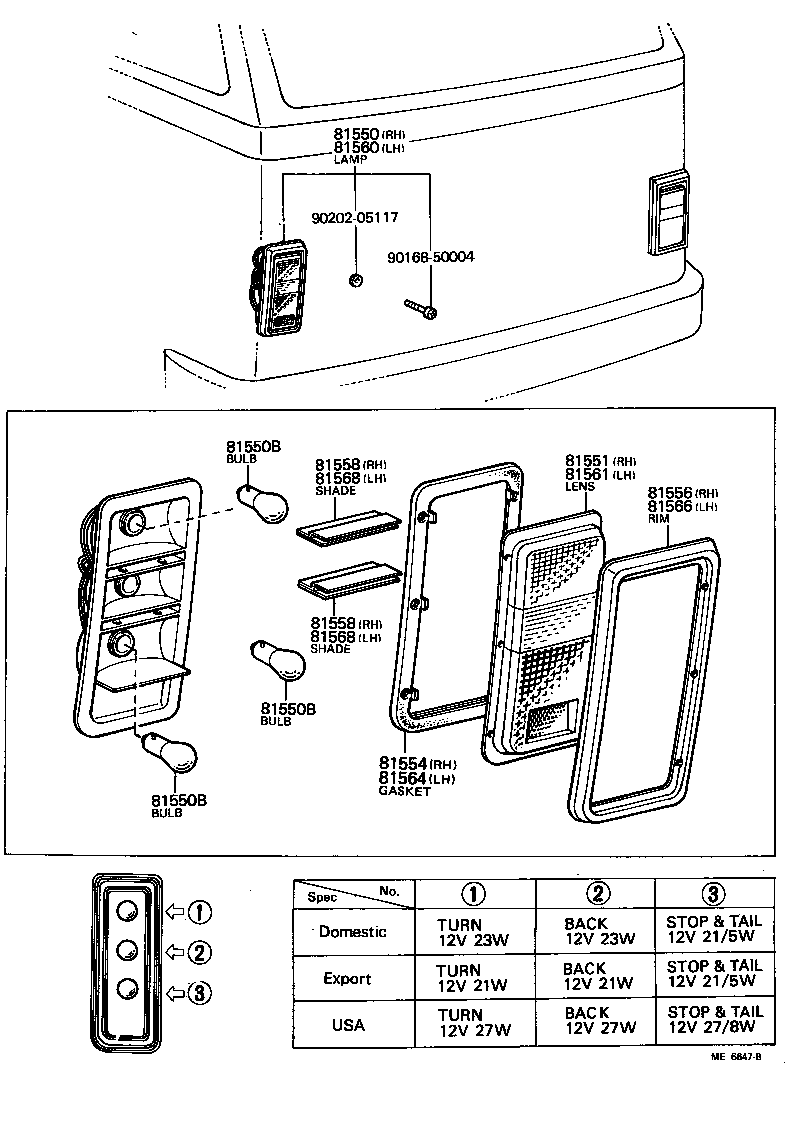

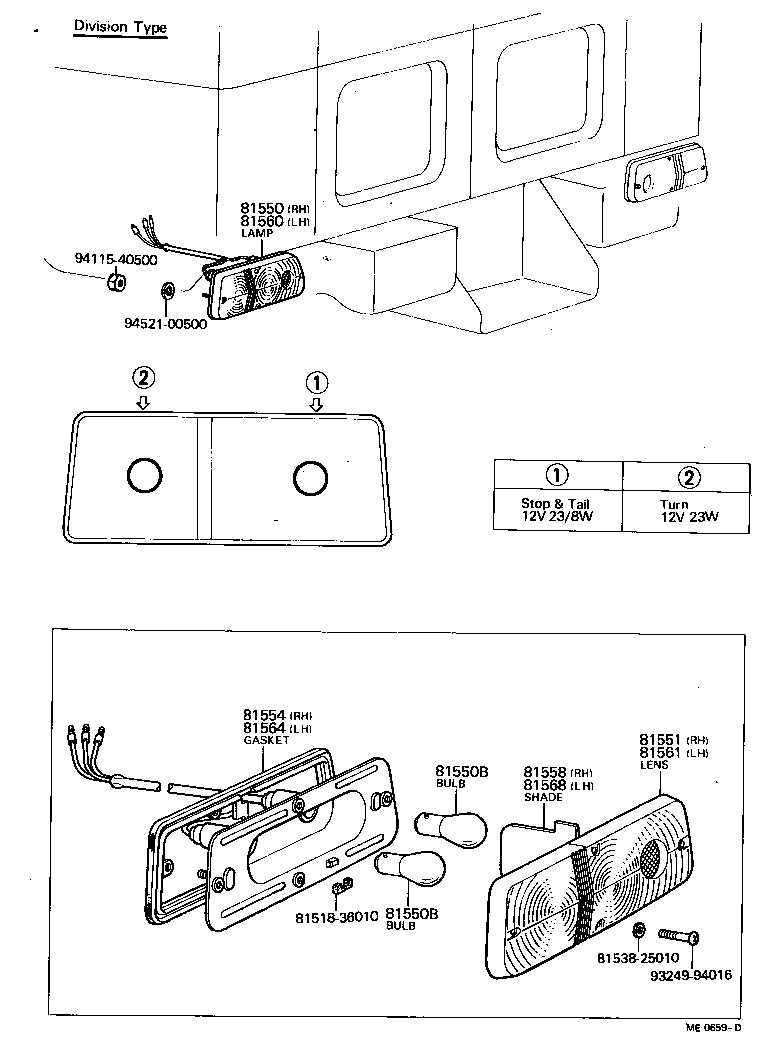

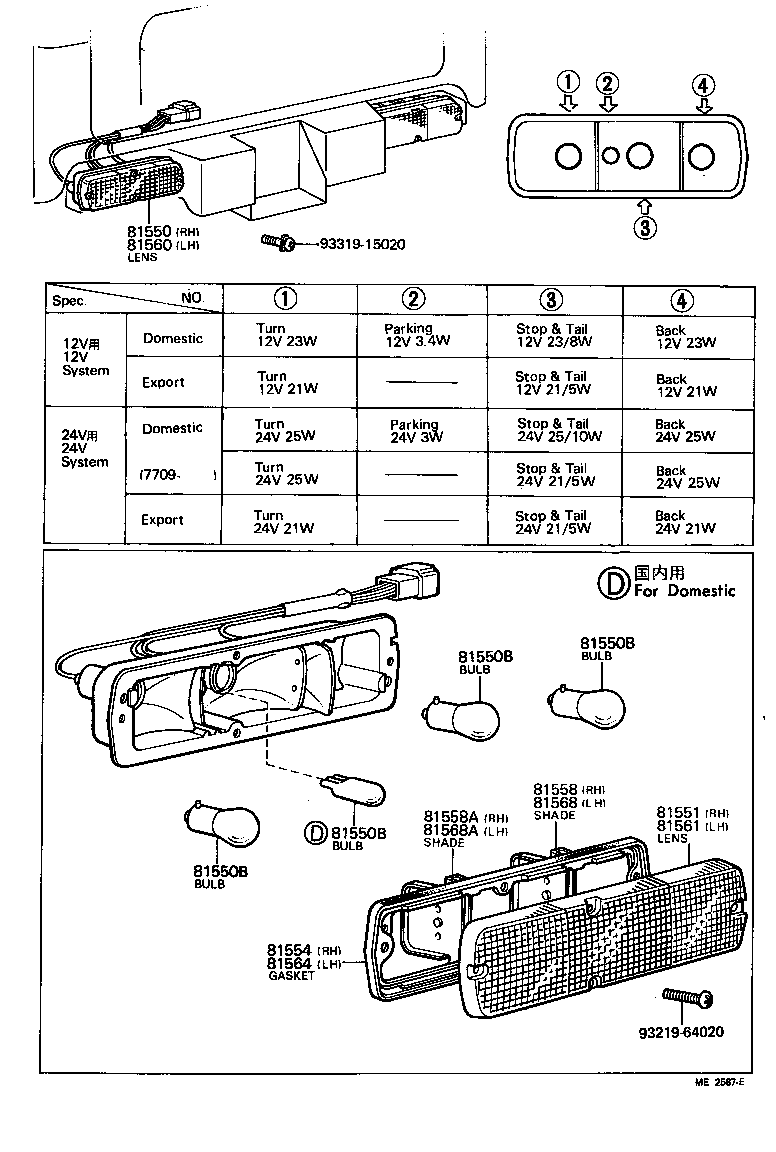

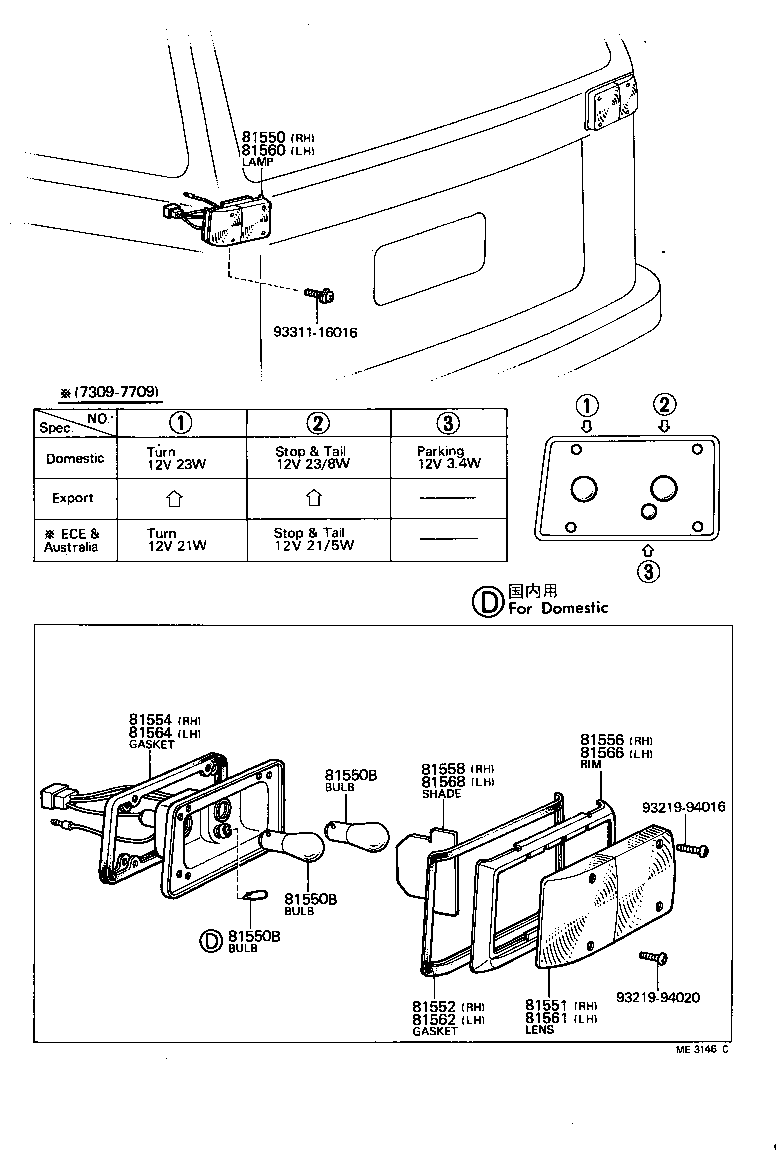

Figure ME3145B ME3145B 1969-03 → 1973-09 Figure ME0659D ME0659D 1969-03 → 1973-09 Figure ME0660E ME0660E 1969-03 → 1973-09 Figure ME2587E ME2587E 1973-09 → 1980-07 Figure ME3146C ME3146C 1969-03 → 1977-09 Figure ME6647B ME6647B 1977-09 → 1980-07

Part groups

PNCDescription
81550 Lamp Assy, Rear Combination, RH
81550B Bulb(FOR REAR COMBINATION LAMP)
81551 Lens, Rear Combination Lamp, RH
81552 Gasket, Rear Combination Lamp Lens, RH
81554 Gasket, Rear Combination Lamp Body, RH
81556 Rim, Rear Combination Lamp, RH
81557A Gasket, Rear Combination Lamp Lens(FOR LICENSE PLATE LAMP)
81558 Shade, Rear Combination Lamp, NO.1 RH
81558A Shade, Rear Combination Lamp, NO.2 RH
81558B Shade, Rear Combination Lamp, NO.3 RH
81558E Cover, Rear Combination Lamp, RH
81559A Lens, Rear Combination Lamp (FOR LICENSE PLATE LAMP)
81560 Lamp Assy, Rear Combination, LH
81561 Lens, Rear Combination Lamp, LH
81562 Gasket, Rear Combination Lamp Lens, LH
81564 Gasket, Rear Combination Lamp Body, LH
81566 Rim, Rear Combination Lamp, LH
81568 Shade, Rear Combination Lamp, NO.1 LH
81568A Shade, Rear Combination Lamp, NO.2 LH
81568B Shade, Rear Combination Lamp, NO.3 LH
81568E Cover, Rear Combination Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
