Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Back UP Lamp

11 part groups · 3 illustrations

Illustrations

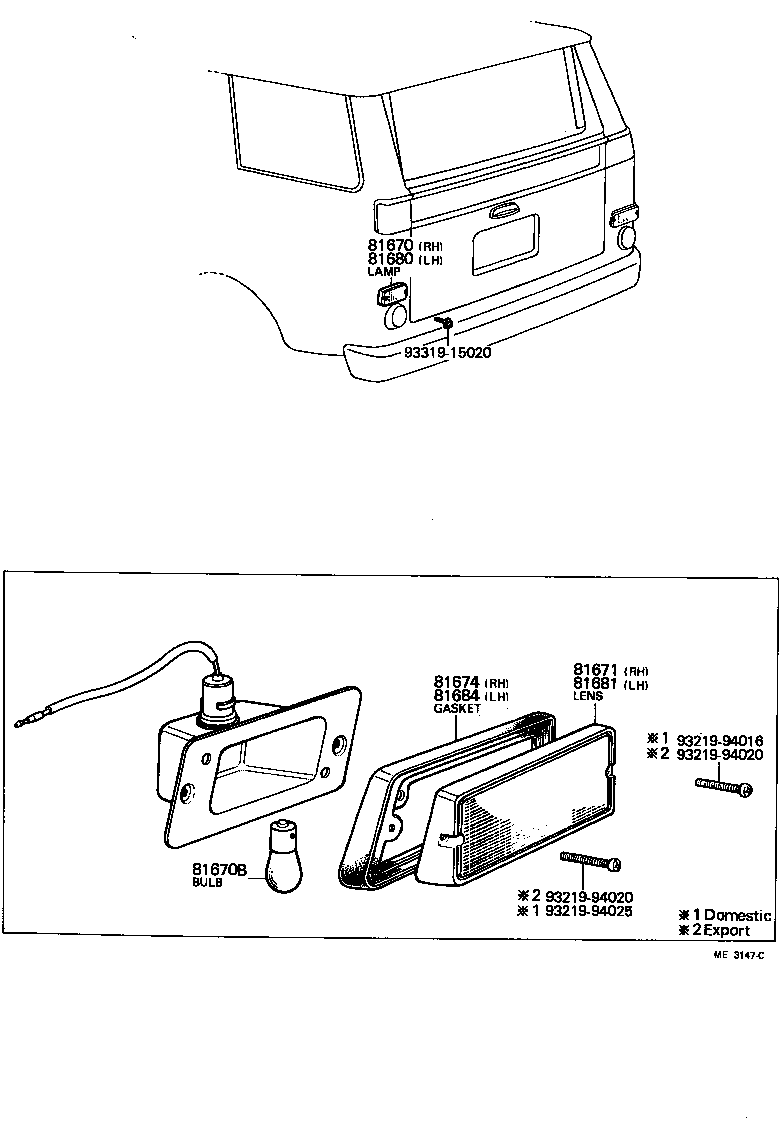

Figure ME0668E ME0668E 1969-03 → 1972-09 Figure ME0668E ME0668E 1972-09 → 1973-09 Figure ME3147C ME3147C 1972-09 → 1977-09

Part groups

PNCDescription
81670 Lamp Assy, Back-up, RH
81670B Bulb(FOR BACK-UP LAMP)
81671 Lens, Back-up Lamp, RH
81672 Gasket, Back-up Lamp Lens, RH
81674 Gasket, Back-up Lamp Body, RH
81676 Rim, Back-up Lamp, RH
81680 Lamp Assy, Back UP, LH
81681 Lens, Back-up Lamp, LH
81682 Gasket, Back UP Lamp Lens, LH
81684 Gasket, Back UP Lamp Body, LH
81686 Rim, Back UP Lamp, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
