Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Rear License Plate Lamp

9 part groups · 6 illustrations

Illustrations

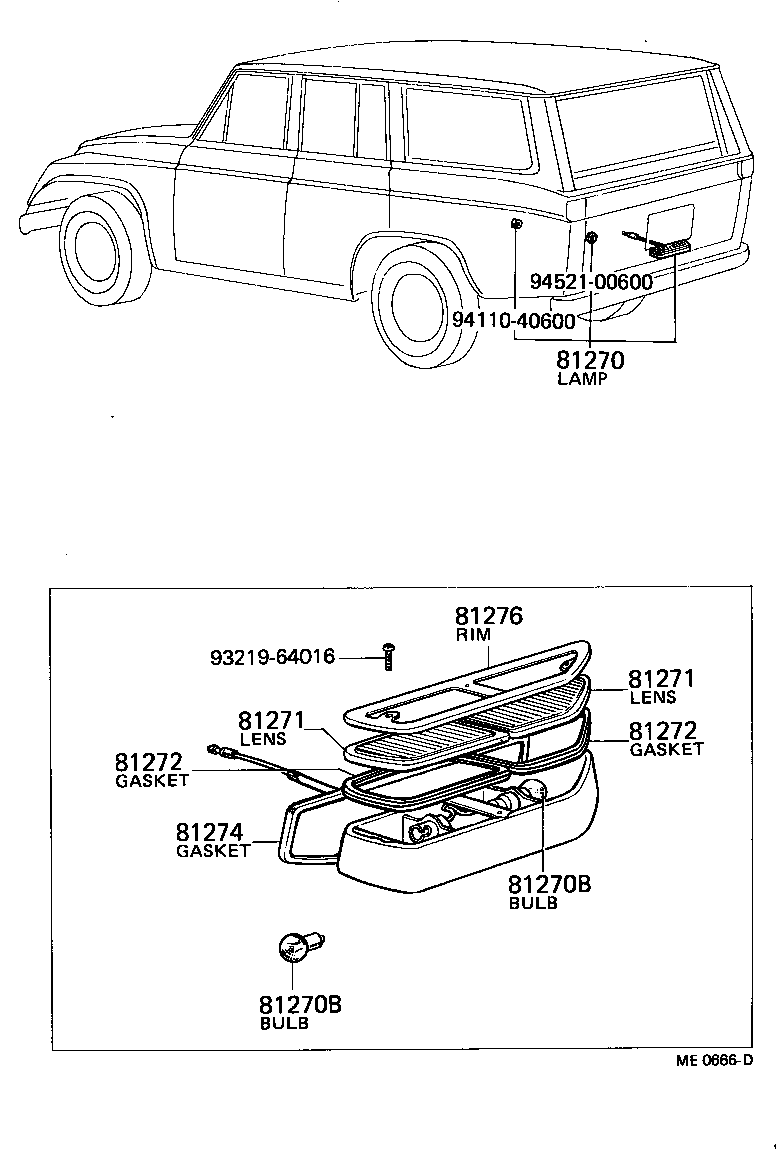

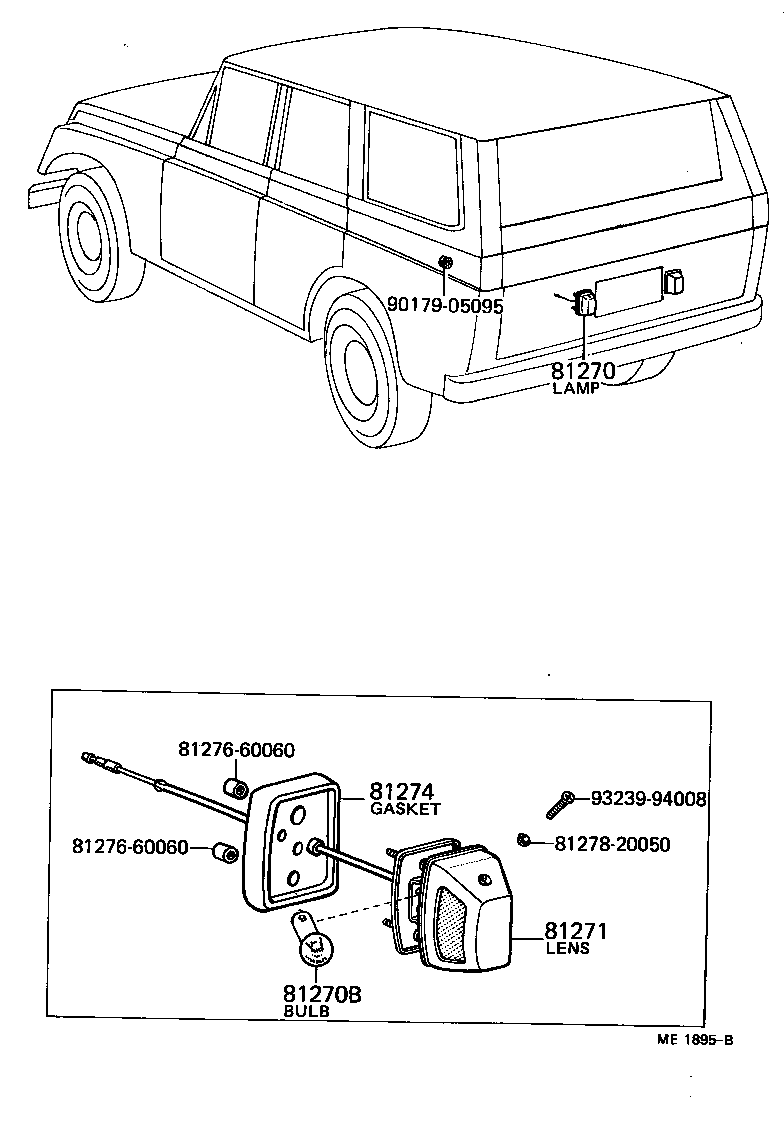

Figure ME0665E ME0665E 1969-03 → 1974-02 Figure ME3714C ME3714C 1974-02 → 1980-07 Figure ME3715C ME3715C 1973-09 → 1980-07 Figure ME0666D ME0666D 1969-03 → 1972-09 Figure ME0666D ME0666D 1972-09 → 1980-07 Figure ME1895B ME1895B 1972-09 → 1980-07

Part groups

PNCDescription
81270 Lamp Assy, License Plate
81270B Bulb (FOR LICENSE PLATE LAMP)
81271 Lens, License Plate Lamp
81272 Gasket, License Plate Lamp Lens
81274 Gasket, License Plate Lamp Body
81276 Rim, License Plate Lamp
81278 Cover, License Plate Lamp
81483 Bracket, License Plate Lamp
81690 Cover Sub-assy, License Plate Lamp
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
