Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Reflex Reflector

9 part groups · 3 illustrations

Illustrations

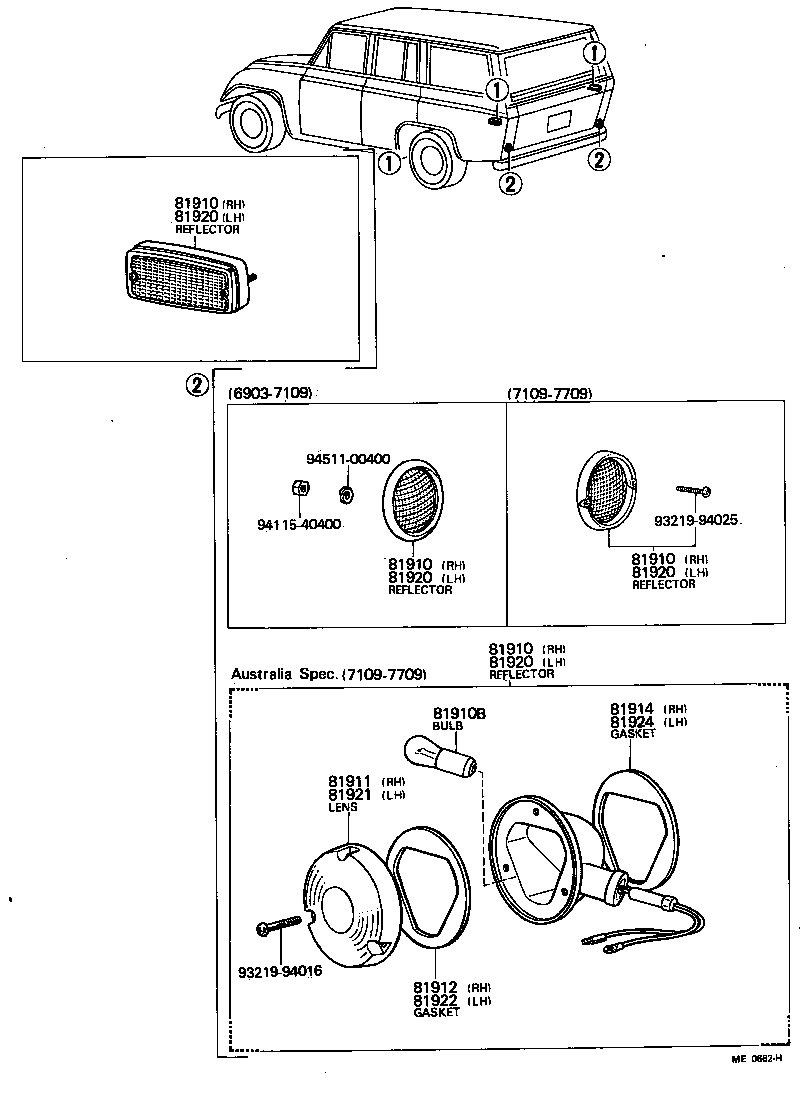

Figure ME1670D ME1670D 1969-03 → 1973-09 Figure ME9199 ME9199 1973-09 → 1980-07 Figure ME0662H ME0662H 1969-03 → 1977-09

Part groups

PNCDescription
81910 Reflector Assy, Reflex, RH
81910B Bulb, Reflex Reflector
81911 Lens, Reflex Reflector, Rear RH
81912 Gasket, Reflex Reflector Lens, RH
81914 Gasket, Reflex Reflector Body, RH
81920 Reflector Assy, Reflex, LH
81921 Lens, Reflex Reflector, Rear LH
81922 Gasket, Reflex Reflector Lens, LH
81924 Gasket, Reflex Reflector Body, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
