Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Wiring & Clamp

51 part groups · 19 illustrations

Illustrations

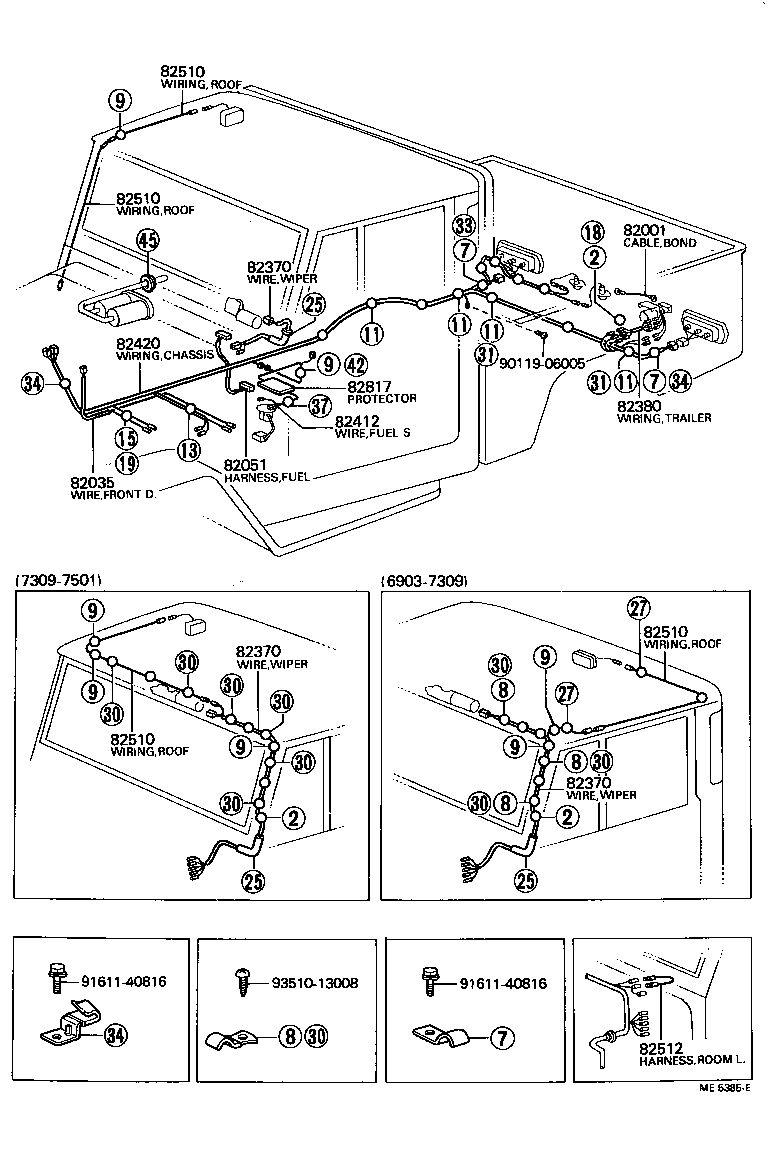

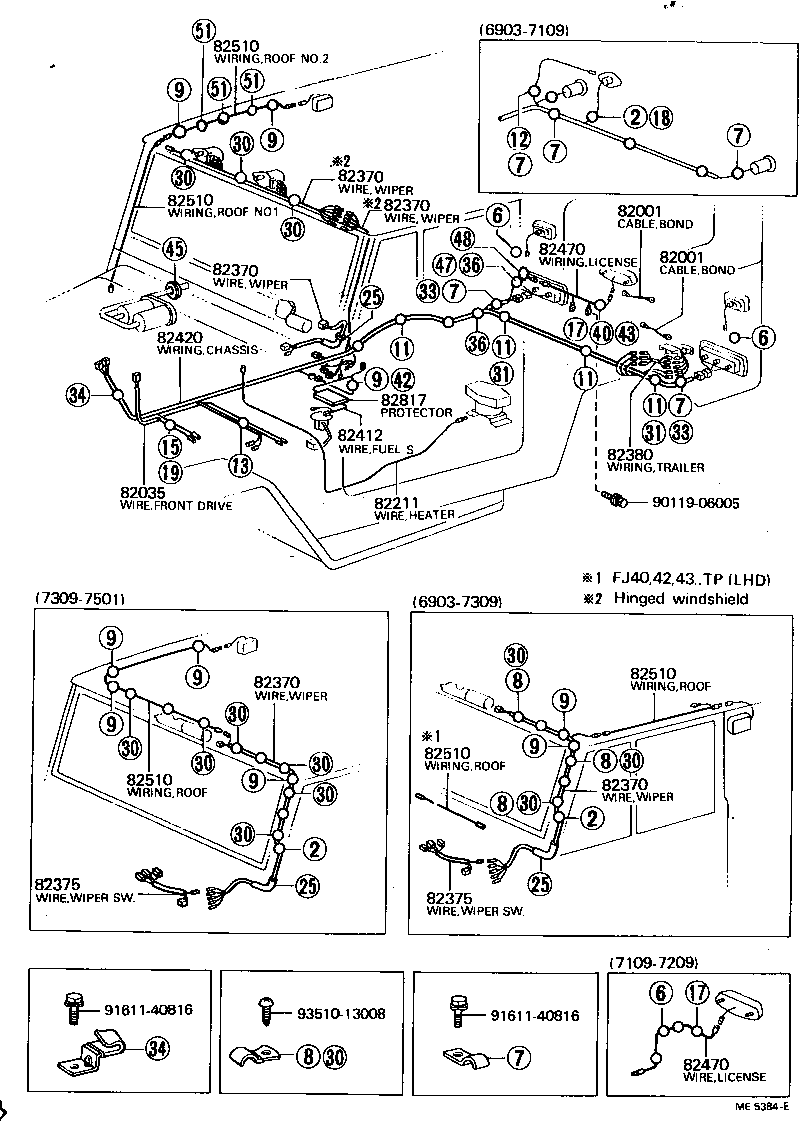

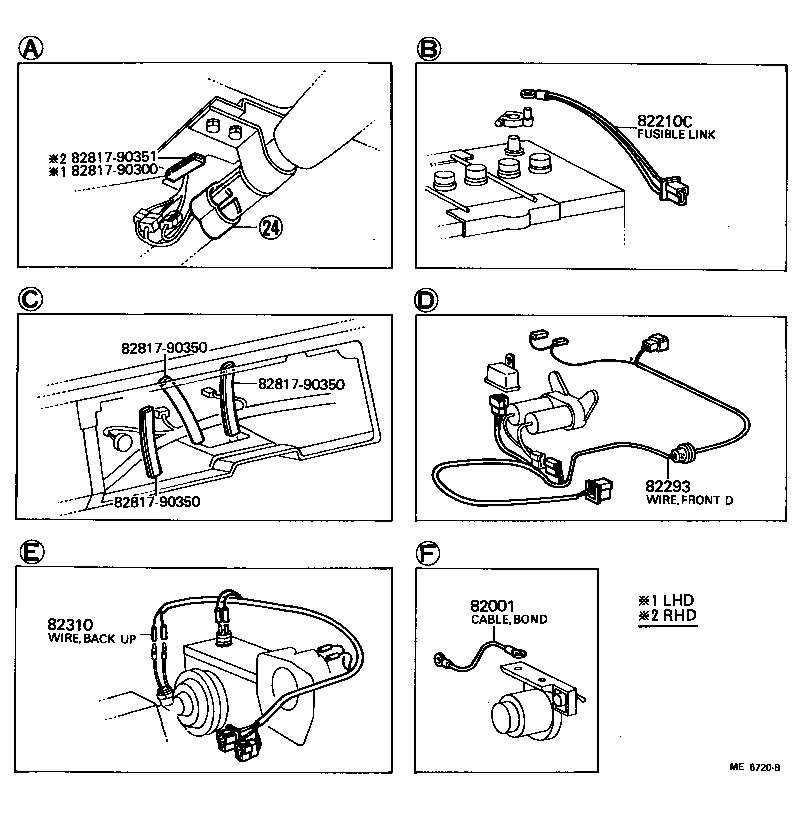

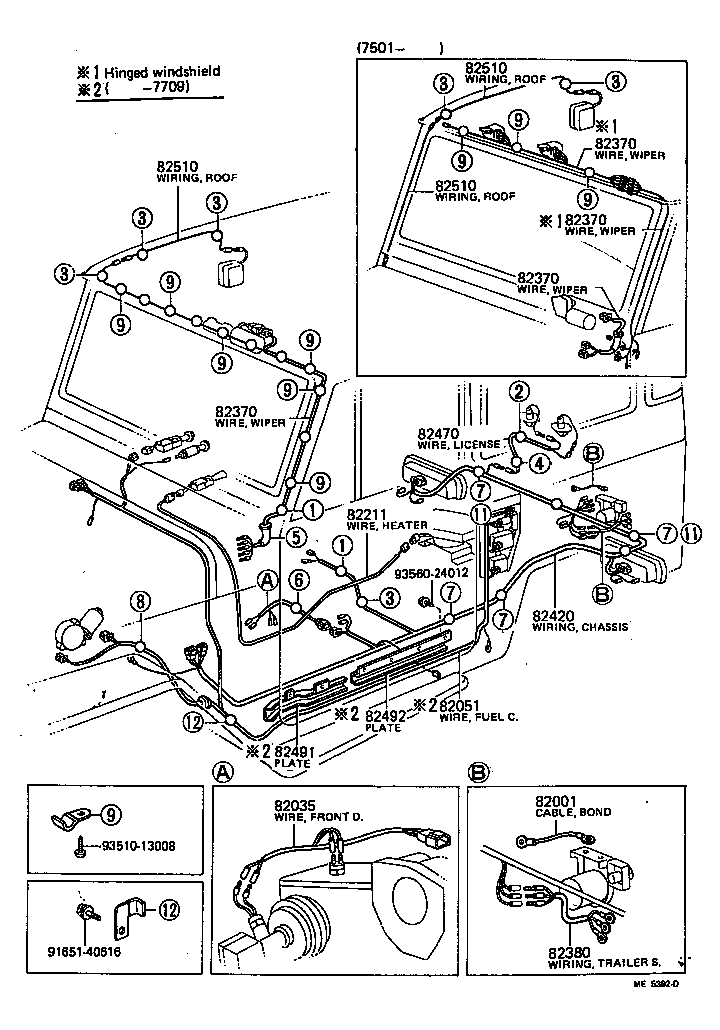

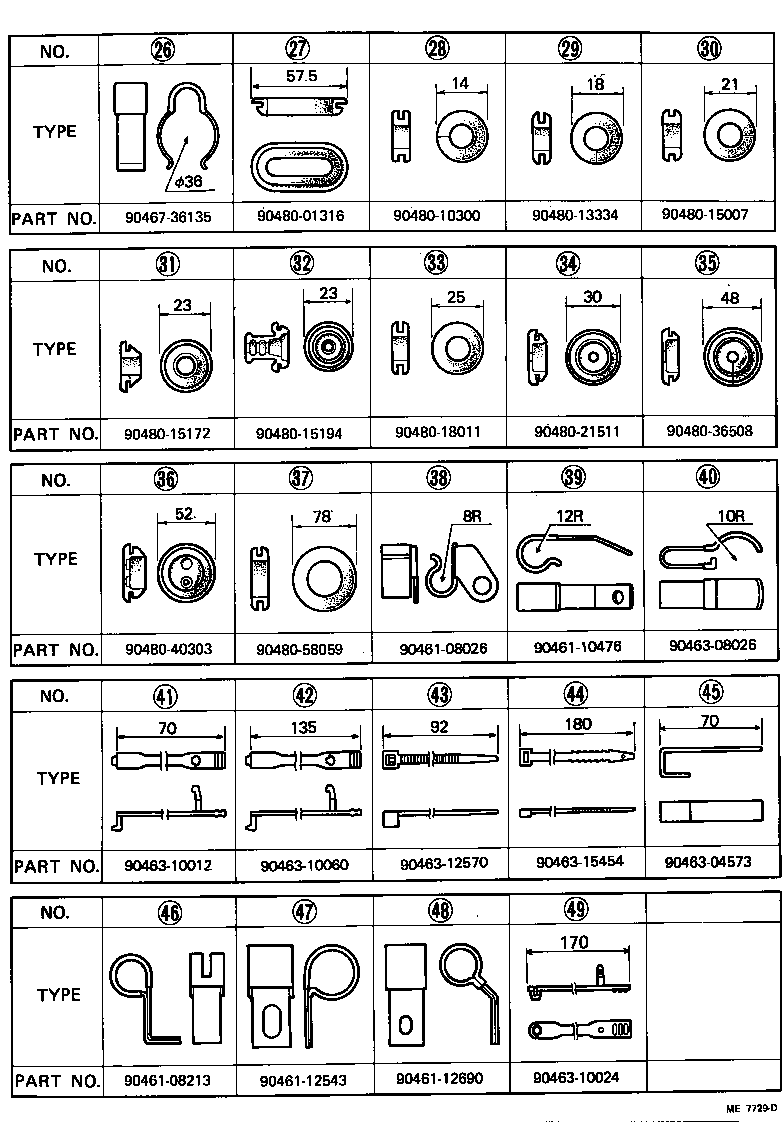

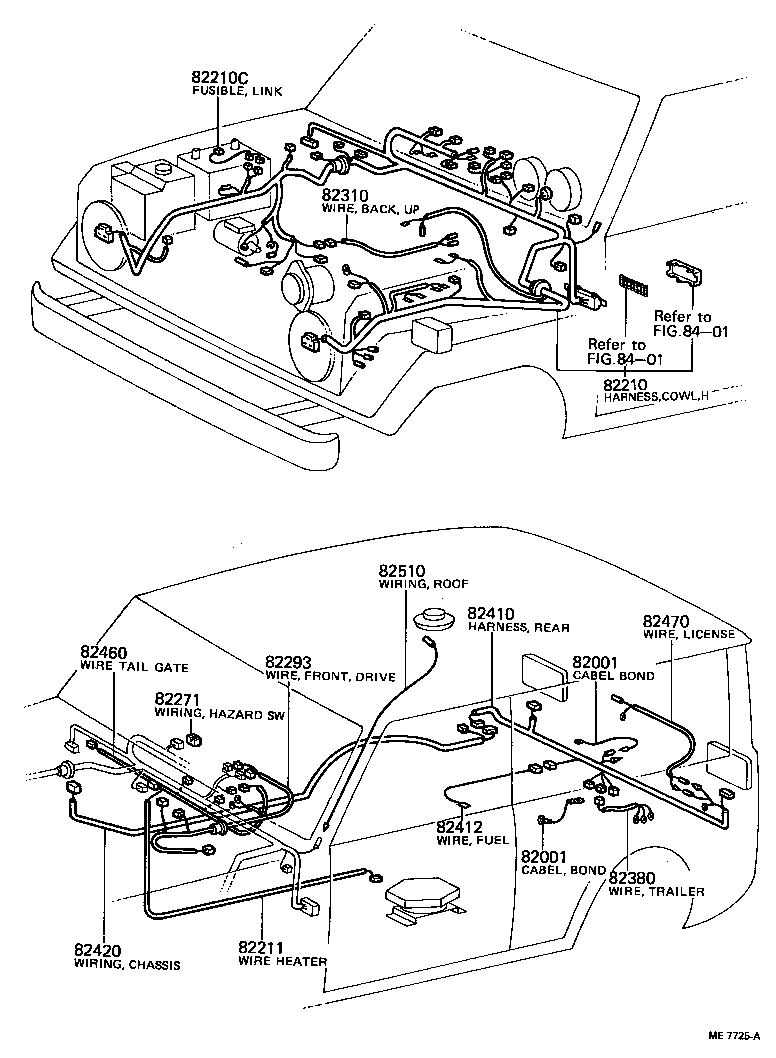

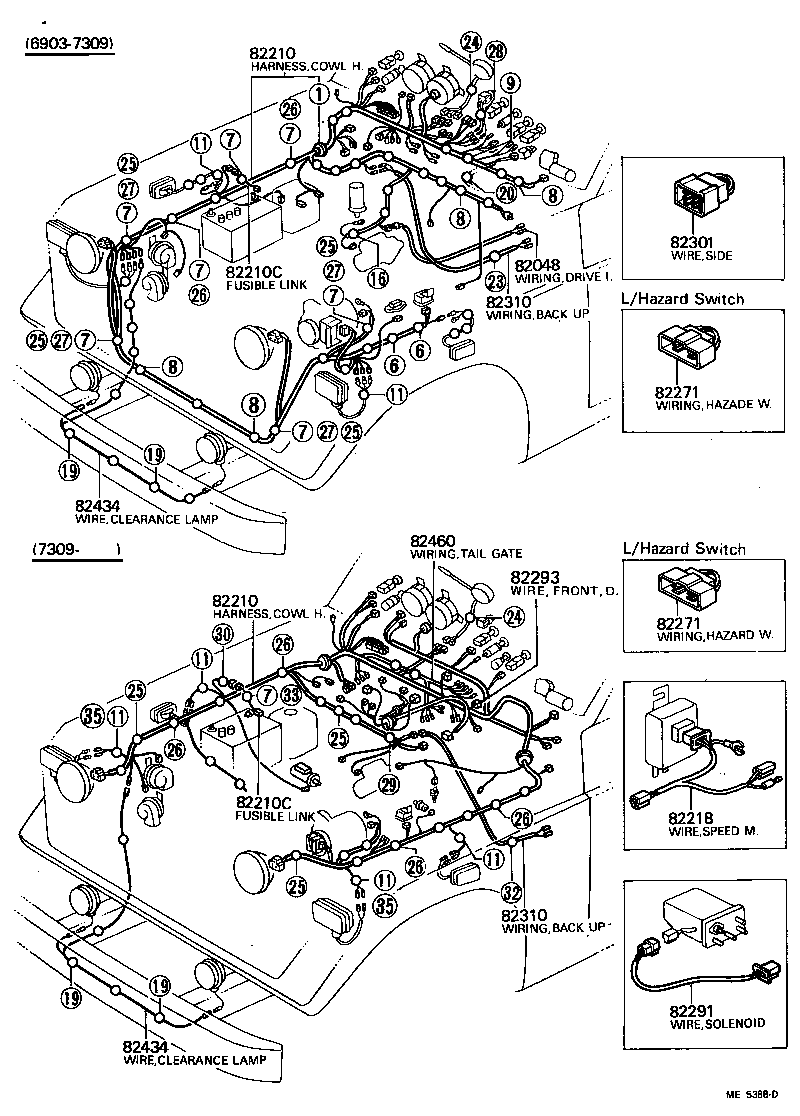

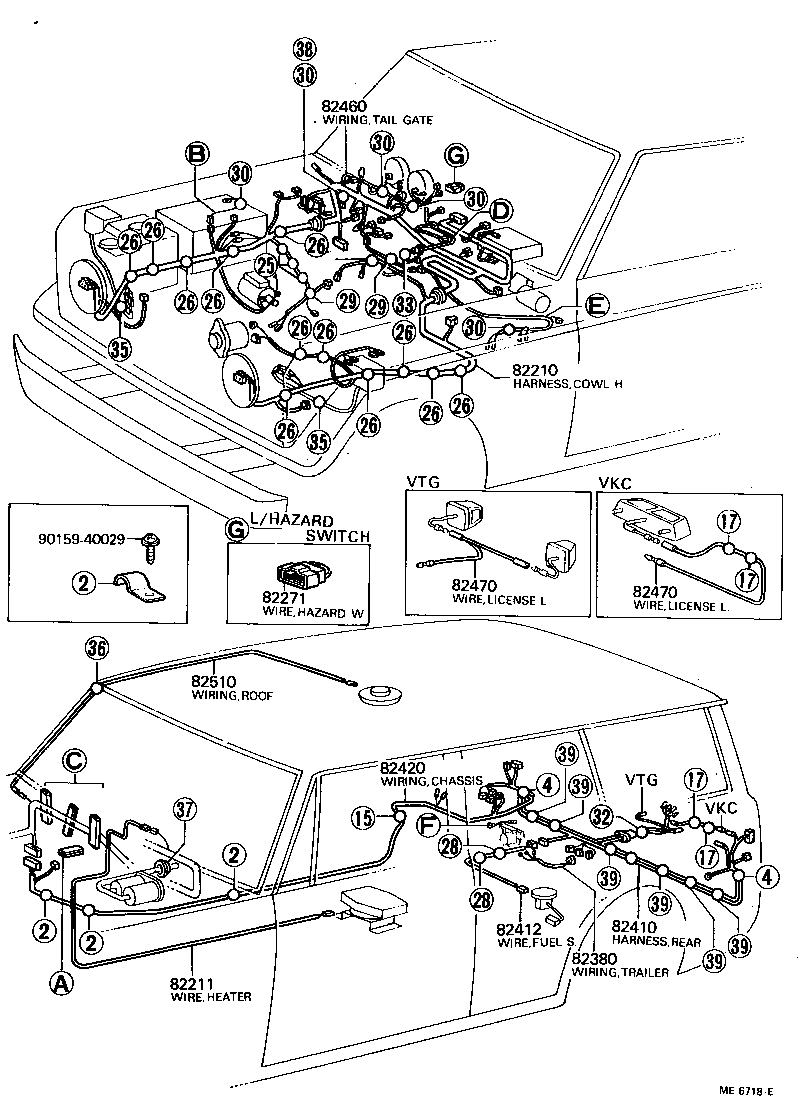

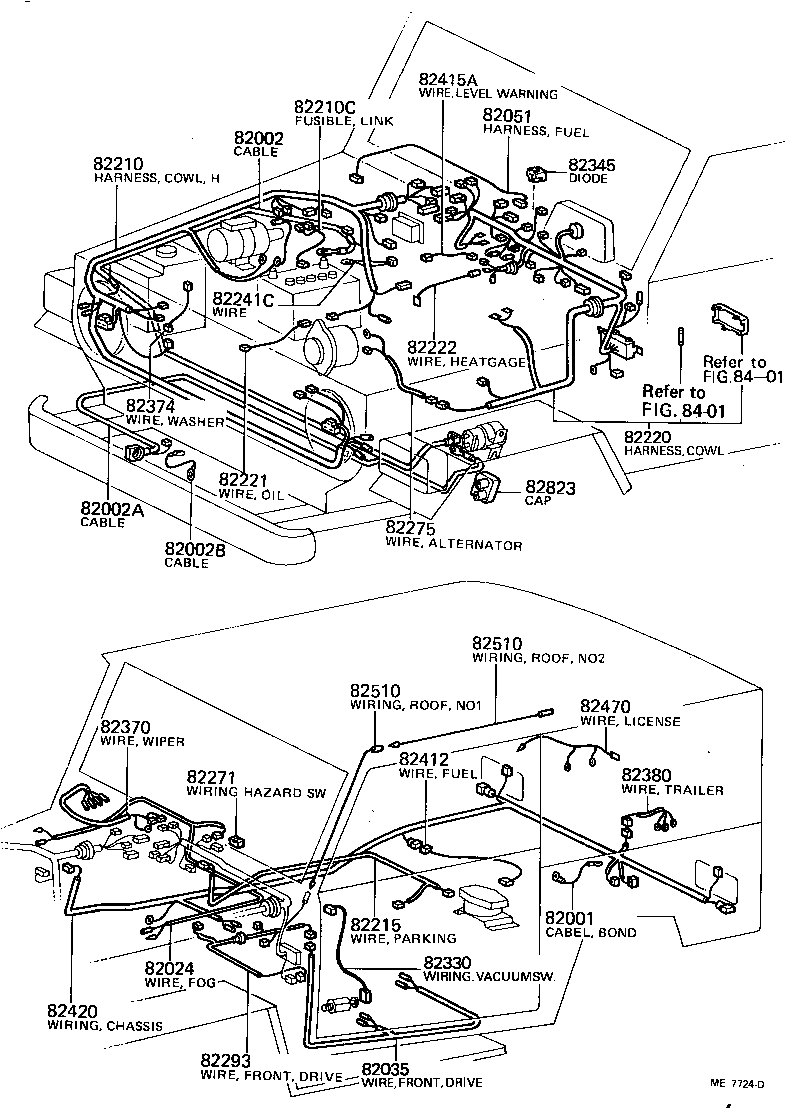

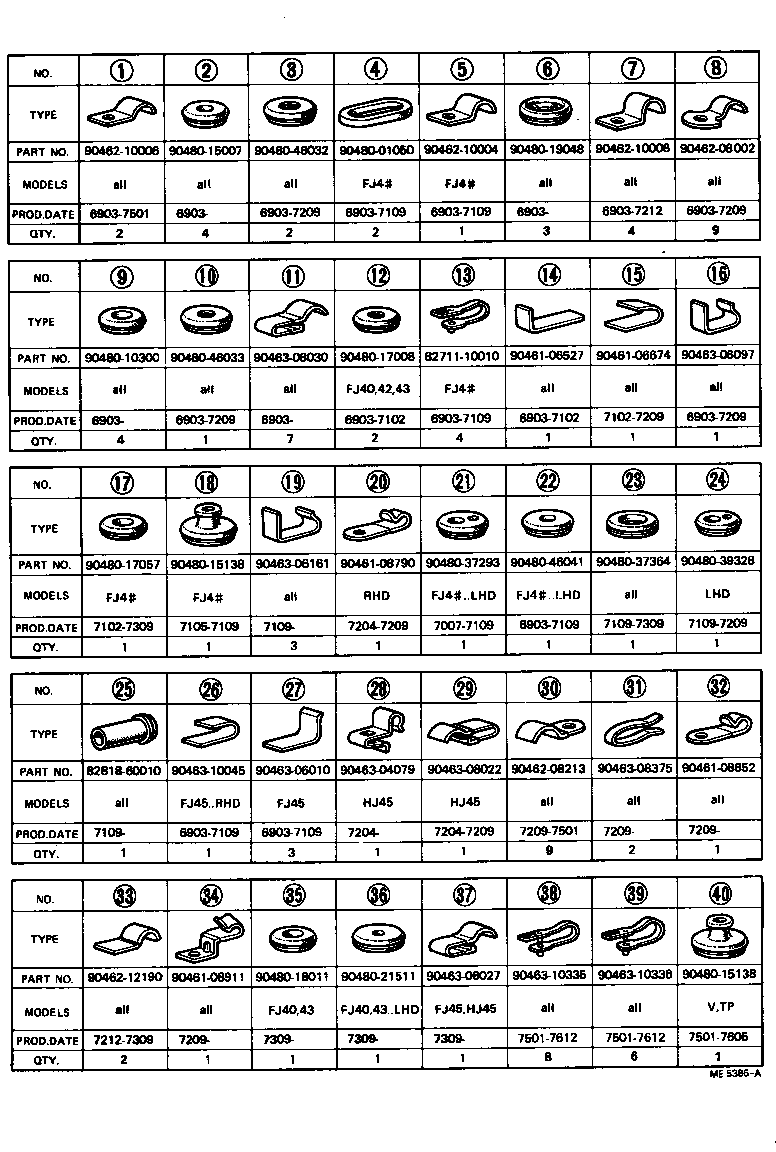

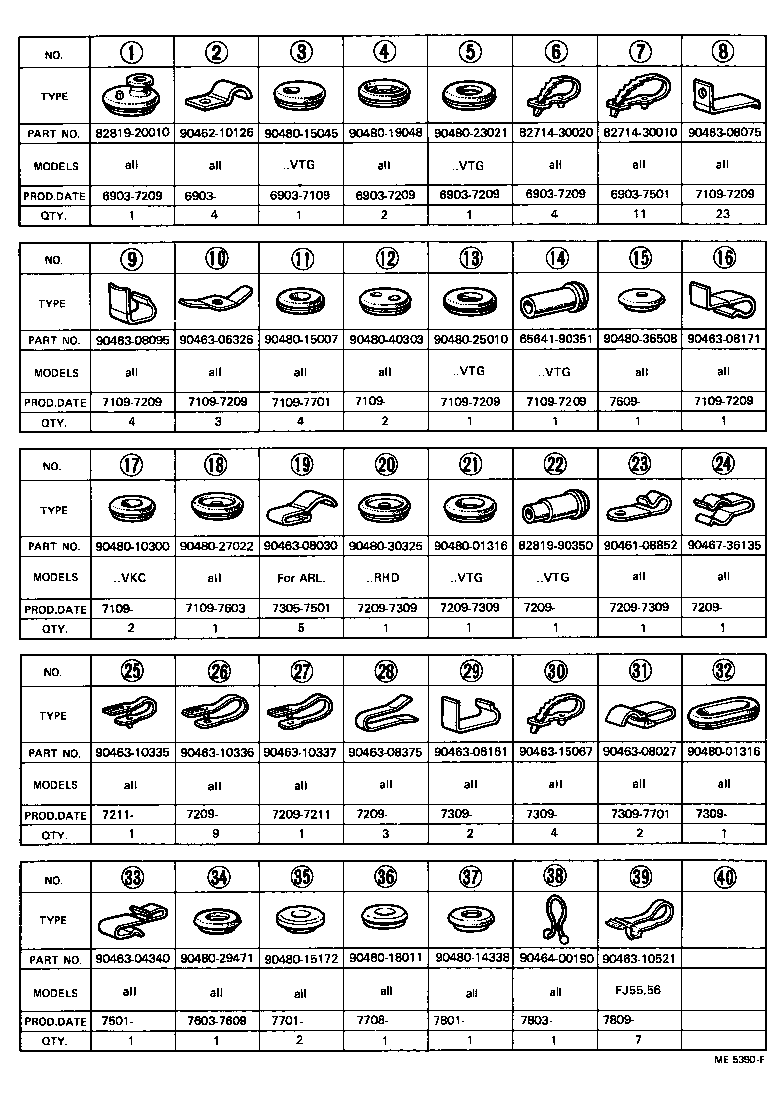

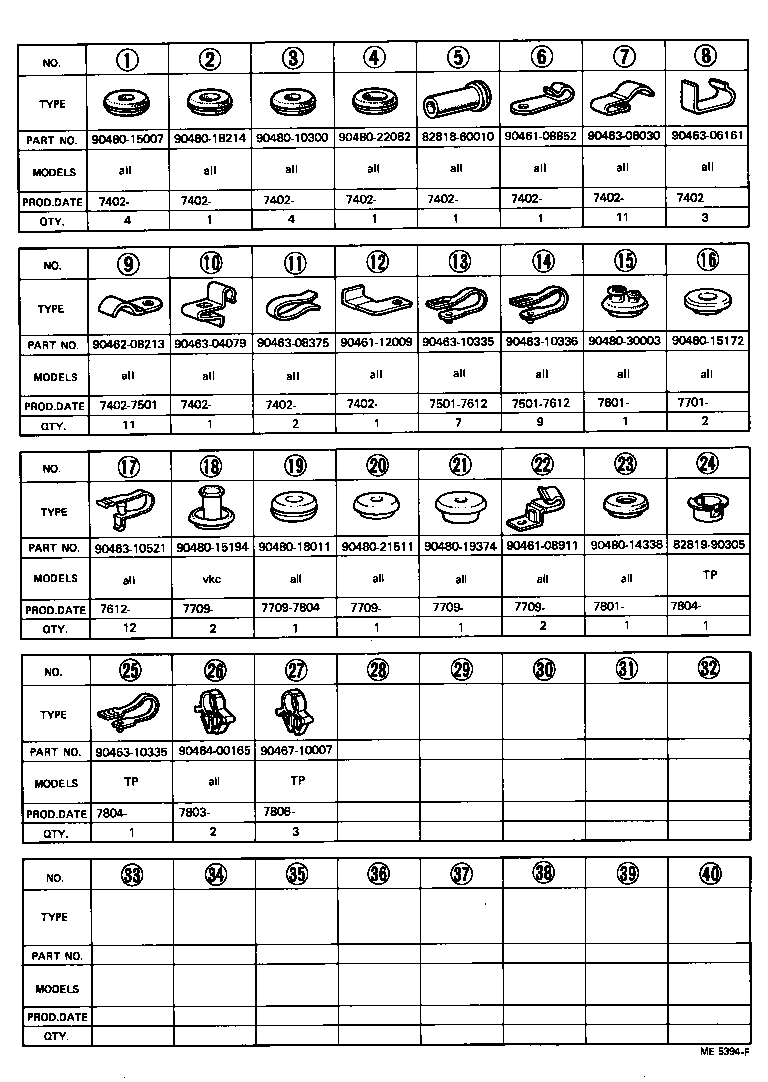

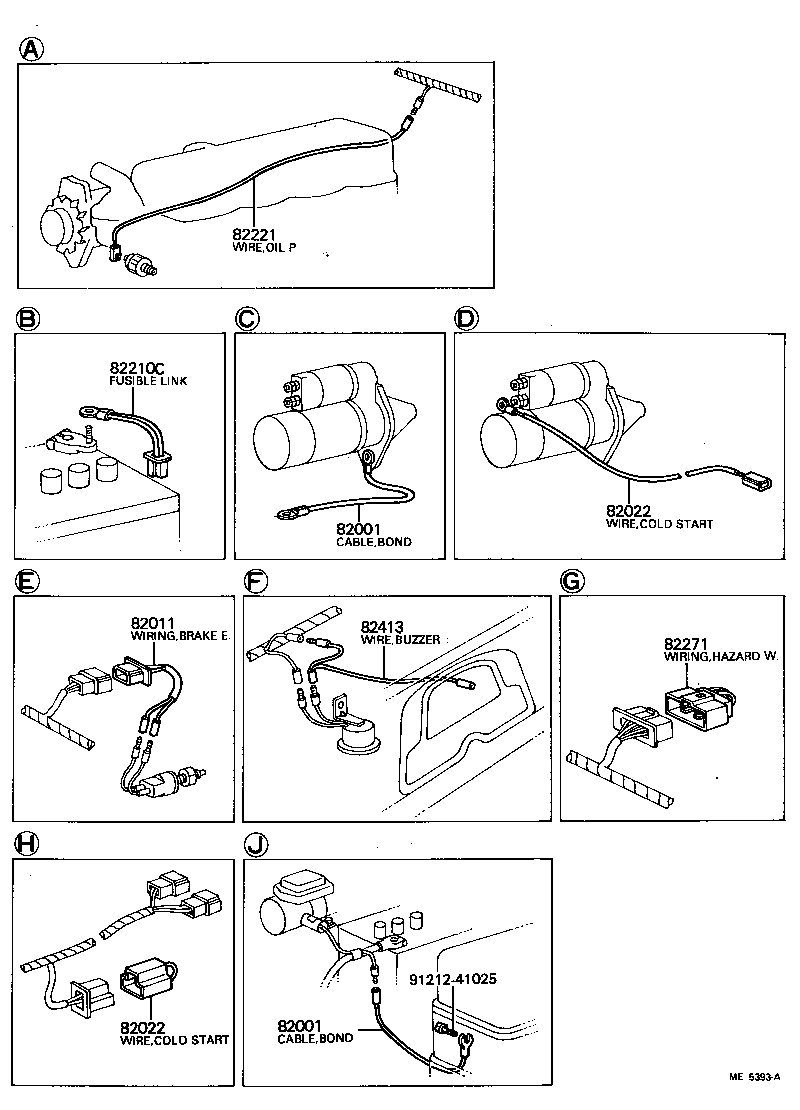

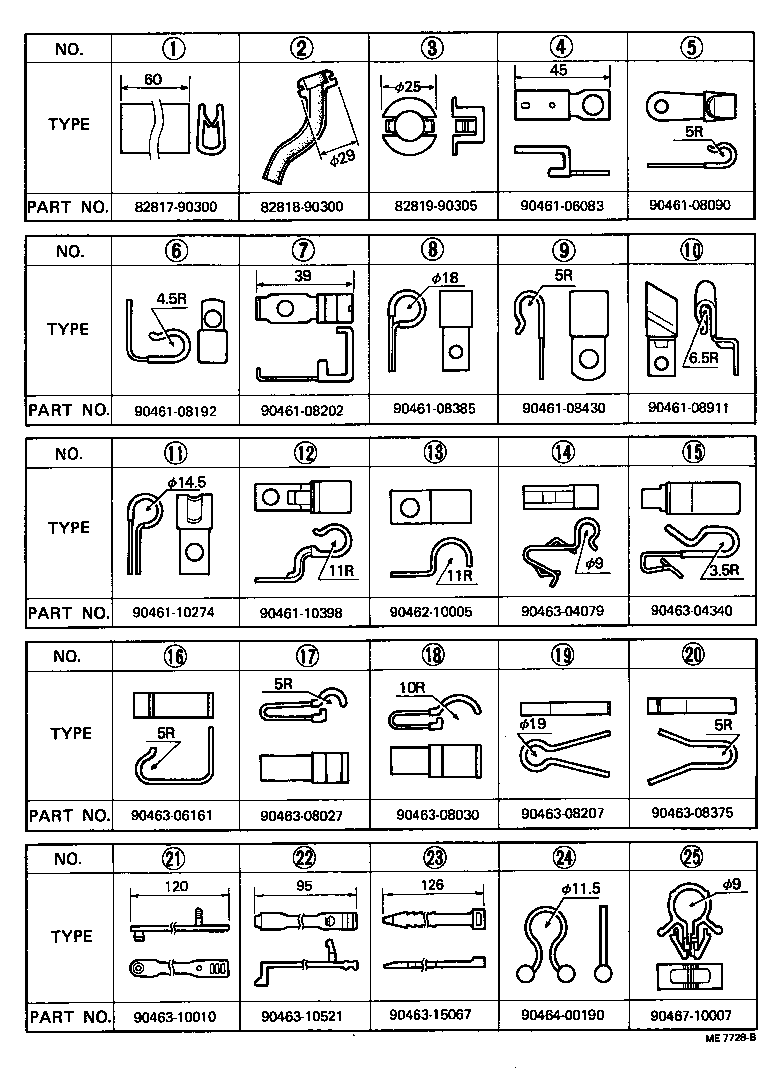

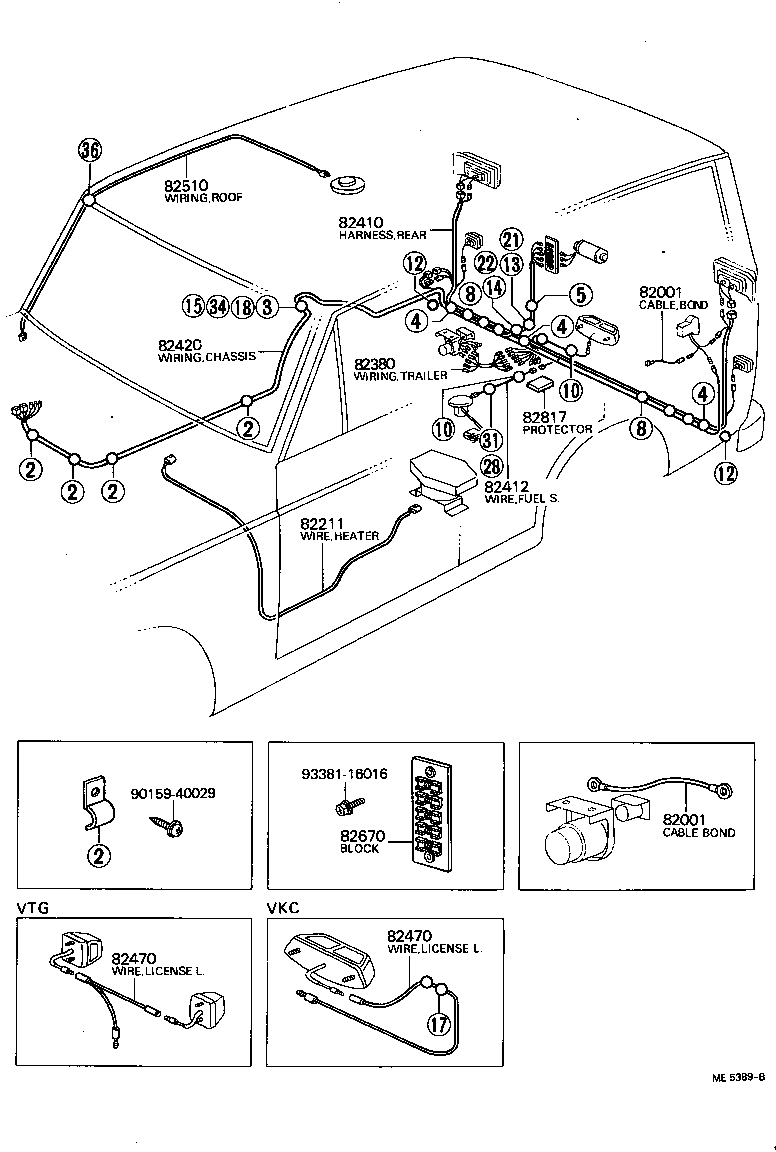

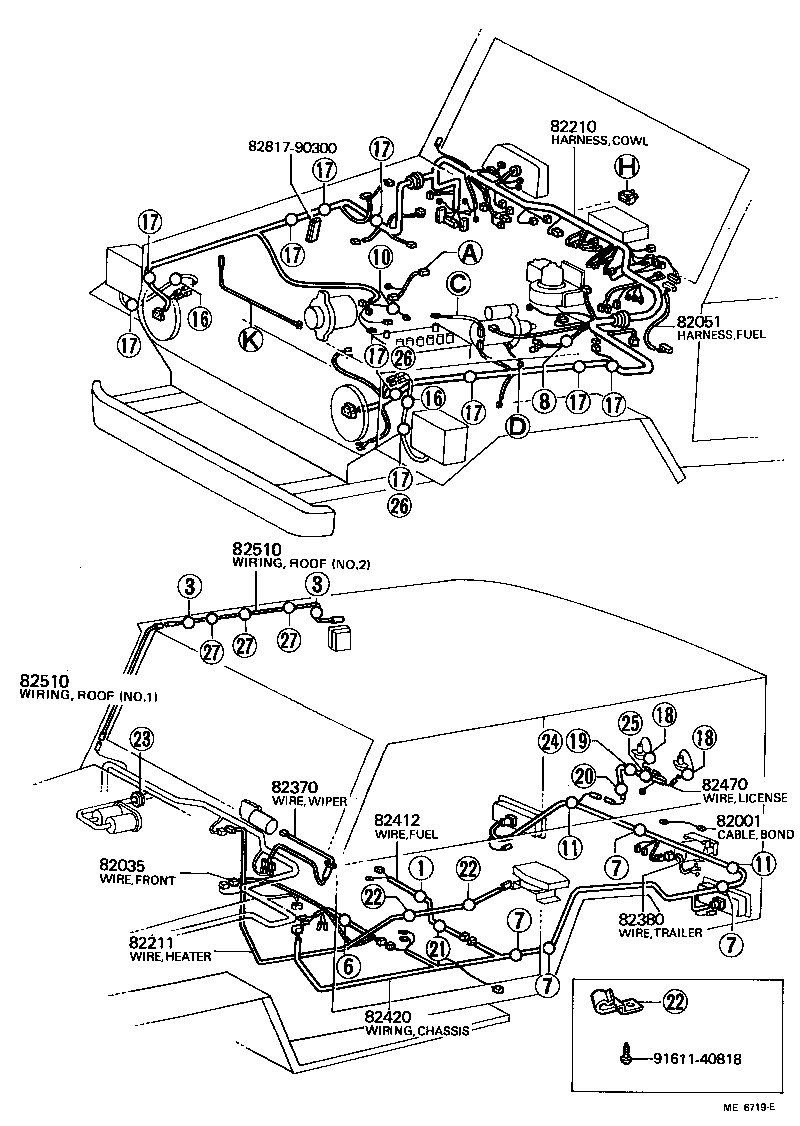

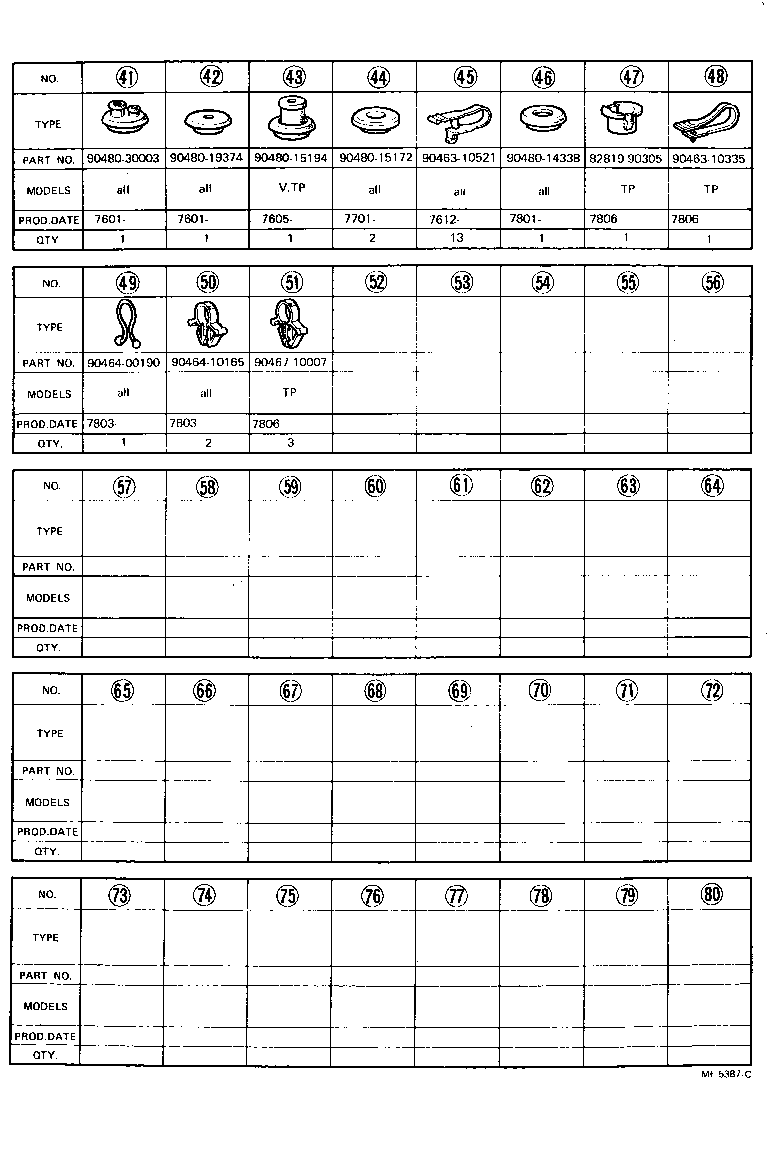

Figure ME5383D ME5383D 1969-03 → 1979-01 Figure ME5384E ME5384E 1969-03 → 1979-01 Figure ME5385E ME5385E 1969-03 → 1979-01 Figure ME5386A ME5386A 1969-03 → 1979-01 Figure ME5387C ME5387C 1969-03 → 1979-01 Figure ME5388D ME5388D 1969-03 → 1977-09 Figure ME5389B ME5389B 1969-03 → 1977-09 Figure ME6718E ME6718E 1977-09 → 1979-01 Figure ME6720B ME6720B 1977-09 → 1979-01 Figure ME5390F ME5390F 1969-03 → 1979-01 Figure ME5391B ME5391B 1974-02 → 1977-09 Figure ME5392D ME5392D 1974-02 → 1977-09 Figure ME6719E ME6719E 1977-09 → 1979-01 Figure ME5393A ME5393A 1974-02 → 1979-01 Figure ME5394F ME5394F 1974-02 → 1979-01 Figure ME7724D ME7724D 1979-01 → 1980-07 Figure ME7725A ME7725A 1979-01 → 1980-07 Figure ME7728B ME7728B 1979-01 → 1980-07 Figure ME7729D ME7729D 1979-01 → 1980-07

Part groups

PNCDescription
82001 Cable, Bond, NO.1
82002 Cable, Battery TO Magnet Switch
82002A Cable, Magnet Switch TO Winch
82002B Cable, Winch TO Ground
82011 Wiring Assy, Brake Warning System
82021 Wiring Assy, Starter
82022 Wiring Sub-assy, Cold Start Switch
82024 Wire Sub-assy, Fog Lamp Feed
82031 Wire Sub-assy, Ignition Coil
82035 Wire Sub-assy, Front Drive
82048 Wiring Sub-assy, Front Drive Indicator Lamp Switch
82051 Harness Assy, Fuel Control

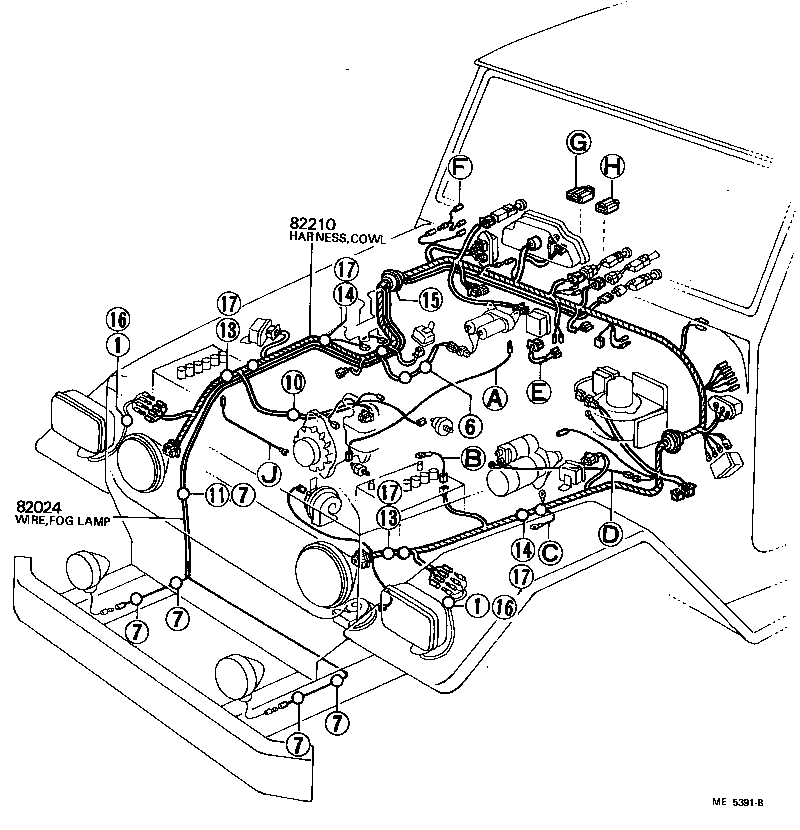

82210 Harness Assy, Wiring Cowl TO Headlamp, NO.1
82210C Fusible Link
82210F Fuse, Cowl TO Headlamp Wiring Harness
82211 Wire, Heater Blower Fan Switch
82215 Wire, Parking Brake Lamp Switch
82218 Wire, Speed Marker Relay
82220 Harness Assy, Wiring Cowl
82221 Wire, Oil Pressure Switch
82222 Wire, Heat Gage
82241 Wiring Assy, Headlamp Junction
82241C Wire, Relay
82271 Wiring, Hazard Warning Switch
82275 Wire, Alternator
82291 Wiring, TO Solenoid
82293 Wire Assy, Front Drive Solenoid
82301 Wire Sub-assy, Side Turn Signal Relay
82310 Wiring Assy, TO Back UP Lamp Switch
82330 Wiring Assy, TO Vacuum Warning Switch
82345 Diode
82370 Wire Assy, Wiper Switch TO Wiper
82374 Wire, Washer
82375 Wire, Wiper Switch
82380 Wiring Assy, Trailer Socket
82406 Wire Sub-assy, Turn Signal
82410 Harness Assy, Wiring TO Rear Lamp
82412 Wire, Fuel Gage
82413 Wire, Buzzer
82415A Wire, Level Warning
82420 Wiring Assy, Chassis
82434 Wire, Clearance Lamp
82460 Wiring Assy, Tail Gate Regulator
82470 Wire Assy, License Lamp Feed
82491 Plate, Wiring Harness Protector, NO.1
82492 Plate, Wiring Harness Protector, NO.2
82510 Wiring Assy, Roof
82512 Harness Assy, Room Lamp Sub Wire
82670 Block Assy, Junction, NO.1
82817 Protector, Wiring Harness, NO.1
82823 Cap, Terminal, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
