Toyota Land Cruiser
1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe
Discontinued model
Data version 1987-01
Indicator

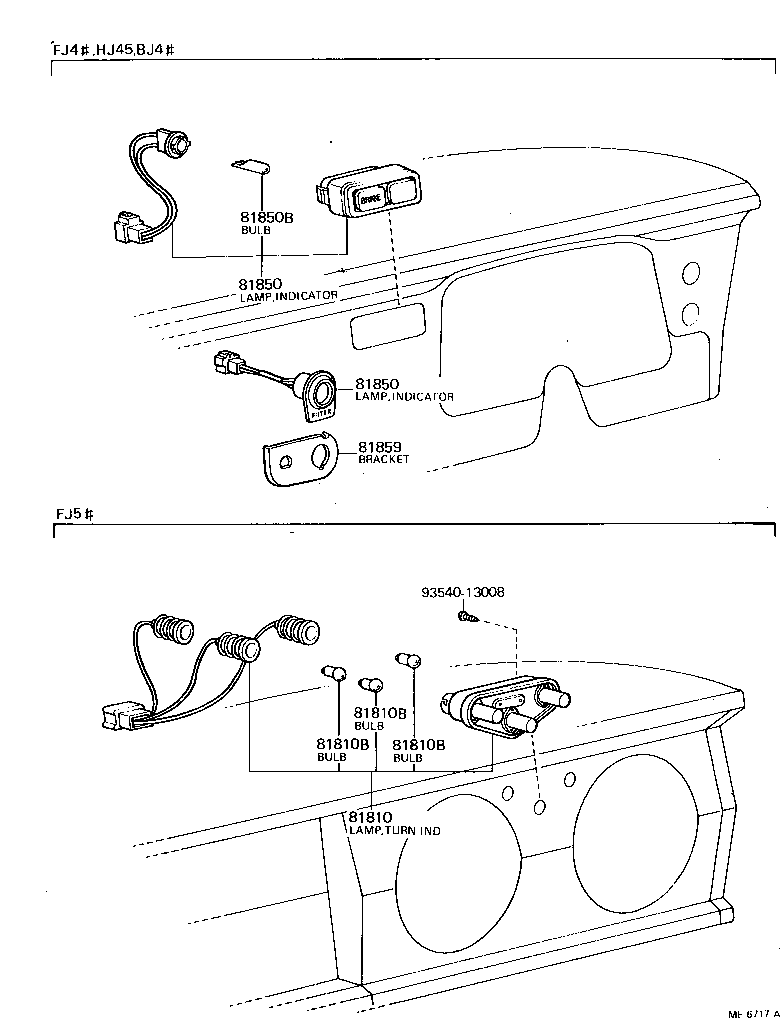

15 part groups · 2 illustrations
Part groups
| PNC | Description |
|---|---|
| 81086 | Socket And Wiring Sub-assy, Front Drive Indicator Lamp |
| 81408 | Housing Sub-assy, Brake Warning Indicator Lamp |
| 81460B | Bulb, Brake Warning Indicator Lamp |
| 81465 | Socket And Wire, Brake Warning Indicator Lamp |
| 81801 | Housing Sub-assy, Turn Signal Indicator Lamp |
| 81807 | Housing Sub-assy, Front Drive Indicator Lamp |
| 81810 | Lamp Assy, Turn Signal Indicator |
| 81810B | Bulb, Turn Signal Indicator Lamp |
| 81813 | Lens And Body, Turn Signal Indicator Lamp |
| 81815 | Socket And Wire, Turn Signal Indicator Lamp |
| 81850 | Lamp Assy, Indicator |
| 81850B | Bulb, Indicator Lamp |
| 81859 | Bracket, Indicator Lamp |
| 81870 | Lamp Assy, Front Drive Indicator |
| 81870B | Bulb, Front Drive Indicator Lamp |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
