Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01

Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Electronic Diesel Injection Control System

9 part groups · 2 illustrations

Illustrations

Figure ME3701D

ME3701D 1974-02 → 1977-09

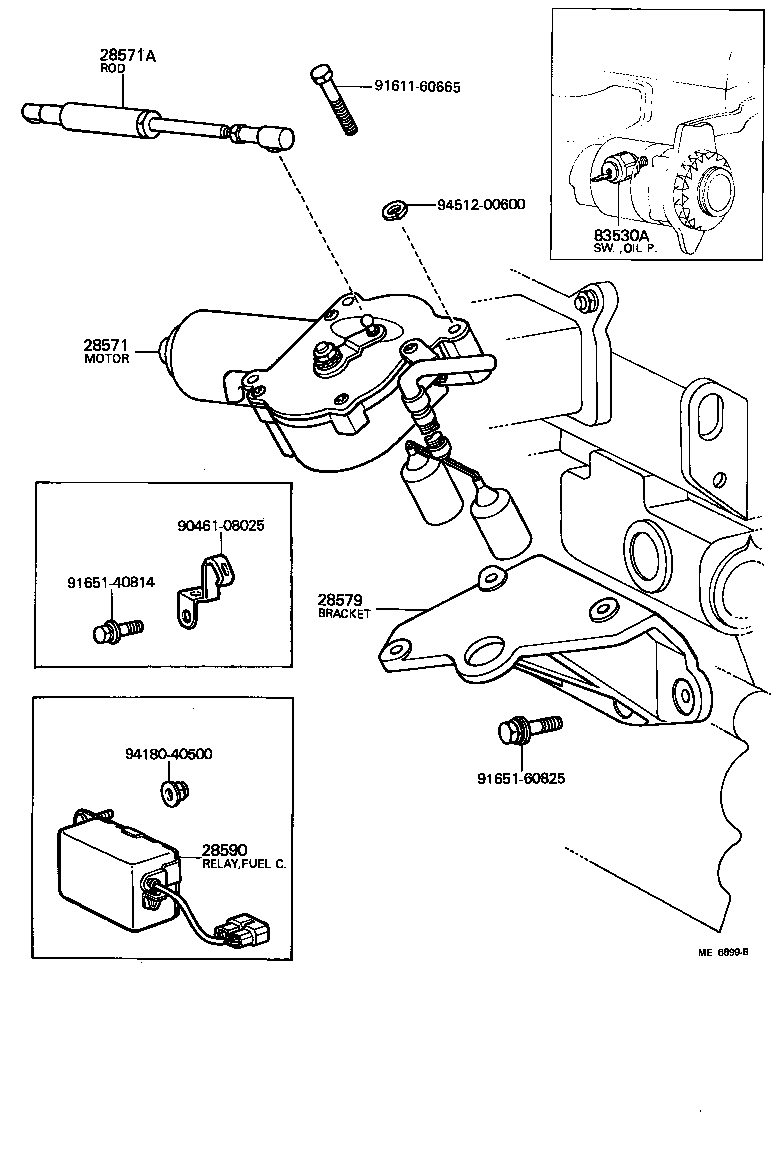

Figure ME6699B

ME6699B 1977-09 → 1980-07

Part groups

PNC	Description
28512	Resistor, Motor Control
28560	Controller Assy, Fuel
28571	Motor, Fuel Control
28571A	Rod, Fuel Control Motor
28579	Bracket, Fuel Control Motor
28590	Relay Assy, Fuel Control
83530A	Switch Assy, Oil Pressure
89413	Sensor, Engine Speed
89580	Support Assy, Fuel Control

PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
