Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Windshield Washer

16 part groups · 8 illustrations

Illustrations

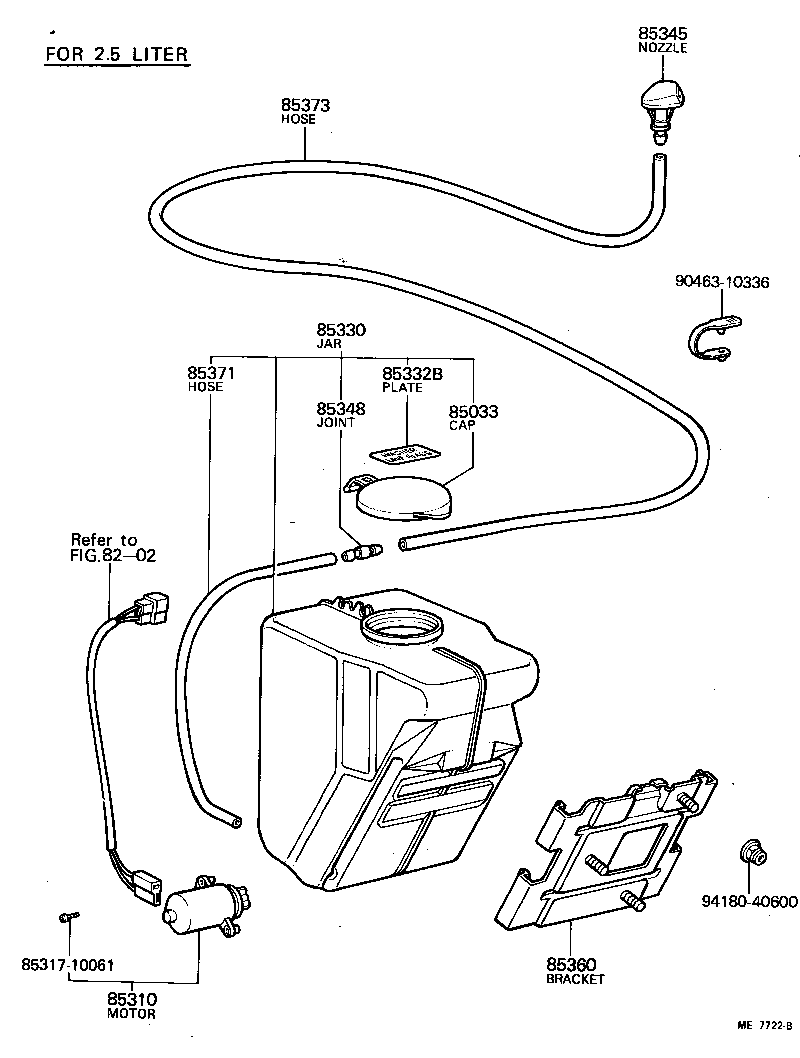

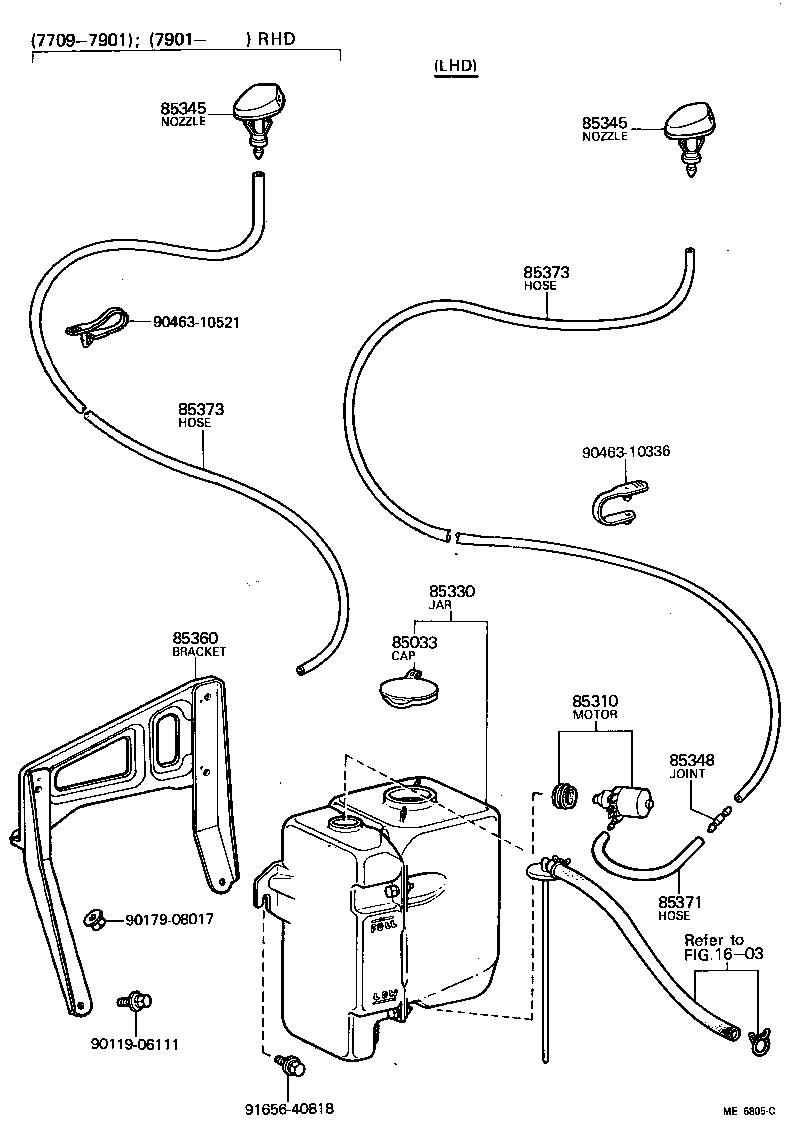

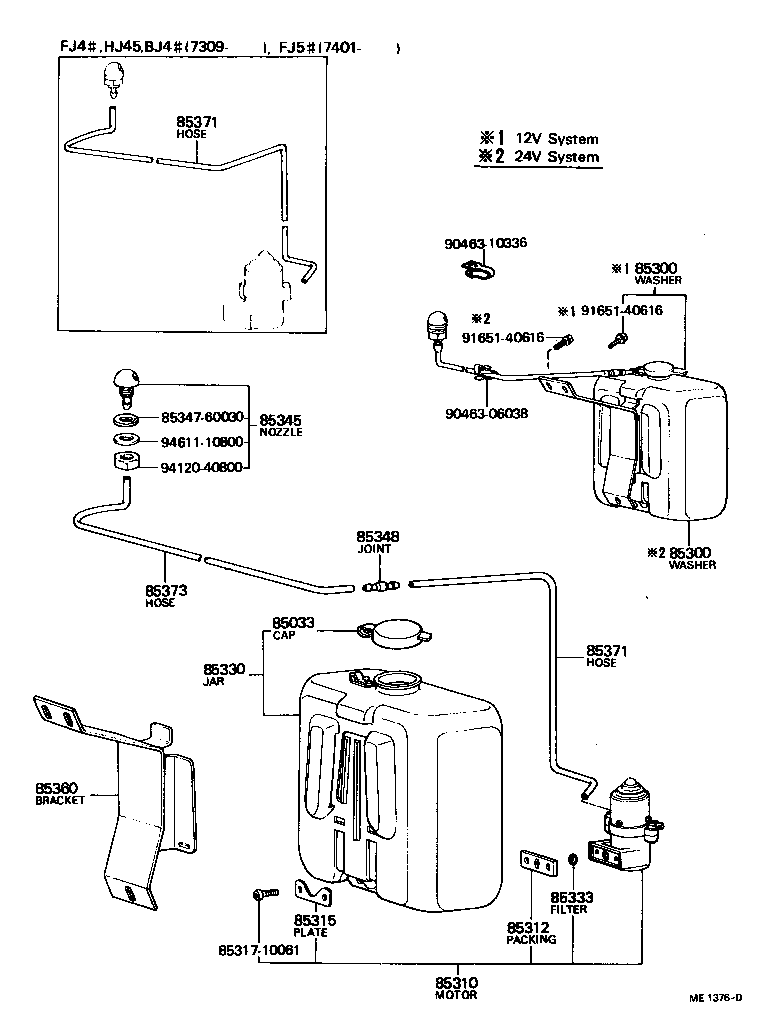

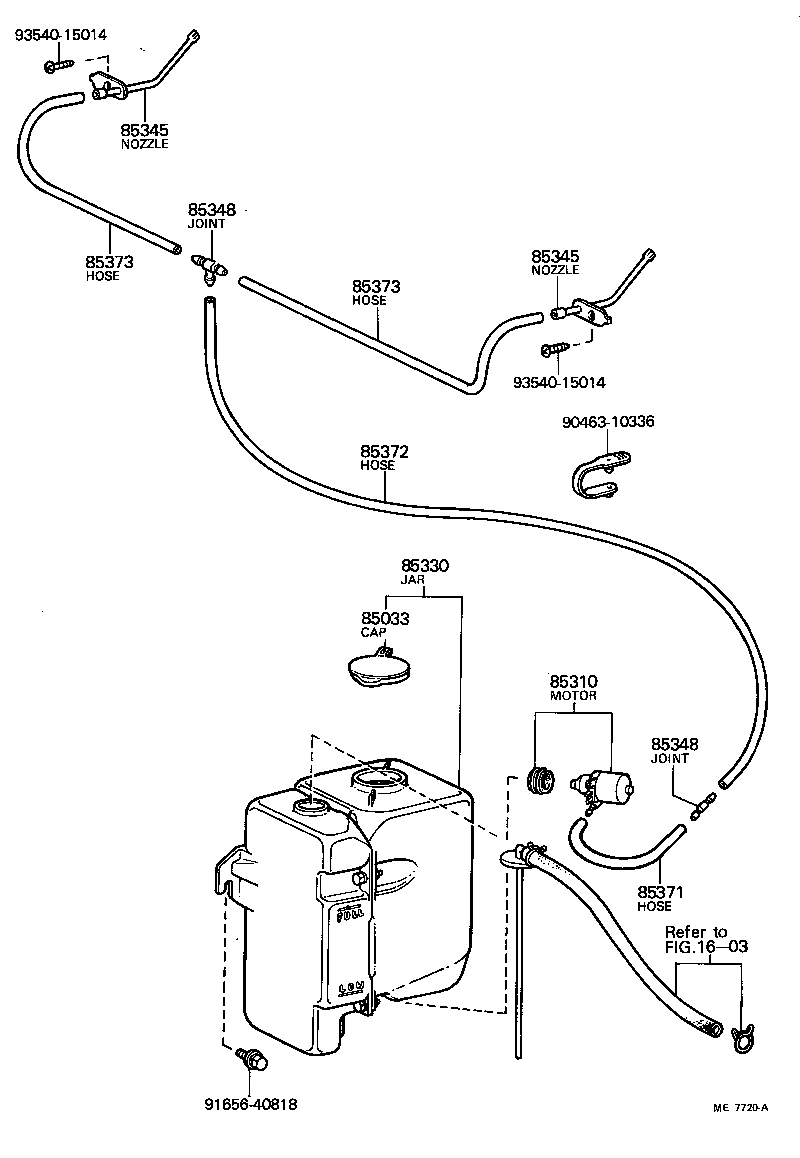

Figure ME0690E ME0690E 1969-03 → 1971-09 Figure ME0691H ME0691H 1969-03 → 1971-09 Figure ME1376D ME1376D 1971-09 → 1977-09 Figure ME1376D ME1376D 1977-09 → 1979-01 Figure ME7722B ME7722B 1979-01 → 1980-07 Figure ME6805C ME6805C 1977-09 → 1979-01 Figure ME6805C ME6805C 1979-01 → 1980-07 Figure ME7720A ME7720A 1979-01 → 1980-07

Part groups

PNCDescription
85033 Cap Assy, Windshield Washer
85300 Washer Assy, Windshield
85310 Motor And Pump Assy, Windshield Washer
85312 Packing, Windshield Washer Tank
85315 Plate, Windshield Washer Pump
85318 Joint, Windshield Washer Motor
85319 Shaft, Windshield Washer Pump
85330 Jar Assy, Windshield Washer
85332B Label, Washer
85333 Filter, Windshield Washer Jar
85345 Nozzle, Windshield Washer
85348 Joint, Windshield Washer Hose, NO.1
85360 Bracket Assy, Windshield Washer
85371 Hose, Windshield Washer (FROM MOTOR TO JOINT)
85372 Hose, Windshield Washer (FROM JOINT TO JOINT), NO.1
85373 Hose, Windshield Washer (FROM JOINT TO NOZZLE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
