Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mirror

8 part groups · 2 illustrations

Illustrations

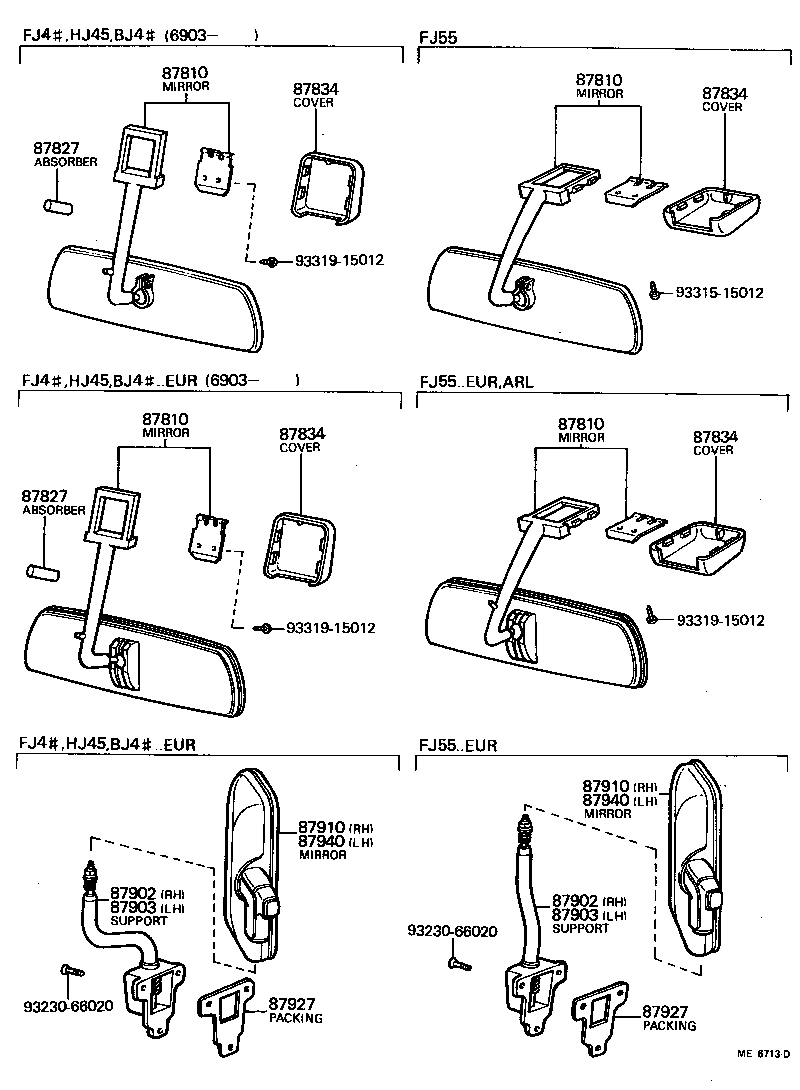

Figure ME4354I ME4354I 1969-03 → 1980-07 Figure ME6713D ME6713D 1969-03 → 1980-07

Part groups

PNCDescription
87810 Mirror Assy, Inner Rear View
87827 Absorber, Inner Rear View Mirror
87834 Cover, Inner Rear View Mirror Stay Holder
87902 Support, Rear View Outside Mirror, RH
87903 Support, Rear View Outside Mirror, LH
87910 Mirror Assy, Outer Rear View, RH
87927 Packing, Rear View Outside Mirror Stay
87940 Mirror Assy, Outer Rear View, LH
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
