Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Blower Motor

7 part groups · 3 illustrations

Illustrations

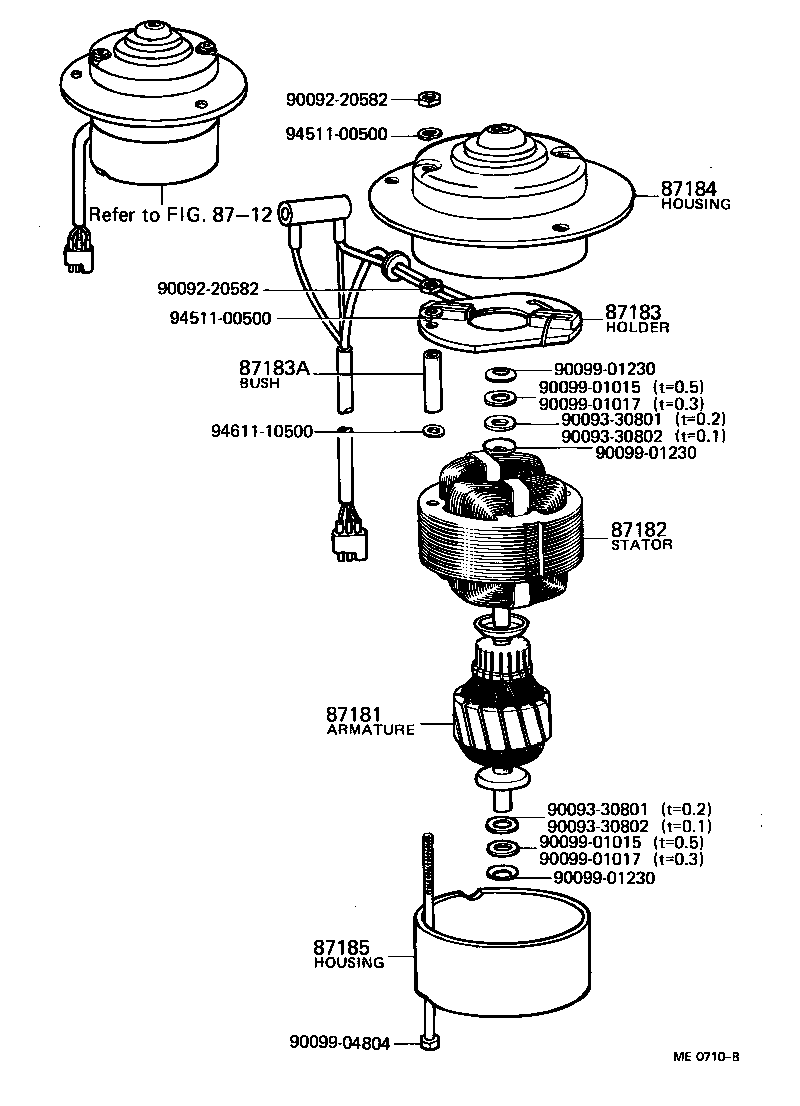

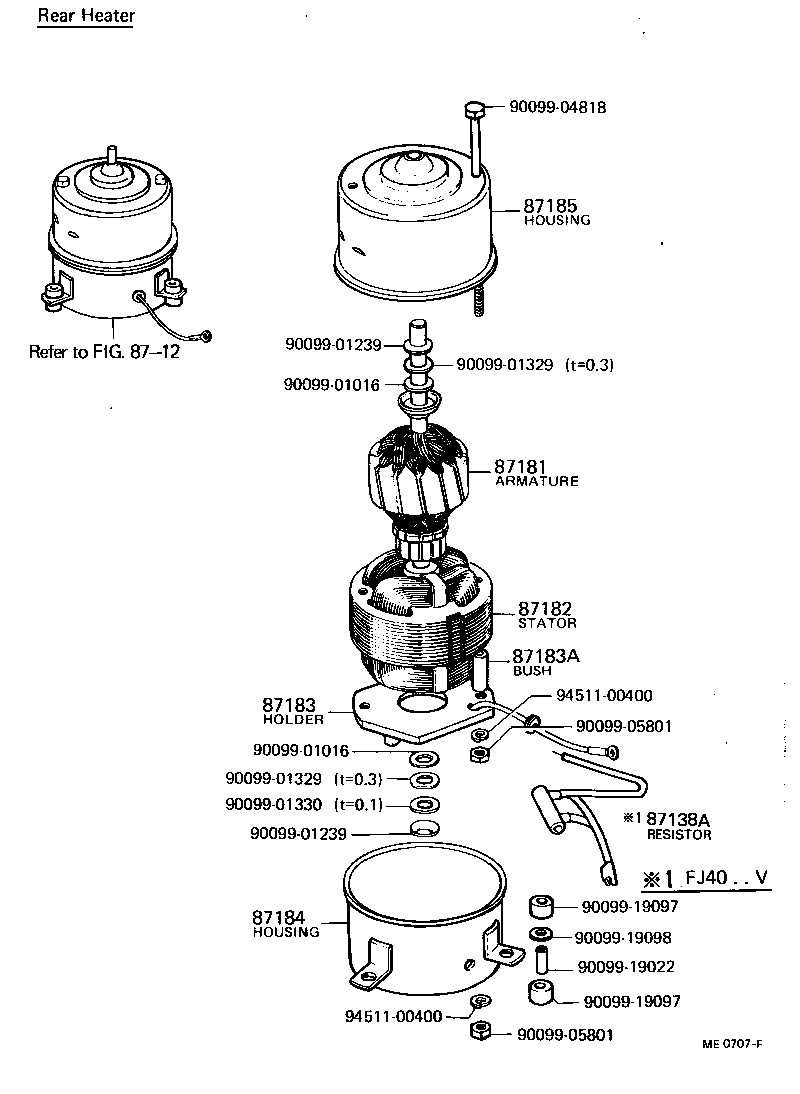

Figure ME0705B ME0705B 1969-03 → 1973-04 Figure ME0710B ME0710B 1969-03 → 1973-04 Figure ME0707F ME0707F 1973-03 → 1973-09

Part groups

PNCDescription
87138A Resistor, Heater Blower
87181 Armature, Blower Motor
87182 Stator, Heater Blower Motor
87183 Holder, Blower Motor Brush
87183A Bush, Heater Blower Motor Brush Holder
87184 Housing, Blower Motor, NO.1
87185 Housing, Blower Motor, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
