Heating & Air Conditioning - Cooler Unit

32 part groups · 3 illustrations

Illustrations

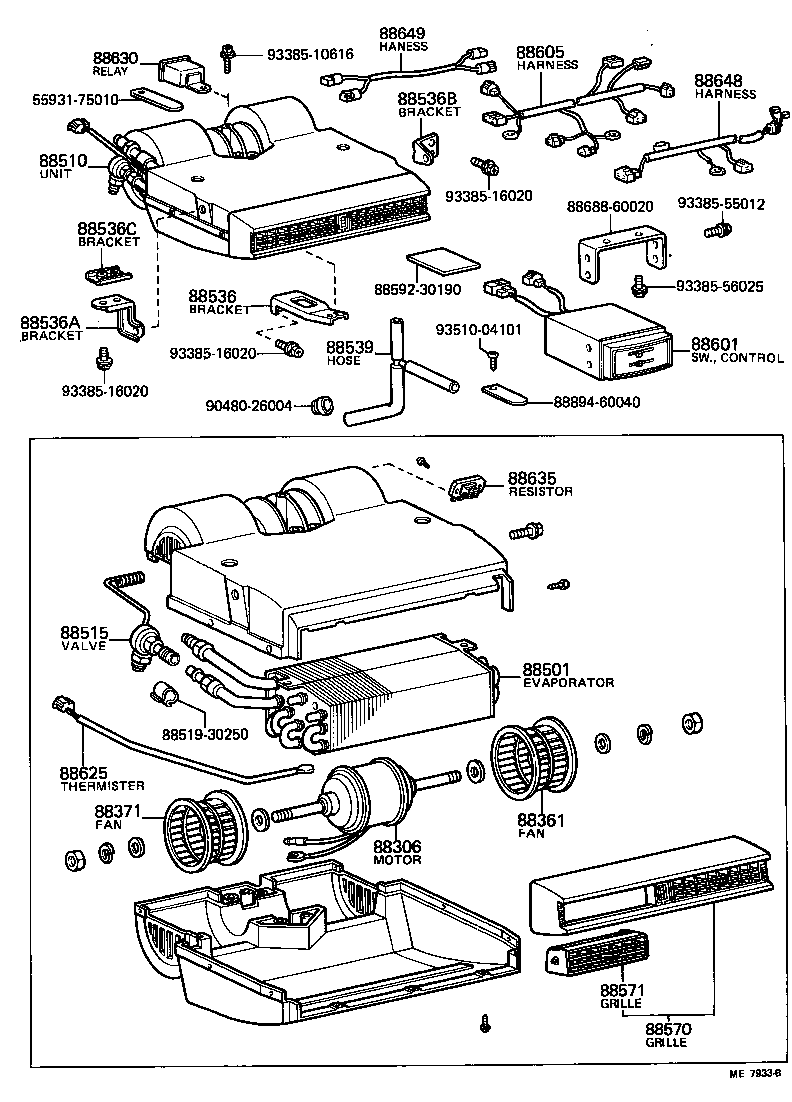

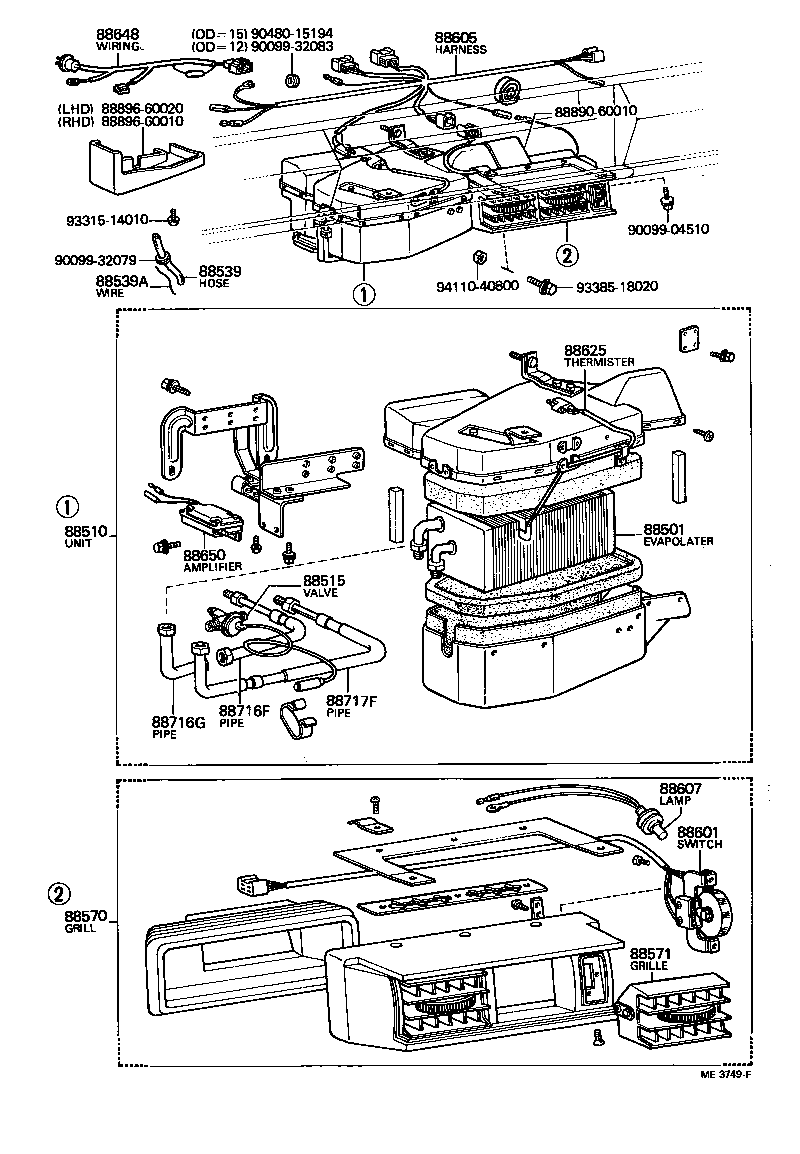

Figure ME3174C ME3174C 1970-10 → 1973-09 Figure ME3749F ME3749F 1973-09 → 1980-07 Figure ME7933B ME7933B 1979-01 → 1980-07

Part groups

PNCDescription
88306 Motor Sub-assy, Cooler Blower, NO.1
88361 Fan, Cooler Blower, NO.1
88371 Fan, Cooler Blower, NO.2
88501 Evaporator Sub-assy, Cooler, NO.1
88510 Unit Assy, Cooler
88515 Valve, Cooler Expansion
88521 Case, Cooler Unit
88536 Bracket, Cooling Unit, NO.1
88536A Bracket, Cooling Unit, NO.2
88536B Bracket, Cooling Unit, NO.3
88536C Bracket, Cooling Unit, NO.4
88539 Hose, Cooler Unit Drain, NO.1
88539A Wire, Drain Hose(FOR COOLER)
88540 Blower Assy, Cooler
88570 Grille Sub-assy, Cooler Air Outlet
88571 Grille, Air Outlet
88601 Switch Sub-assy, Cooler Control
88605 Harness Sub-assy, Cooler Wiring, NO.1
88607 Lamp, Indicator
88611 Knob, Cooler Control Switch
88622 Indicator, Cooler Control Resistance
88623 Dial, Cooler Thermostat
88625 Thermistor, Cooler, NO.1
88630 Relay Assy, Cooler
88630A Relay Assy, Cooler
88635 Resistor, Cooler Unit Blower
88648 Wiring, Cooler, NO.1
88649 Wiring, Cooler, NO.2
88650 Amplifier Assy, Cooler Stabilizer
88716F Pipe, Cooler Refrigerant Liquid, F
88716G Pipe, Cooler Refrigerant Liquid, G
88717F Pipe, Cooler Refrigerant Suction, F
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
