Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Control & Air Duct

18 part groups · 7 illustrations

Illustrations

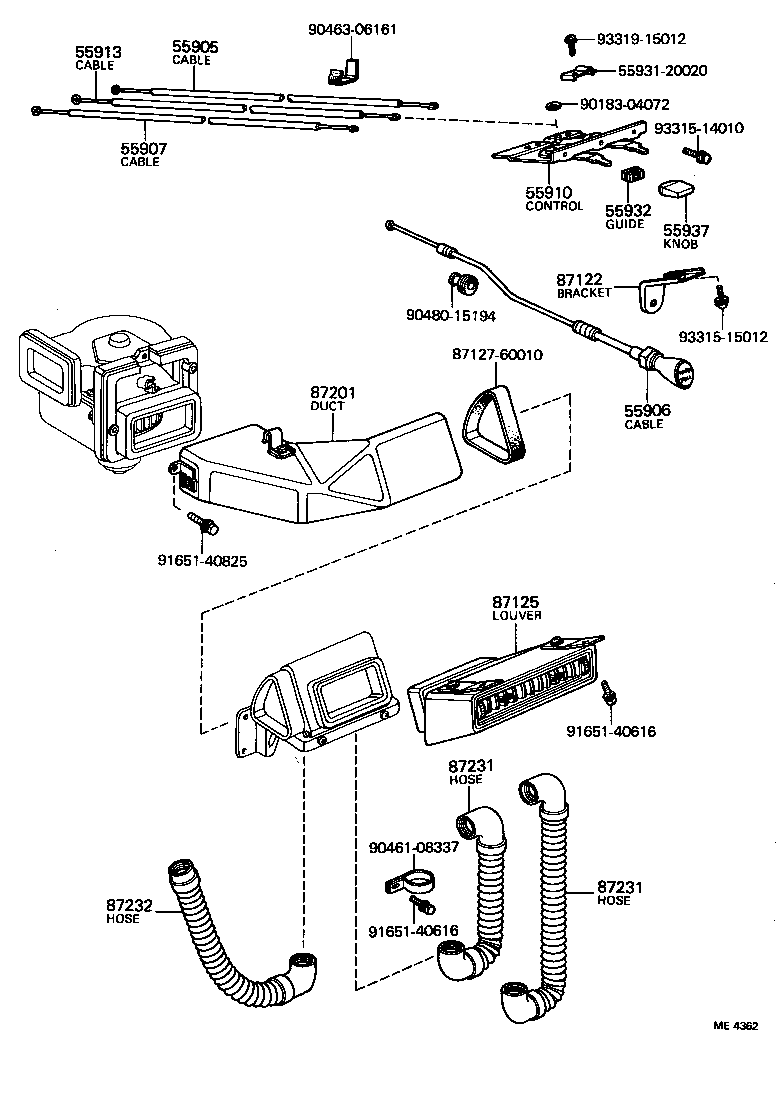

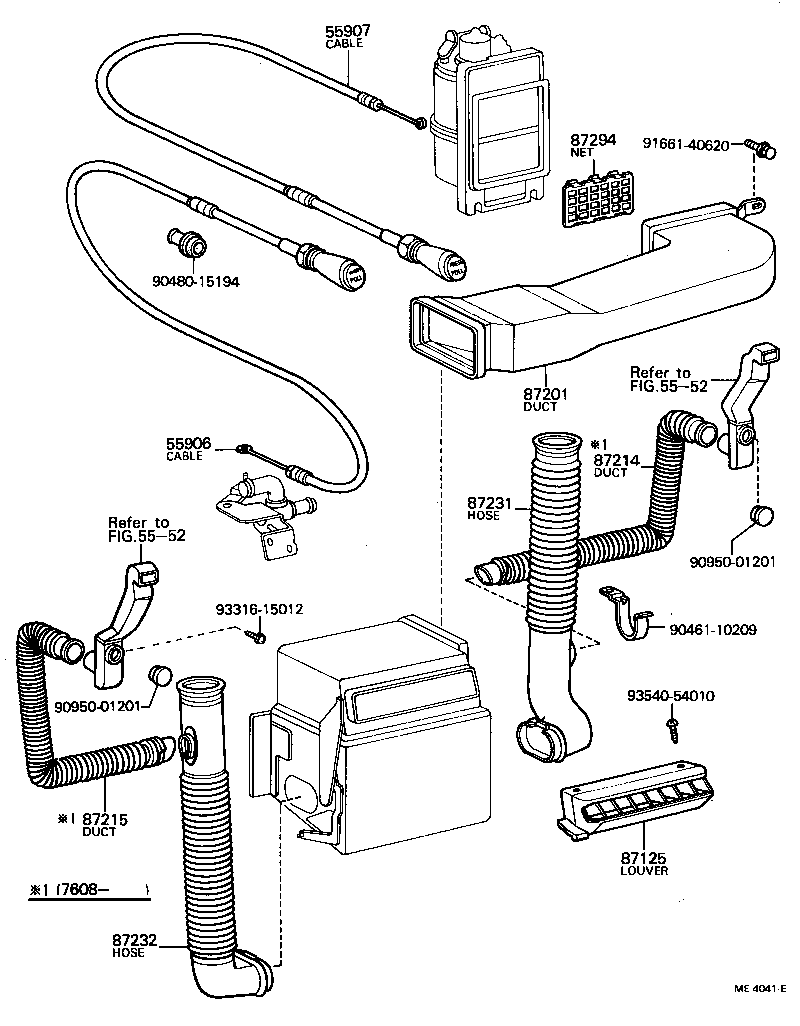

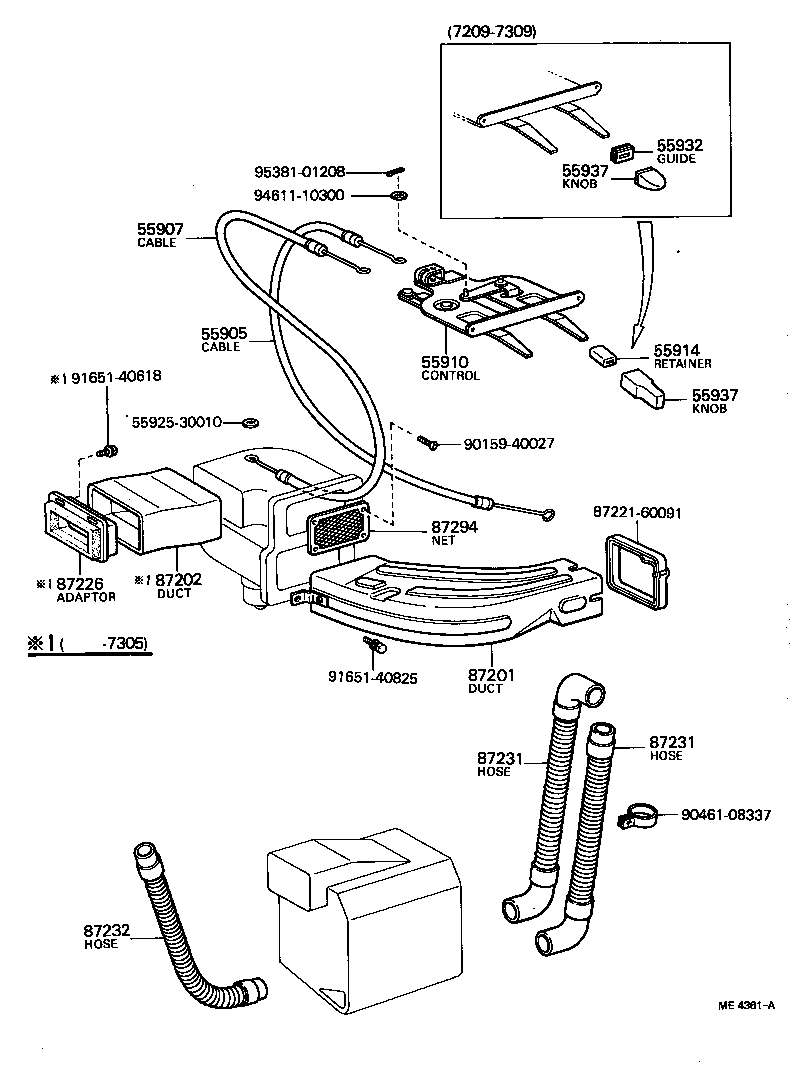

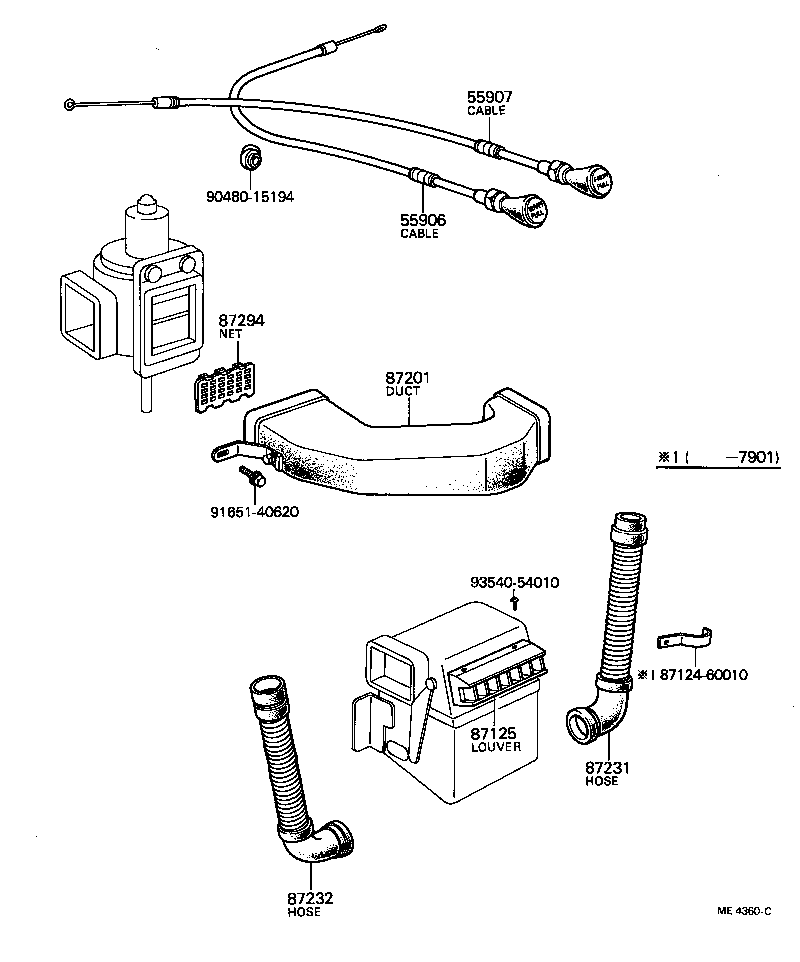

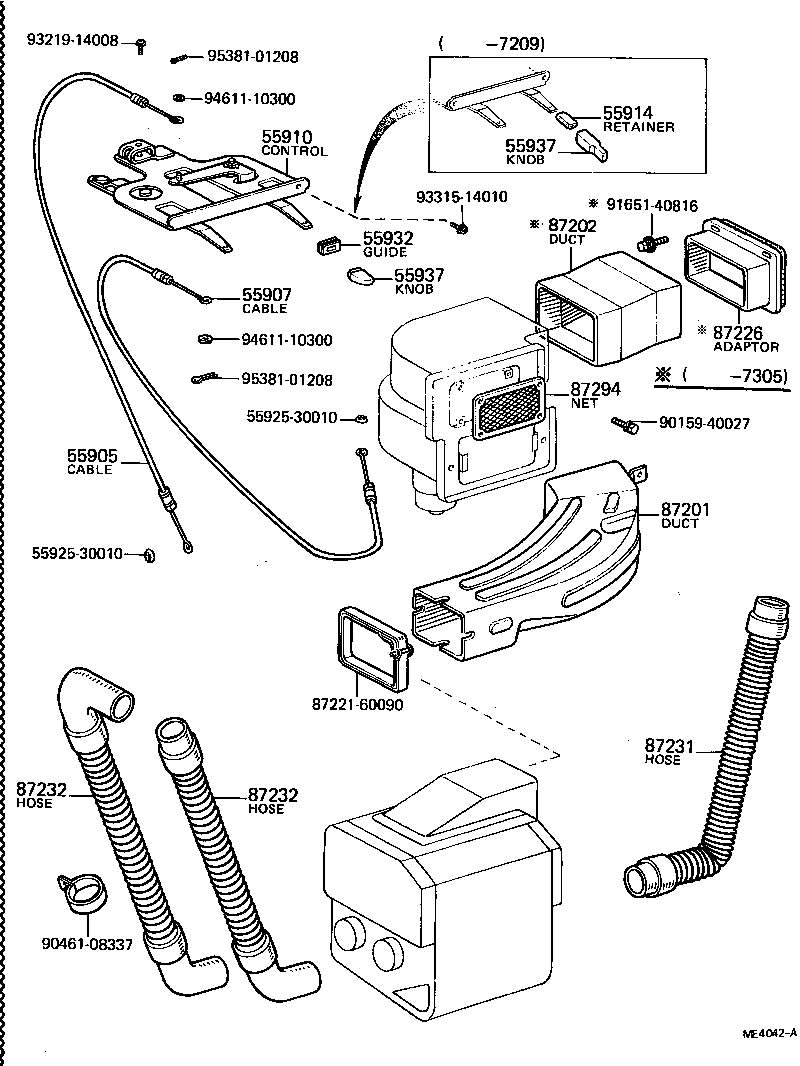

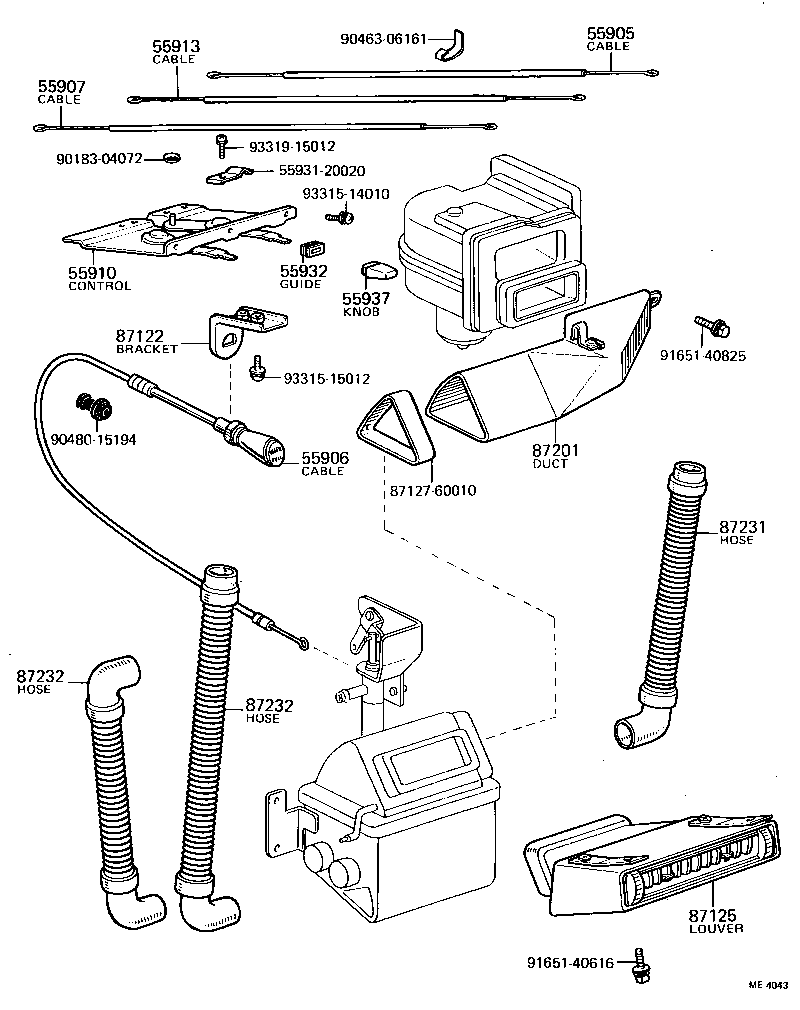

Figure ME4359A ME4359A 1969-03 → 1973-09 Figure ME4360C ME4360C 1973-09 → 1980-07 Figure ME4041E ME4041E 1973-09 → 1980-07 Figure ME4361A ME4361A 1969-03 → 1973-09 Figure ME4042A ME4042A 1969-03 → 1973-09 Figure ME4362 ME4362 1973-09 → 1980-07 Figure ME4043 ME4043 1973-09 → 1980-07

Part groups

PNCDescription
55905 Cable Sub-assy, Defrost Control
55906 Cable Sub-assy, Heater Control
55907 Cable Sub-assy, Heater Air Inlet Butterfly
55910 Control Assy, Heater OR Boost Ventilator
55913 Cable Sub-assy, Boost Vent Control
55914 Retainer, Heater Control Knob
55932 Guide, Lever, NO.1
55937 Knob, Heater Control Lever
87122 Bracket, Heater Control Cable
87125 Louver, Ventilation
87201 Duct Sub-assy, Air, NO.1
87202 Duct, Heater Air
87214 Duct, Air, Side NO.1 RH
87215 Duct, Air, Side NO.1 LH
87226 Adapter, Air Duct
87231 Hose, Heater Defroster, RH
87232 Hose, Heater Defroster, LH
87294 Net, Air Duct
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
