Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Water Piping

27 part groups · 8 illustrations

Illustrations

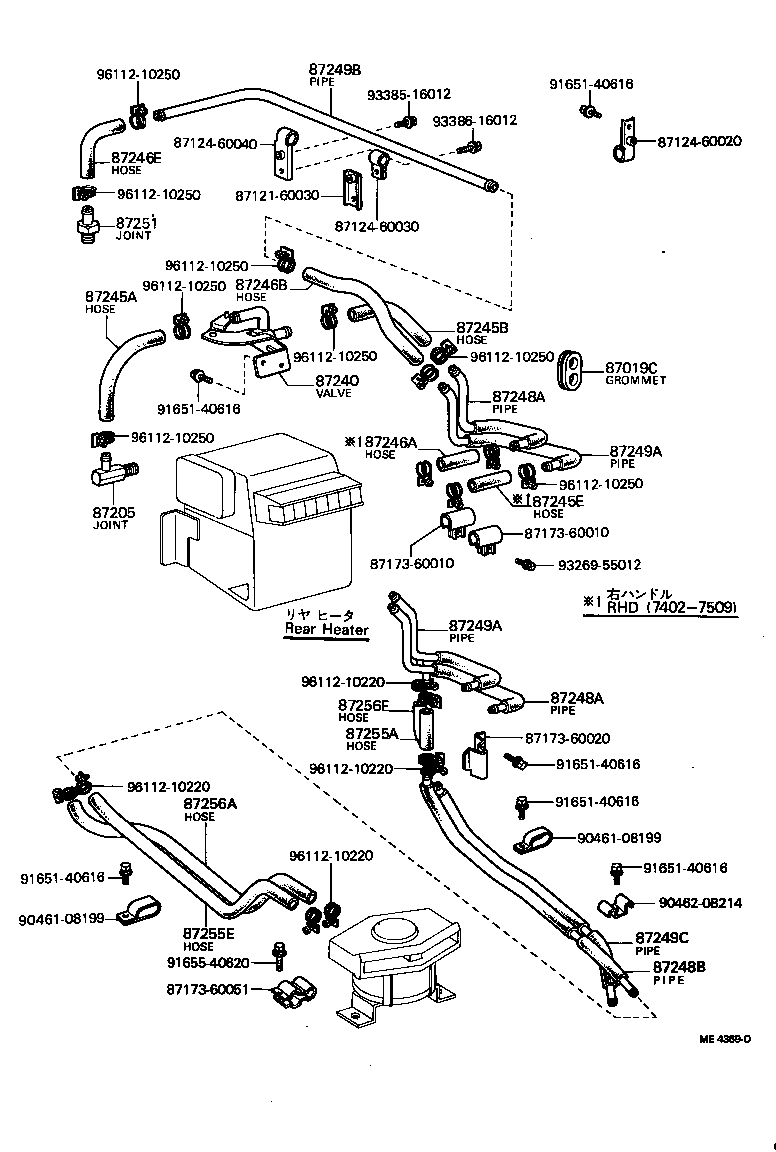

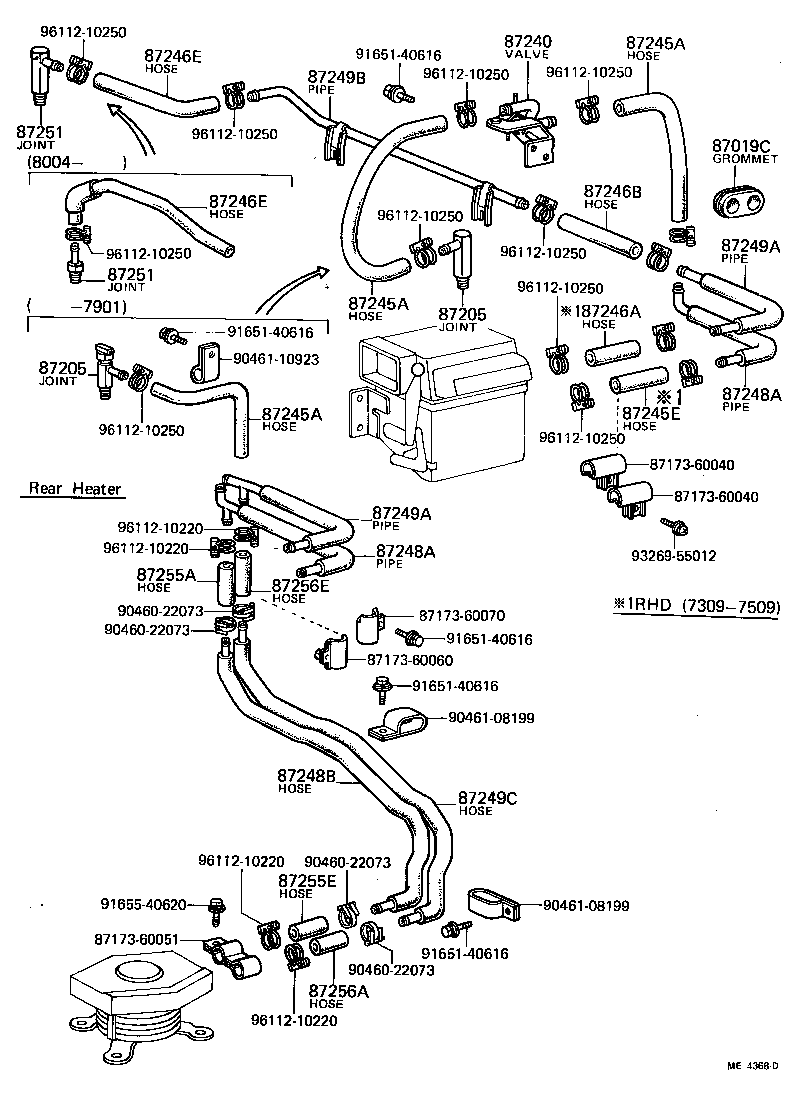

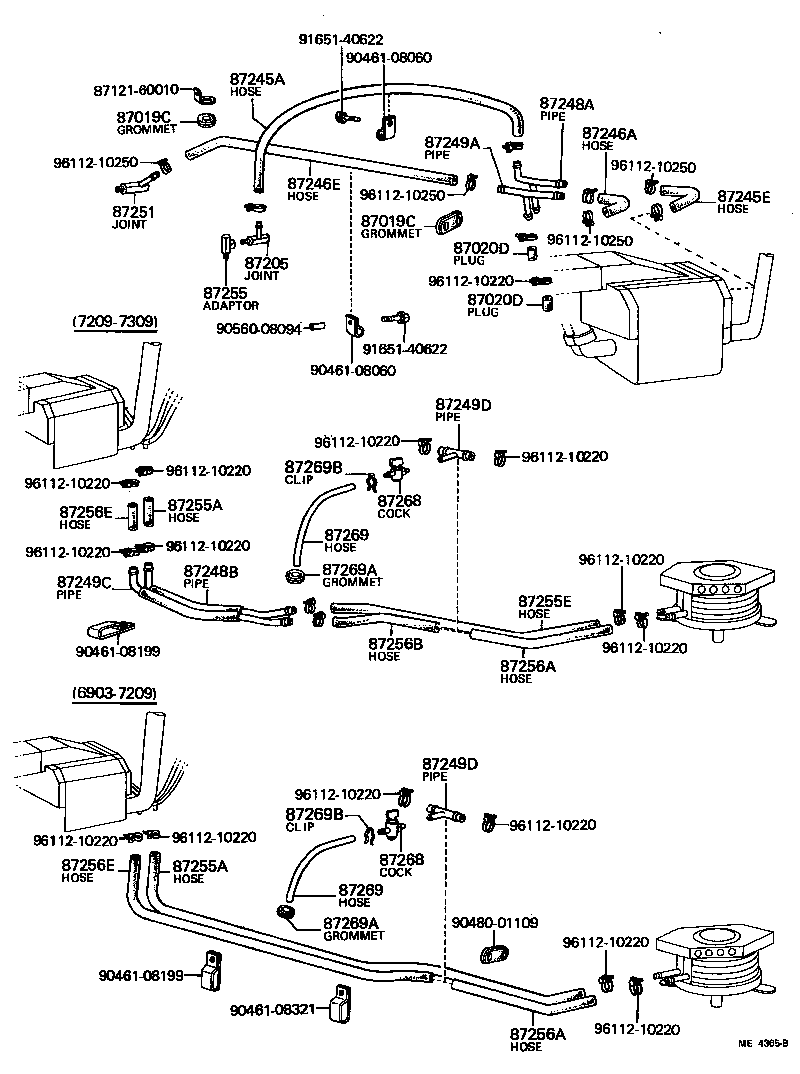

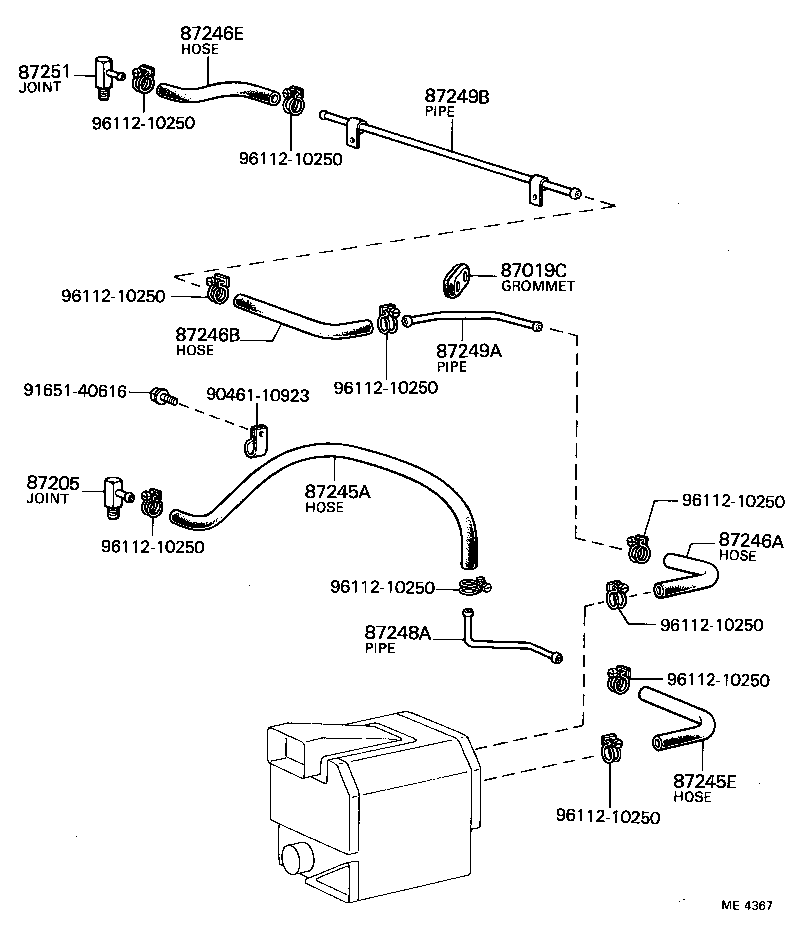

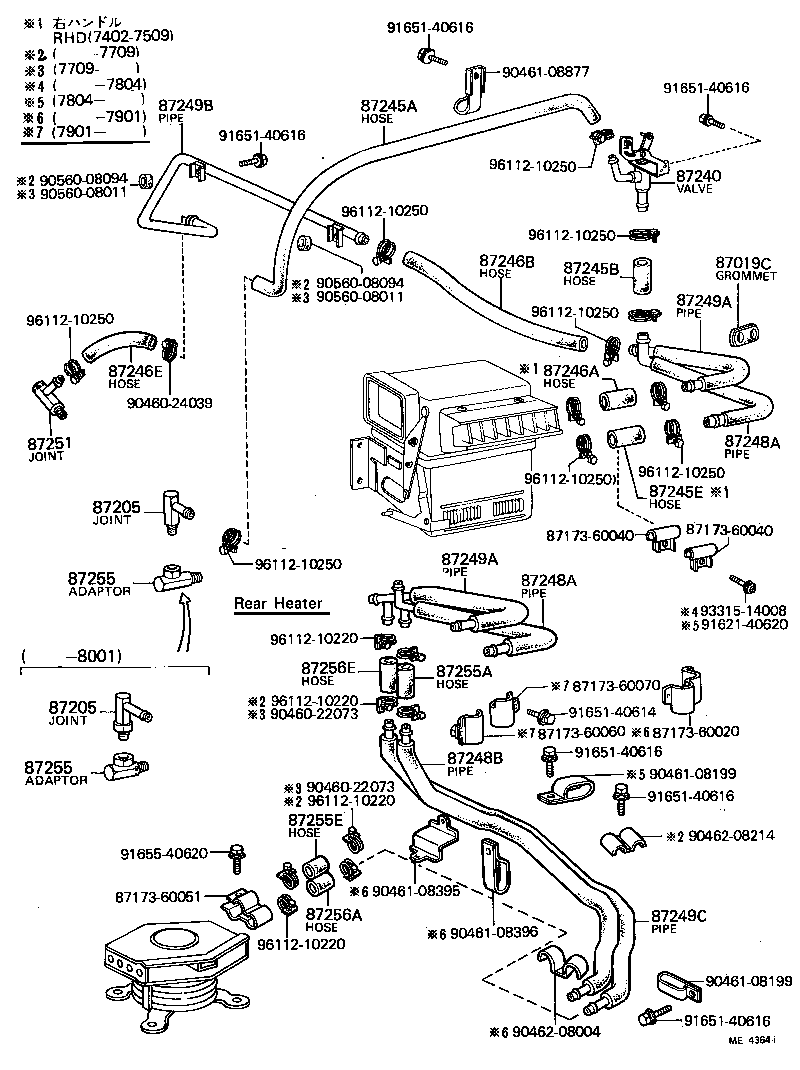

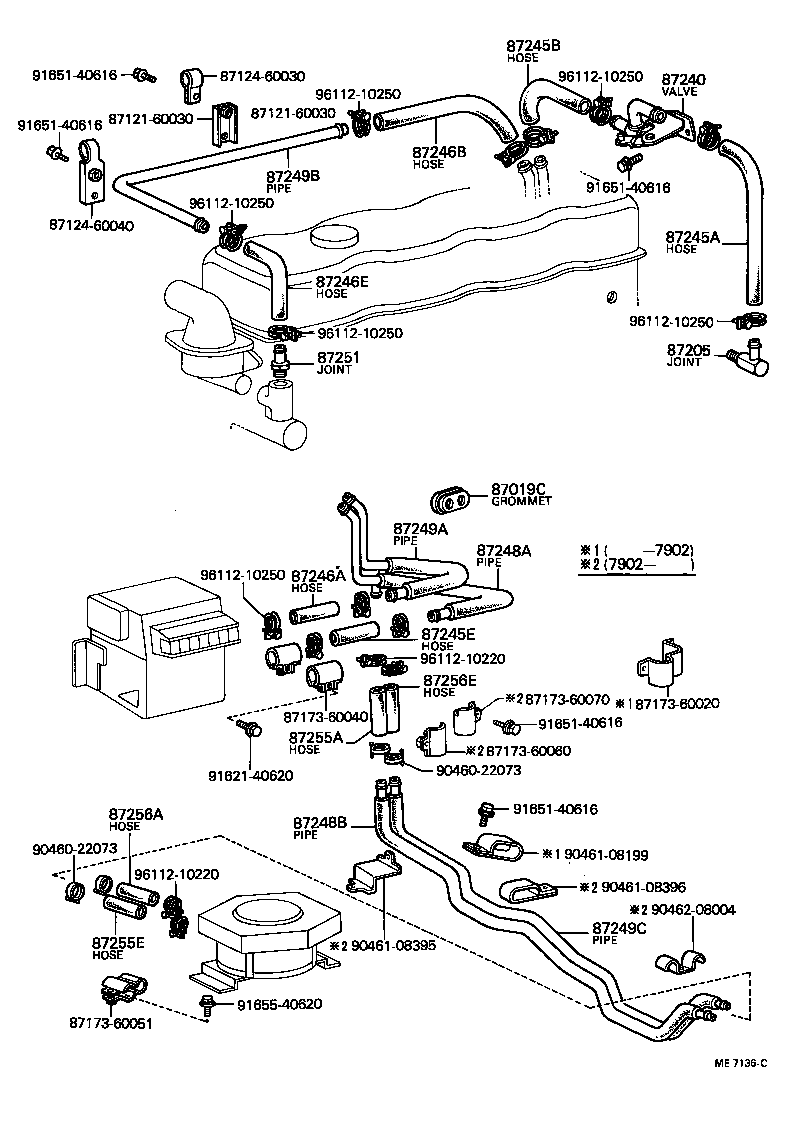

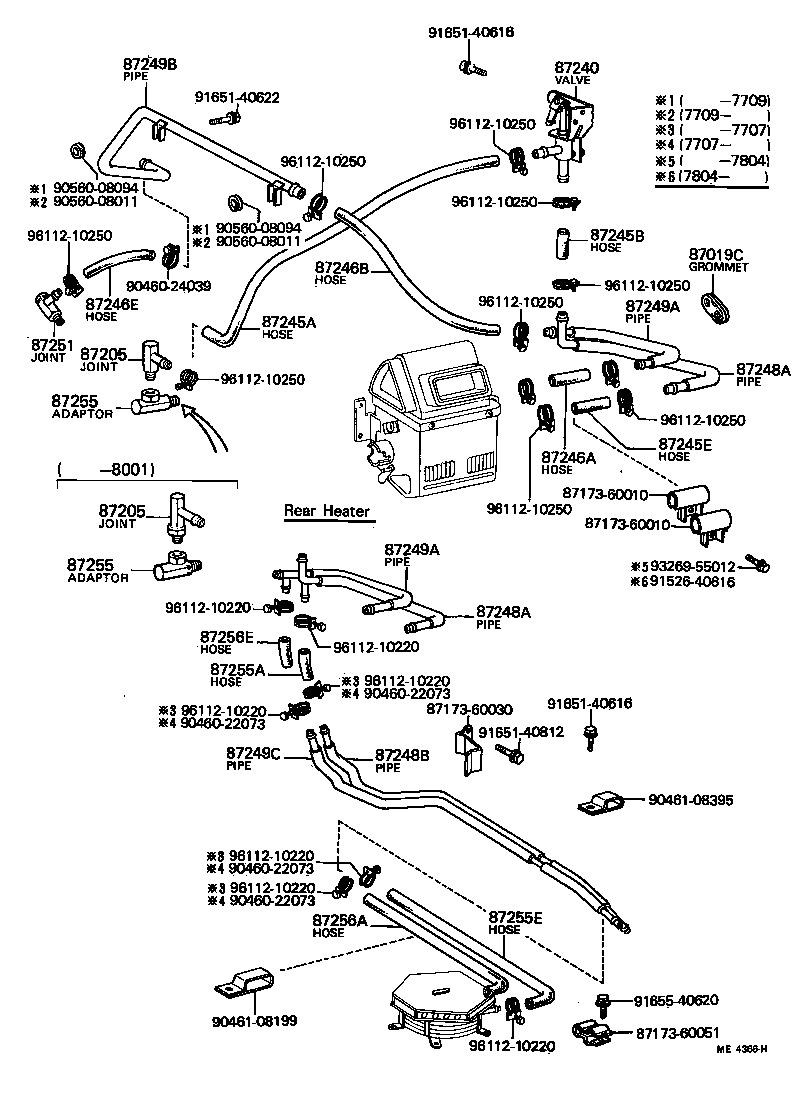

Figure ME4363C ME4363C 1969-03 → 1973-09 Figure ME4364I ME4364I 1973-09 → 1980-07 Figure ME4367 ME4367 1972-09 → 1973-09 Figure ME4368D ME4368D 1973-09 → 1980-07 Figure ME4365B ME4365B 1969-03 → 1973-09 Figure ME4366H ME4366H 1973-09 → 1980-07 Figure ME4369D ME4369D 1974-02 → 1977-09 Figure ME7136C ME7136C 1977-09 → 1980-07

Part groups

PNCDescription
87019C Grommet, Heater Hose
87020D Plug (FOR REAR HEATER CONNECTOR BLIND)
87205 Joint OR Union, Front Heater Hose Through OR Inlet Valve
87240 Valve Assy, Heater Water
87245A Hose, Heater Water, Inlet A
87245B Hose, Heater Water, Inlet B
87245E Hose, Heater Water, Inlet E
87246A Hose, Heater Water, Outlet A
87246B Hose, Heater Water, Outlet B
87246E Hose, Heater Water, Outlet E
87248A Pipe, Heater Water Inlet, A
87248B Pipe, Heater Water Inlet, B
87249A Pipe, Heater Water Outlet, A
87249B Pipe, Heater Water Outlet, B
87249C Pipe, Heater Water Outlet, C
87249D Pipe, Heater Water Outlet, D
87251 Joint OR Union, Water Hose Through
87255 Adapter, Water Hose Joint
87255A Hose, Rear Heater Water Inlet, A(FROM ENGINE)
87255E Hose, Rear Heater Water Inlet, E(TO HEATER UNIT)
87256A Hose, Rear Heater Water Outlet, A (FROM HEATER UNIT)
87256B Hose, Rear Heater Water Outlet, B
87256E Hose, Rear Heater Water Outlet, E (TO ENGINE)
87268 Cock, Water Hose Drain(FOR REAR HEATER)
87269 Hose, Rear Heater Water Drain
87269A Grommet(FOR REAR HEATER WATER DRAIN HOSE)
87269B Clip(FOR REAR HEATER WATER DRAIN HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
