Heating & Air Conditioning - Cooler Piping

15 part groups · 8 illustrations

Illustrations

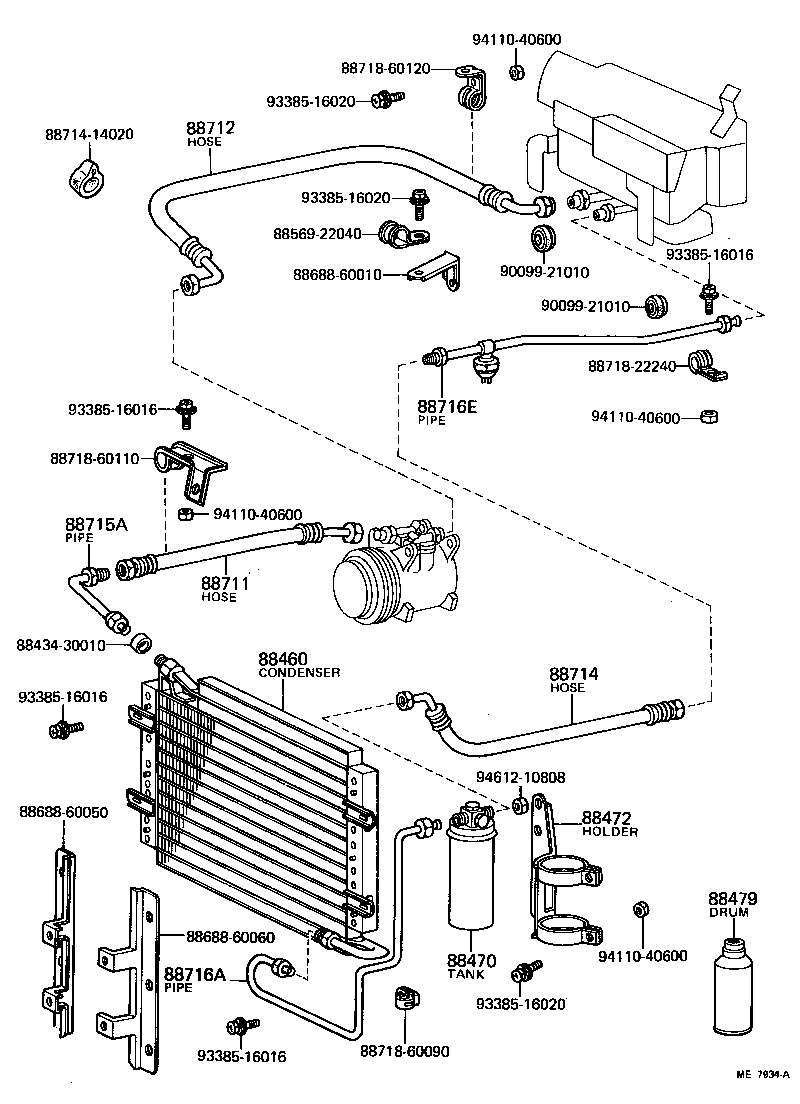

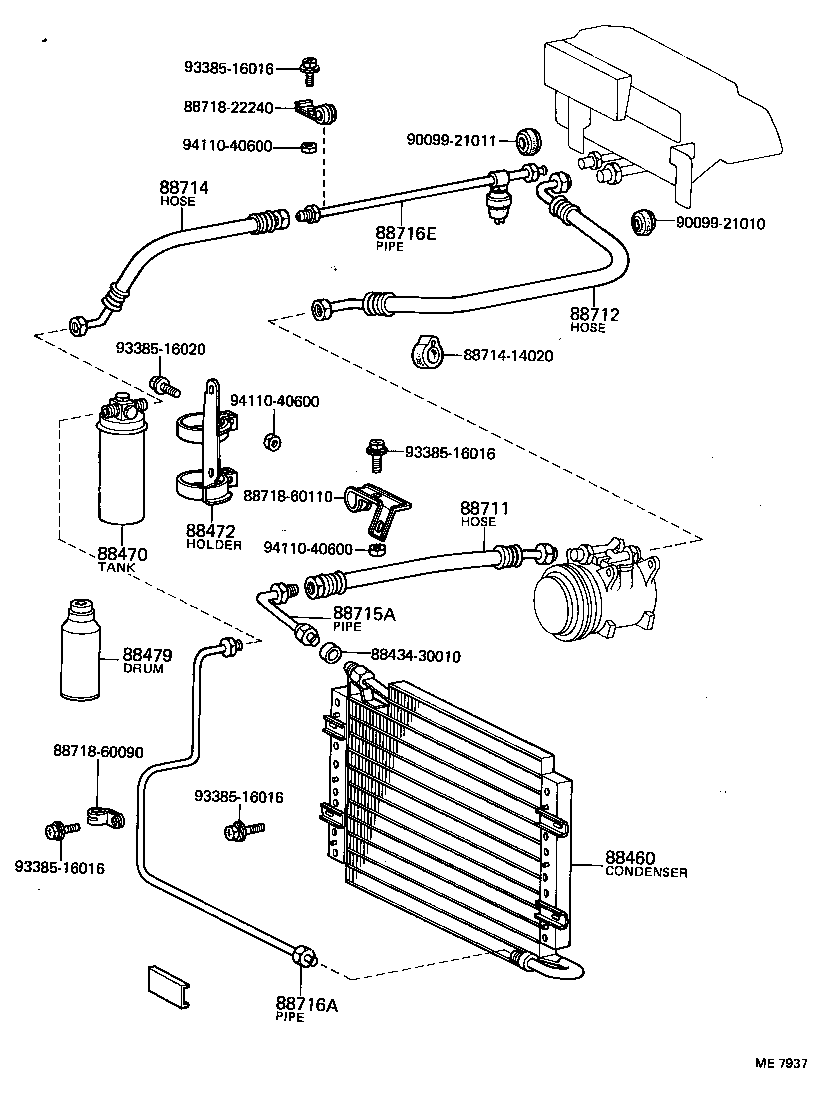

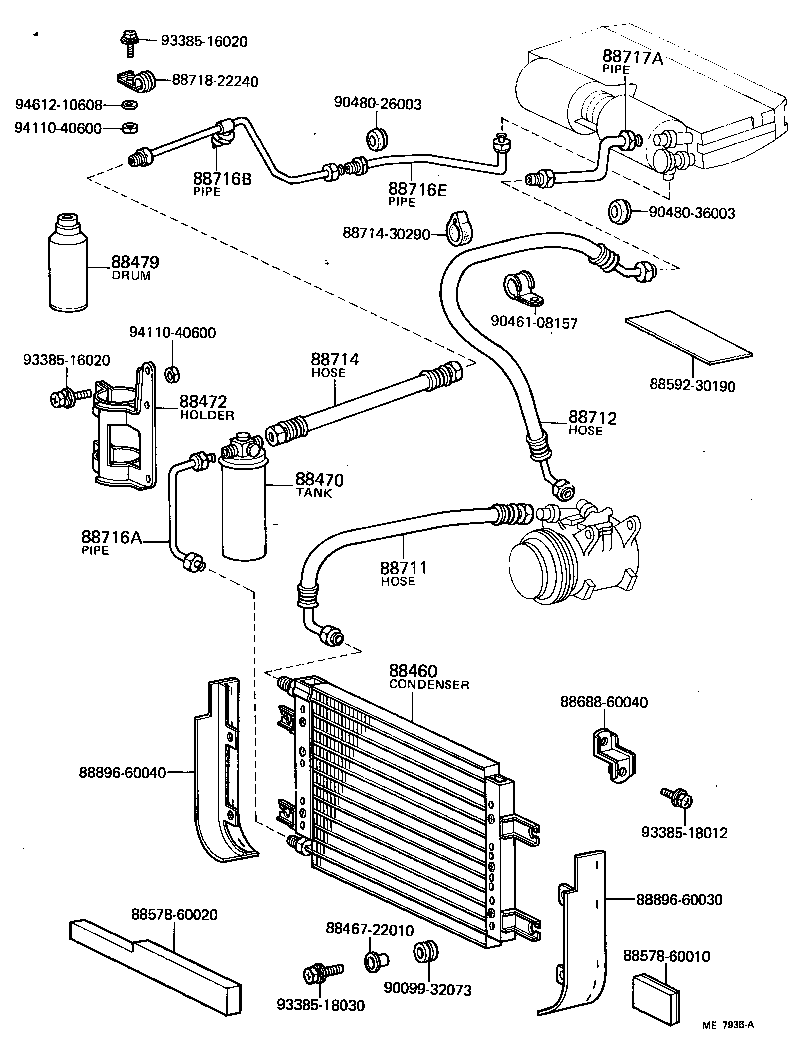

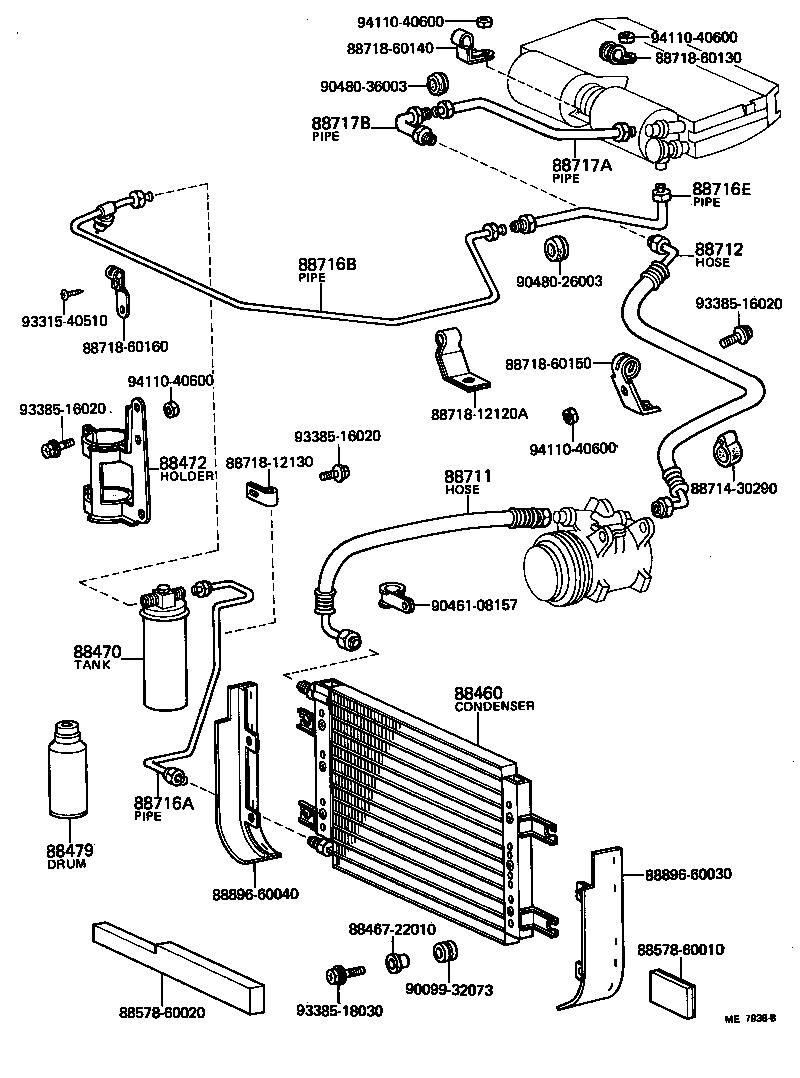

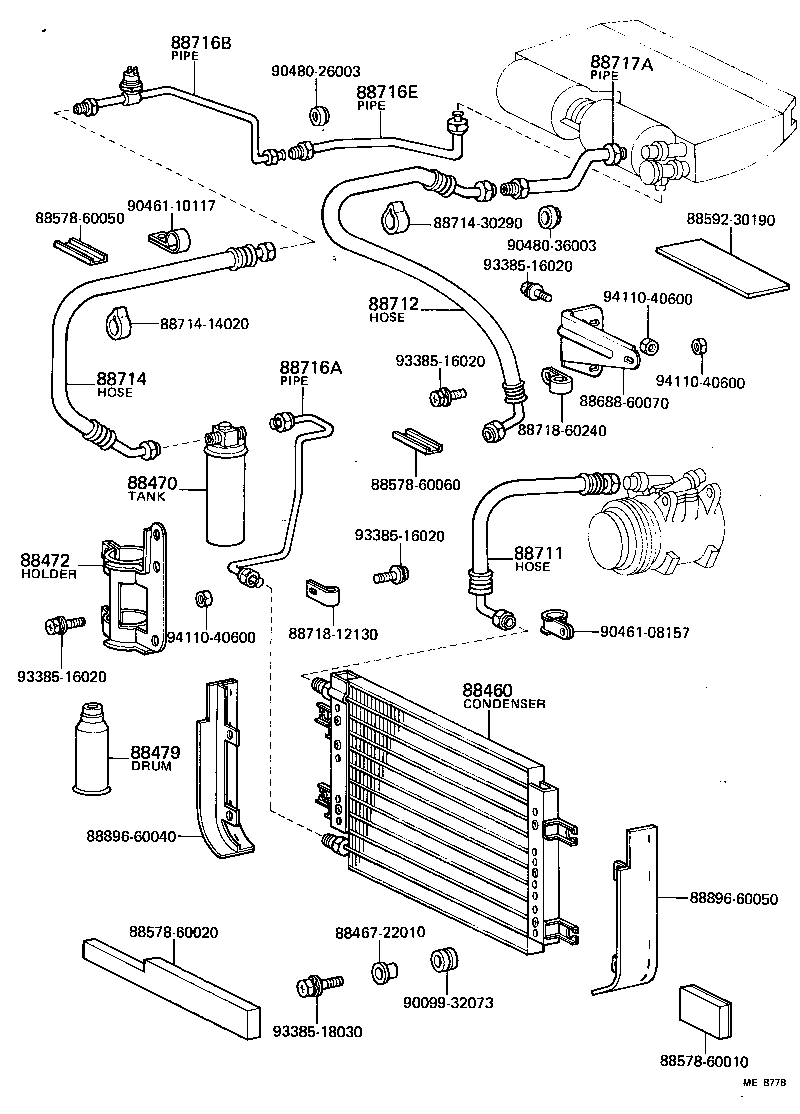

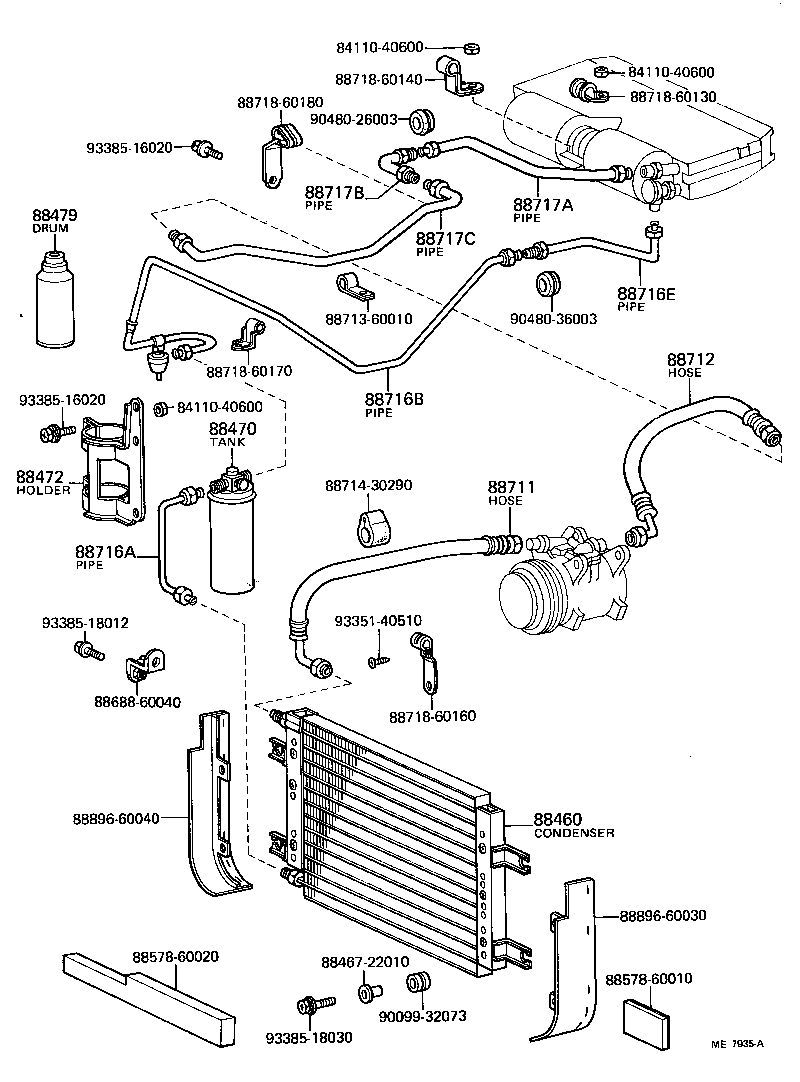

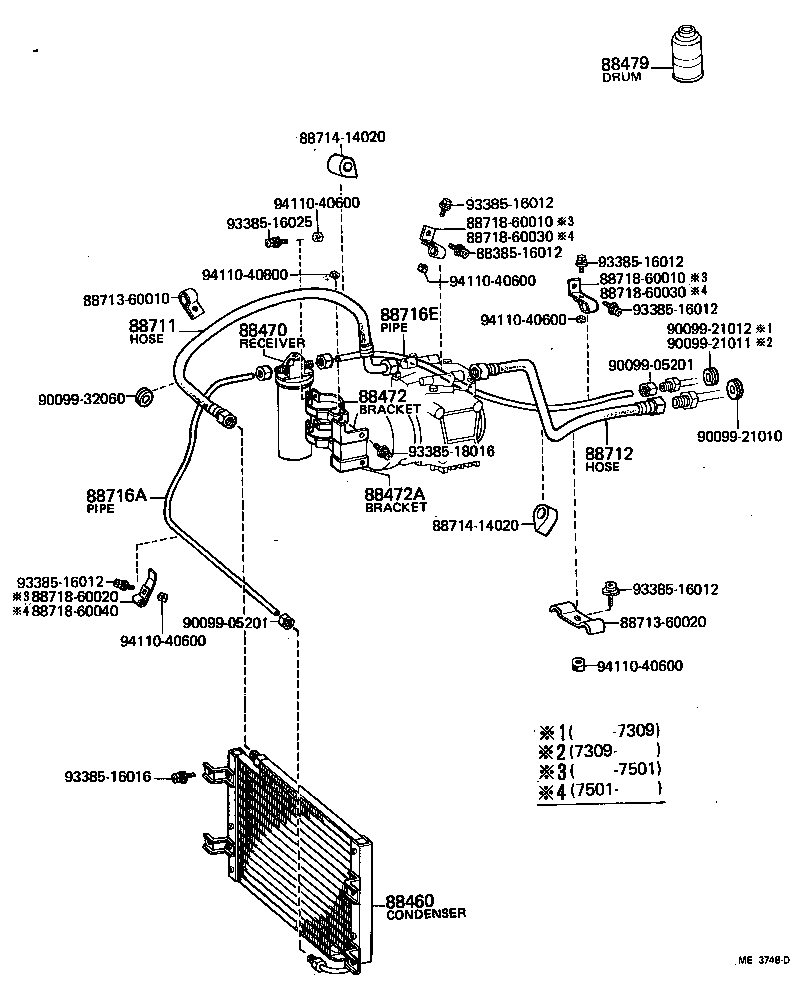

Figure ME3746D ME3746D 1970-10 → 1979-01 Figure ME3748D ME3748D 1970-10 → 1979-01 Figure ME7935A ME7935A 1979-01 → 1980-07 Figure ME7936A ME7936A 1979-01 → 1980-07 Figure ME7934A ME7934A 1979-01 → 1980-07 Figure ME7937 ME7937 1979-01 → 1980-07 Figure ME7938B ME7938B 1979-01 → 1980-07 Figure ME8778 ME8778 1979-09 → 1980-07

Part groups

PNCDescription
88460 Condenser Assy, Cooler
88470 Receiver & Dryer Assy, Cooler
88472 Bracket, Receiver Tank, NO.1
88472A Bracket, Receiver Tank, NO.2
88479 Freon Gas, Air Conditioner (DRUM, COOLER REFRIGERANT)
88711 Hose, Cooler Refrigerant Discharge, NO.1
88712 Hose, Cooler Refrigerant Suction, NO.1
88714 Hose, Cooler Refrigerant Liquid, NO.1
88715A Pipe, Cooler Refrigerant Discharge, A
88716A Pipe, Cooler Refrigerant Liquid, A
88716B Pipe, Cooler Refrigerant Liquid, B
88716E Pipe, Cooler Refrigerant Liquid, E
88717A Pipe, Cooler Refrigerant Suction, A
88717B Pipe, Cooler Refrigerant Suction, B
88717C Pipe, Cooler Refrigerant Suction, C
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
