Toyota Land Cruiser

1969-03 → 1980-07 · chassis FJ4#,55,BJ4#,HJ45 · catalogue 791210 · Europe

Discontinued model Data version 1987-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Heating & Air Conditioning - Compressor

56 part groups · 10 illustrations

Illustrations

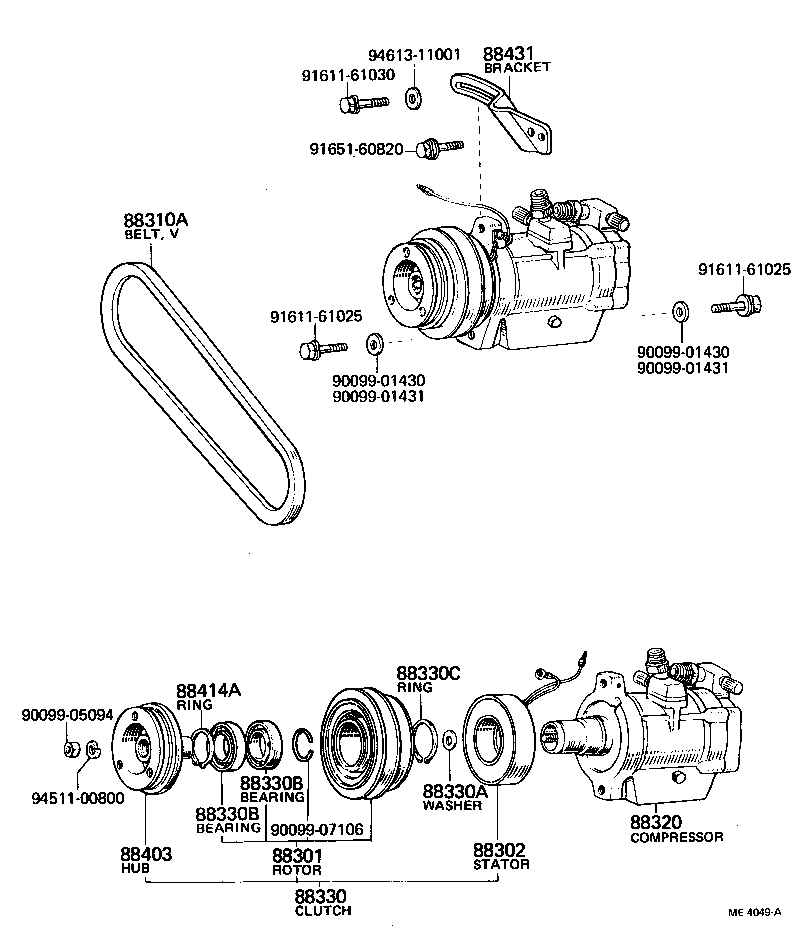

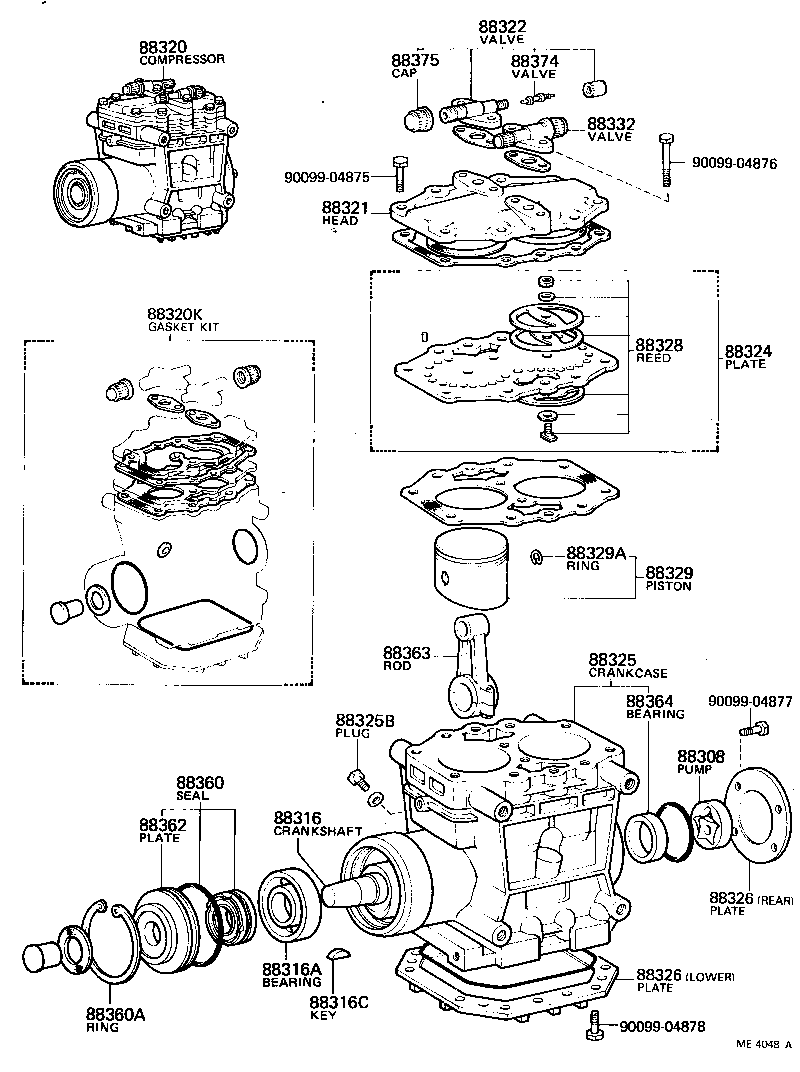

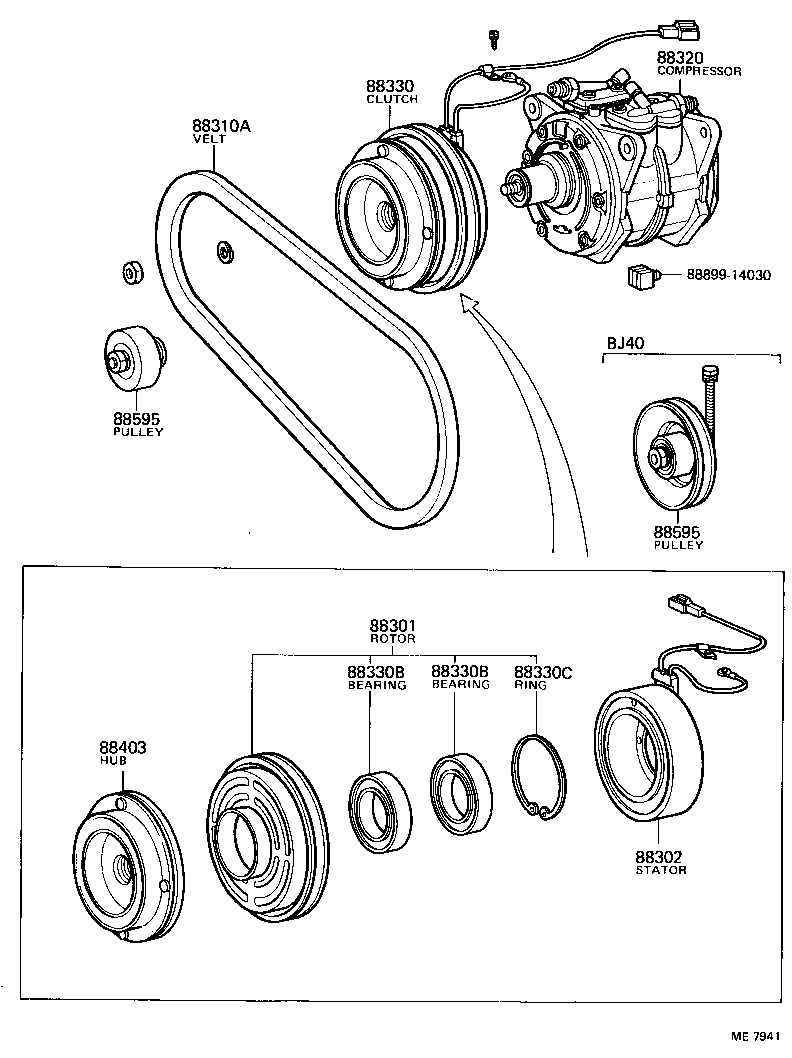

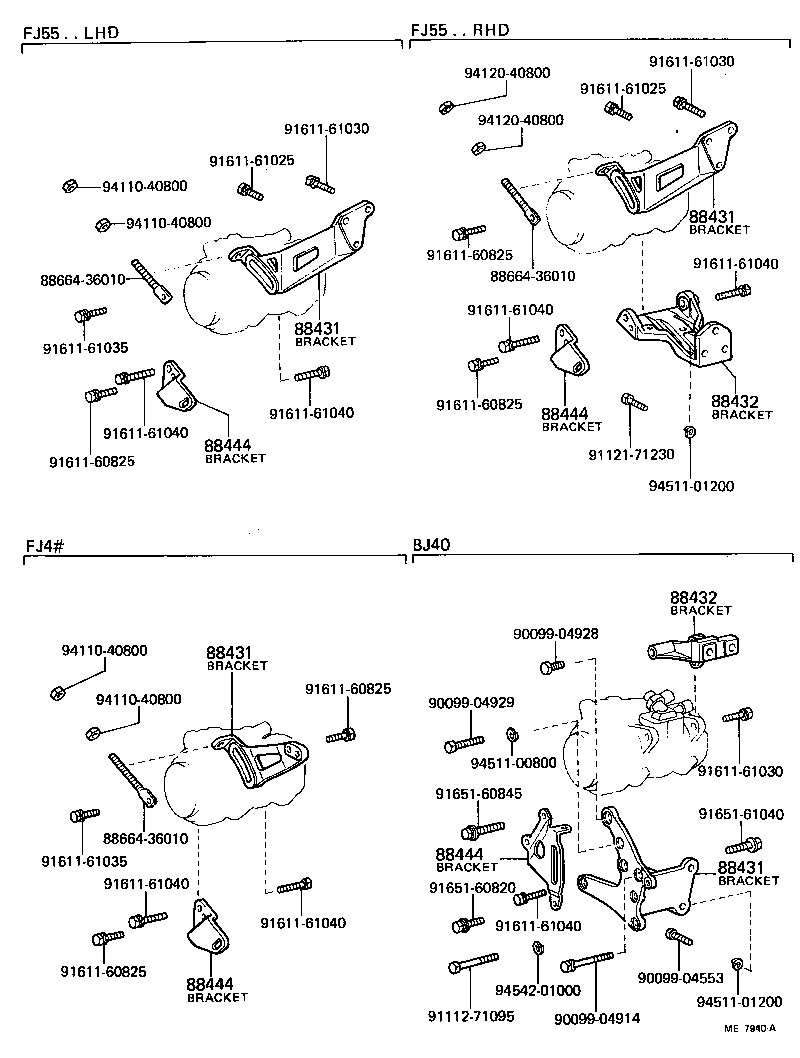

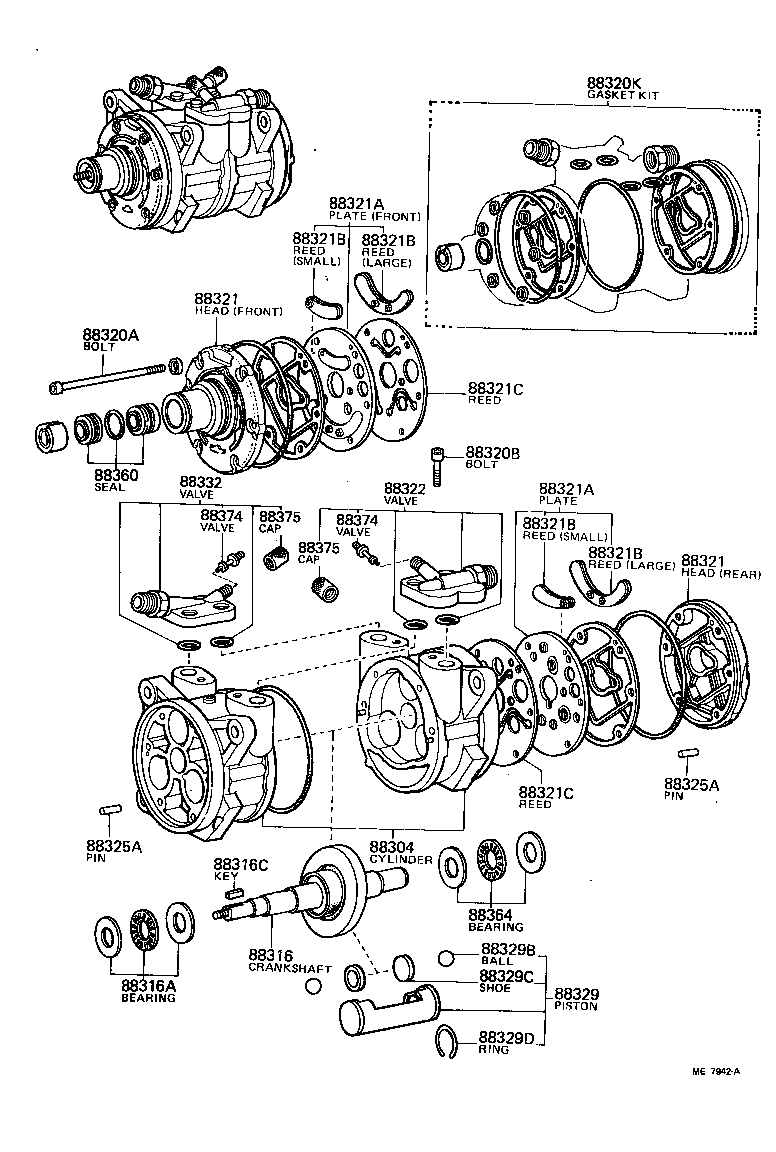

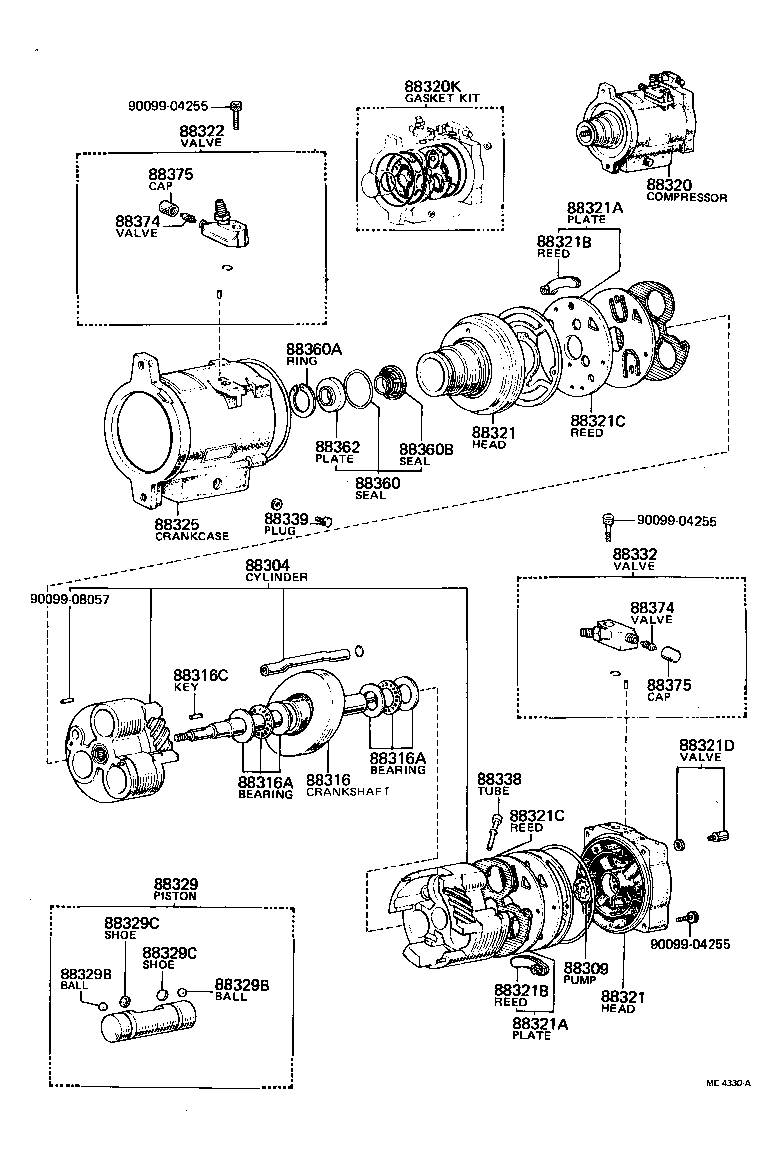

Figure ME4370C ME4370C 1970-10 → 1975-01 Figure ME4370C ME4370C 1975-01 → 1979-01 Figure ME4048A ME4048A 1970-10 → 1975-01 Figure ME4048A ME4048A 1975-01 → 1979-01 Figure ME4049A ME4049A 1975-01 → 1979-01 Figure ME4330A ME4330A 1975-01 → 1979-01 Figure ME7940A ME7940A 1979-01 → 1980-07 Figure ME8779 ME8779 1979-06 → 1980-07 Figure ME7941 ME7941 1979-01 → 1980-07 Figure ME7942A ME7942A 1979-01 → 1980-07

Part groups

PNCDescription
88301 Rotor Sub-assy, Magnet Clutch
88302 Stator Sub-assy, Magnet Clutch
88304 Cylinder Sub-assy, Cooler Compressor
88308 Pump Assy, Cooler Compressor
88309 Pump Sub-assy, Oil
88310 Compressor Assy, W/Pulley
88310A Belt, V (COOLER COMPRESSOR TO CRANKSHAFT PULLEY), NO.1
88316 Crankshaft, Cooler Compressor
88316A Bearing, Compressor Crankshaft, Front
88316C Key, Compressor Crankshaft
88320 Compressor Assy, Cooler
88320A Bolt, Through
88320B Bolt, Service Valve
88320K Gasket Kit, Cooler Compressor Overhaul
88321 Head, Cooler Compressor Cylinder
88321A Plate Sub-assy, Valve
88321B Reed Sub-assy, Valve
88321C Reed, Suction Valve
88321D Valve, Pressure Relief
88322 Valve, Cooler Compressor Suction Service
88324 Plate Sub-assy, Cooler Compressor Valve
88325 Crankcase, Cooler Compressor
88325A Pin, Cylinder Block
88325B Plug, Cylinder Block Oil
88326 Plate, Cooler Compressor Bottom
88328 Reed Sub-assy, Cooler Compressor Valve
88329 Piston Sub-assy, Cooler Compressor
88329A Ring, Compressor Piston Snap
88329B Ball, Piston
88329C Shoe, Piston
88329D Ring, Piston
88330 Clutch Assy, Magnet
88330A Washer (FOR MAGNET CLUTCH)
88330B Bearing, Magnet Clutch
88330C Ring, Snap (FOR MAGNET CLUTCH)
88332 Valve, Cooler Compressor Discharge Service
88338 Tube, Oil
88339 Plug, Oil Filler
88360 Seal Assy, Cooler Compressor Shaft
88360A Ring, Compressor Seal Plate Snap
88360B Seal, Shaft
88362 Plate, Cooler Compressor Seal
88363 Rod Sub-assy, Cooler Compressor Connecting
88364 Bearing, Compressor Crankshaft, Rear
88374 Valve, Cooler Compressor Service
88375 Cap, Cooler Compressor Service Valve
88403 Hub Sub-assy, Magnet Clutch
88413 Pulley Sub-assy, Magnet Clutch
88414 Ring, Shield
88414A Ring, Shield Snap
88415 Retainer, Magnet Clutch Bearing, NO.1
88431 Bracket, Compressor Mounting, NO.1
88432 Bracket, Compressor Mounting, NO.2
88433 Bracket, Compressor Mounting, NO.3
88444 Bracket, Idle Pulley
88595 Pulley, Cooler Compressor Idle
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
