Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

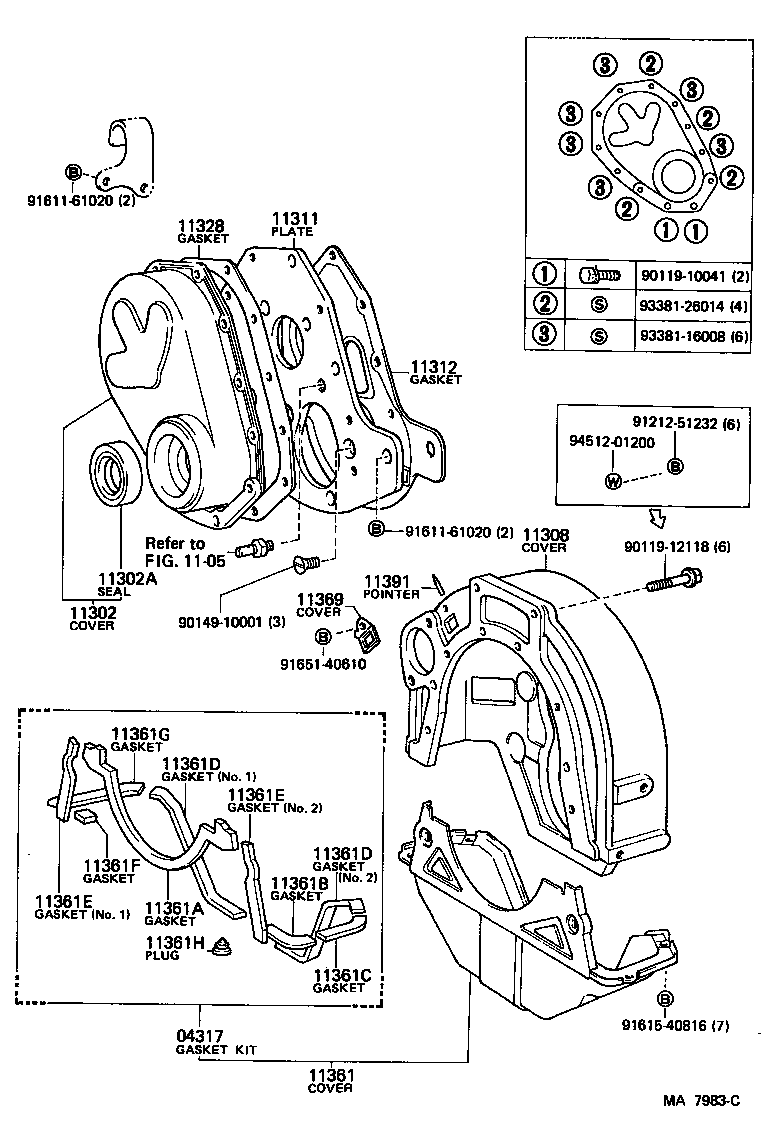

Exploded illustration MA7983C 9161161020 — not listed in this catalogue 11311 — PLATE, FRONT END (2 parts) 11328 — GASKET, TIMING GEAR OR CHAIN COVER (5 parts) 9011910041 — not listed in this catalogue 9338126014 — not listed in this catalogue 9338116008 — not listed in this catalogue 11312 — GASKET, FRONT END PLATE (5 parts) 9121251232 — not listed in this catalogue 9451201200 — not listed in this catalogue 9161161020 — not listed in this catalogue 11308 — COVER SUB-ASSY, FLYWHEEL HOUSING (4 parts) 9011912118 — not listed in this catalogue 1105 — not listed in this catalogue 11302A — SEAL, OIL(FOR TIMING CHAIN OR BELT COVER) (6 parts) 11391 — POINTER, TIMING (2 parts) 11369 — COVER, FLYWHEEL HOUSING FRONT (1 parts) 11302 — COVER SUB-ASSY, TIMING CHAIN OR BELT (13 parts) 9014910001 — not listed in this catalogue 9165140610 — not listed in this catalogue 11361G — GASKET, CLUTCH UNDER COVER, NO.7 (1 parts) 11361D — GASKET, CLUTCH UNDER COVER, NO.4 (3 parts) 11361E — GASKET, CLUTCH UNDER COVER, NO.5 (3 parts) 11361D — GASKET, CLUTCH UNDER COVER, NO.4 (3 parts) 11361F — GASKET, CLUTCH UNDER COVER, NO.6 (1 parts) 11361B — GASKET, CLUTCH UNDER COVER, NO.2 (1 parts) 11361E — GASKET, CLUTCH UNDER COVER, NO.5 (3 parts) 11361A — GASKET, CLUTCH UNDER COVER, NO.1 (1 parts) 11361H — PLUG, HOLE(FOR CLUTCH UNDER COVER) (1 parts) 11361C — GASKET, CLUTCH UNDER COVER, NO.3 (1 parts) 9161540816 — not listed in this catalogue 04317 — GASKET KIT, CLUTCH UNDER COVER (2 parts) 11361 — COVER, FLYWHEEL HOUSING UNDER (2 parts)
MA7983C · 20 callouts, 12 unlisted Full size ↗
Dashed callouts are standard fasteners the factory draws but does not list as separate parts — there is no part number behind them.
54 parts on this figure
Part number Description Fitment Price
04317 — Gasket Kit, Clutch Under Cover
04317-60020 Gasket Kit, Clutch Under Cover
1980-08 → 1984-11 ended
FJ60 —
04317-60030 Gasket Kit, Clutch Under Cover
1984-11 → 1987-08 ended
FJ62 —
11302 — Cover Sub-assy, Timing Chain OR Belt
11302-56030 Cover Sub-assy, Timing Chain OR Belt
1980-08 → 1987-08 ended
3B BJ60 —
11302-61020 Cover Sub-assy, Timing Chain OR Belt
1980-08 → 1984-10 ended
2F FJ60 —
11302-61030 Cover Sub-assy, Timing Chain OR Belt
1984-10 → 1986-10 ended
2F,3F FJ6# —
11302-61031 Cover Sub-assy, Timing Chain OR Belt
1986-10 → 1987-08 ended
3F FJ62 —
11321-68010 Cover Sub-assy, Timing Chain OR Belt
1980-08 → 1984-05 ended
2H HJ60 —
11321-68011 Cover Sub-assy, Timing Chain OR Belt
1984-05 → 1985-10 ended
2H HJ60 —
11321-68012 Cover Sub-assy, Timing Chain OR Belt
1985-10 → 1986-08 ended
2H HJ60 EUR,GEN —
11321-68012 Cover Sub-assy, Timing Chain OR Belt
1986-08 → 1987-08 ended
2H HJ60 MTM (EUR,GEN) —
11321-68020 note Cover Sub-assy, Timing Chain OR Belt
1985-10 → 1987-08 ended
2H HJ60 GEN —
11321-68020 Cover Sub-assy, Timing Chain OR Belt
1986-08 → 1987-08 ended
2H HJ60 4FC EUR —
11321-68020 note Cover Sub-assy, Timing Chain OR Belt
1985-10 → 1987-08 ended
2H HJ60 EUR —
11321-68020 Cover Sub-assy, Timing Chain OR Belt
1985-10 → 1987-08 ended
2H HJ60 ARL —
11321-68020 Cover Sub-assy, Timing Chain OR Belt
1985-10 → 1987-08 ended
12HT HJ61 —
11302A — Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
90311-45008 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1984-10 → 1987-08 ended
2F,3F FJ6# —
90311-45069 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1980-08 → 1984-10 ended
2F FJ60 —
90311-50002 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1980-08 → 1985-03 ended
3B BJ60 —
90311-50006 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1983-12 → 1987-08 ended
12HT,2H HJ6# —
90311-50007 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1985-03 → 1987-08 ended
3B BJ60 —
90311-50049 Seal, Oil(FOR TIMING CHAIN OR BELT COVER)
1980-08 → 1983-12 ended
2H HJ60 —
11308 — Cover Sub-assy, Flywheel Housing
31111-60030 Cover Sub-assy, Flywheel Housing
1980-08 → 1980-10 ended
2F FJ60 —
31111-60031 Cover Sub-assy, Flywheel Housing
1980-10 → 1983-07 ended
2F FJ60 —
31111-60032 Cover Sub-assy, Flywheel Housing
1983-07 → 1984-11 ended
2F FJ60 —
31111-60100 Cover Sub-assy, Flywheel Housing
1984-11 → 1987-08 ended
3F FJ62 —
11311 — Plate, Front End
11311-61010 Plate, Front End
1980-08 → 1984-05 ended
2F FJ60 —
11311-61020 Plate, Front End
1984-05 → 1987-08 ended
2F,3F FJ6# —
11312 — Gasket, Front End Plate
11312-56030 Gasket, Front End Plate
1980-08 → 1984-09 ended
3B BJ60 —
11312-56031 Gasket, Front End Plate
1984-09 → 1987-08 ended
3B BJ60 —
11312-61010 Gasket, Front End Plate
1980-08 → 1984-11 ended
2F FJ60 —
11312-61020 Gasket, Front End Plate
1984-11 → 1987-08 ended
3F FJ62 —
11312-68010 Gasket, Front End Plate
1980-08 → 1987-08 ended
12HT,2H HJ6# —
11328 — Gasket, Timing Gear OR Chain Cover
11328-56030 Gasket, Timing Gear OR Chain Cover
1980-08 → 1987-08 ended
3B BJ60 —
11328-60010 Gasket, Timing Gear OR Chain Cover
1980-08 → 1984-10 ended
2F FJ60 —
11328-61010 Gasket, Timing Gear OR Chain Cover
1984-10 → 1987-08 ended
2F,3F FJ6# —
11328-68010 Gasket, Timing Gear OR Chain Cover
1980-08 → 1985-10 ended
2H HJ60 —
11328-68020 Gasket, Timing Gear OR Chain Cover
1985-10 → 1987-08 ended
12HT,2H HJ6# —
11361 — Cover, Flywheel Housing Under
31104-60020 Cover, Flywheel Housing Under
1980-08 → 1984-11 ended
2F FJ60 —
31104-60030 Cover, Flywheel Housing Under
1984-11 → 1987-08 ended
3F FJ62 —
11361A — Gasket, Clutch Under Cover, NO.1
31131-60010 Gasket, Clutch Under Cover, NO.1
1980-08 → 1987-08 ended
2F,3F FJ6# —
11361B — Gasket, Clutch Under Cover, NO.2
31132-60020 Gasket, Clutch Under Cover, NO.2
1980-08 → 1987-08 ended
2F,3F FJ6# —
11361C — Gasket, Clutch Under Cover, NO.3
31133-60020 Gasket, Clutch Under Cover, NO.3
1980-08 → 1987-08 ended
2F,3F FJ6# —
11361D — Gasket, Clutch Under Cover, NO.4
31134-60020 Gasket, Clutch Under Cover, NO.4
1980-08 → 1984-11 ended
2F FJ60 —
31134-60020 note Gasket, Clutch Under Cover, NO.4
1984-11 → 1987-08 ended
3F FJ62 —
31134-60030 note Gasket, Clutch Under Cover, NO.4
1984-11 → 1987-08 ended
3F FJ62 —
11361E — Gasket, Clutch Under Cover, NO.5
31135-60020 Gasket, Clutch Under Cover, NO.5
1980-08 → 1984-11 ended
2F FJ60 —
31135-60021 note Gasket, Clutch Under Cover, NO.5
1984-11 → 1987-08 ended
3F FJ62 —
31135-60031 note Gasket, Clutch Under Cover, NO.5
1984-11 → 1987-08 ended
3F FJ62 —
11361F — Gasket, Clutch Under Cover, NO.6
31136-60010 Gasket, Clutch Under Cover, NO.6
1980-08 → 1987-08 ended
2F,3F FJ6# —
11361G — Gasket, Clutch Under Cover, NO.7
31137-60010 Gasket, Clutch Under Cover, NO.7
1980-08 → 1987-08 ended
2F,3F FJ6# —
11361H — Plug, Hole(FOR CLUTCH UNDER COVER)
90950-01200 Plug, Hole(FOR CLUTCH UNDER COVER)
1980-08 → 1987-08 ended
2F,3F FJ6# —
11369 — Cover, Flywheel Housing Front
11369-60011 Cover, Flywheel Housing Front
1980-08 → 1987-08 ended
2F,3F FJ6# —
11391 — Pointer, Timing
11391-56020 Pointer, Timing
1980-08 → 1987-08 ended
3B BJ60 —
11391-60010 Pointer, Timing
1980-08 → 1987-08 ended
2F,3F FJ6# —
No quantity column: the factory catalogue records which parts a vehicle takes, never how many.
