Toyota Land Cruiser
1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe
Discontinued model
Data version 1988-01

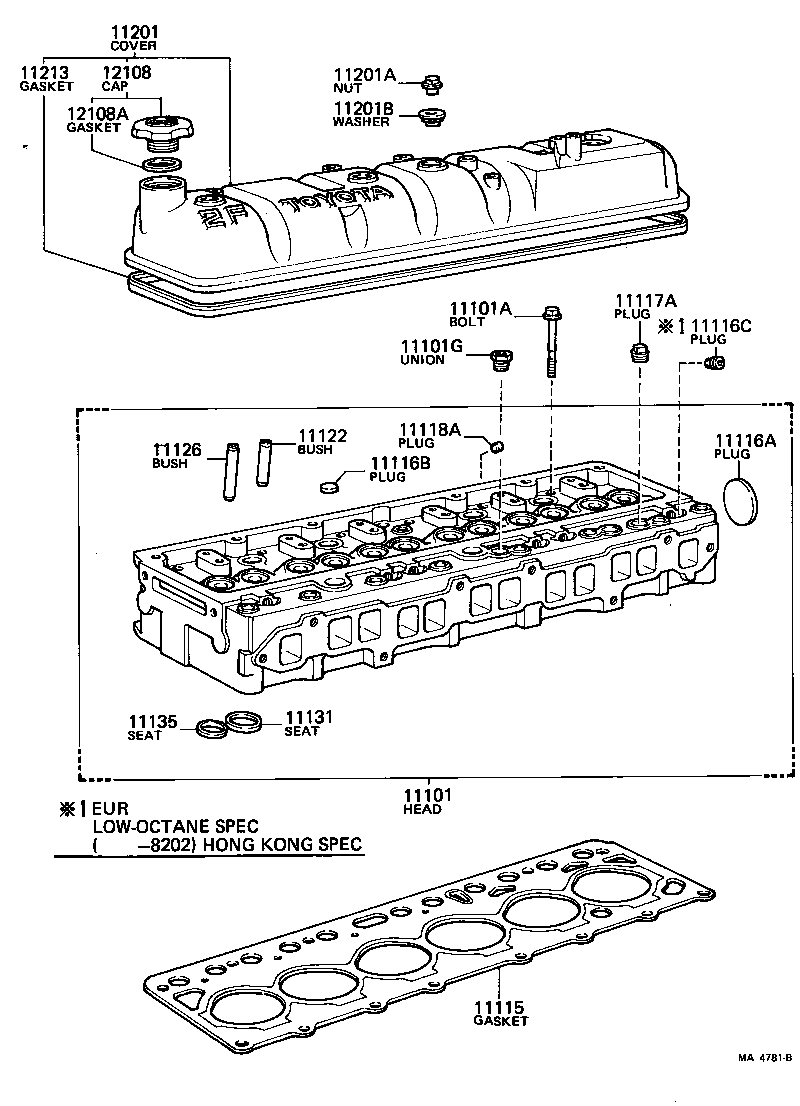

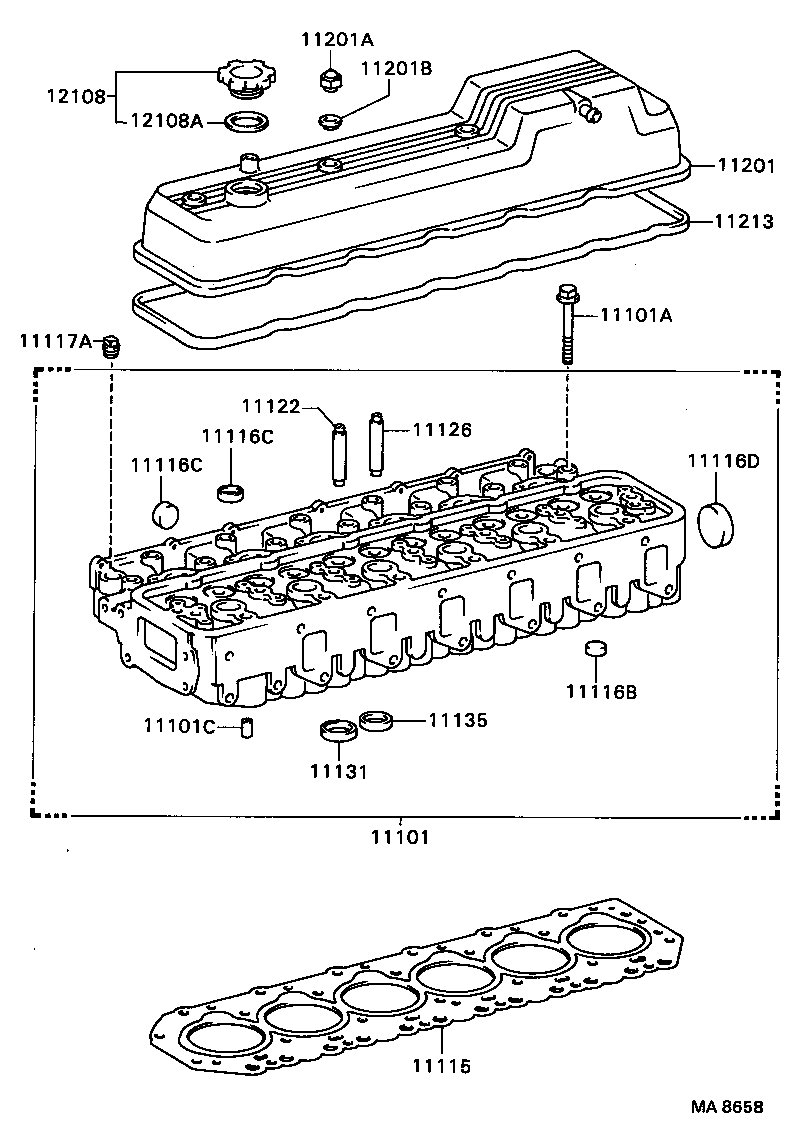

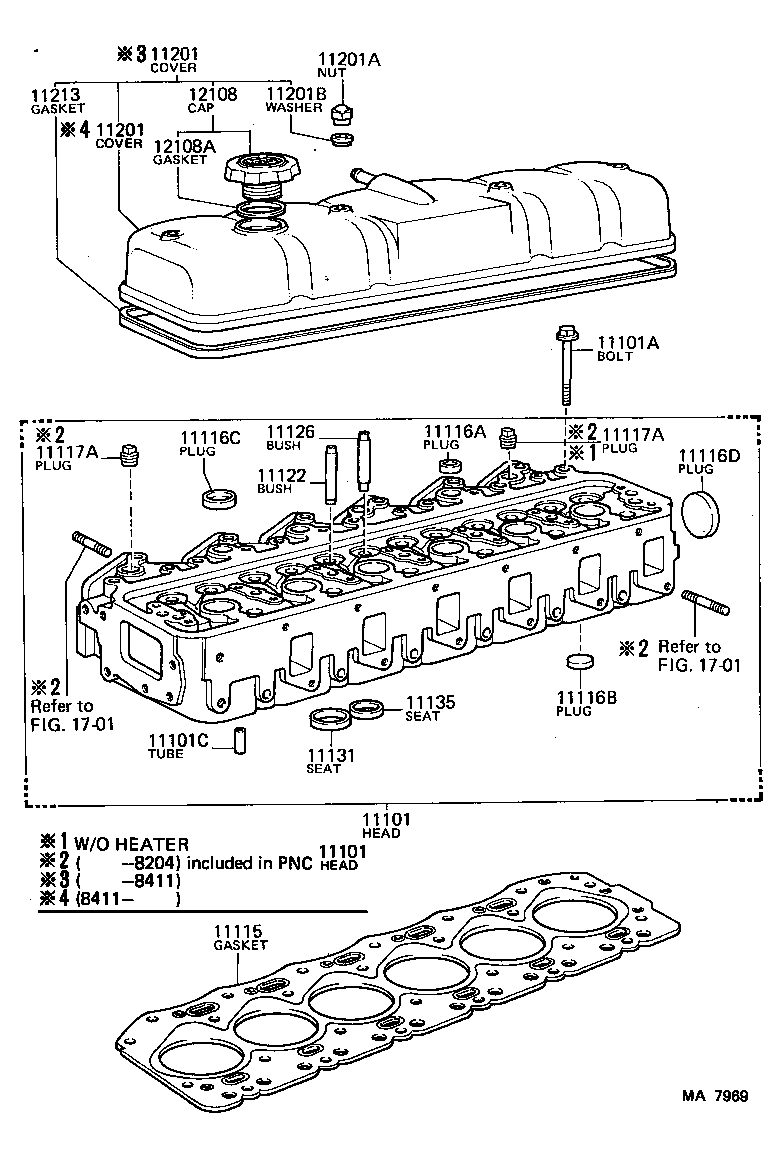

Cylinder Head
24 part groups · 5 illustrations
Part groups
| PNC | Description |
|---|---|
| 11101 | Head Sub-assy, Cylinder |
| 11101A | Bolt(FOR CYLINDER HEAD SET) |
| 11101C | Tube(FOR CYLINDER HEAD) |
| 11101G | Union(FOR CYLINDER HEAD) |
| 11115 | Gasket, Cylinder Head |
| 11116A | Plug, Tight, NO.1 |
| 11116B | Plug, Tight, NO.2 |
| 11116C | Plug, Tight, NO.3 |
| 11116D | Plug, Tight, NO.4 |
| 11116E | Plug, Tight, NO.5 |
| 11117A | Plug, W/Head Taper Screw, NO.1 |
| 11117B | Plug, W/Head Taper Screw, NO.2 |
| 11118A | Plug, Straight, NO.1 |
| 11119A | Pin, Straight, NO.1 |
| 11122 | Bush, Intake Valve Guide |
| 11126 | Bush, Exhaust Valve Guide |
| 11131 | Seat, Intake Valve |
| 11135 | Seat, Exhaust Valve |
| 11201 | Cover Sub-assy, Cylinder Head |
| 11201A | Nut, Cap(FOR CYLINDER HEAD COVER) |
| 11201B | Washer, Seal(FOR CYLINDER HEAD COVER) |
| 11213 | Gasket, Cylinder Head Cover |
| 12108 | Cap Sub-assy, Oil Filler |
| 12108A | Gasket(FOR OIL FILLER CAP) |
PNC is the six-character part-group number the factory catalogue files
parts under. Every part on a drawing belongs to one.
