Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Mounting

8 part groups · 6 illustrations

Illustrations

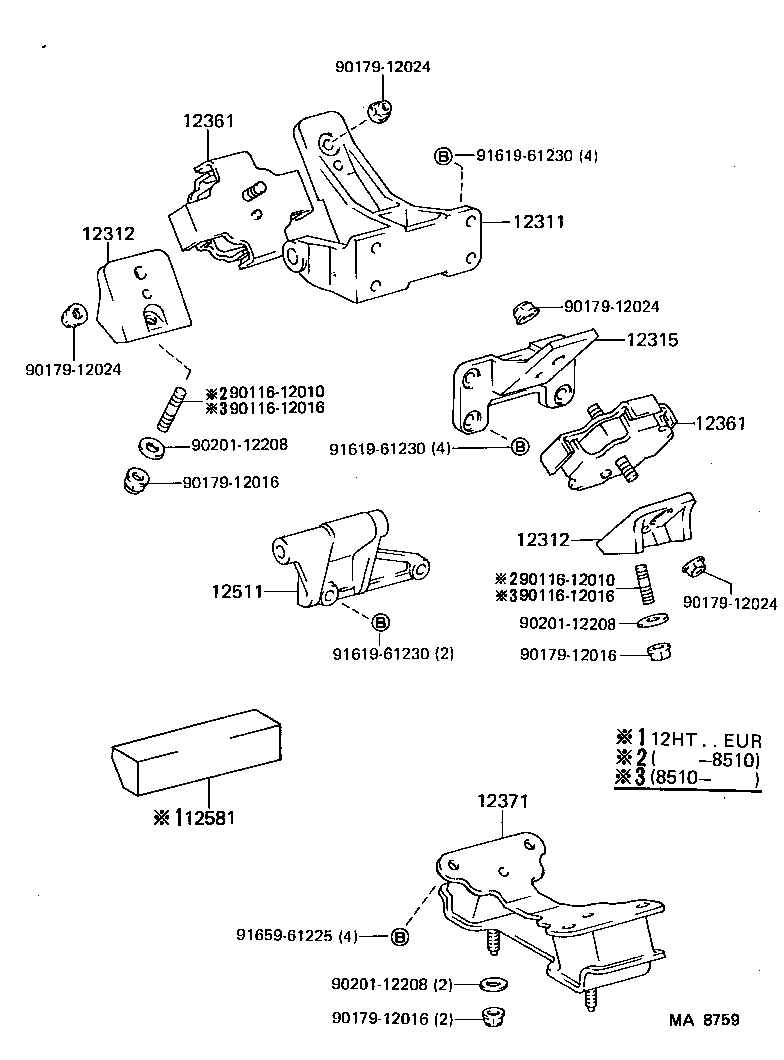

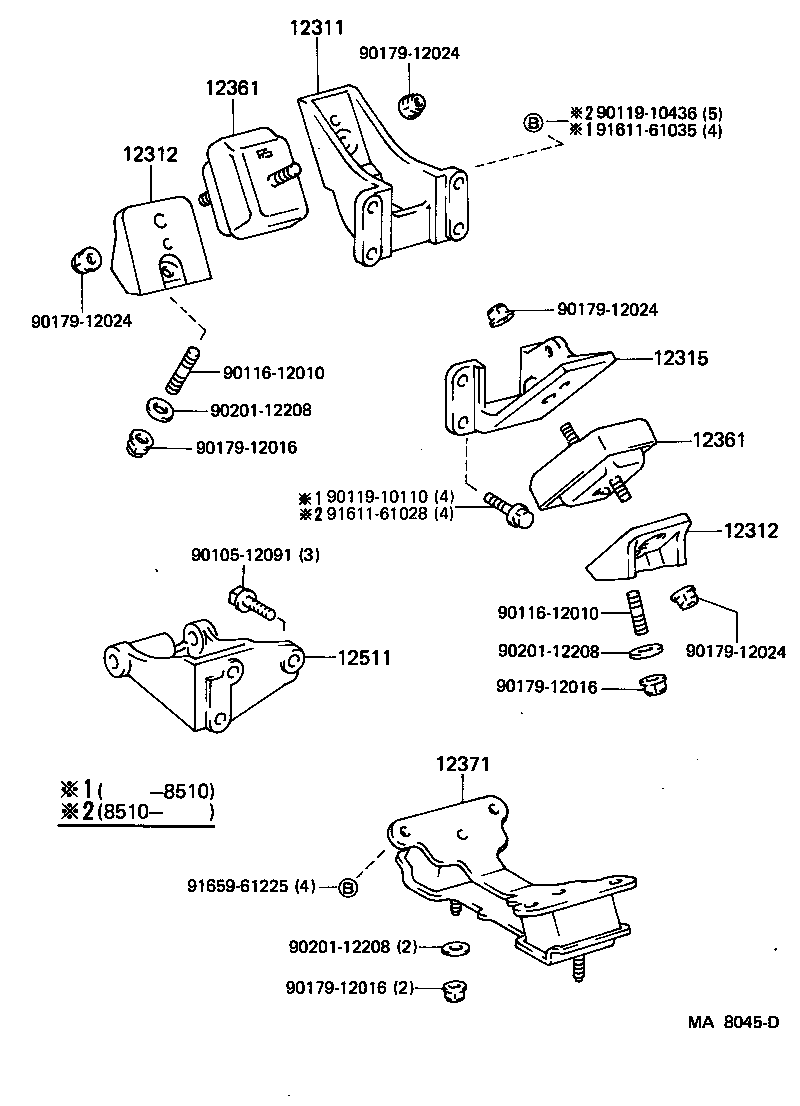

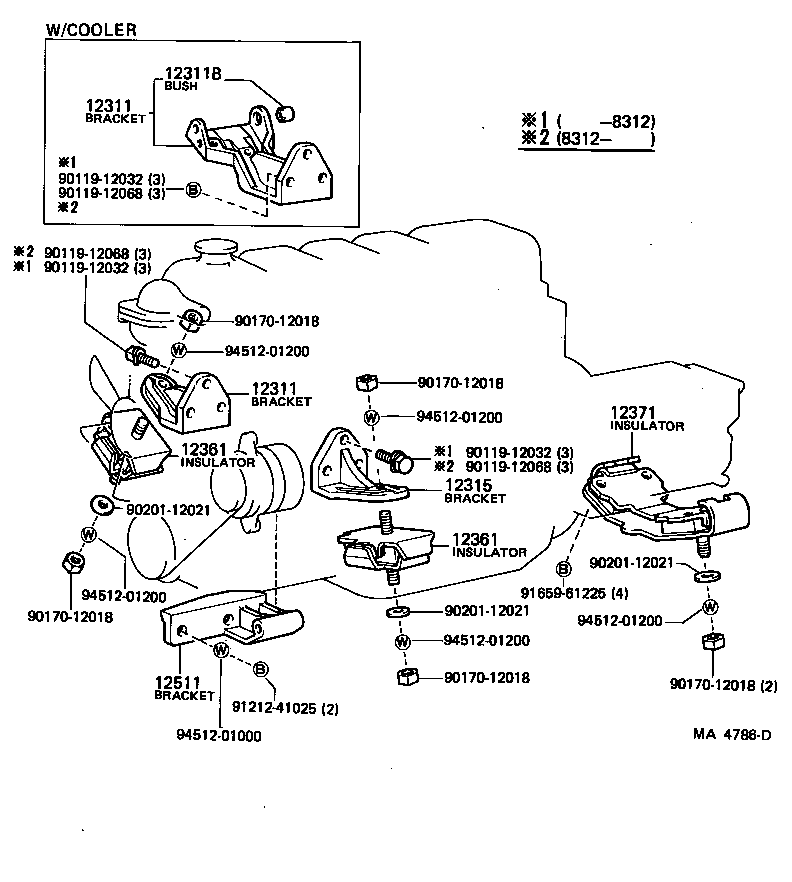

Figure MA6321A MA6321A 1980-08 → 1984-11 Figure MA8045D MA8045D 1984-11 → — Figure MA4786D MA4786D 1980-08 → 1984-11 Figure MA7984 MA7984 1984-11 → — Figure MA4858D MA4858D 1980-08 → 1984-11 Figure MA8759 MA8759 1984-11 → —

Part groups

PNCDescription
12311 Bracket, Engine Mounting, Front NO.1 RH
12311B Bush(FOR ENGINE MOUNTING BRACKET)
12312 Bracket, Engine Mounting, Front NO.2
12315 Bracket, Engine Mounting, Front NO.1 LH
12361 Insulator, Engine Mounting, Front
12371 Insulator, Engine Mounting, Rear NO.1
12511 Bracket, Alternator, NO.1
12581 Insulator, Cylinder Block, NO.1
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
