Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Ventilation Hose

15 part groups · 5 illustrations

Illustrations

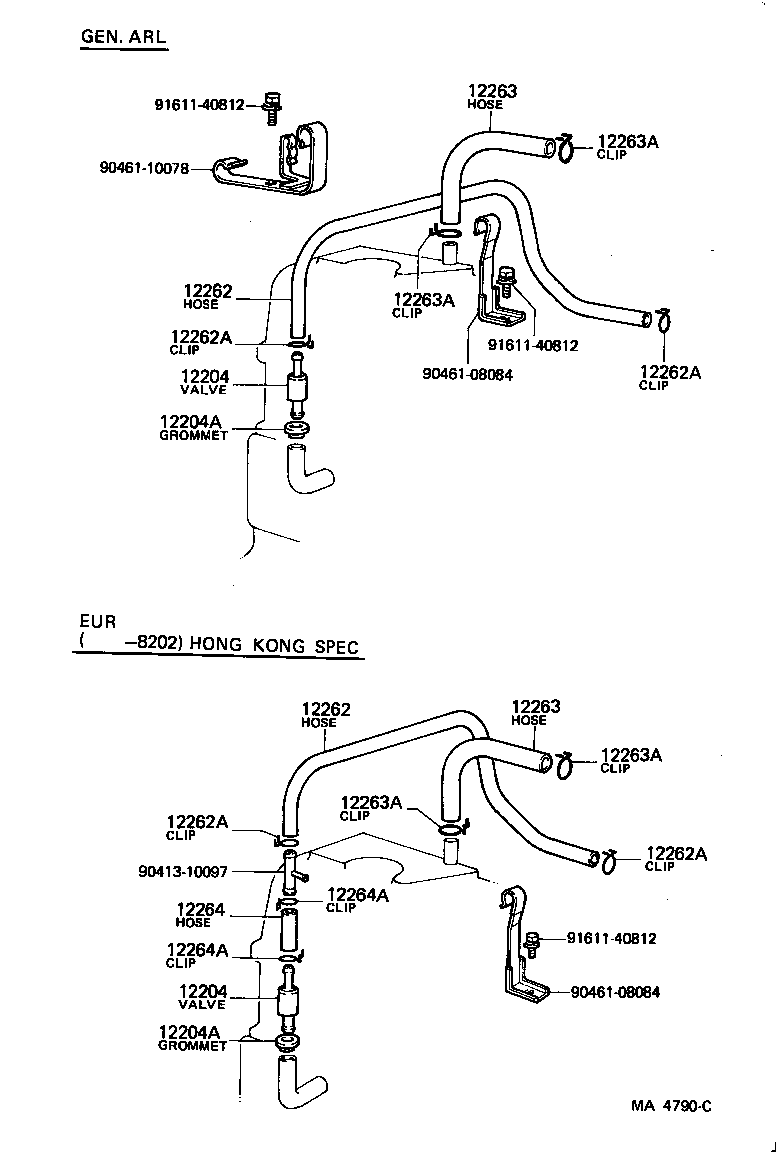

Figure MA4891C MA4891C 1980-08 → — Figure MA4790C MA4790C 1980-08 → 1984-11 Figure MA7986A MA7986A 1984-11 → — Figure MA4859 MA4859 1980-08 → — Figure MA8724A MA8724A 1985-10 → —

Part groups

PNCDescription
12203 Pipe Sub-assy, Ventilation
12203A Gasket(FOR VENTILATION PIPE)
12204 Valve Sub-assy, Ventilation
12204A Grommet(FOR VENTILATION SYSTEM)
12225 Flange, Ventilation
12225A Gasket(FOR VENTILATION FLANGE)
12251 Clamp, Ventilation Tube
12261 Hose, Ventilation
12261A Clip OR Clamp(FOR VENTILATION HOSE)
12262 Hose, Ventilation, NO.2
12262A Clip(FOR VENTILATION HOSE NO.2)
12263 Hose, Ventilation, NO.3
12263A Clip(FOR VENTILATION HOSE)
12264 Hose, Ventilation, NO.4
12264A Clip(FOR VENTILATION HOSE)
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
