Toyota Land Cruiser

1980-08 → 1987-08 · chassis BJ60,HJ6#,FJ6# · catalogue 791220 · Europe

Discontinued model Data version 1988-01
Parts groups Model variants Characteristics Frame ranges Catalogue groups Illustration notes Newest parts Spec codes

Air Cleaner

45 part groups · 21 illustrations

Illustrations

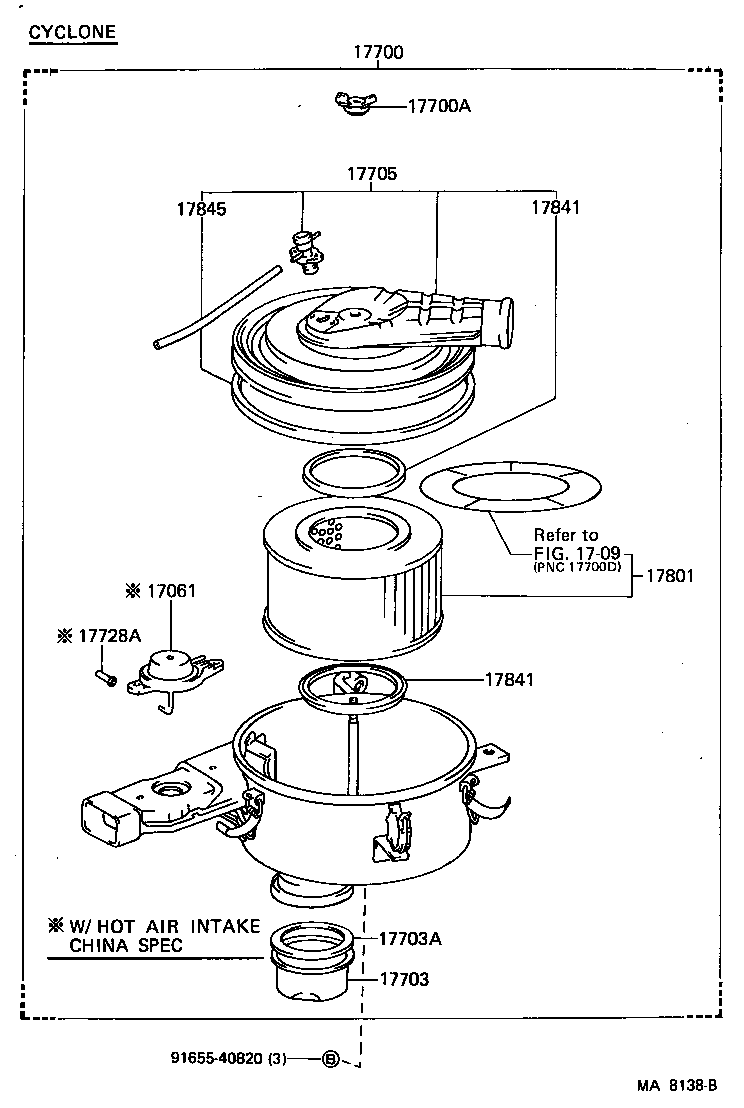

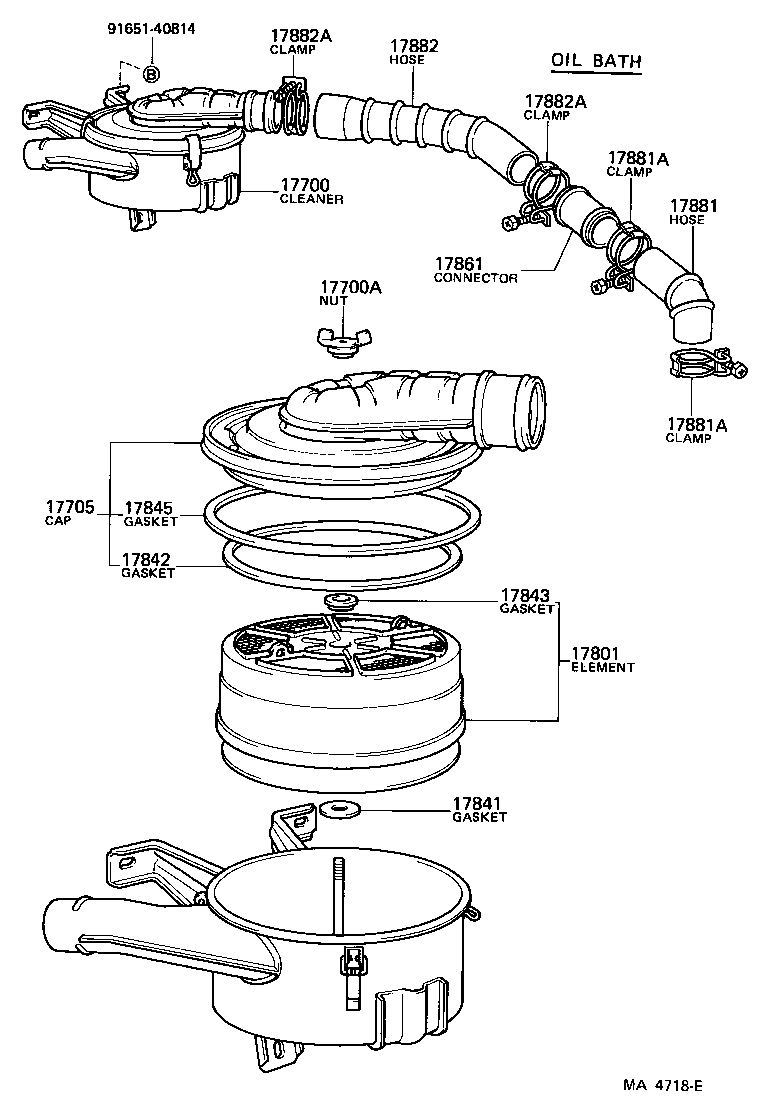

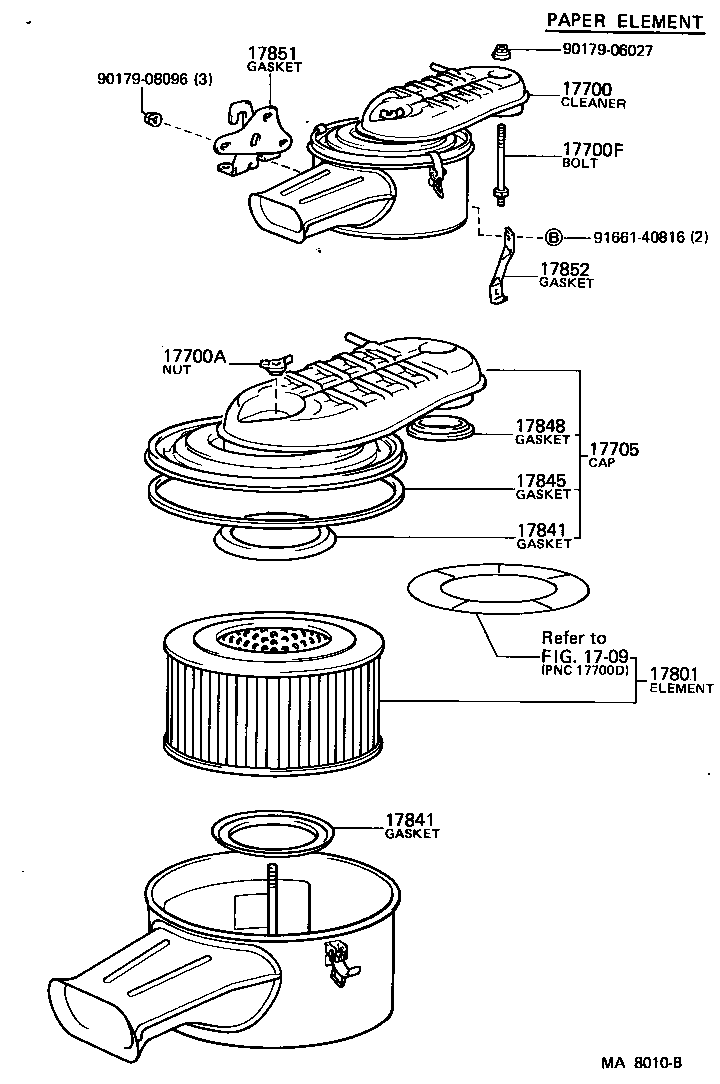

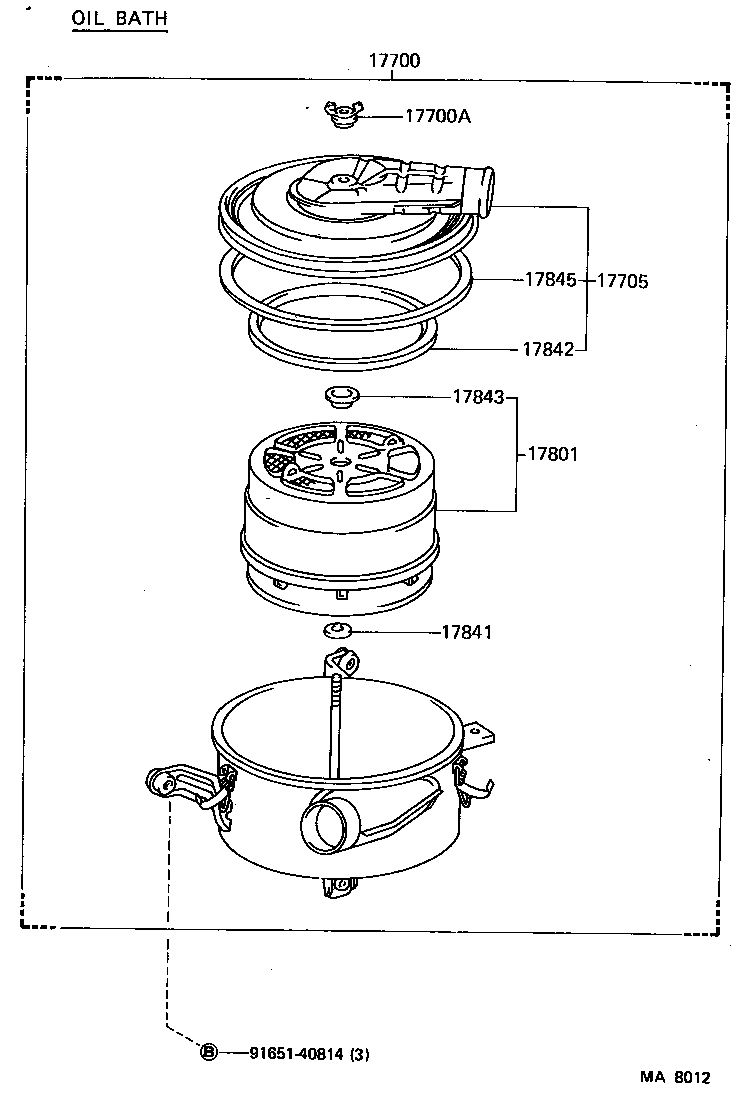

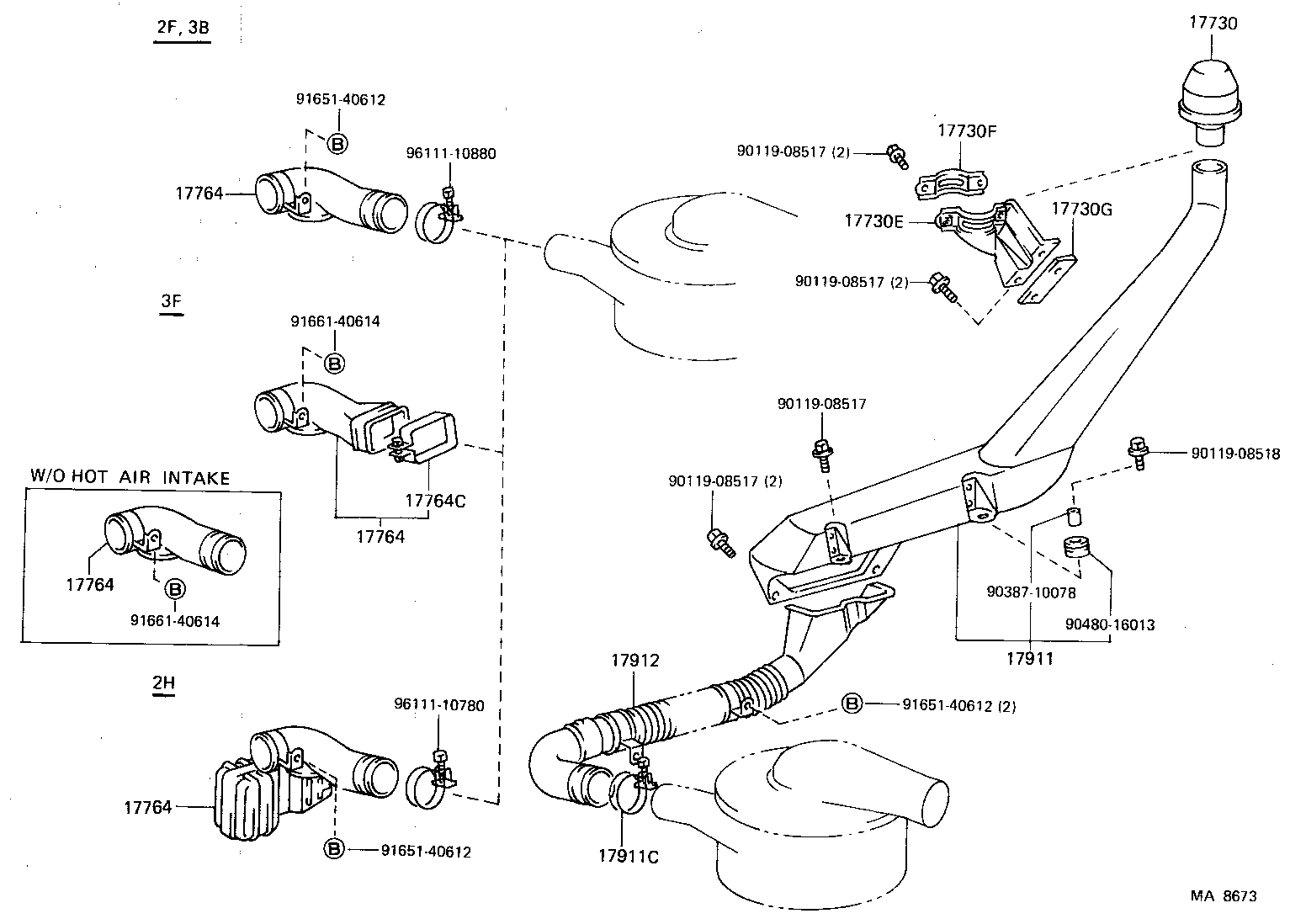

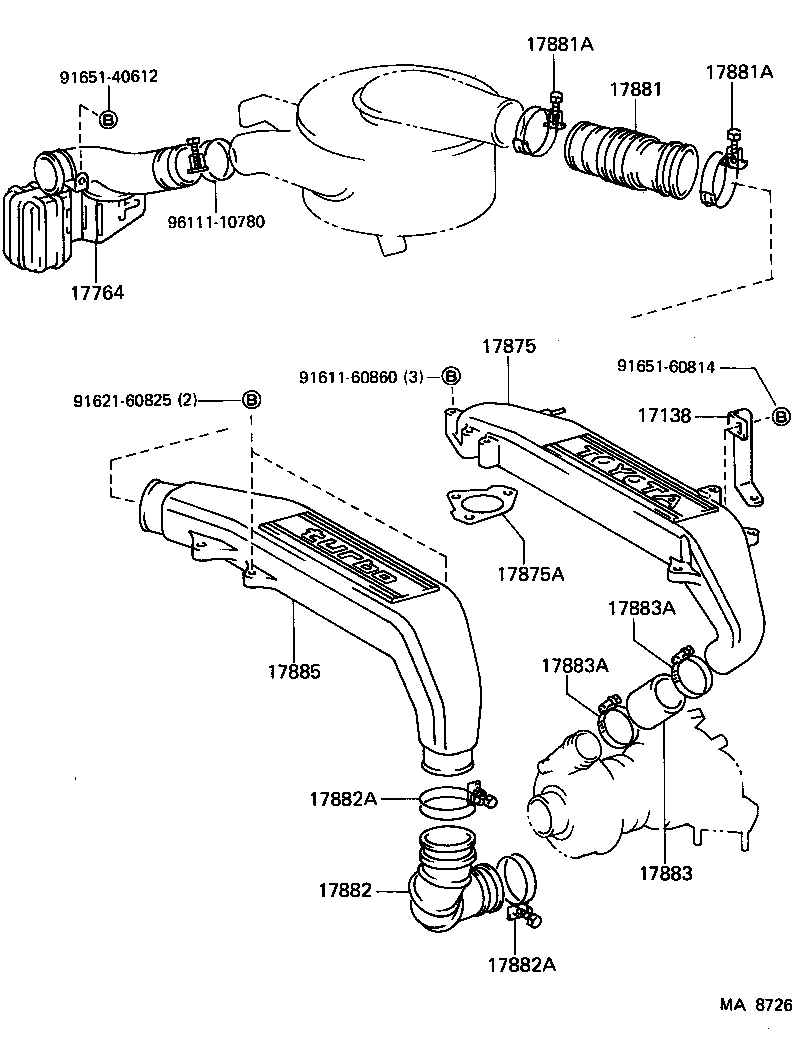

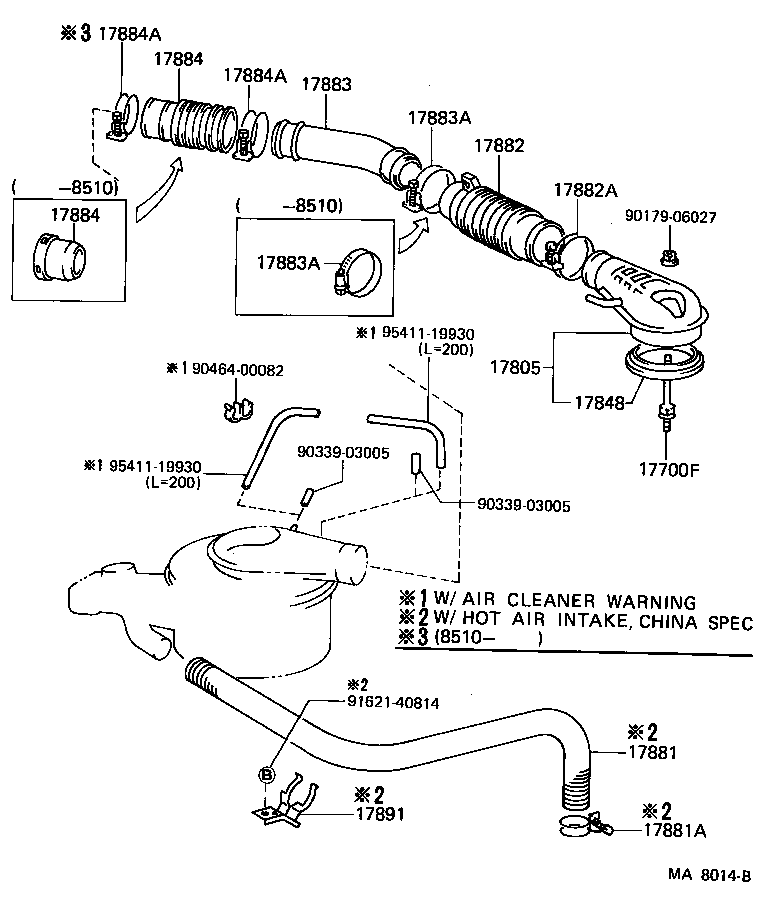

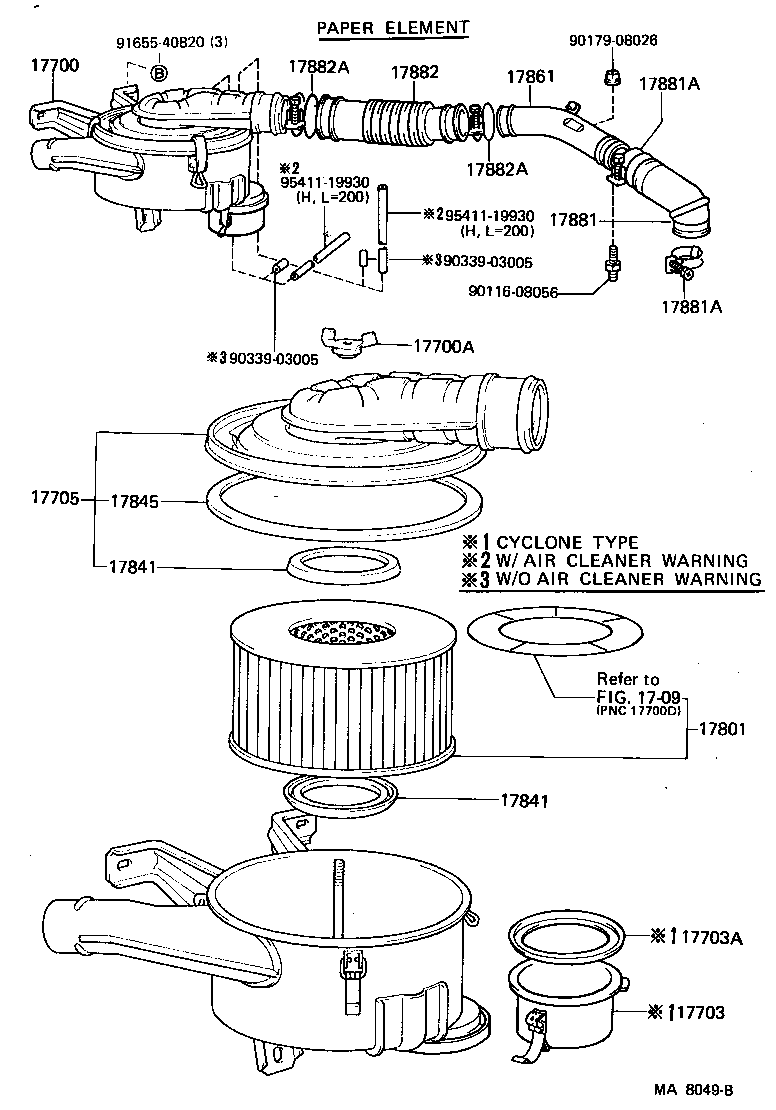

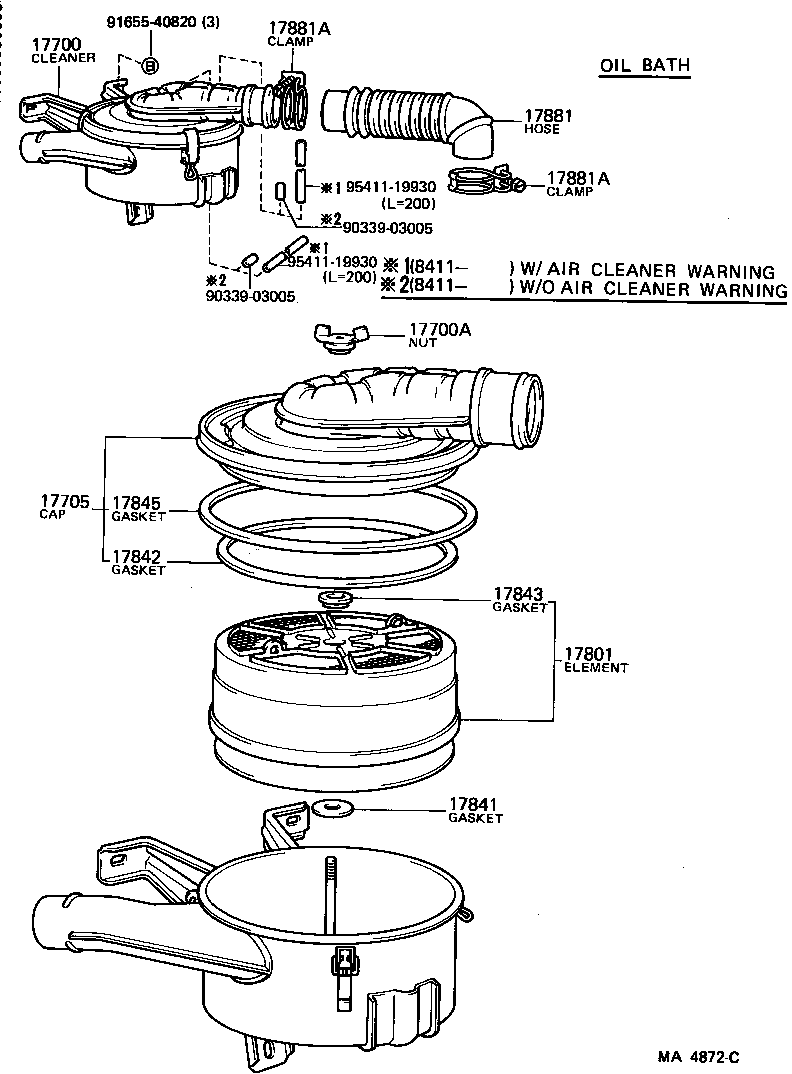

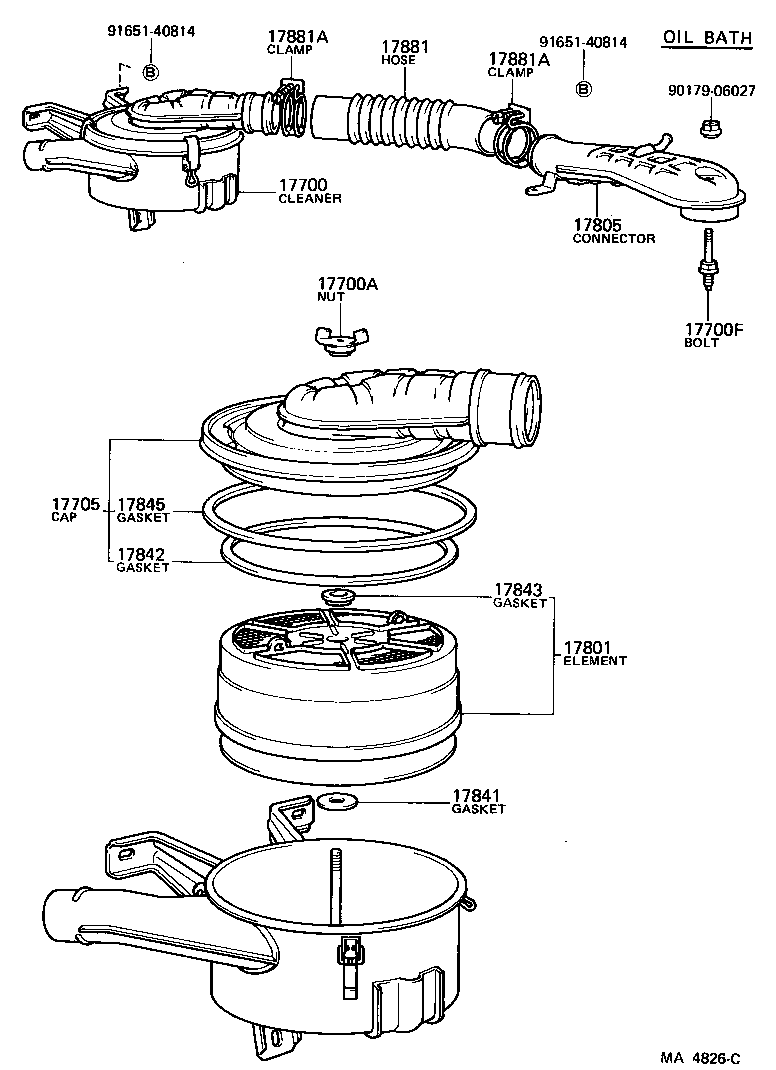

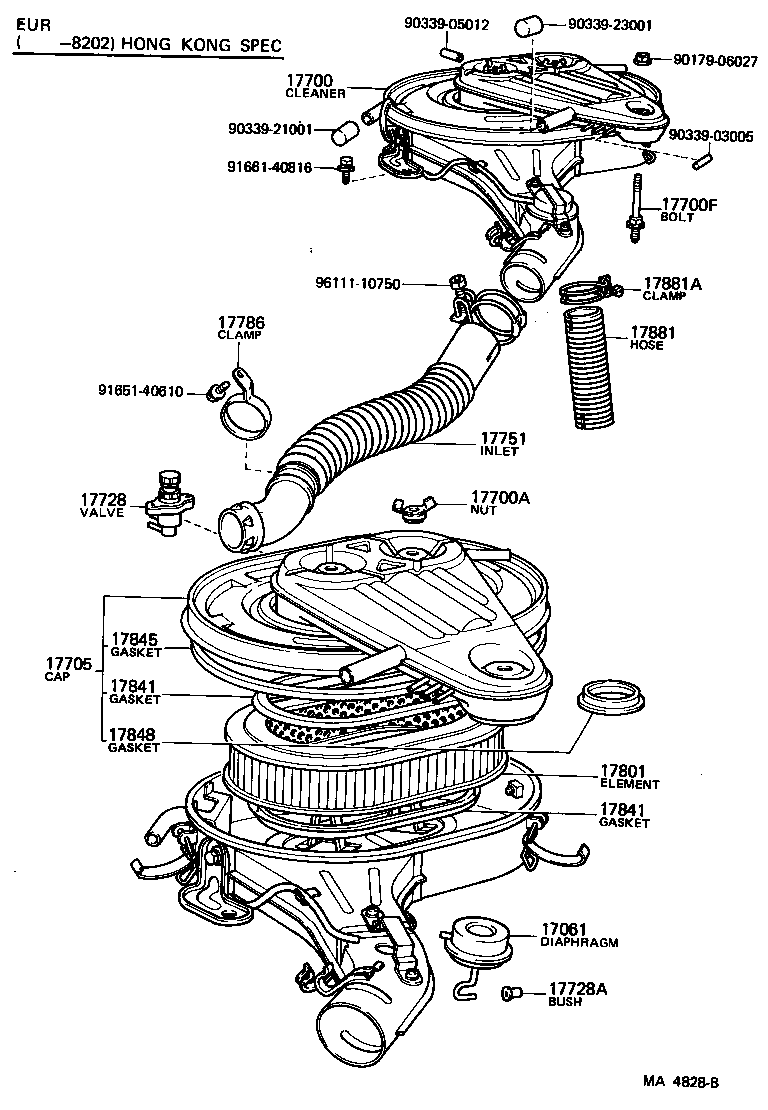

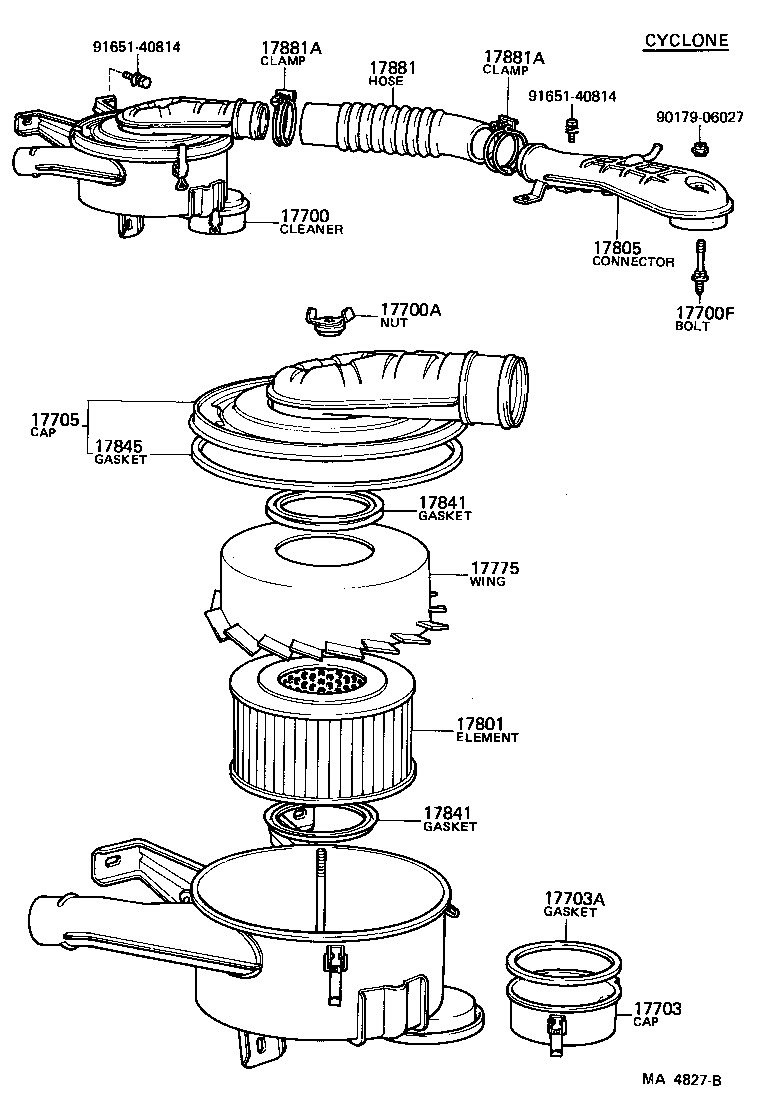

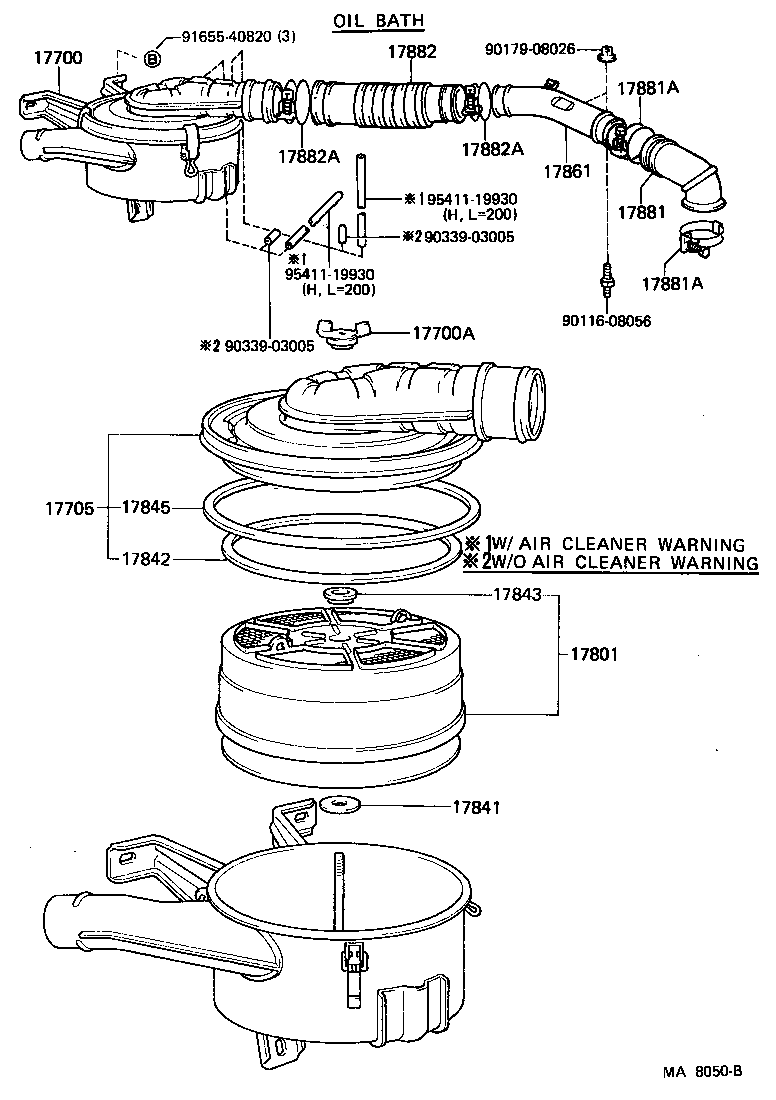

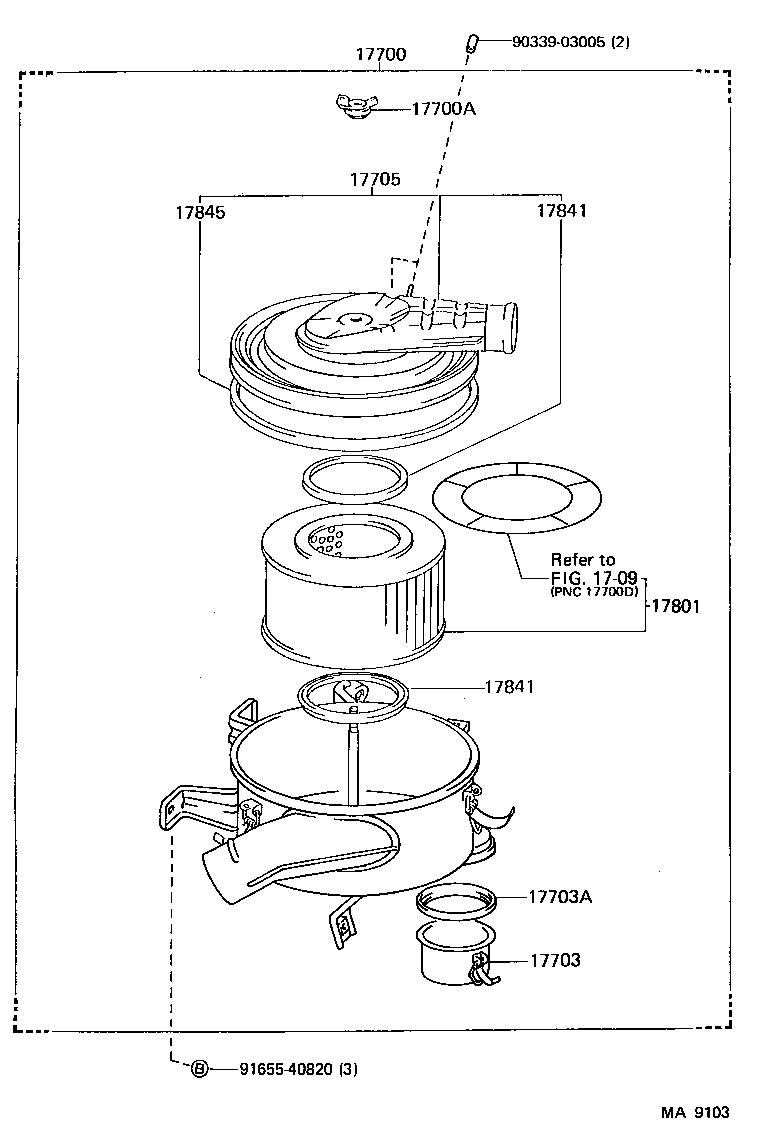

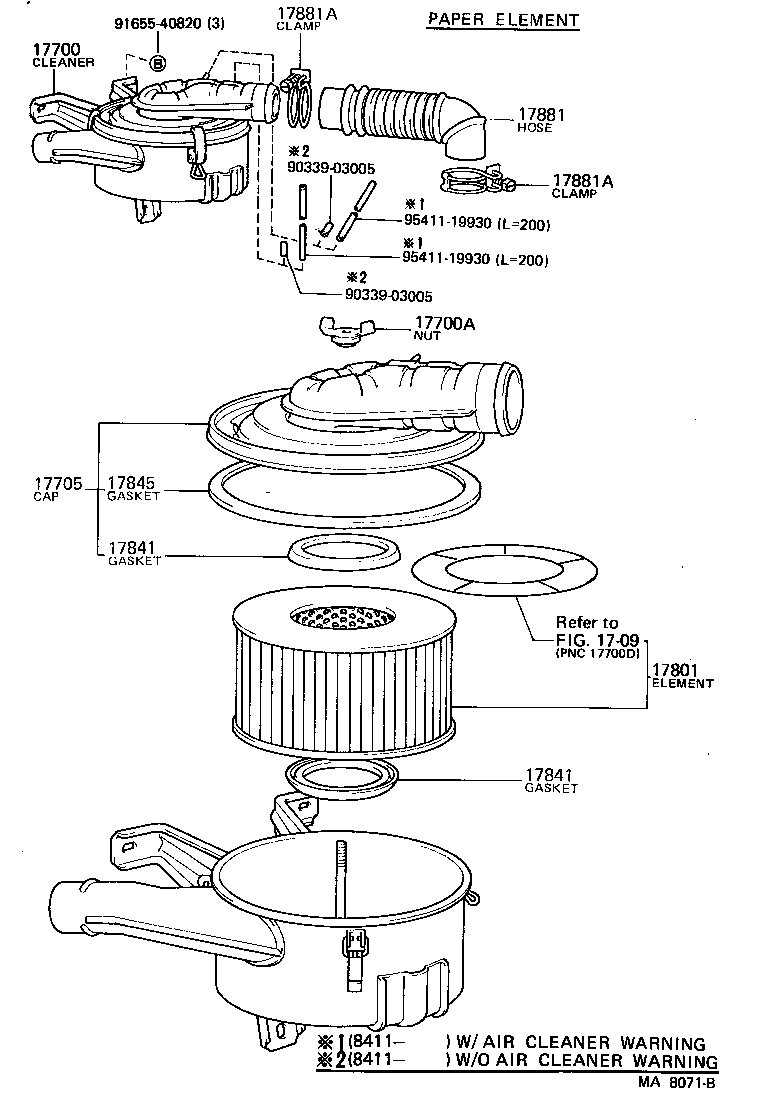

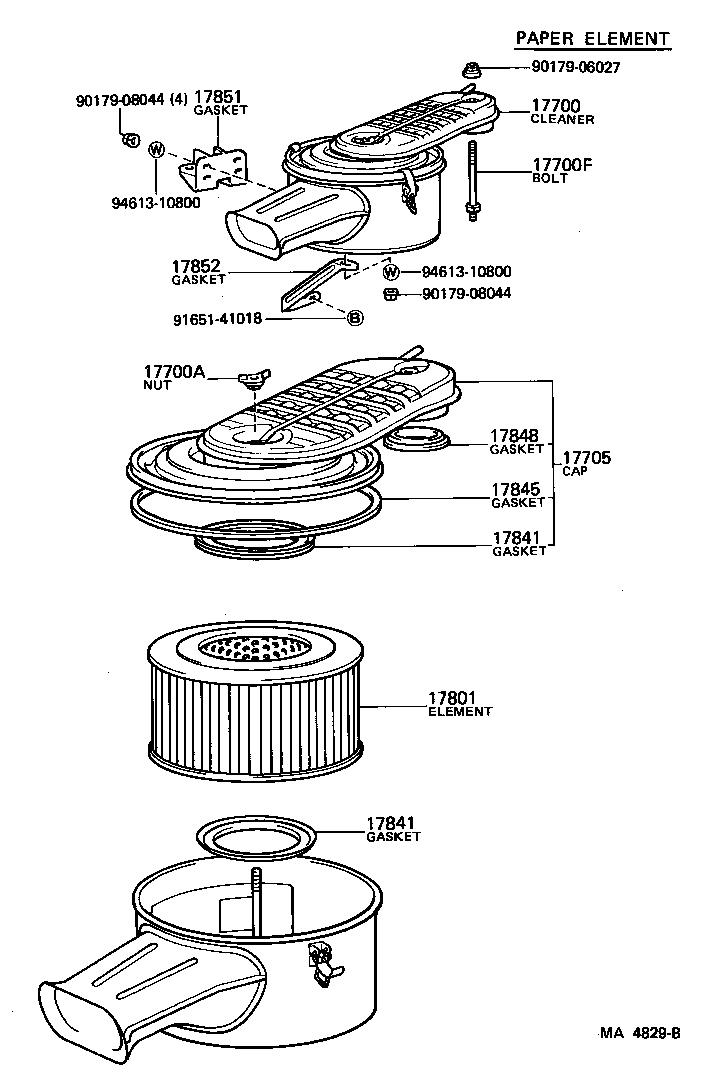

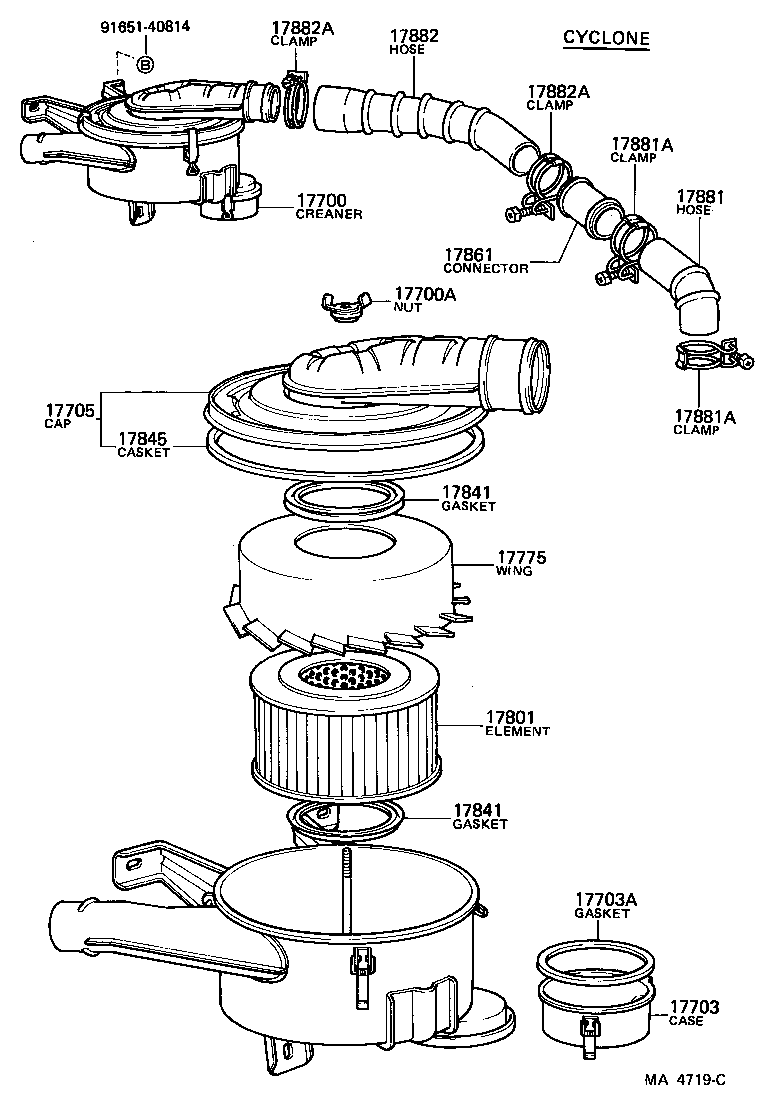

Figure MA4717D MA4717D 1980-08 → 1984-11 Figure MA8049B MA8049B 1984-11 → — Figure MA4718E MA4718E 1980-08 → 1984-11 Figure MA8050B MA8050B 1984-11 → — Figure MA4719C MA4719C 1980-08 → 1984-11 Figure MA8673 MA8673 1985-10 → — Figure MA4829B MA4829B 1980-08 → 1984-11 Figure MA8010B MA8010B 1984-11 → — Figure MA4826C MA4826C 1980-08 → 1984-11 Figure MA8012 MA8012 1984-11 → — Figure MA4827B MA4827B 1980-08 → 1984-11 Figure MA8138B MA8138B 1984-11 → — Figure MA8014B MA8014B 1984-11 → — Figure MA4828B MA4828B 1980-08 → 1984-11 Figure MA8673 MA8673 1985-10 → — Figure MA8071B MA8071B 1980-08 → — Figure MA4872C MA4872C 1980-08 → — Figure MA4873D MA4873D 1980-08 → — Figure MA9103 MA9103 1985-10 → — Figure MA8726 MA8726 1985-10 → — Figure MA8673 MA8673 1985-10 → —

Part groups

PNCDescription
17061 Diaphragm Sub-assy
17138 Stay, Intake Pipe OR Hose
17700 Cleaner Assy, Air
17700A Nut, Wing(FOR AIR CLEANER)
17700F Bolt, Stud(FOR AIR CLEANER SETTING)
17703 Case Sub-assy, Bottom Air Cleaner Filter
17703A Gasket(FOR BOTTOM AIR CLEANER FILTER CASE)
17705 Cap Sub-assy, Air Cleaner
17728 Valve, Thermostatic
17728A Bush
17730 Precleaner Assy, Air W/Hose
17730E Bracket, Precleaner, NO.1
17730F Bracket, Precleaner, NO.2
17730G Pad, Precleaner
17751 Inlet, Air Cleaner, NO.1
17764 Duct, Air Cleaner
17764C Clamp, Hose(FOR AIR CLEANER DUCT)
17775 Wing, Cyclone
17786 Clamp, Air Cleaner
17801 Element Sub-assy, Air Cleaner Filter
17805 Connector Sub-assy, Intake Air
17841 Gasket, Filter Element
17842 Gasket, Filter Element, NO.2
17843 Gasket, Filter Element, NO.3
17845 Gasket, Air Cleaner Cap
17848 Gasket, Air Cleaner TO Carburetor
17851 Bracket, Air Cleaner Support
17852 Bracket, Air Creaner Support, NO.2
17861 Connector, Intake Air
17875 Pipe, Intake Air Connector
17875A Gasket, Intake Pipe
17881 Hose, Air Cleaner, NO.1
17881A Clamp(FOR AIR CLEANER HOSE, NO.1)
17882 Hose, Air Cleaner, NO.2
17882A Clamp(FOR AIR CLEANER HOSE, NO.2)
17883 Hose, Air Cleaner, NO.3
17883A Clamp(FOR AIR CLEANER HOSE, NO.3)
17884 Hose, Air Cleaner, NO.4
17884A Clamp(FOR AIR CLEANER HOSE, NO.4)
17885 Pipe, Air Cleaner
17891 Clamp(FOR HOT AIR HOSE)
17893 Resonator, Intake Air
17911 Duct, Cool Air Intake, NO.1
17911C Clamp, Cool Air Intake Duct, NO.1
17912 Duct, Cool Air Intake, NO.2
PNC is the six-character part-group number the factory catalogue files parts under. Every part on a drawing belongs to one.
